Aquorea LED Intensity Versus Beam Angle

The following plots illustrate the LED intensity and light coverage of the Aquorea at various beam angles ranging from 0°-80°.

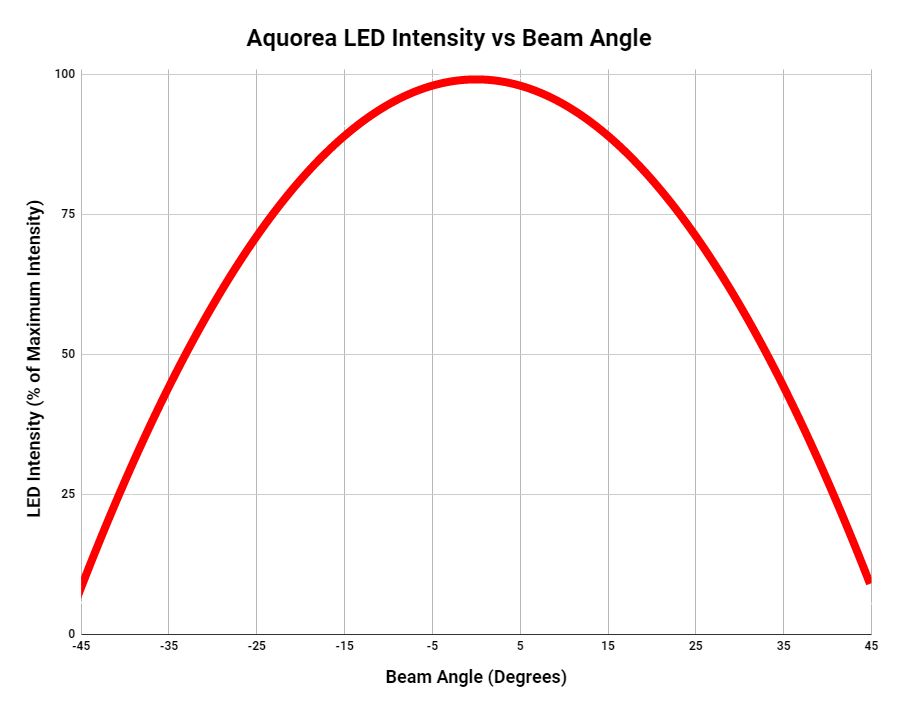

The intensity plot on the left shows the LED intensity as a percentage of the maximum intensity measured for the Aquorea.

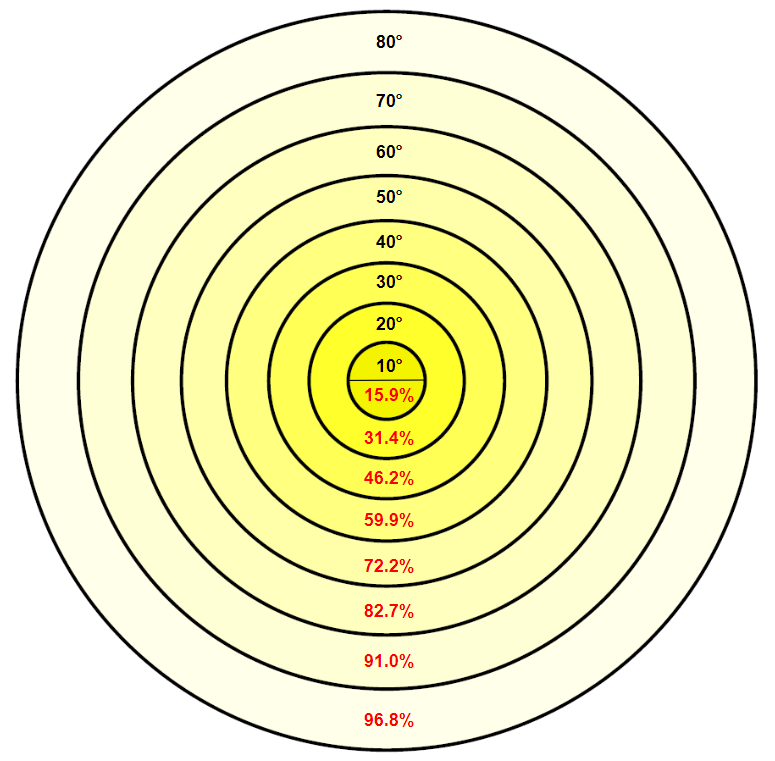

The figure on the right shows the percentage of the total light output of the Aquorea that is contained within each beam angle. Ex. 60° circular beam contains 82.7% of the total light output of the LED.
