Battery-259-6000-MCBH3F-Starter
Deep-water Lithium Module with Starter Plug
Electrical
Voltage: 25.9, 29.4 (peak), 17.5 (cut-off)
Capacity: 10000mAh (259 watt-hours)
Type: Lithium Ion
Protection: Over charge (>29.6 V)
Over discharge (<17.5 V)
Over drain (>10 Amp)
Short circuits
Ampacity: 4.9 A (Continuous)
Estimated charge time: 5 hours
Mechanical
Depth Rating: 6000m
Housing: Titanium
Weight: 5.4kg in Air, 3kg in Water

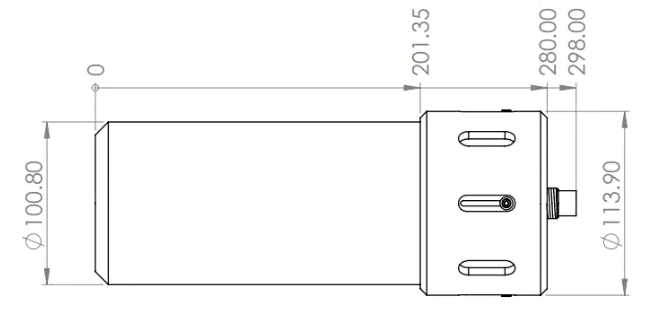

Dimensions: 298mm x Ø113.9mm
When the starter plug is connected to the MCBH5F power is enabled to Pin 2 of the MCBH3F.
Pin | MC-BH-3F Ti (Bulkhead #1) | MC-BH-5F Ti (Bulkhead #2) |
1 | GND | N/C |
2 | PWR | N/C |
3 | CHARGE | N/C |
4 |
| Enable |
5 |
| Enable |
Additional Information
Includes a battery charger with attached MCIL3M whip.
This module has passed the UN38.3 test, making it eligible to ship via cargo plane.
Enables stand-alone operation of equipment in deep-water usage.
Ideal for use with SubC cameras and can also be used with other underwater sensors.
