Laser Classification Information

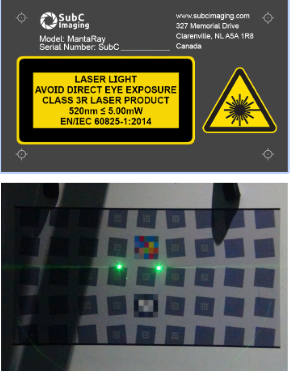

All MantaRay models are designated as Class 3R during all procedures of operation.
![image-20240206-130306.png](../../__attachments/2396848249/image-20240206-130306.png?inst-v=a6737fad-2710-4d08-8f38-dc71f7bbeda5)
Class 3R
Radiation in this class is considered low risk but potentially hazardous. The class limit for 3R is 5x the applicable class limit for Class 2 (for visible radiation).
Laser Parameter
Wavelength: 520 ±10 nm (Green)
Laser power for classification: ≤5.00 mW
Emission Type: CW
Beam Size at aperture: < 2.9mm x 1.3mm
Beam Divergence (Full Angle):
(In Water) ≤0.36 mRad
(In Air) ≤0.5 mRad
Focus Distance: Collimated
