Aquorea-Trench-LED-11Km - Datasheet

Hybrid strobe and lamp | Plug-and-play with subsea cameras

Special order configuration. Extended lead time for 11Km rated components.

The Aquorea White LED (11Km depth rating) is a high-efficiency subsea lighting solution for deep ocean trenches. This versatile device functions as both a lamp and a strobe. When taking a photo, the LED’s activation time is tightly synchronized with the camera sensor exposure time to ensure the video stream is uninterrupted while collecting photos. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.

Light Specifications

Lamp Output

Up to 15000 Lumens

Colour

5000K

Beam Angle

80˚ (circular)

Strobe Output

32000+ Lumens

Reaction Speed

Approx. 190 Microseconds

Electrical

Efficiency

180 Lumen/Watt @ 15˚C water

Protection

Short Circuit, UV-OV-RV, ESD, OT

Thermal Protection

Auto Dim/Shutoff

Control

Serial RS-485

Strobe

TTL 5V (active high)

Power

18 - 32 Vdc / 48 - 120 Watts

Mechanical

Min./Max. Temperature

-10˚C - +20˚C in water

Materials

Glass, ABS

Weight

10.21Kg (in air) | 2.90Kg (in water)

Depth Rating

11000m

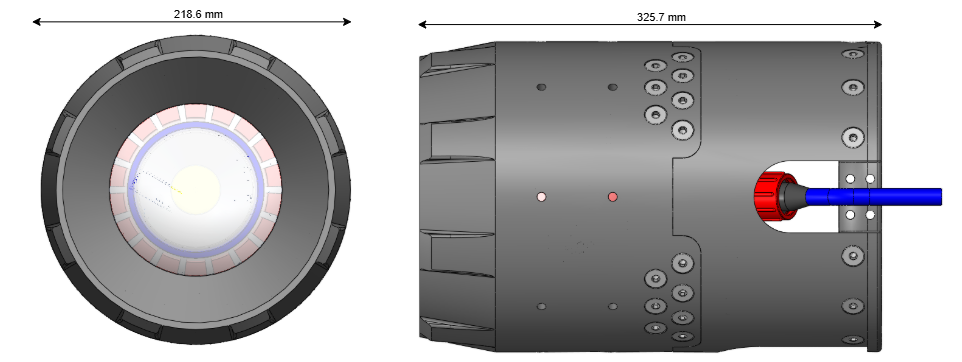

Dimensions

Ø 218.6mm | 325.7mm

WARNING: Not designed for manned submersibles. Remotely operated or robotic vehicles only.

Pin#

BH5M (Ti) + DLSA-F

1

GND

2

PWR

3

Strobe enable

4

RS-485 B(+)

5

RS-485 A(-)
