Aquorea-White-LED-AUV1 - Datasheet

Hybrid strobe and lamp | Plug-and-play with subsea cameras

Special order configuration. Design modifications may be needed per each AUV type.

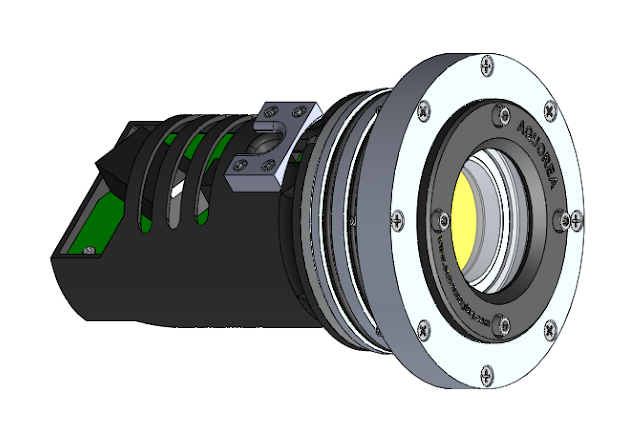

Designed as an AUV payload, this is a high-efficiency, TTL synchronized subsea LED that operates as both a lamp and a strobe. The Aquorea can simultaneously operate as a lamp and strobe. When taking a photo, the LED’s activation time is tightly synchronized with the camera sensor exposure time to ensure the video stream is uninterrupted while collecting photos. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.


Light Specifications

Lamp Output

Up to 15000 Lumens

Colour

5000K

Beam Angle

80˚ (circular)

Strobe Output

32000+ Lumens

Reaction Speed

Approx. 190 Microseconds

Electrical

Efficiency

180 Lumen/Watt @ 15˚C water

Protection

Short Circuit, UV-OV-RV, ESD, OT

Thermal Protection

Auto Dim/Shutoff

Control

Serial RS-485

Strobe

TTL 5V (active high)

Power

18 - 32 Vdc / 48 - 120 Watts

Mechanical

Min./Max. Temperature

-10˚C - +20˚C in water

Materials

Anodized 6061-T6 Aluminium, Delrin, Sapphire

Weight

907 g (including harnesses)

Depth Rating

300m

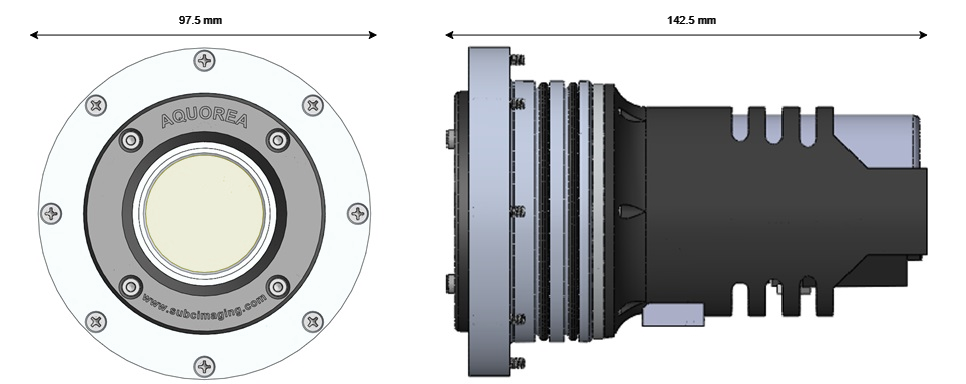

Aquorea Graaltech.drawio.png

#

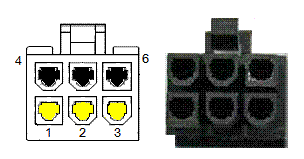

ATX 6-Pin

Part No. 794954-6

Power

Bare wire

1

GND


GND

2

PWR

PWR

3

Strobe enable

4

RS-485 B(+)

5

RS-485 A(-)

6

NC 1

  1. Not connected
