Rayfin-Mk2-BPC-500-MCBH2-LO

Sensor and Lens

Lens and Optics

Water-corrected, scratch-resistant sapphire LiquidOptics^TM

Angle of View (in water)

81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion

Sensor

Type 1/2.3" CMOS 12-bit

Image Size

12.3MP - 4056 x 3040

Exposure Range

Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200

Zoom

Digital (5x Optical zoom equivalent)

Aperture, Focal Length, Range

f/2.0 | 4.52mm | 15cm to infinity

Data Formatting

Ethernet Video and Latency

RTSP H.264: 1080p, 720p | 180 - 225ms (1080p)

Rapid Digital Imaging (RDI)

Continuous Stills

Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)

Media Transfer

Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.

Media Formats

Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV

Control

Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software

Data Logging

NMEA 0183 & 2000 format @ 10Hz

Clock Sources

NTP Server, Time from Data string

Electrical and Mechanical

Aux Ports

Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices

Voltage

37 - 82 Vdc

Power

11W (idle) - 12W (recording) - 18W (peak)

Protection

Short circuit | Under-Over voltage | ESD | Over-temperature

Temperature

-20˚C to +30˚C (in water)

Depth Rating

500m

Materials

Sapphire, Anodized Aluminium

Weight

0.8kg in water | 2.4kg in air

Dimensions

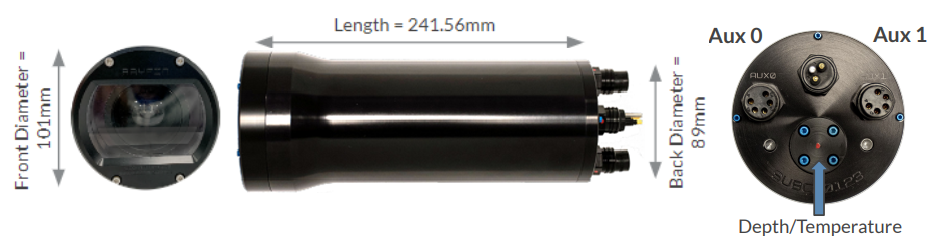

Ø 101mm | 241.56mm x 89mm

Depth and Temperature Sensor

Pressure Accuracy

50 BAR ±0.15 %FS

Temperature Accuracy

0-50C ±0.15 %FS

Stability

±0.15 %FS

TEB

±0.7 %FS

#

MCBH2M (Alu)

BPC[Power and data]

MCBH5F (Alu)

[AUX0 Port]

MCBH5F (Alu)

[AUX1 Port]

1

GND + BPC Data

GND

GND

2

75 VDC + BPC Data

PWR Out (29.8 VDC)

PWR Out (29.8 VDC)

3

AUX0 Out

AUX1 Out

4

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

5

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)
