Rayfin-Mk2-Micro-HDE-500-DLPBH9M-LO

Small form factor, Ethernet HD video & comms, Digital Stills, HD and 4K, Data logging

Sensor and Lens	Lens and Optics		Water-corrected, scratch-resistant sapphire LiquidOptics^TM
	Angle of View (in water)		81° diagonal \| 71° horizontal \| 57° vertical \| less than 3.4% distortion
	Image Sensor		12.3MP \| 4056 x 3040 pixels \| 12-bit CMOS
	Exposure Range		Shutter Speed 1/30 to 1/65000 \| ISO 50 to 3200
	Zoom		Digital (5x Optical zoom equivalent)
	Aperture, Focal Length, Range		f/2.0 \| 4.52mm \| 15cm to infinity
Data Formatting	Ethernet Video and Latency		RTSP H.265 and H.264 \| 1080p, 720p, UHD 4K \| 180 - 225ms (1080p)
	Rapid Digital Imaging (RDI)	Continuous Stills	Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)
		Media Transfer	Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.
	Media Formats		Video - MPEG4, H.264, H.265 \| Stills - JPEG \| Data - CSV
	Control		Over Ethernet with provided SubC software \| Rayfin API is available for 3rd party software
	Data Logging		NMEA 0183 & 2000 format @ 10Hz
	Clock Sources		NTP Server, Time from Data string
Electrical and Mechanical	Main Port		Gigabit Ethernet \| Power
	Aux Ports		Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices
	Voltage and Maximum Power		12 - 32.5 Vdc @ 12Watts
	Protection		Short circuit \| Under-over voltage \| ESD \| Over-temperature
	Temperature		-20˚C to +30˚C (in water)
	Depth Rating		500m
	Materials		Anodized 6061-T6 Aluminium, Delrin, Sapphire
	Weight		0.46kg (in water) \| 1.07kg (in air)

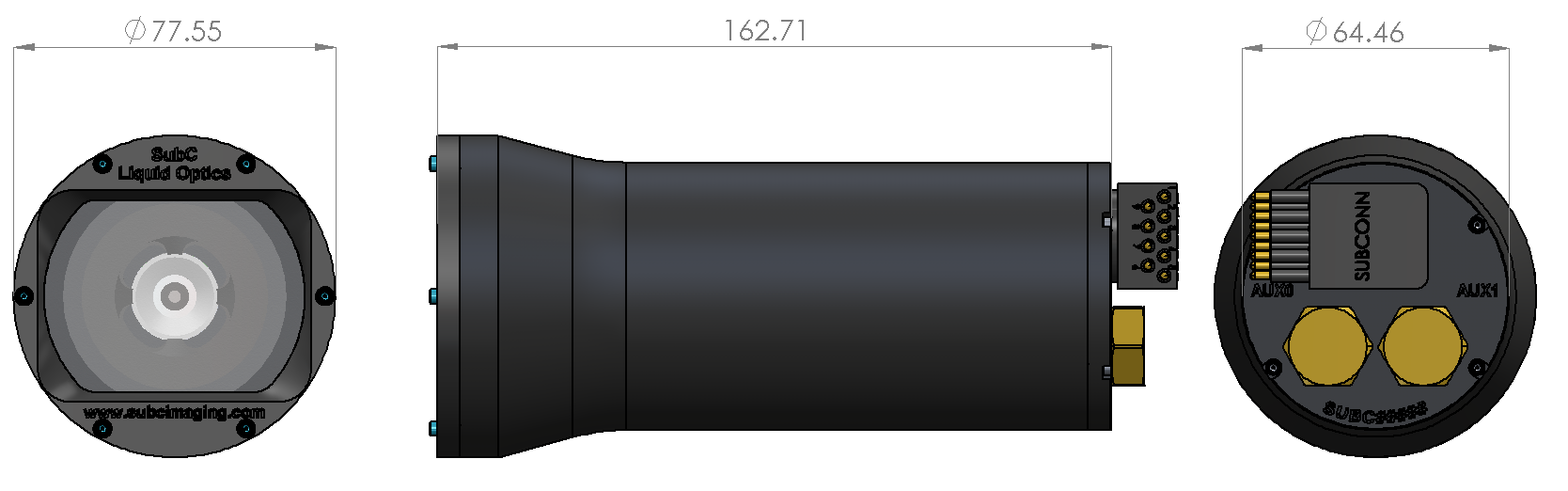

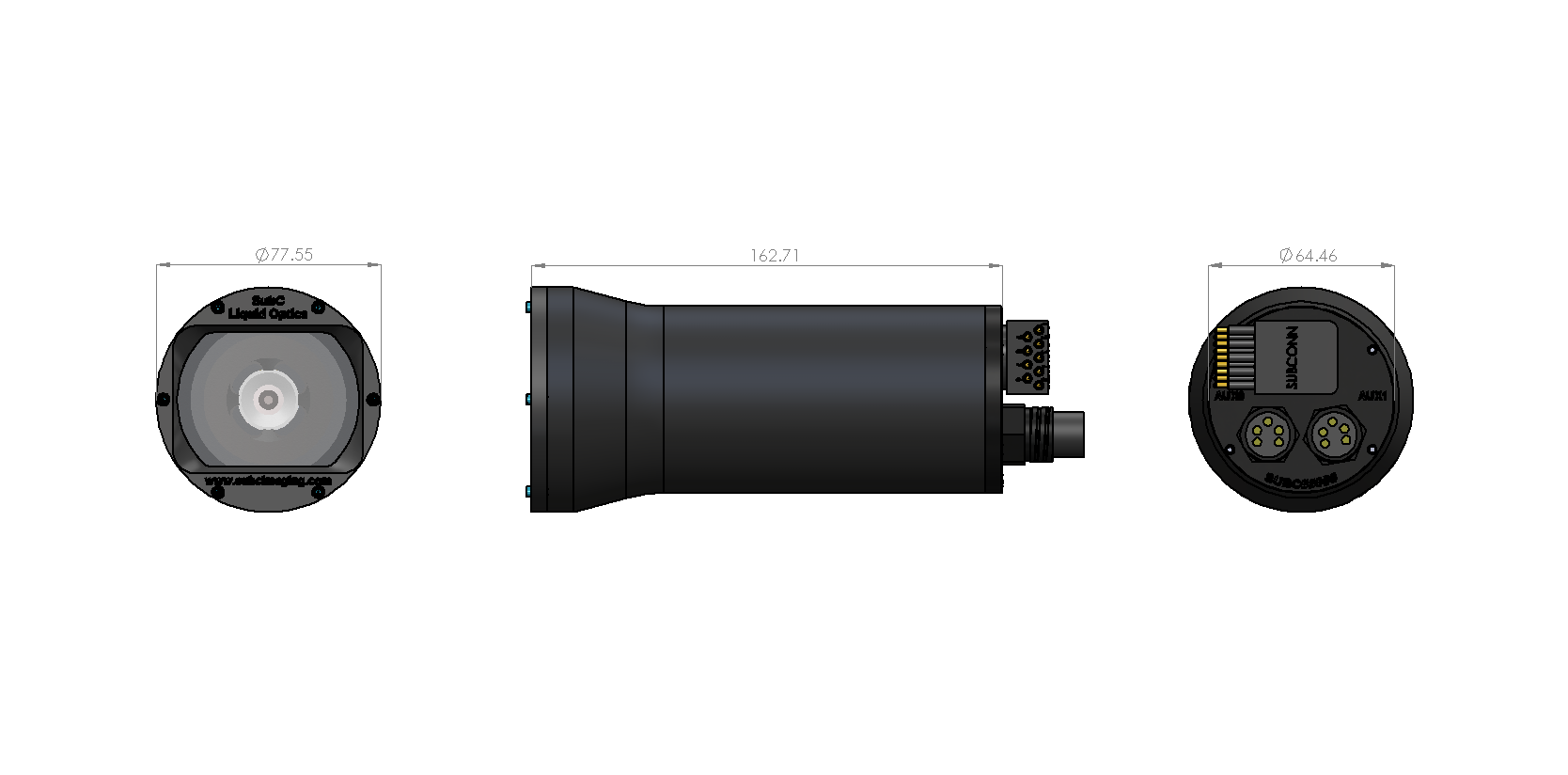

	Dimensions		Ø 77.5 \| 165mm x 64.5mm

Pin #	DLPBH9M + DLPIL9F + LPA Strap [IP video, control and data]
1	(Brown) GND
2	(Brown/White) PWR
3	(Blue) NC
4	(Blue/White) NC
5	(Orange) DA- [10/100]
6	(Orange/White) DA+ [10/100]
7	(Green) DB- [10/100]
8	(Green/White) DB+ [10/100]
9	(Screen: Black wire on bulkhead) NC
		SubC bulkheads are wired to Ethernet B standard In-line cable part number for Ethernet bulkhead: DLPIL9F + LPA Strap

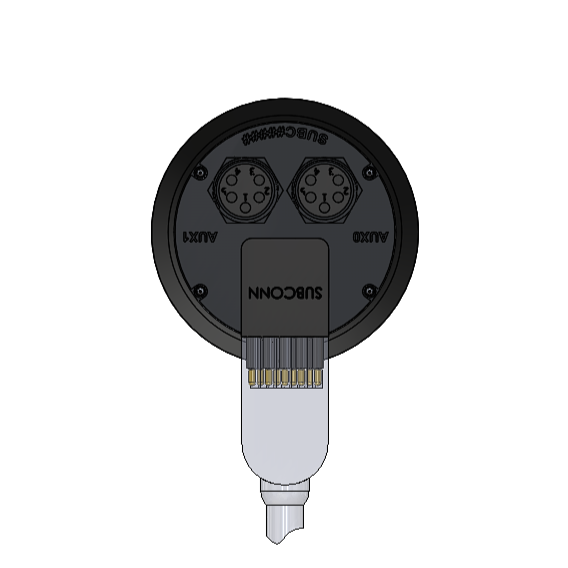

AUX 0 and AUX 1 can be used to install MCBH connectors.

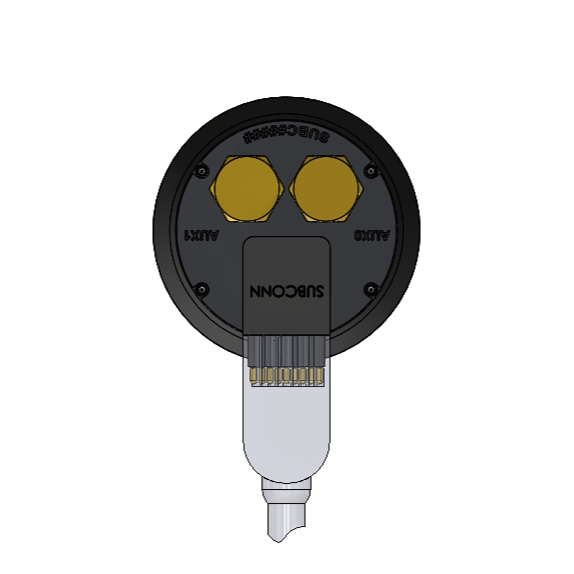

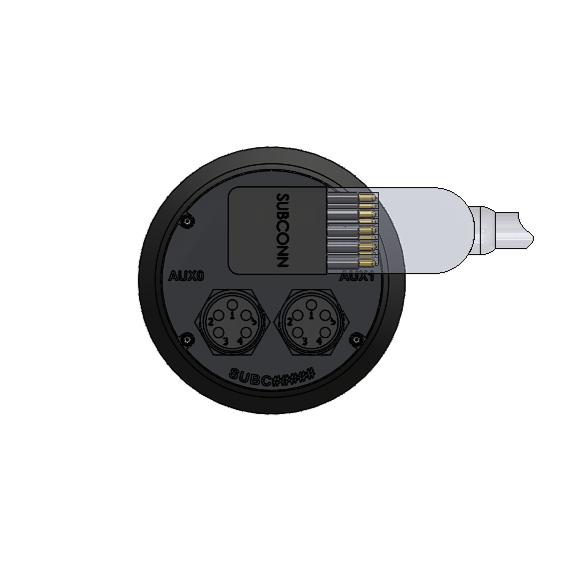

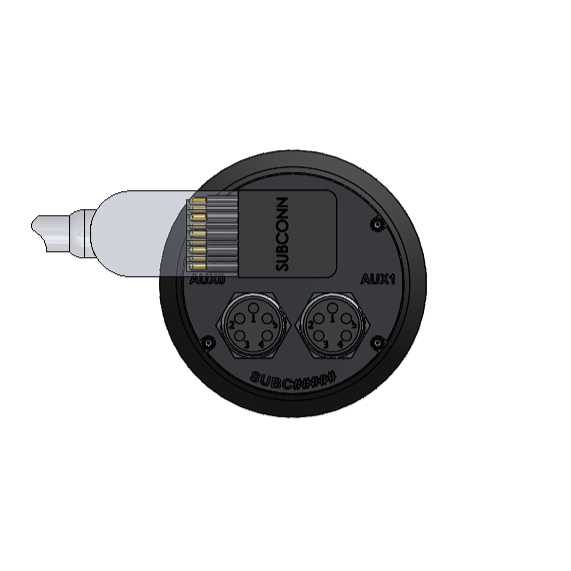

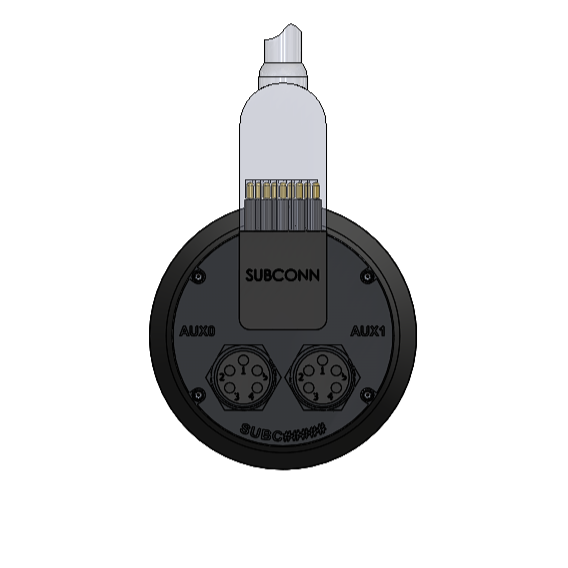

Ethernet Bulkhead Installation Configurations

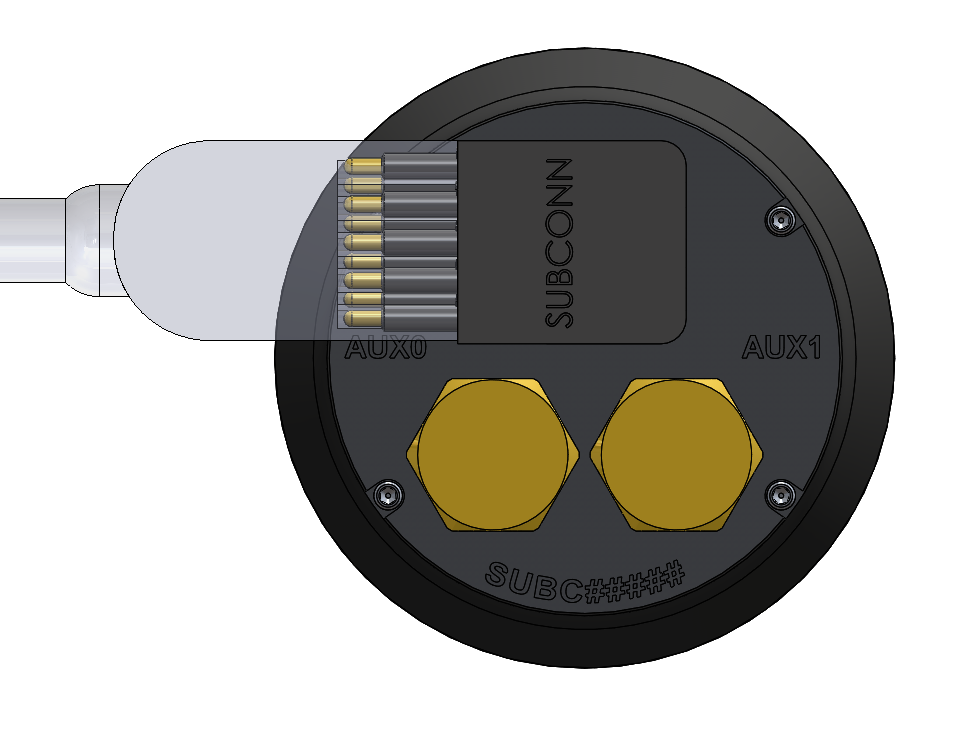

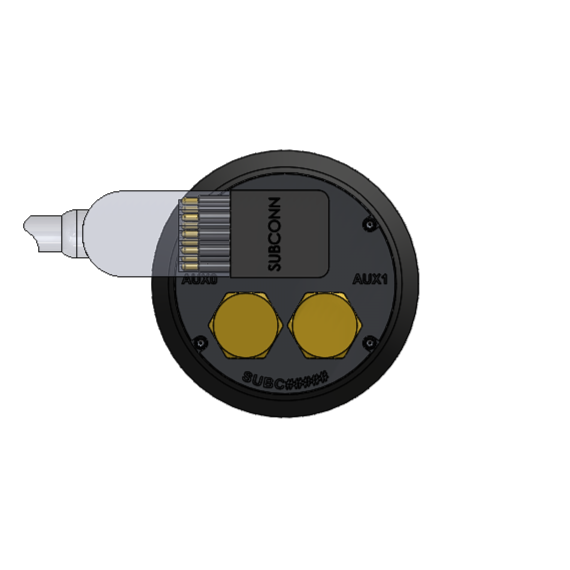

Configuration A

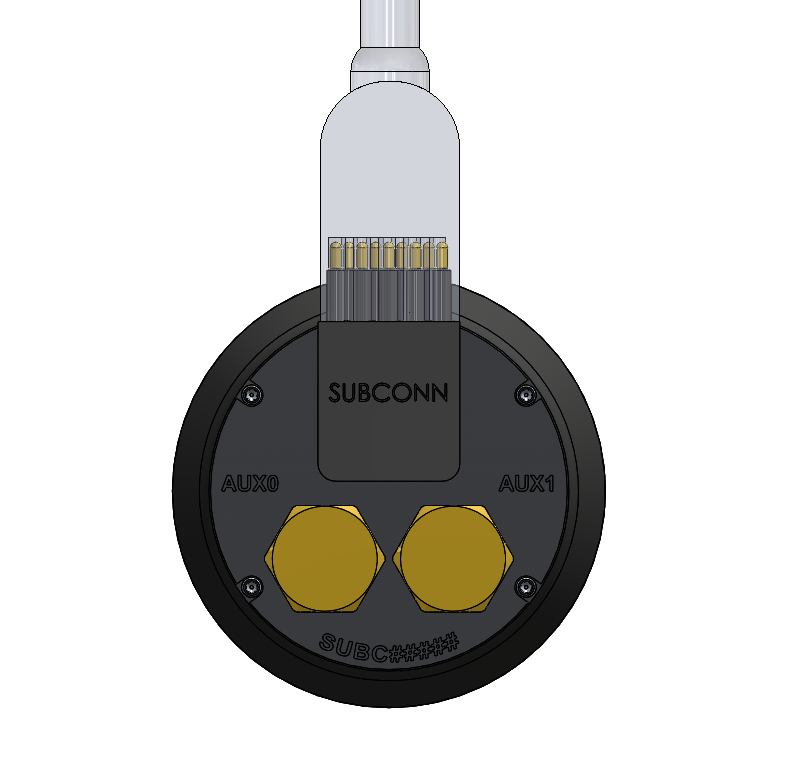

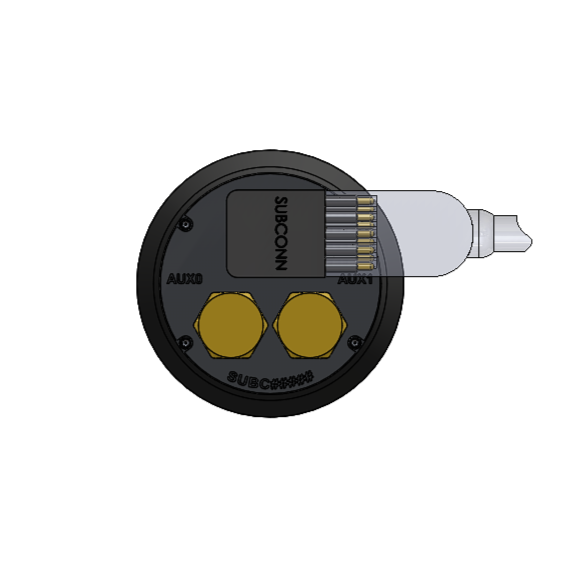

Configuration B

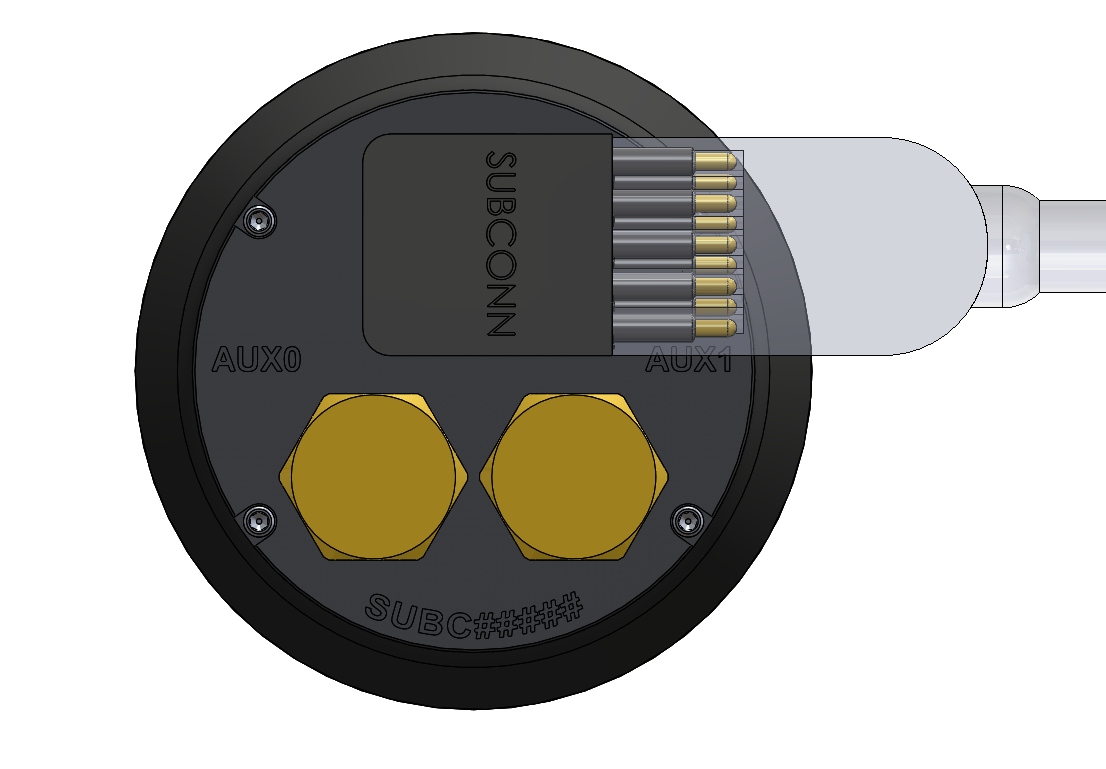

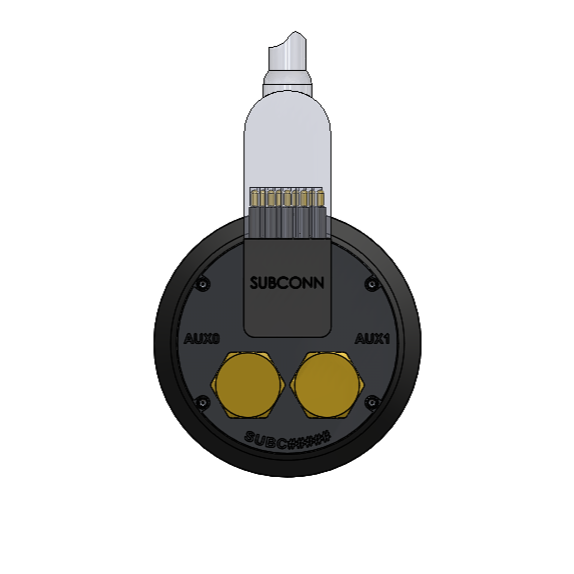

Configuration C
