Rayfin-Trench-HDE-11Km-DP - Datasheet

11 km depth rating, Ethernet HD video & comms, Digital Stills, HD and 4K, Data logging

Special order configuration. Extended lead time for 11Km rated components.

Sensor and Lens

Lens and Optics

Glass Dome Port

Angle of View (in water)

81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion

Image Sensor

12.3MP | 4056 x 3040 pixels | 12-bit CMOS

Exposure Range

Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200

Zoom

Digital (5x Optical zoom equivalent)

Aperture, Focal Length, Range

f/2.0 | 4.52mm | 15cm to infinity

Data Formatting

Ethernet Video and Latency

RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p)

Rapid Digital Imaging (RDI)

Continuous Stills

Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)

Media Transfer

Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.

Media Formats

Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV

Control

Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software

Data Logging

NMEA 0183 & 2000 format @ 10Hz

Clock Sources

NTP Server, Time from Data string

Electrical and Mechanical

Aux Port

Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices

Voltage and Maximum Power

12 - 32.5 Vdc @ 12Watts

Protection

Short circuit | Under-over voltage | ESD | Over-temperature

Temperature

-20˚C to +30˚C (in water)

Depth Rating

11000m

Materials

ABS, Glass

Weight

10.06Kg (in air) | 2.84Kg (in water)

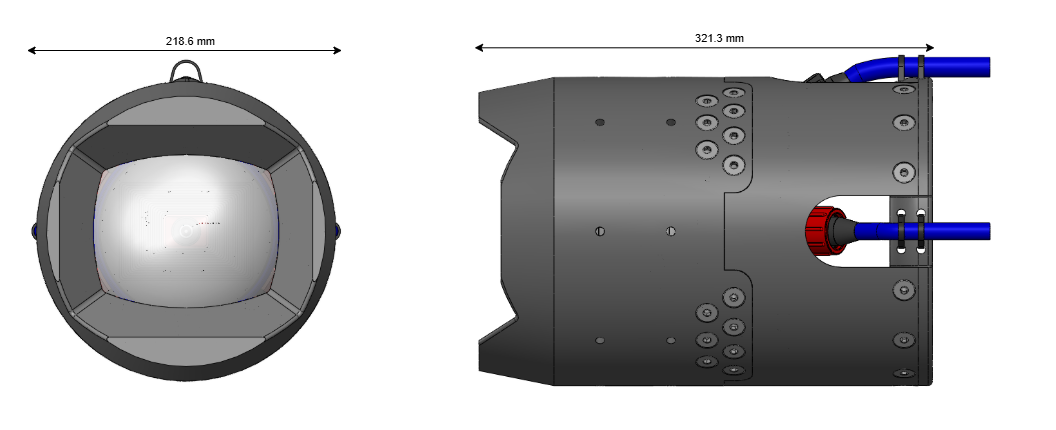

Dimensions

Ø 218.6mm | 321.3mm

Storage

Internal Storage Options

512 GB | 1 TB | 2TB

WARNING: Not designed for manned submersibles. Remotely operated or robotic systems only.

#

DBCR2013M (Ti)

[IP video, control, and data]

BH5F (Ti) + DLSA-F

[AUX0 Port]

BH5F (Ti) + DLSA-F

[AUX1 Port]

1

GND

GND

GND

2

Iso GND (Shield)

(NC on system end)

PWR

PWR

3

PWR

AUX0 Out

AUX1 Out

4

(Brown) DD- [GigE]

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

5

(White/Brown) DD+ [GigE]

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)

6

(Blue) DC+ [GigE]

  • SubC bulkheads are wired to Ethernet B standard.

  • The 13-pin bulkhead is limited to 4A per pin.

  • In-line cable part number for Ethernet bulkhead: DIL13F + DLSA-F

7

(White/Blue) DC- [GigE]

8

(Orange) DA- [10/100]

9

(White/Orange) DA+ [10/100]

10

(Green) DB- [10/100]

11

(White/Green) DB+ [10/100]
