Rayfin-Zoom-HDE-6000-DBH13-FP - Datasheet

20x Optical Zoom, Ethernet HD & 4K video & comms, Digital Stills

Non-stock, special order. For specific applications only, see disclaimer below.

Sensor and Lens

Optics

Scratch-resistant Sapphire

Angle of View (in water)

61.2˚ min. diagonal | 50.7˚ min. horizontal | 38.0˚ min. vertical

Image Sensor

12.3MP | 4056 x 3040 pixels | 12-bit CMOS

Exposure Range

Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200

Zoom

20x Optical Zoom

Aperture, Focal Length, Range

f/2.0 | 4.4mm to 88mm | 0.5m @ 1x / 1.0m @ 10x / 1.5m @ 20x

Data Formatting

Ethernet Video and Latency

RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p)

Rapid Digital Imaging (RDI)

Continuous Stills

Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)

Media Transfer

Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.

Media Formats

Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV

Control

Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software

Data Logging

NMEA 0183 & 2000 format @ 10Hz

Clock Sources

NTP Server, Time from Data string

Electrical and Mechanical

Aux Ports

Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices

Voltage and Maximum Power

16.5 - 32.5 Vdc @ 13.5Watts

Protection

Short circuit | Under-over voltage | ESD | Over-temperature

Temperature

-20˚C to +30˚C (in water)

Depth Rating

6000m

Materials

Grade 5 Titanium, Sapphire

Weight

2.2kg in water, 3.8kg in air

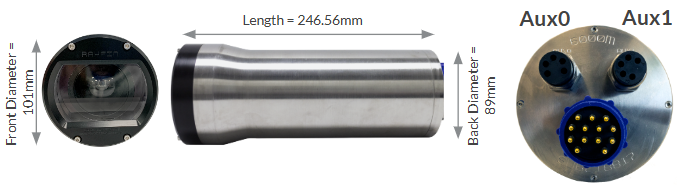

Dimensions

Ø 101 | 246.56mm x 89mm

Storage

Internal Storage Options

512 GB | 1 TB | 2TB


#

DBH13M + DLSA-M (Ti)

[IP video, control, and data]

MCBH5F (Ti)

[AUX0 Port]

MCBH5F (Ti)

[AUX1 Port]

1

GND

GND

GND

2

Iso GND (Shield)

(NC on system end)

PWR

PWR

3

PWR

AUX0 Out

AUX1 Out

4

(Brown) DD- [GigE]

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

5

(White/Brown) DD+ [GigE]

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)

6

(Blue) DC+ [GigE]

  • SubC bulkheads are wired to Ethernet B standard.

  • 13 pin bulkhead is limited to 4A per pin.

  • In-line cable part number for Ethernet bulkhead: DIL13F + DLSA-F

7

(White/Blue) DC- [GigE]

8

(Orange) DA- [10/100]

9

(White/Orange) DA+ [10/100]

10

(Green) DB- [10/100]

11

(White/Green) DB+ [10/100]

Disclaimer: Please note that due to a lens shading issue, colors may appear more intense toward the center of the frame in both photos and videos. This visual effect is illustrated in the three sample images below, each taken with a red, blue, or green filter in front of a white wall. These images are provided for visual comparison only.

2025-05-20 - 084501.jpg

2025-05-20 - 084513.jpg
2025-05-20 - 084445.jpg
