Grid Laser Specifications Pattern Information

Pattern Angles (In Water):

Pattern Size in Water (1000mm)

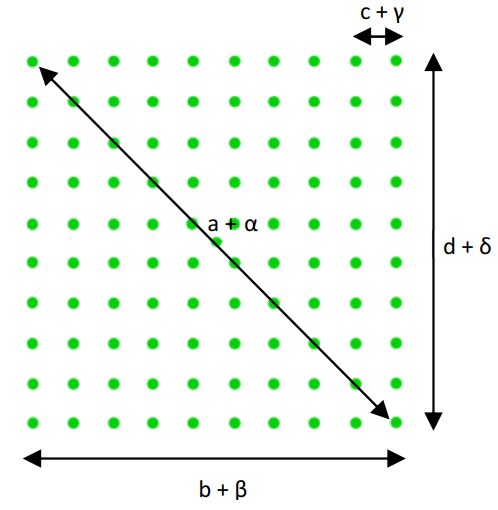

Pattern Angles

(Degrees)

a = 300mm

α = 17.1°

b = 212mm

β = 12.1°

c = 24mm

γ = 1.3°

d = 212mm

δ = 12.1°
