Skate Mk2 Quickstart (With Rayfin)

Required Components

Skate Mk2

MCIL5 Cable

Rayfin Camera & Peripherals

Windows PC with Rayfin Control Software

Always review Laser Safety Precautions and wear laser safety glasses when working with lasers. Review datasheet for laser specifications.

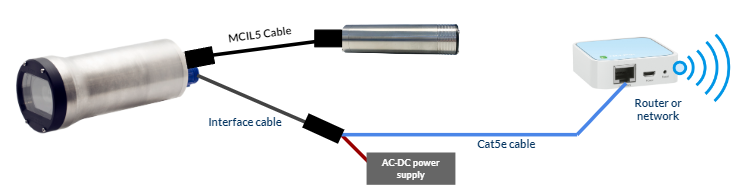

Setup Steps (Standalone)

  1. Plug the female side of a MCIL5 cable into the Skate Mk2.

  2. Plug the males side of the cable into a Rayfin aux port.

  3. Connect to the Rayfin through the Rayfin Control Software (RCS).

  4. Set the appropriate aux port to a TTL Laser device.

  5. Control the laser with the RCS or Rayfin API
