Electrical Power Profile
Test setup 1:
No LED connected. Ethernet control. Video over composite
Condition Average Power (W) Peak Power (W) Peak Current (A) @ 24v
Idle 7.80 9.1 0.38
Recording 7.91 13.56 0.565
Burst Mode 7.59 8.40 0.35
Test setup 2:
Aquorea Mk3 LED connected to Aux0. Lamp output set to 100%. LED power limit set to 48W.
Ethernet control. Video over composite.
Condition Average Power (W) Peak Power (W) Peak Current (A) @ 24v
Idle 55.80 57.10 2.38
Recording 55.91 61.56 2.57
Burst Mode 55.59 56.40 2.35
Optional: The Rayfin has an optional built-in Uninterruptible Power Supply (UPS) which has the following benefits:
Saves from requiring reboot in case of faulty system power
Buffering from system current surges
Provides time for the system to save videos, so they don't become corrupted

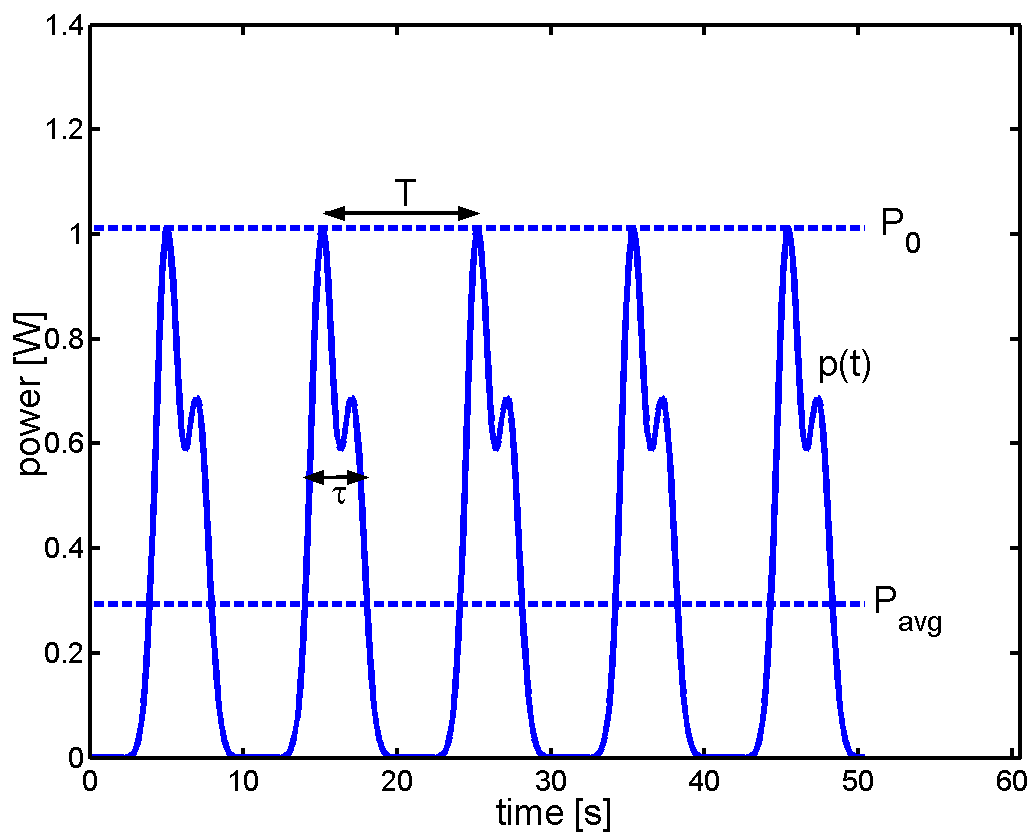

Example of peak vs average power
