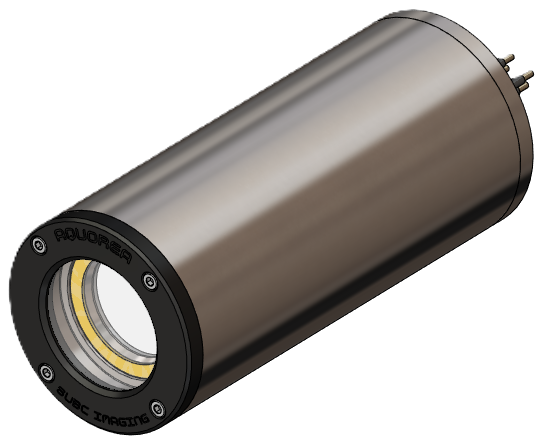

A high-efficiency, TTL synchronized subsea LED that operates as both a lamp and a strobe. It can be integrated into subsea ROV, observatory, drop, tow, and battery-deployed camera systems.
Available at two depth ratings, the Aquorea can simultaneously operate as a lamp and strobe. When taking a photo, the LED’s activation time is tightly synchronized with the camera sensor exposure time to ensure the video stream is un-interrupted while collecting photos. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin Camera.
|
Specifications |
6000m |
|
|
Light Specs |
Lamp Output |
Up to 15000 Lumens |
|
Color |
5000K |
|
|
Beam Angle |
80˚ (circular) |
|
|
Strobe Output |
32000+ Lumens |
|
|
Reaction Speed |
Approx. 190 Microseconds |
|
|
Electrical |
Efficiency |
180 Lumen/Watt @ 15˚C water |
|
Protection |
Short Circuit, UV-OV-RV, ESD, OT |
|
|
Thermal Protection |
Auto Dim/Shut off |
|
|
Control |
Serial RS-485 |
|
|
Strobe |
TTL 5V (active high) |
|
|
Power |
18-32 Vdc / 48-120 Watts |
|
|
Mechanical |
Min./Max. Temperature |
-10˚C - +20˚C in water |
|
Materials |
Sapphire, Grade 5 Titanium |
|
|
Weight |
0.9kg in water, 1.5kg in air |
|
|
Depth Rating |
6000m (11,000m option available) |
|
|

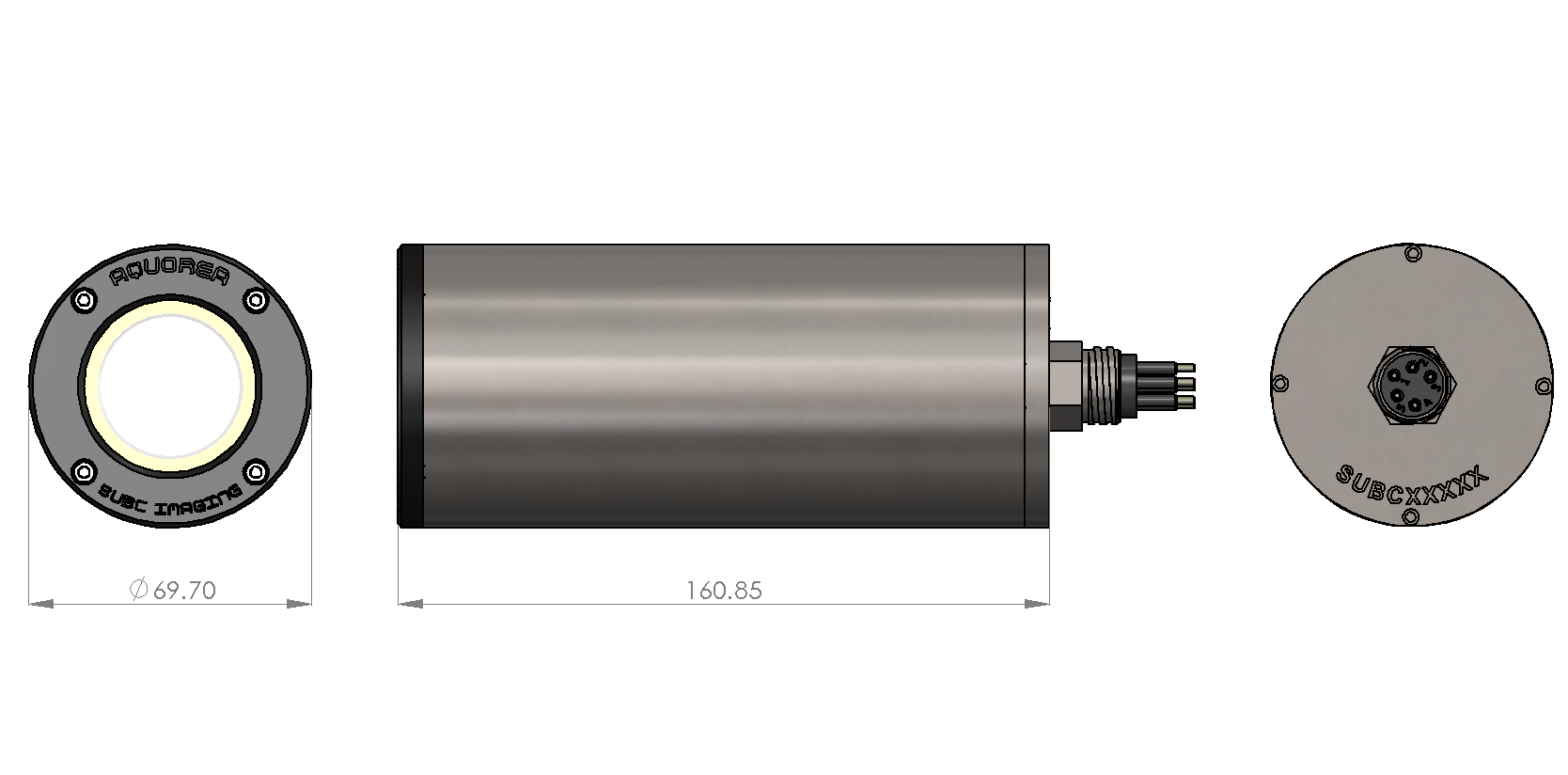

Diameter |
69.70mm |
|
|
Length |
160.85mm |
|
|

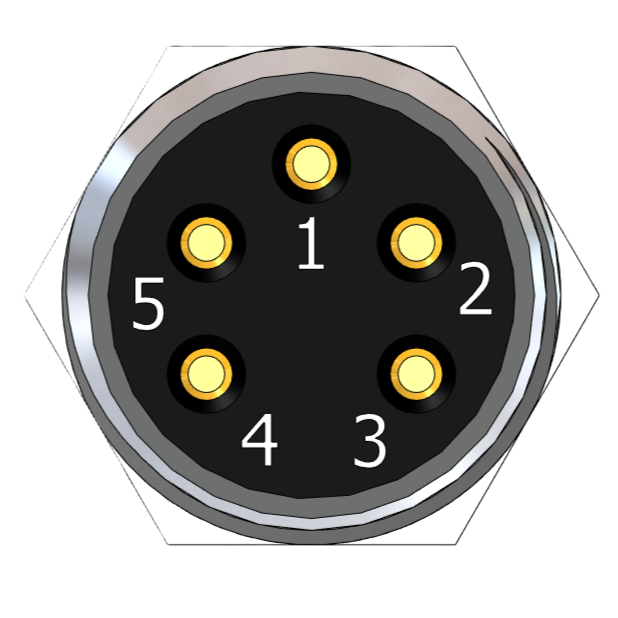

Pin # |
MCBH5M (Titanium) |
|---|---|
|
1 |
GND |
|
2 |
PWR |
|
3 |
Strobe Enable |
|
4 |
RS-485 B(+) |
|
5 |
RS-485 A(-) |
