BPC Unit Datasheet

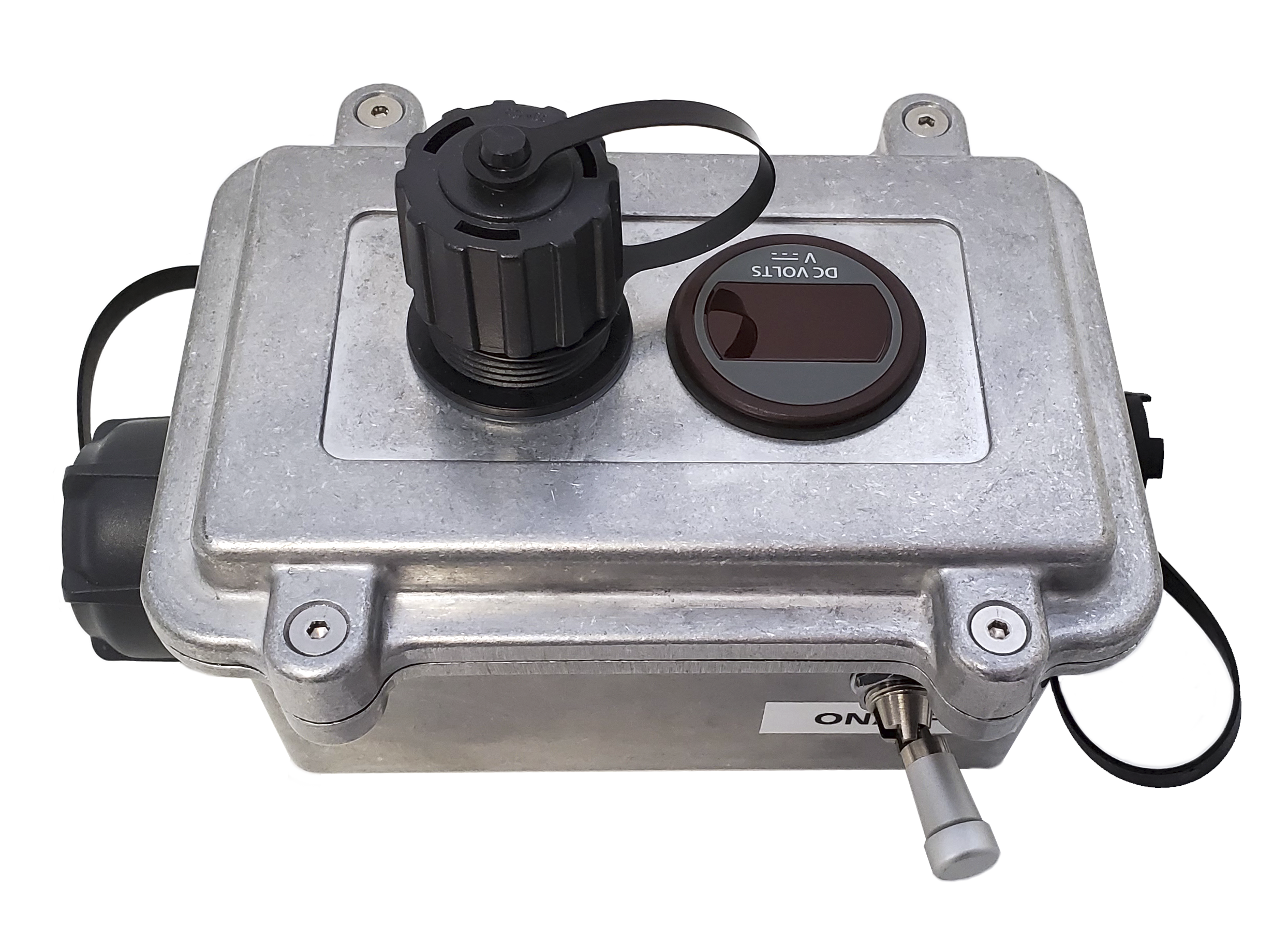

The BPC Unit boosts an input voltage range of 13-39 VDC from the boat or dock power system to 75 VDC, multiplexed with Ethernet. Utilizing a water-resistant module with IP67-rated connectors, power, and signals are transmitted over up to 500 meters of 2-wire twisted-pair cable. Once the signals reach the BPC camera, they are demuxed, providing both communication and power to the camera and all connected sensors.
Live HD Video Streaming: This device connects to a SubC Rayfin BPC camera for real-time video, digital stills, data, power, and communications over a twisted pair.
Remote Control: Controls camera functions remotely through DVR+O SCI software.
Extended Cable Length: Supports transmission over a twisted pair cable up to 500 meters.
Built-In Protection: Includes ESD, over-voltage, and short circuit protection for enhanced durability.
Specification | Value |
|---|---|
Maximum Transfer Speed | Up to 67 Mbit/s (dependent on cable type and length) |
Transmission Distance | 500 meters |
Input Voltage | 13 - 39 VDC |
Output voltage | 75 VDC |
Material | Aluminum |
Weight | 0.84 Kg |
Ambient operating temp | -20°C to 30°C |
Protection | ESD, Over-voltage, Short Circuit |

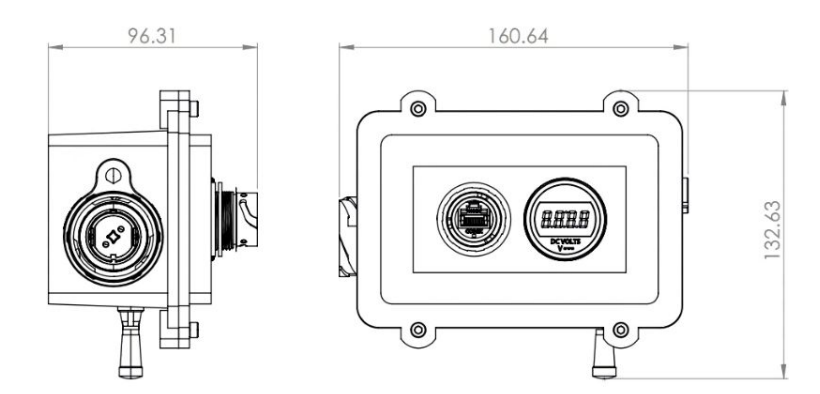

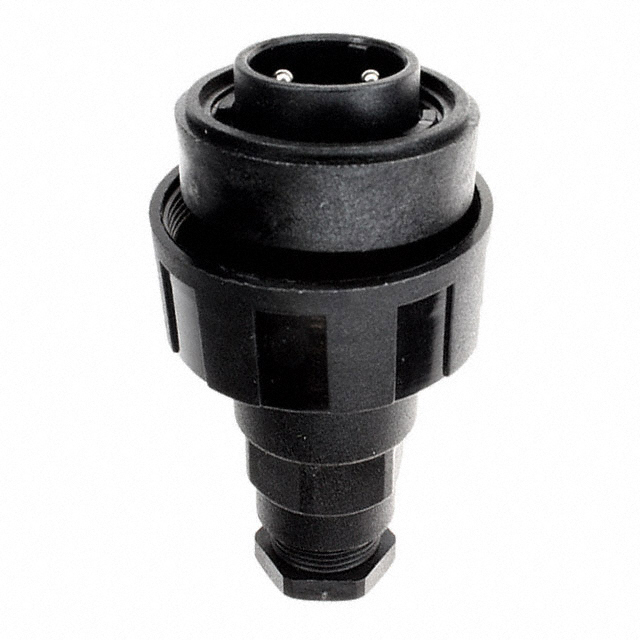

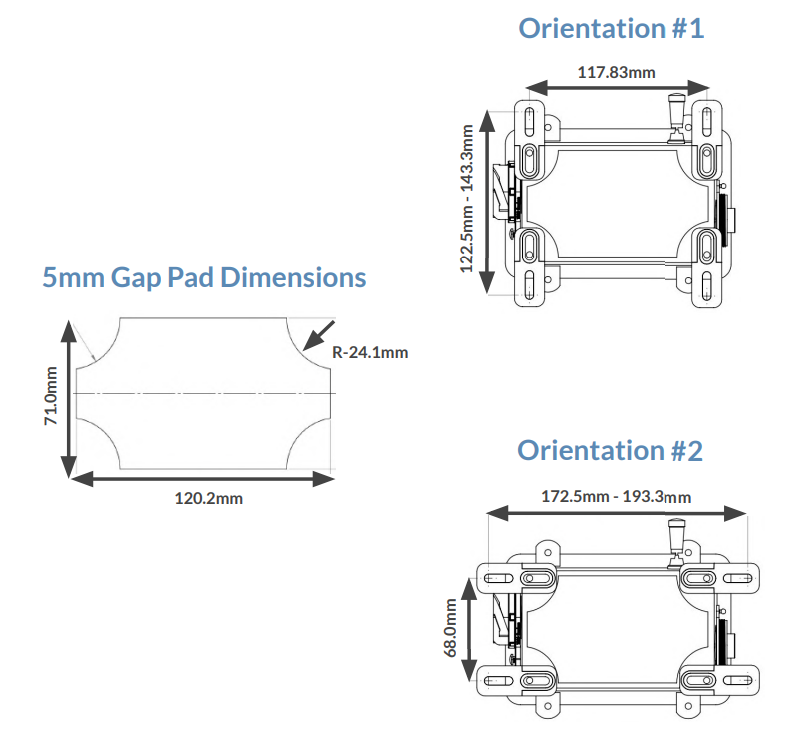

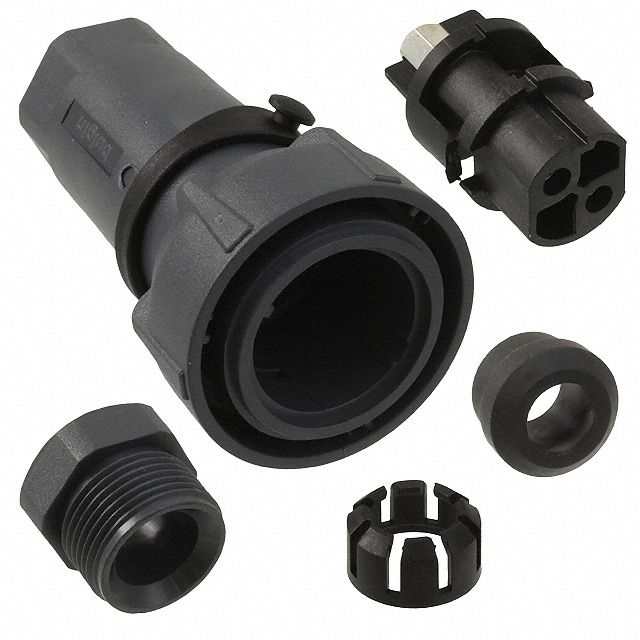

# | Conec 17-10020 100 Base Ethernet Bulkhead | Bulgin PXP7012/02P/ST Input Power Bulkhead | Bulgin PX0735/S BPC Output |
1 | (White/Orange) Rx+ [10/100] | GND | GND + BPC Data |
2 | (Orange) Rx- [10/100] | PWR In 13-39V | 75 VDC + BPC Data |
3 | (White/Green) Tx+ [10/100] |  Plug: PXP7010/02S/ST/0911 |  Plug: PX0736/P |
4 | NC | ||
5 | NC | ||
6 | (Green) TX- [10/100] | ||
7 | NC | ||
8 | NC |
