Datasheets - Rayfin Coastal BPC

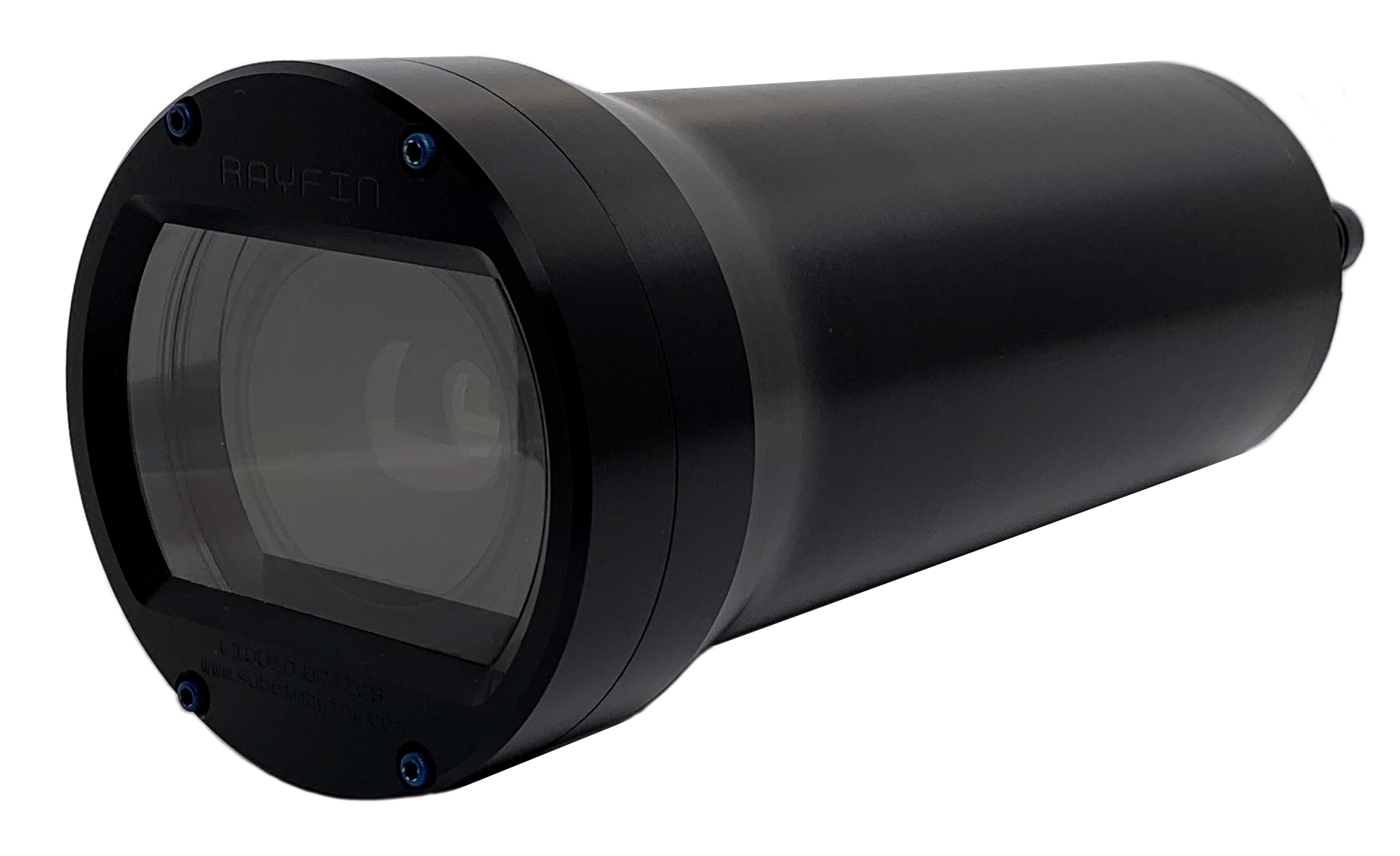

The Rayfin Coastal includes SubC BPC technology for power and data over twisted pair or coax. This enables real-time HD and 4K video, digital stills and data. Designed for drop and tow camera systems, or for unique applications such as river or coastal monitoring. For more information, see the Mk2 Coastal Spec Sheet.

SubC designed Boost-Power Comms (BPC) technology to enable 75v DC power + Ethernet over up to 500m of twisted pair cable. BPC powers the camera, two LEDs, lasers, depth, and other sensors. It can dramatically reduce the cost of cabling for drop and tow systems.

• Rayfin-Mk2-BPC-500-MCBH2-LO - Boost-Power Comms (BPC) over two wires over up to 500m of cable

• Rayfin-Mk2-BPC-6000-MCBH2M-LO - Boost-Power Comms (BPC) over two wires over up to 500m of cable. Titanium housing to prevent any corrosion due to long deployment times.

  • Note: Does not include a depth sensor.

• Rayfin-Mk2-BPC-6000-MCBH2M-LO-Depth Sensor - Boost-Power Comms (BPC) over two wires over up to 500m of cable. Titanium housing to prevent any corrosion due to long deployment times.

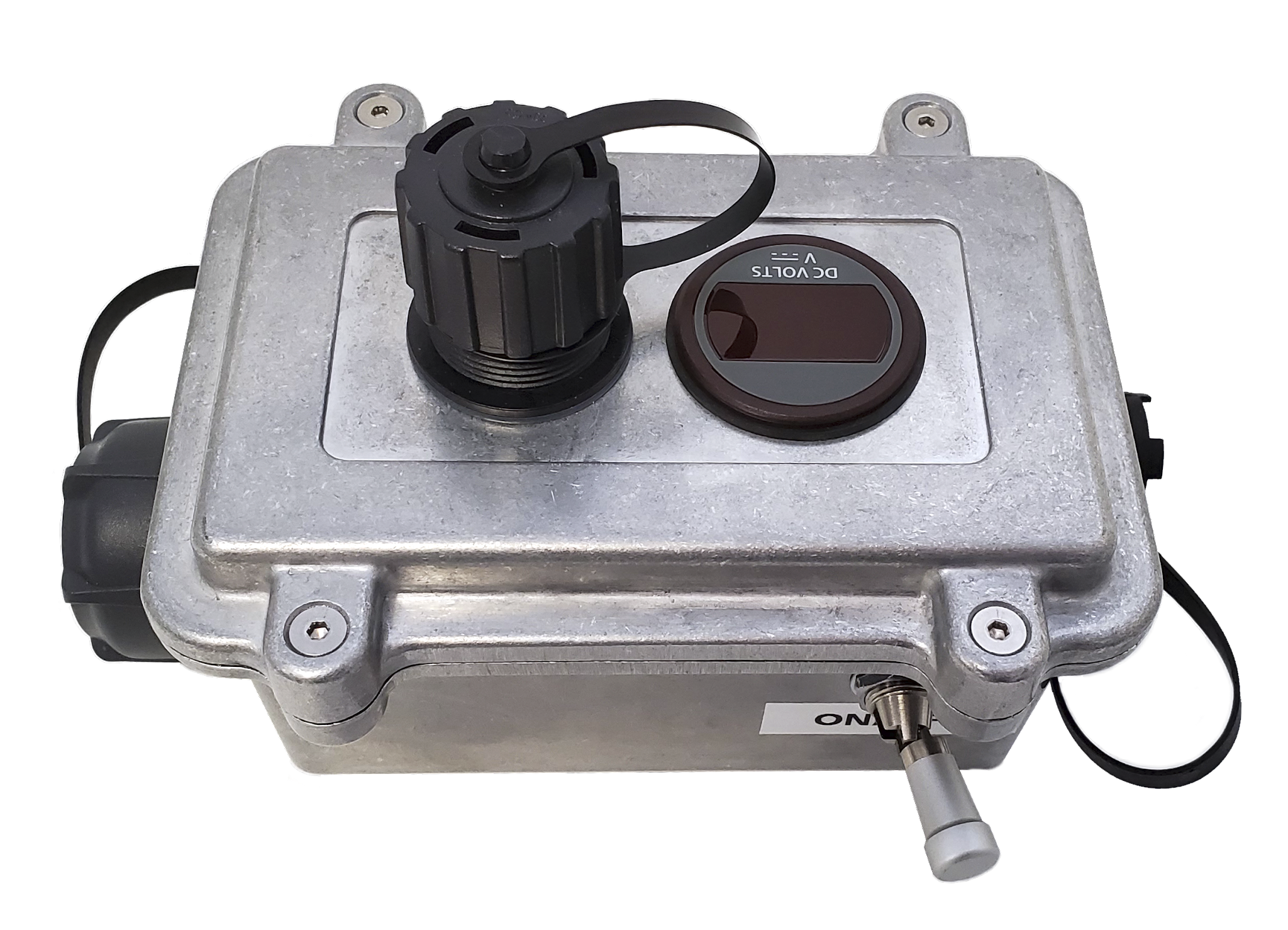

• BPC-Unit-75V - BPC unit, which comes with the above camera
