Datasheets - Rayfin Trench 11000m
The Rayfin Trench delivers all the features of our standard Rayfin Benthic, but can go to the deepest parts of the ocean with a rating of 11000m. Delivering on real-time inspections and surveys for ROV’s, drop systems, battery-powered time-lapse systems, and ocean observatories. The Hibernation option enables timelapse photography with low-power consumption for months to a year of deployment.
Trench SUBC68-DBCR2013M - Standard Subconn DBCR2013M Ethernet Bulkhead, Live HD video, control, and media are transferred over 10/100 Ethernet.
Hibernate Trench SUBC68-DBCR2013M - Hibernation Option with low power mode for long term deployments. Standard Subconn DBCR2013M Ethernet Bulkhead, Live HD video, control, and media are transferred over 10/100 Ethernet.
Block Diagram Examples

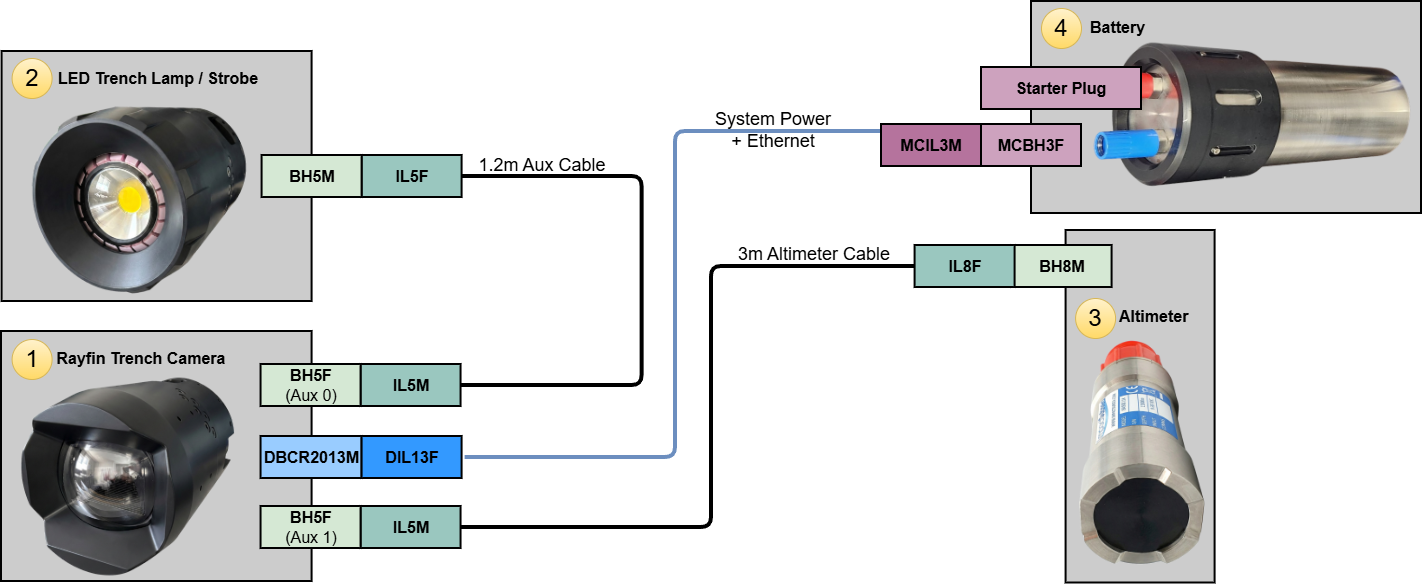

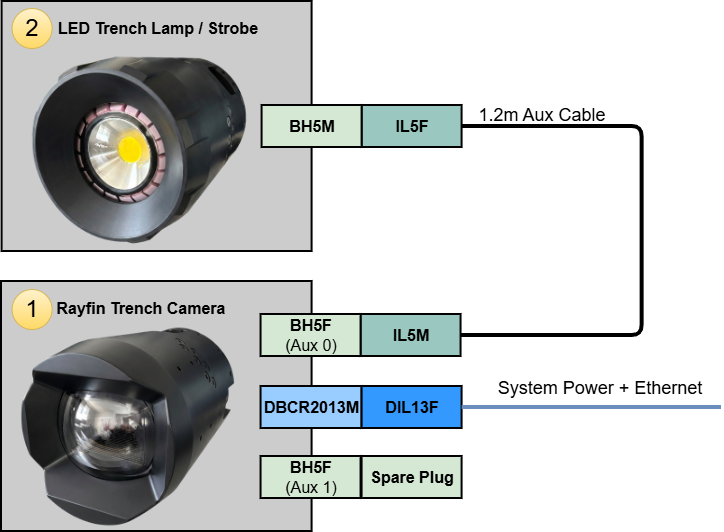

Aux Port Wiring: The diagram below represents a system where an LED and an altimeter are connected to the Aux ports. See Aux ports and Devices for more information.

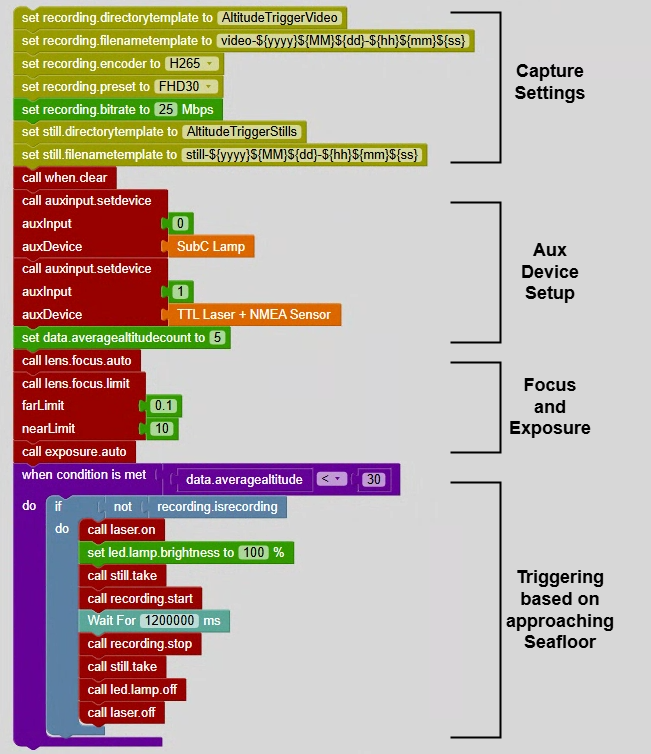

Altitude Trigger Autonomous Example: This setup represents a typical setup for an autonomous camera system with the addition of an altitude sensor. The system is then able to trigger LEDs, recording or digital stills based on the distance to seafloor.
