Option - Aux Expansion Ports

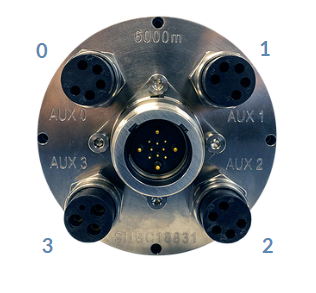

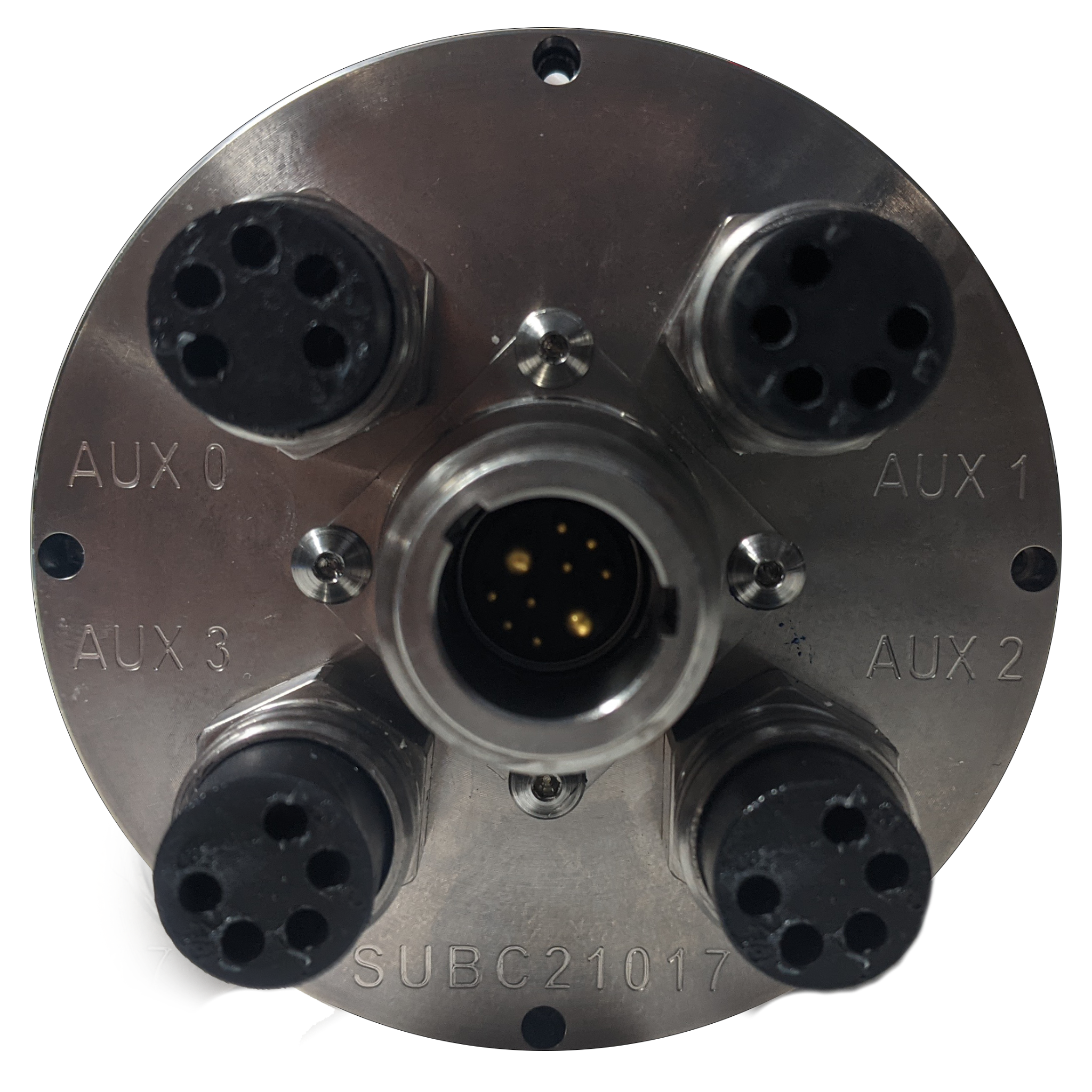

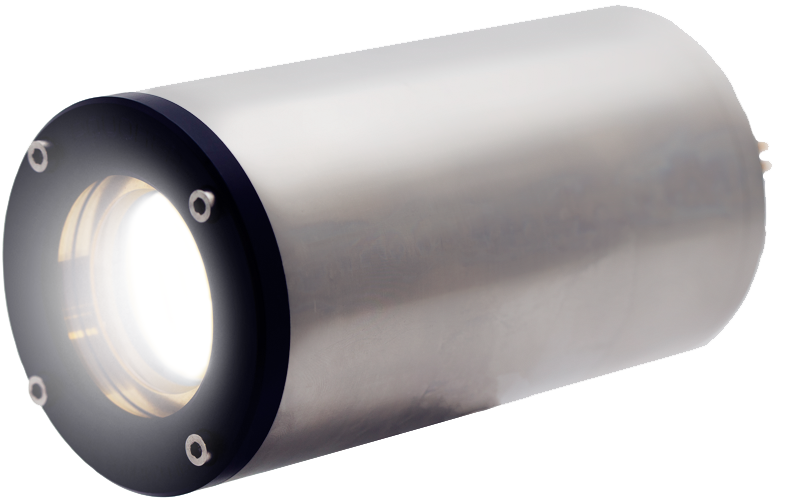

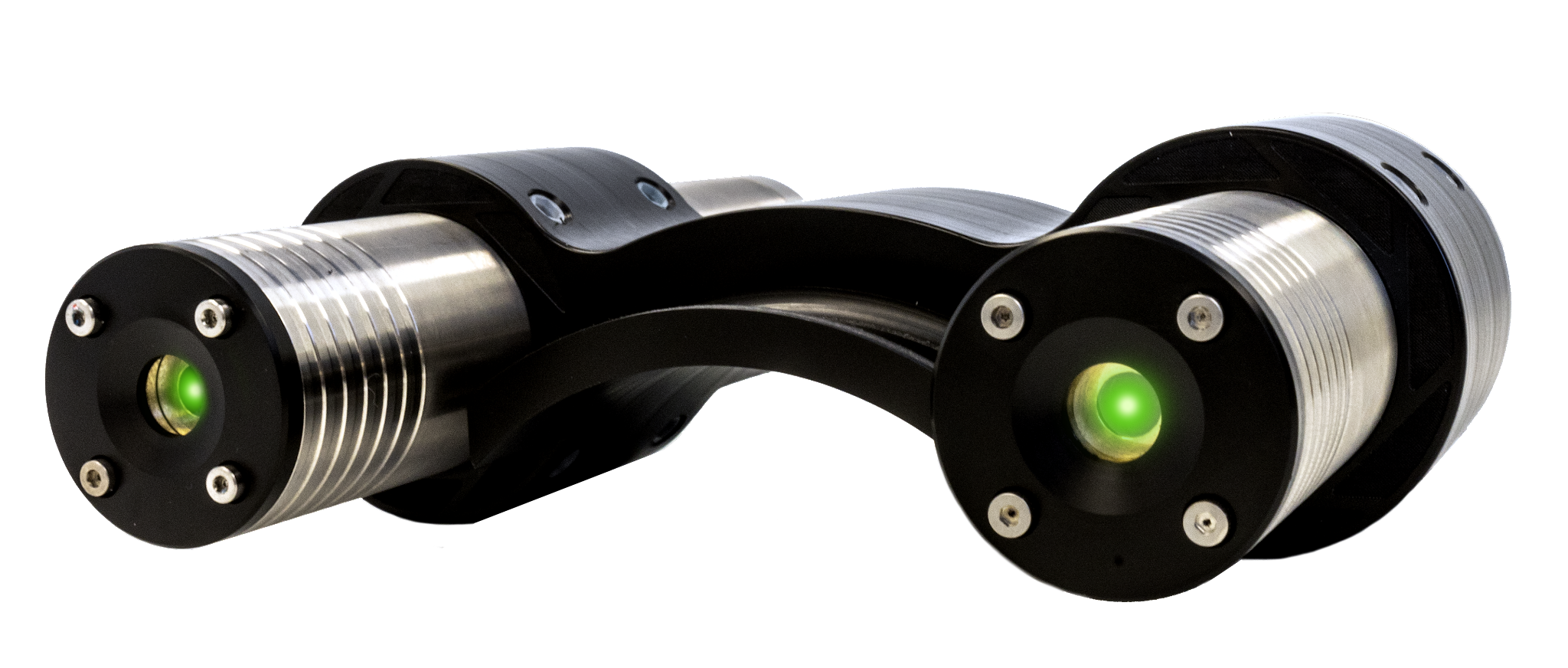

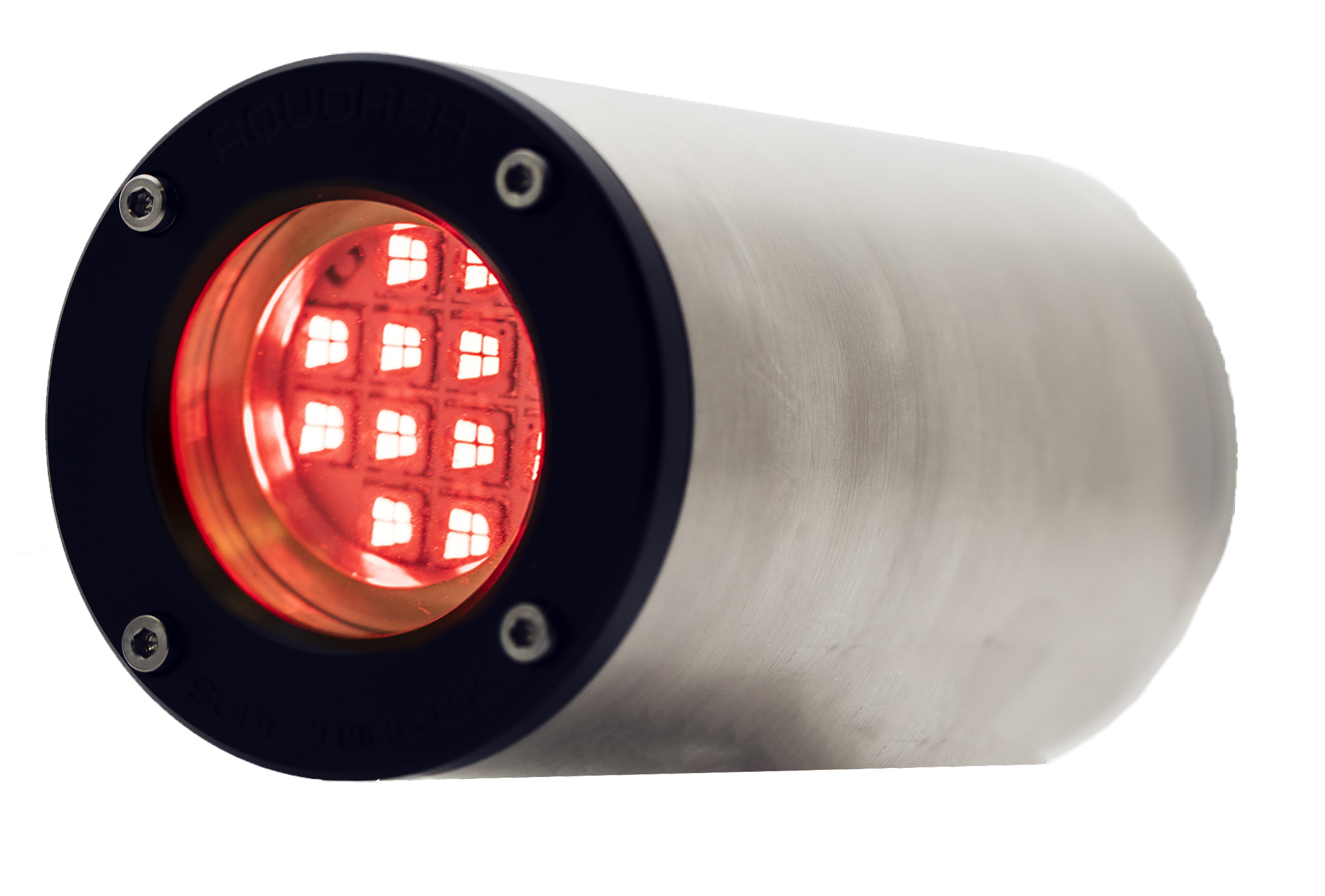

Extra AUX ports turn the Rayfin into an Ethernet mux for four devices. Each Aux port has a Resettable Circuit Breaker with fault detection.

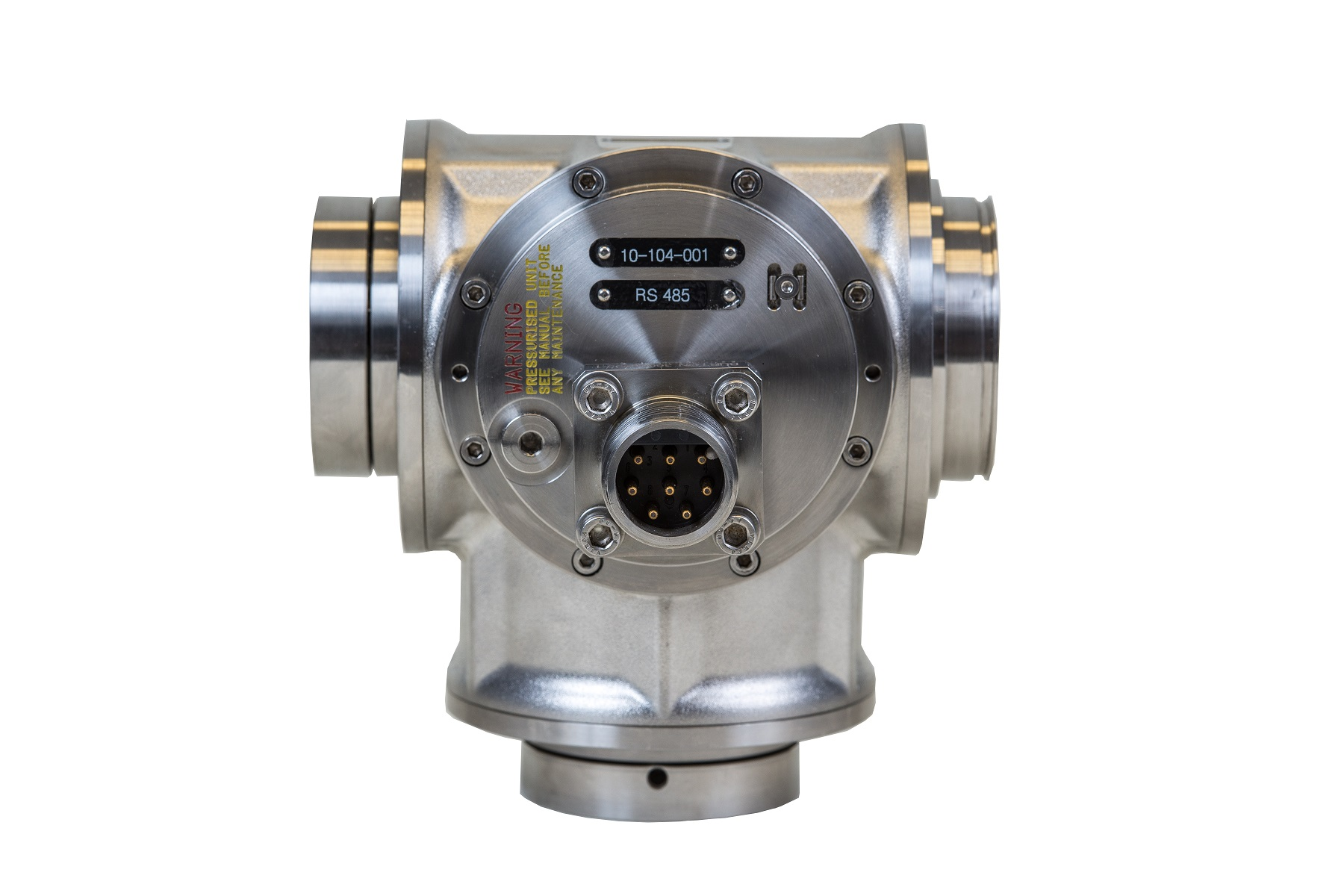

• For protection, Aux0, Aux1, and Aux3 have a current limit of 3.3 amps. Aux2 has a 5 amp for a Pan-tilt. It will also detect under-voltage, over-voltage, and short circuits and generate a resettable fault.

• The expansion output has specific commands in the SubC API. Rayfin Scripting API | Expansion Board.

Different models of Rayfin with the Aux Expansion Ports:

• The datasheet for this model is here: Datasheet Link

• Rayfin-Mk2-HDE-6000-MCBH9M-LO-OUTPUTS - for upgrading STR SeaSpyder drop camera systems

• Rayfin-Mk2-Observe-6000-MINK10-LO-OUTPUTS

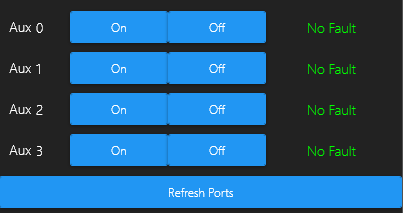

Software Interface

Our customers with the Observatory model have configured their devices as follows:
