Observatory Model with 4 aux ports with a breaker panel
Rayfin Mk2 Benthic with a 420-K-10-FCRL-02-0400-Ti connector and LiquidOpticsTM. 6000m titanium build for deep water operations. Ethernet HD video & comms, Digital Stills, HD and 4K, Data logging and DVR+ features
Special order configuration. Non stock bulkheads.
|
Sensor and Lens |
Lens and Optics |
Water-corrected, scratch-resistant sapphire LiquidOpticsTM |
|
|
Angle of View (in water) |
81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion |
||
|
Image Sensor |
12.3MP | 4056 x 3040 pixels | 12-bit CMOS |
||
|
Exposure Range |
Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200 |
||
|
Zoom |
Digital (5x Optical zoom equivalent) |
||
|
Aperture, Focal Length, Range |
f/2.0 | 4.52mm | 15cm to infinity |
||
|
Data Formatting |
Ethernet Video and Latency |
RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p) |
|
|
Rapid Digital Imaging (RDI) |
Continuous Stills |
Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds) |
|
|
Media Transfer |
Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD, or NAS. |
||
|
Media Formats |
Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV |
||
|
Control |
Over Ethernet with the provided SubC software | Rayfin API is available for 3rd party software |
||
|
Data Logging |
NMEA 0183 & 2000 format @ 10Hz |
||
|
Clock Sources |
NTP Server, Time from Data string |
||
|
Electrical and Mechanical |
Aux Port |
Four ports, capable of powering and controlling LED Strobe/Lamps, Lasers, and other devices |
|
|
Voltage and Maximum Power |
12 - 32.5 Vdc @ 13.5Watts |
||
|
Protection |
Short circuit | Under-over voltage | ESD | Over-temperature |
||
|
Temperature |
-20˚C to +30˚C (in water) |
||
|
Depth Rating |
6000m |
||
|
Materials |
Titanium, Sapphire |
||
|
Weight |
Estimated: 1.60kg in water | 3.20kg in air |
||
|
Dimensions |

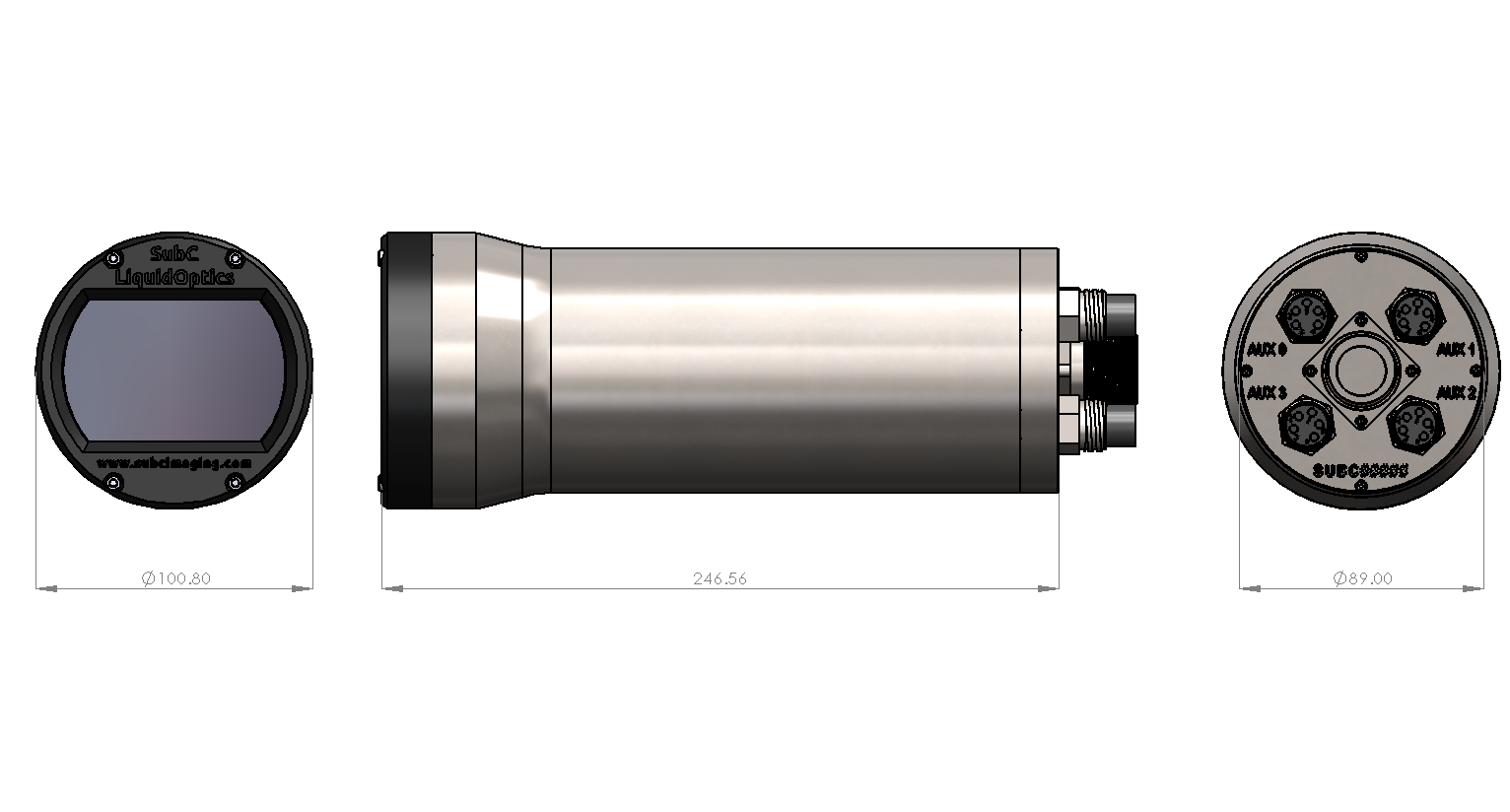

Ø 100.80 | 246.56mm x 89.0mm |
||
|
Storage |
Internal Storage Options |
512 GB | 1 TB | 2TB |
|
WARNING: Not designed for manned submersibles. Remotely operated or robotic systems only.
|
# |
420-K-10-FCRL-02-0400-Ti (Ti) [IP video, control, and data] |
MCBH5F (Ti) [AUX0 Port] |
MCBH5F (Ti) [AUX1 Port] |
MCBH5F (Ti) [AUX2 Port] |
MCBH5F (Ti) [AUX3 Port] |
|
1 |
PWR |
GND |
GND |
GND |
GND |
|
2 |
(White/Orange) DA+ [10/100] |
Aux0
|
Aux1
|
Aux2
|
Aux3
|
|
3 |
(Orange) DA- [10/100] |
AUX0 TTL |
AUX0 TTL |
AUX1 TTL |
AUX1 TTL |
|
4 |
(White/Green) DB+ [10/100] |
AUX0 RS-485 B(+) |
AUX0 RS-485 B(+) |
AUX1 RS-485 B(+) |
AUX1 RS-485 B(+) |
|
5 |
(Green) DB- [10/100] |
AUX0 RS-485 A(-) |
AUX0 RS-485 A(-) |
AUX1 RS-485 A(-) |
AUX1 RS-485 A(-) |
|
6 |
(Blue) DC+ [GigE] |
|
|
||
|
7 |
(White/Blue) DC- [GigE] |
||||
|
8 |
(White/Brown) DD+ [GigE] |
||||
|
9 |
(Brown) DD- [GigE] |
||||
|
10 |
GND |
||||
