Datasheets - Rayfin w/ Hibernate Option

The Rayfin with the Hibernate option enables long-duration battery-powered time-lapse. It is delivered as part of the SubC Autonomous Timelapse System. The Hibernation option enables time-lapse photography with low-power consumption for months to a year of deployment. It is available as an option for the 500m Micro, 6000m Benthic, and 11Km Trench models of Rayfin.

Example Block Diagrams for Autonomous Operation

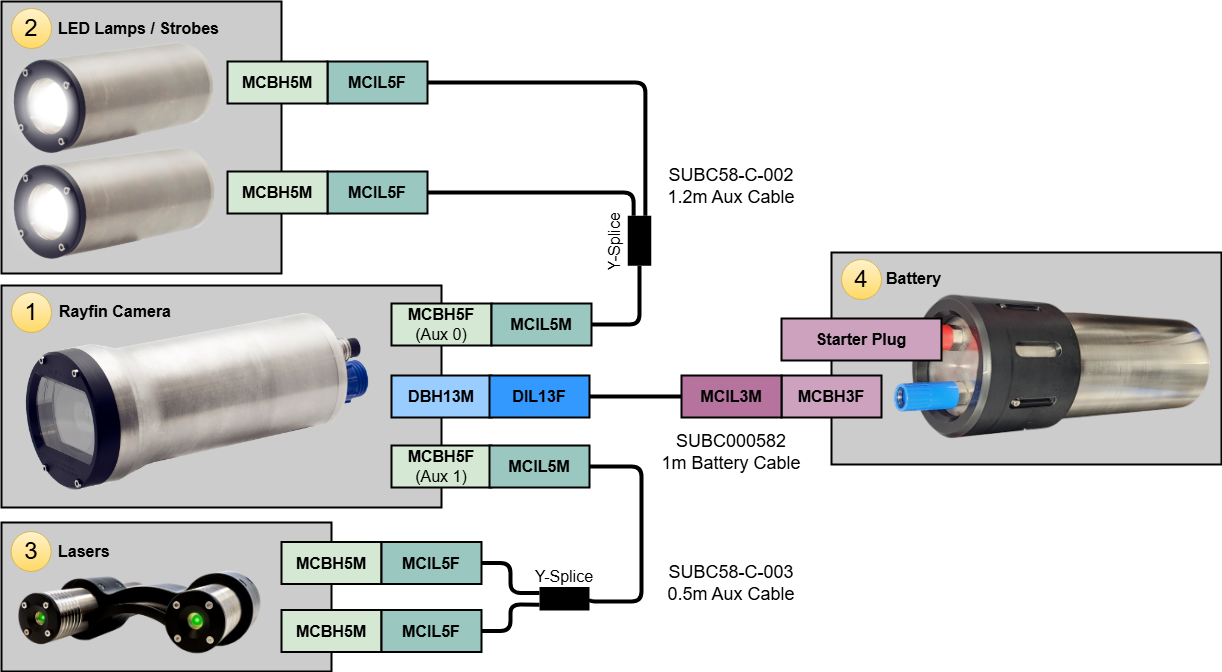

Autonomous Example Diagram A: this represents a typical setup for an autonomous camera system, with two LEDs and parallel lasers.

Autonomous Example Diagram B: this setup adds an altitude sensor in place of the lasers. The system is then able to trigger LEDs, recording or digital stills based on the distance to seafloor.

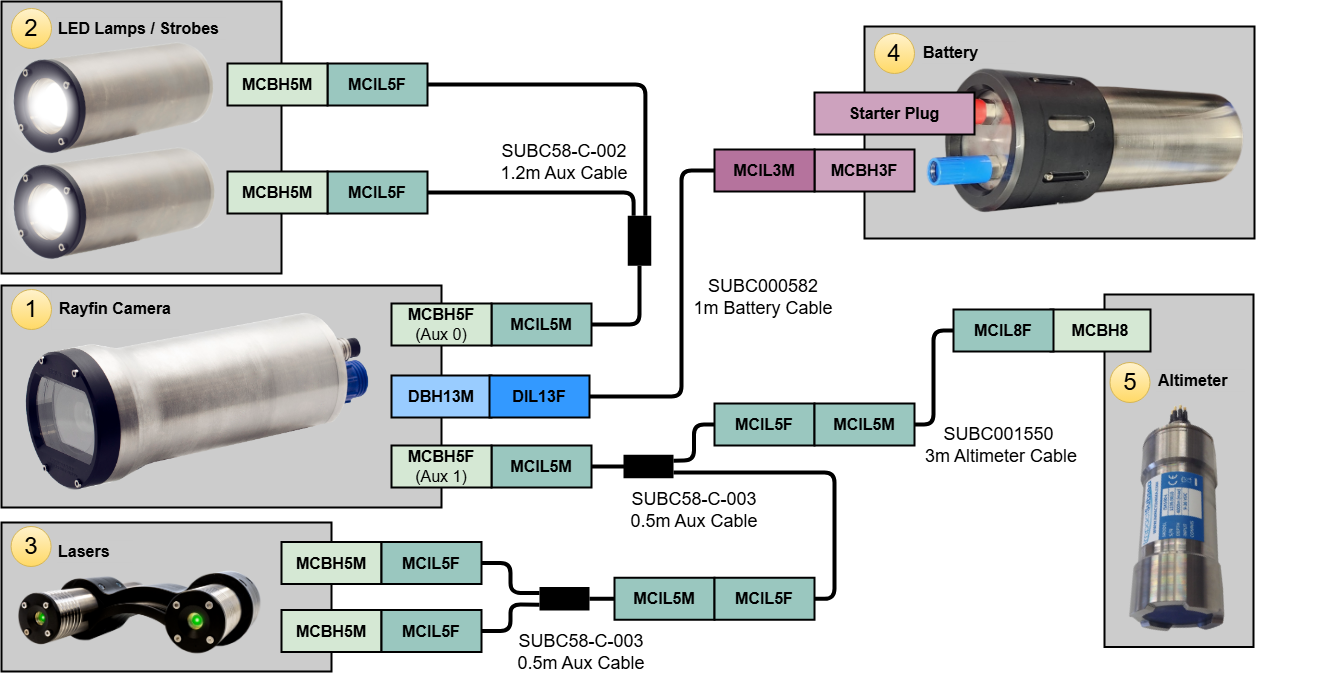

Autonomous Example Diagram C: this represents a system where LEDs and lasers are enabled and recording or digital stills are triggered based on the distance to seafloor from the attached altimeter.
