Rayfin-Mk2-HDE-6000-DBH13-LO-HIBERNATE
Hibernation - For timelapse of HD, 4K video, and digital stills over a very long period while conserving battery power.
Sensor and Lens | Lens and Optics | Water-corrected, scratch-resistant sapphire LiquidOpticsTM | |
Angle of View (in water) | 81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion | ||
Sensor | Type 1/2.3" CMOS 12-bit | ||
Image Size | 12.3MP - 4056 x 3040 | ||
Exposure Range | Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200 | ||
Zoom | Digital (5x Optical zoom equivalent) | ||
Aperture, Focal Length, Range | f/2.0 | 4.52mm | 15cm to infinity | ||
Data Formatting | Ethernet Video and Latency | RTSP H.264: 1080p, 720p | 180 - 225ms (1080p) | |
Rapid Digital Imaging (RDI) | Continuous Stills | Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds) | |
Media Transfer | Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS. | ||
Media Formats | Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV | ||
Control | Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software | ||
Data Logging | NMEA 0183 & 2000 format @ 10Hz | ||
Clock Sources | NTP Server, Time from Data string | ||
Electrical and Mechanical | Aux Ports | Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices | |
Voltage | 16.5 - 32.5 Vdc | ||
Power | 0.007W (hibernate) - 6.4W (idle) - 8W (recording) - 13.5W (peak) | ||
Wake Up (Pin 12) | Active High | 3 - 32.5 Vdc | 5s delay | ||
Protection | Short circuit | Under-Over voltage | ESD | Over-temperature | ||
Temperature | -20˚C to +30˚C (in water) | ||
Depth Rating | 6000m | ||
Materials | Sapphire, Grade 5 Titanium | ||
Weight | 1.6kg in water | 3.2kg in air | ||

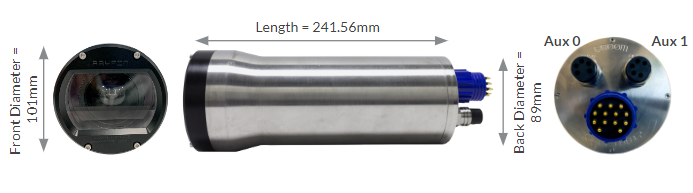

Dimensions | Ø 101mm | 241.56mm x 89mm | ||
Hibernation Period | Minimum | 5 minutes | |
Maximum | 255 hours | ||
Storage | Internal Storage | 1 TB | |
# | DBH13M + DLSA-M (Alu) [IP video, control, and data] | MCBH5F (Alu) [AUX0 Port] | MCBH5F (Alu) [AUX1 Port] |
1 | GND | GND | GND |
2 | Iso GND (Shield) (NC on system end) | PWR | PWR |
3 | PWR | AUX0 Out | AUX1 Out |
4 | (Brown) DD- [GigE] | AUX0 RS-485 B(+) | AUX1 RS-485 B(+) |
5 | (White/Brown) DD+ [GigE] | AUX0 RS-485 A(-) | AUX1 RS-485 A(-) |
6 | (Blue) DC+ [GigE] |  |
|
7 | (White/Blue) DC- [GigE] | ||
8 | (Orange) DA- [10/100] | ||
9 | (White/Orange) DA+ [10/100] | ||
10 | (Green) DB- [10/100] | ||
11 | (White/Green) DB+ [10/100] | ||
12 | (Red) Wake Up | ||
13 | NC |
