ETP Block Datasheet
Stock unit. Quicker lead time.

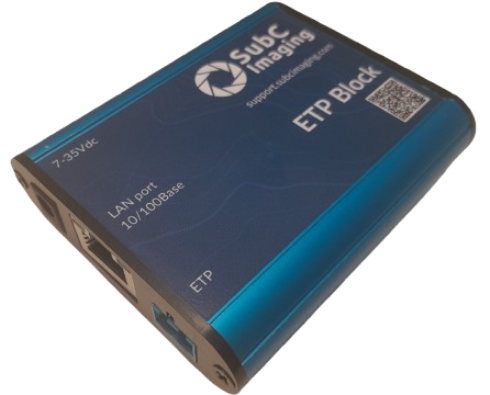

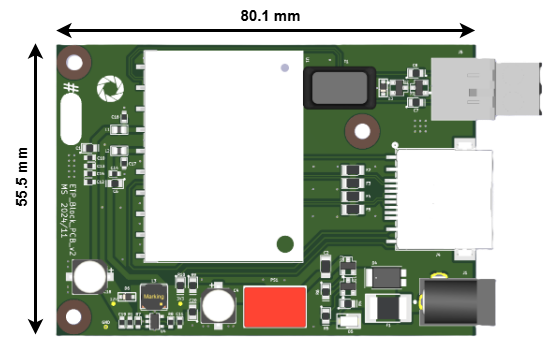

The ETP Block provides seamless connectivity to the SubC Rayfin Micro ETP camera, offering live HD video streaming, remote control, and media downloading capabilities over a twisted pair cable. With a maximum transmission distance of 800 meters over coax cable, the ETP Block is designed for robust performance and reliability in underwater applications.
Live HD Video Streaming: This device connects to a SubC Rayfin Micro ETP camera for real-time video, digital stills, data, and communications over a twisted pair.
Remote Control and Media Download: Control camera functions and download media remotely through Rayfin SCI.
Extended Cable Length: Supports transmission over a twisted pair/Coaxial cable up to 800 meters.
Built-In Protection: Includes ESD, over-voltage, and short circuit protection for enhanced durability.
Specification | Value |
|---|---|
Maximum Transfer Speed | Up to 72 Mbit/s (dependent on cable type and length) |
Transmission Distance | 800 meters |
Input Voltage | 7 - 35 VDC |
Power Consumption | < 3 Watts |
Material | Anodized Aluminum |
Weight | 135 grams |
Ambient operating temp | -20°C to 30°C |
Protection | ESD, Over-voltage, Short Circuit |

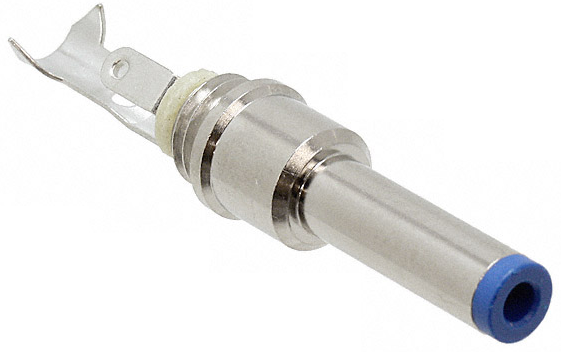

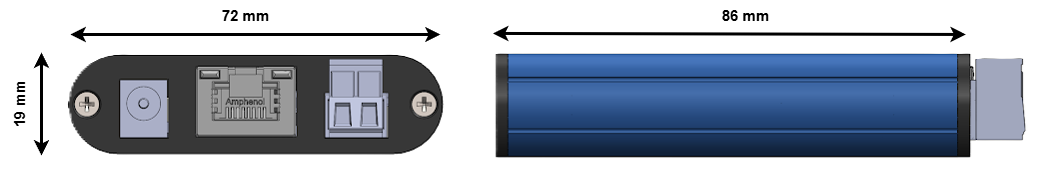

# | RJ45 100 Base Ethernet | Power Jack 2.00mm ID, 5.50mm OD | ETP Socket Ethernet over Twisted Pair |
1 | (White/Orange) Rx+ [10/100] | GND | ETP1 |
2 | (Orange) Rx- [10/100] | PWR | ETP2 |
3 | (White/Green) Tx+ [10/100] |  Plug: S1017 |  Plug: TBP01P1-508-02BE |
4 | NC | ||
5 | NC | ||
6 | (Green) TX- [10/100] | ||
7 | NC | ||
8 | NC |
RJ45 lights
Yellow: Network Activity (ACT) – Flashes when there is data transmission over the network.
Green: Signal Transmission – Flashes when a connection is established
