Option - ETP (Ethernet over Twisted Pair or Coax)

Created for upgrading systems to enable Rayfin features, using twisted pair or coax, the Rayfin ETP option delivers on reliable and exceptional image quality for precise inspections and surveys, or for Autonomous systems running on battery power. This provides a live data feed to the surface. Further technical specifications such as bulkhead pinouts and electrical details, are on the sub-pages below.

• Rayfin-Mk2-Micro-ETP-500-MCBH4-LO - Small Form Factor. MCBH4 bulkhead for 24V nominal power and Ethernet over twisted pair or coax

• Rayfin-Mk2-ETP-6000-MCBH4M-LO - MCBH4 bulkhead for 24V nominal power and Ethernet over twisted pair or coax. Titanium housing to prevent any corrosion due to long deployment times.

• ETP Block Datasheet - Topside box for conversion of ETP signals to 100 Mbit Ethernet

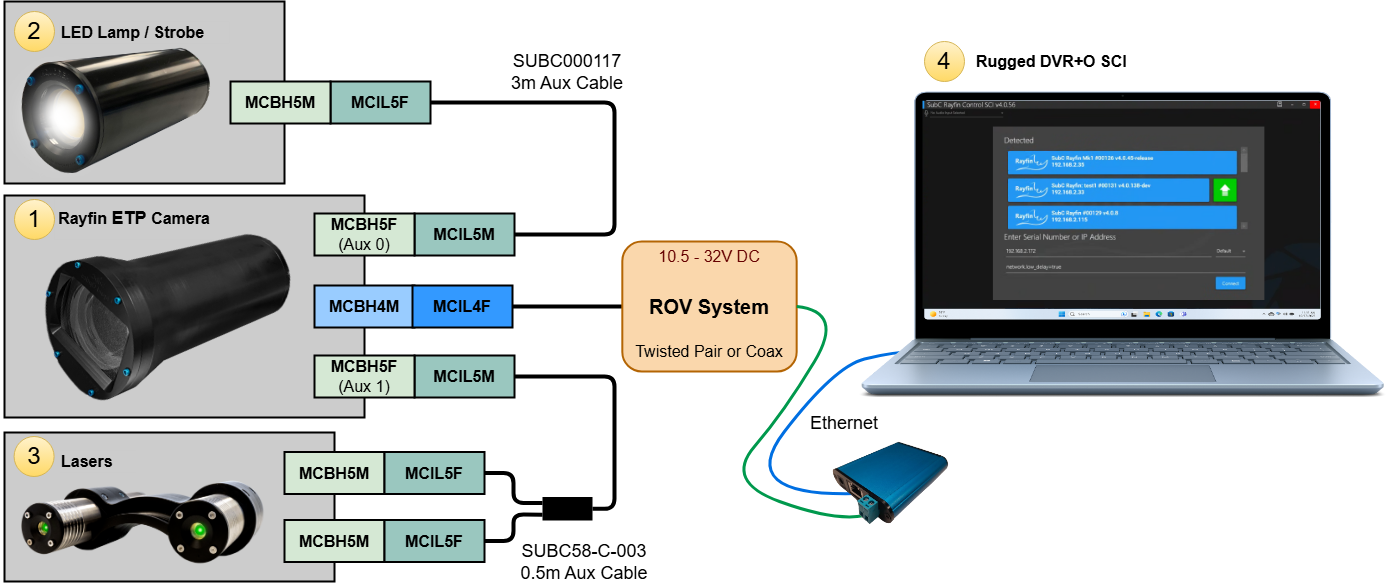

ETP Example Diagram A: This simple setup allows the sending of HD, 4K, and digital stills data over a twisted pair or coax on a legacy ROV system. There are options for LEDs, Laser,s and the Rugged DVR+O to create a full end-to-end inspection system.

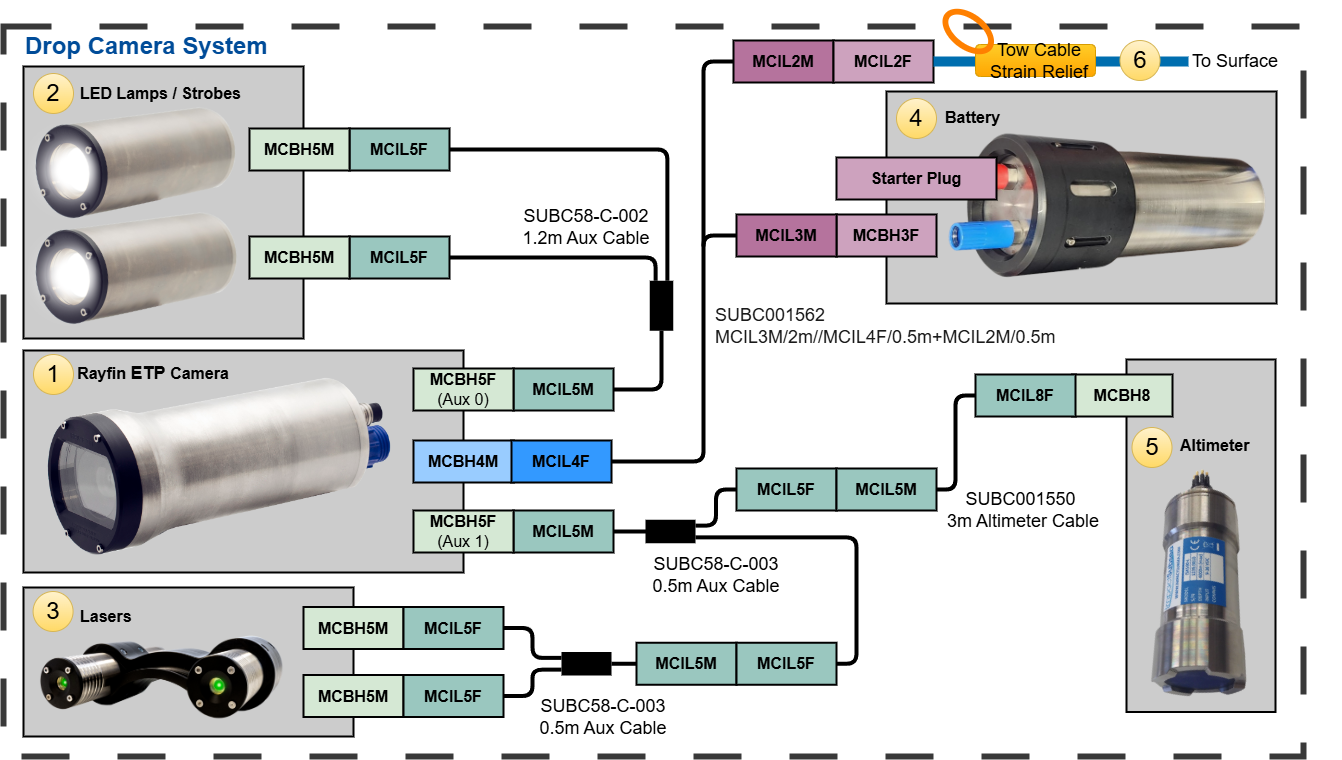

ETP Example Diagram B: This setup has the camera connected to the surface with a twisted pair cable, but powered from the subsea battery. Autonomous functionality is triggered based on the distance to seafloor from the attached altimeter.
