Rayfin-Mk2-Micro-ETP-500-MCBH4-LO

Sensor and Lens

Lens and Optics

Water-corrected, scratch-resistant sapphire LiquidOptics^TM

Angle of View (in water)

81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion

Image Sensor

12.3MP | 4056 x 3040 pixels | 12-bit CMOS

Exposure Range

Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200

Zoom

Digital (5x Optical zoom equivalent)

Aperture, Focal Length, Range

f/2.0 | 4.52mm | 15cm to infinity

Data Formatting

Ethernet Video and Latency

RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p)

Rapid Digital Imaging (RDI)

Continuous Stills

Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)

Media Transfer

Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.

Media Formats

Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV

Control

Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software

Data Logging

NMEA 0183 & 2000 format @ 10Hz

Clock Sources

NTP Server, Time from Data string

Electrical and Mechanical

Aux Ports

Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices

Voltage and Maximum Power

12 - 32.5 Vdc @ 12Watts

Protection

Short circuit | Under-over voltage | ESD | Over-temperature

Temperature

-20˚C to +30˚C (in water)

Depth Rating

500m

Materials

Anodized 6061-T6 Aluminium, Delrin, Sapphire

Weight

0.46kg (in water) | 1.07kg (in air)

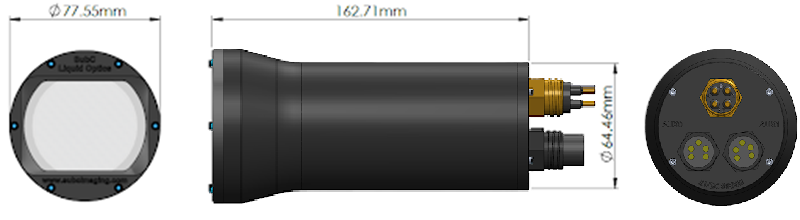

Dimensions

Ø 77.5 | 165mm x 64.5mm

 #

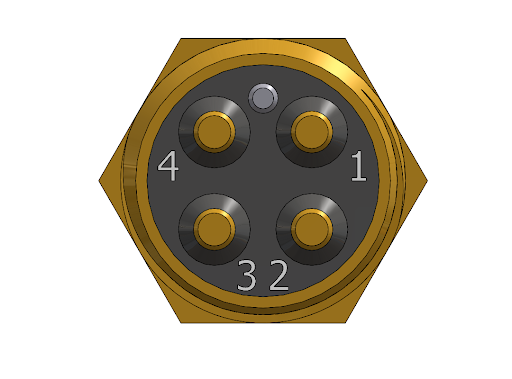

MCBH4 (Alu)

[IP video, control and data]

MCBH5F (Alu)

[AUX0 Port]

MCBH5F (Alu)

[AUX1 Port]

 1

(Black) GND

GND

GND

 2

(White) PWR

PWR

PWR

 3

(Red) ETP1

AUX0 Out

AUX1 Out

 4

(Green) ETP2

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

5

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)

• The make and model no. for the matching CCP is MCIL4
