Created for upgrading systems to enable Rayfin features, using twisted pair or coax - the Rayfin Micro ETP delivers on reliable and exceptional image quality for precise inspections and surveys, or for Autonomous systems running on battery power. This provides a live data feed to the surface. Further technical specifications such as bulkhead pinouts and electrical details are on the sub-pages below.

• Rayfin-Mk2-Micro-ETP-500-MCBH4-LO - MCBH4 bulkhead for 24v nominal power and Ethernet over twisted pair or coax

• ETP Block Datasheet - Topside box for conversion of ETP signals to 100Mbit Ethernet

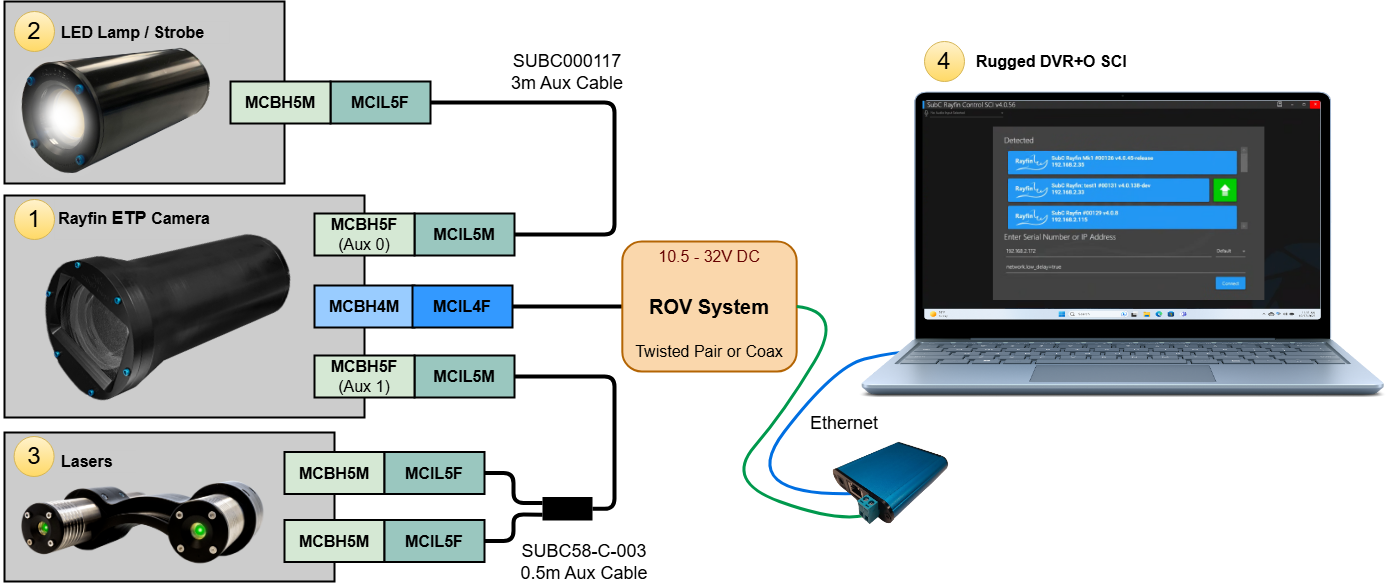

ETP Example Diagram A: This simple setup allows the sending of HD, 4K and digital stills data over a twisted pair or coax on a legacy ROV system. There are options for LEDs, Lasers and the Rugged DVR+O to create a full end-to-end inspection system.

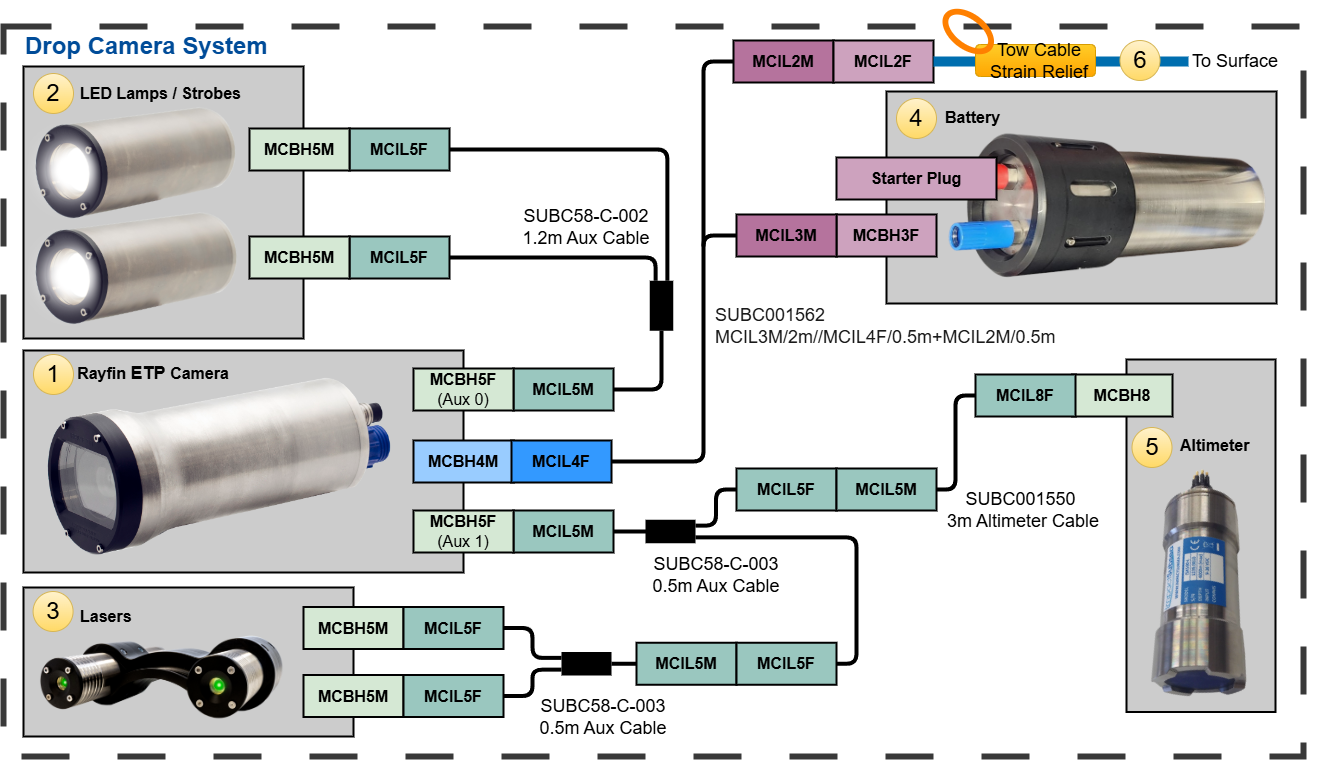

ETP Example Diagram B: This setup has the camera connected to the surface with a twisted pair cable, but powered from the subsea battery. Autonomous functionality is triggered based on the distance to seafloor from the attached altimeter.

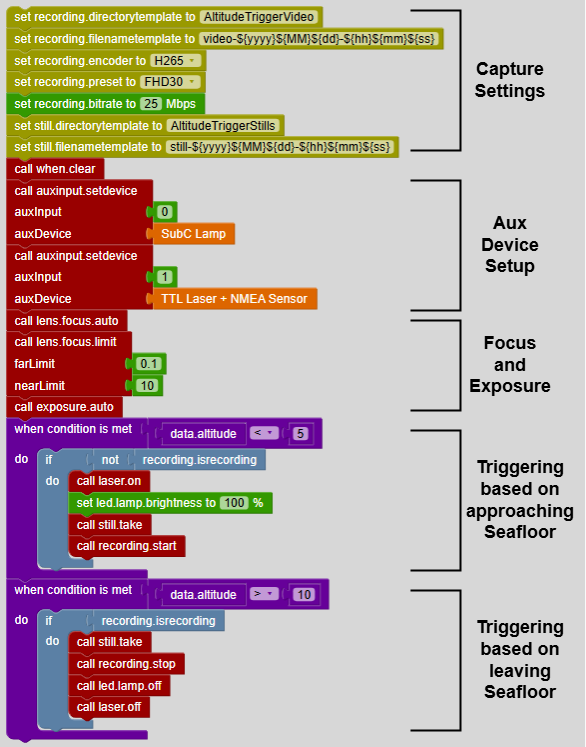

Altitude Triggered Video Recording Script

Altitude_Trigger_Recording.rsl
