Rayfin-Mk2-Observe-6000-ImpMHDXL12FCR-LO-Outputs-V2

Observatory Model - Ethernet HD video and comms, 4 aux ports with a breaker panel

Special order configuration. Non stock bulkheads.

Sensor and Lens

Lens and Optics

Water-corrected, scratch-resistant sapphire LiquidOpticsTM

Angle of View (in water)

81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion

Image Sensor

12.3MP | 4056 x 3040 pixels | 12-bit CMOS

Exposure Range

Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200

Zoom

Digital (5x Optical zoom equivalent)

Aperture, Focal Length, Range

f/2.0 | 4.52mm | 15cm to infinity

Data Formatting

Ethernet Video and Latency

RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p)

Rapid Digital Imaging (RDI)

Continuous Stills

Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)

Media Transfer

Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.

Media Formats

Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV

Control

Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software

Data Logging

NMEA 0183 & 2000 format @ 10Hz

Clock Sources

NTP Server, Time from Data string

Electrical and Mechanical

Aux Port

Four ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices

Voltage and Maximum Power

12 - 32.5 Vdc @ 13.5Watts

Protection

Short circuit | Under-over voltage | ESD | Over-temperature

Temperature

-20˚C to +30˚C (in water)

Depth Rating

6000m

Materials

Titanium, Sapphire

Weight

Estimated: 1.60kg in water | 3.20kg in air

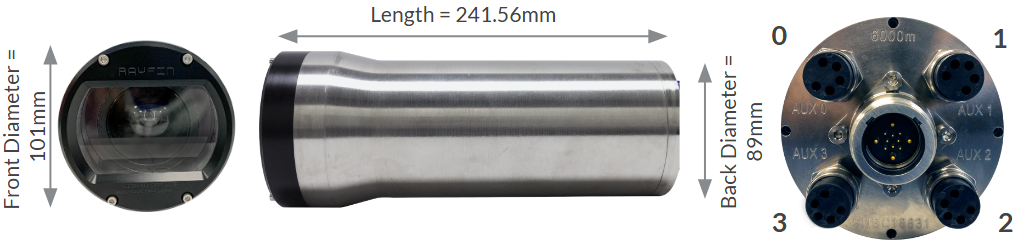

Dimensions

Ø 101 | 241.56mm x 89.0mm

Storage

Internal Storage Options

512 GB | 1 TB | 2TB


WARNING: Not designed for manned submersibles. Remotely operated or robotic systems only.

#

MHDXL-12-FCR (Ti)

[IP video, control, and data]

MCBH5F (Ti)

[AUX0 Port]

MCBH5F (Ti)

[AUX1 Port]

MCBH5F (Ti)

[AUX2 Port]

MCBH5F (Ti)

[AUX3 Port]

1

Power GND

GND

GND

GND

GND

2

(Blue) DC+ [GigE]

PWR

PWR

PWR

PWR

3

Data GND

AUX0 TTL

AUX0 TTL

AUX1 TTL

AUX1 TTL

4

(Green) DB- [10/100]

AUX0 RS-485 B(+)

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

AUX1 RS-485 B(+)

5

(Orange) DA- [10/100]

AUX0 RS-485 A(-)

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)

AUX1 RS-485 A(-)

6

(Brown) DD- [GigE]

  • SubC bulkheads are wired to Ethernet B standard.

  • In-line cable part number for Ethernet bulkhead: ?

7

(White/Brown) DD+ [GigE]

8

(White/Orange) DA+ [10/100]

9

(White/Green) DB+ [10/100]

10

PWR

11

(White/Blue) DC- [GigE]
