SeaSpyder Upgrade - Rayfin-Mk2-HDE-6000-MCBH9M-LO-OUTPUTS

MCBH9 bulkhead and found Aux ports to support a full set of sensors for a drop system.

Special Order: Designed for upgrading the STR SeaSpyder drop camera system or similar.

Block Diagram

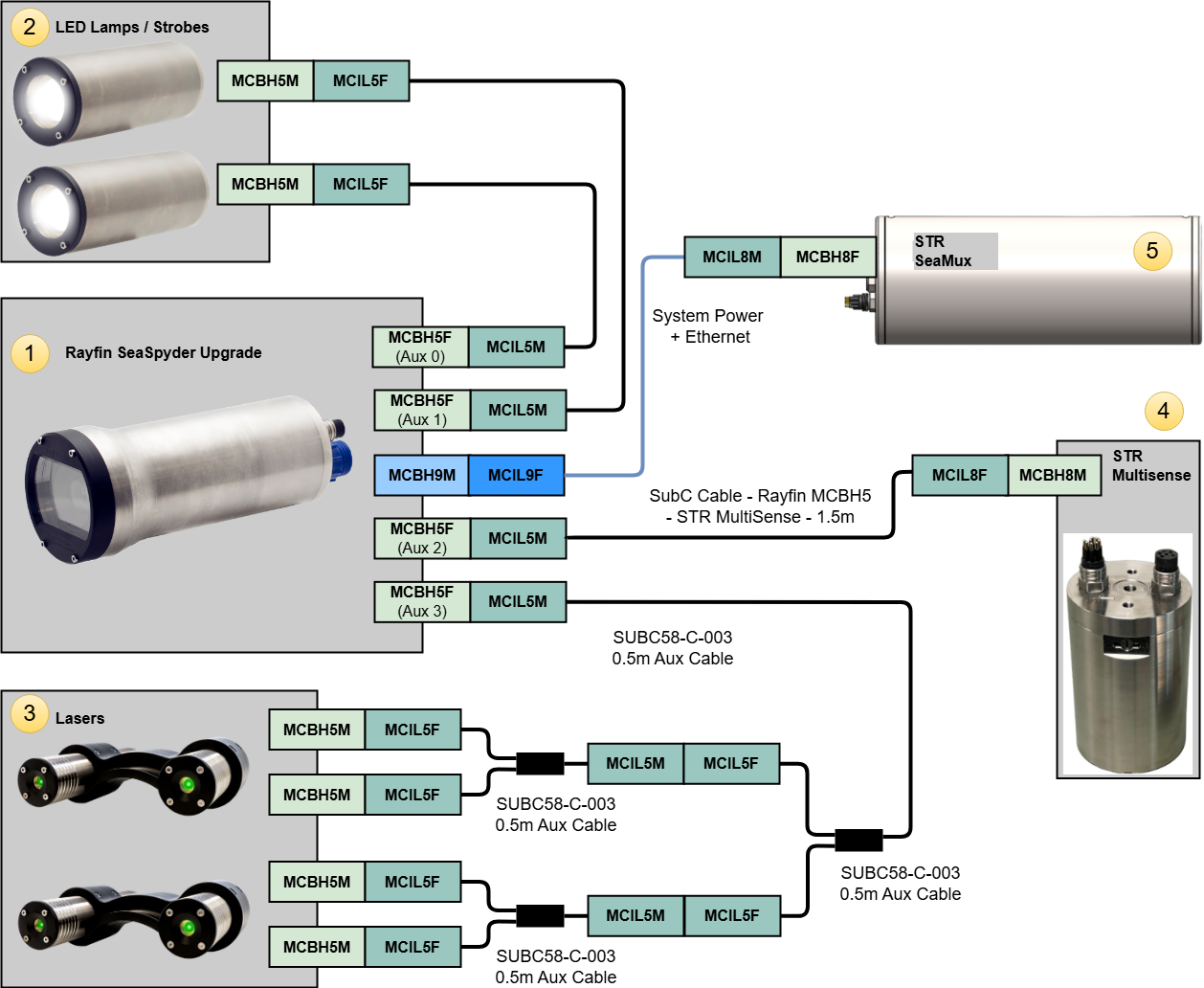

The below diagram represents a system where LEDs, lasers and a STR Multi-sense are connected to the Aux ports. The Rayfin is connected to the STR SeaMux I/O port.

Detailed Specifications

Sensor and Lens

Lens and Optics

Water-corrected, scratch-resistant sapphire LiquidOpticsTM

Angle of View (in water)

81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion

Sensor

Type 1/2.3" CMOS 12-bit

Image Size

12.3MP - 4056 x 3040

Exposure Range

Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200

Zoom

Digital (5x Optical zoom equivalent)

Aperture, Focal Length, Range

f/2.0 | 4.52mm | 15cm to infinity

Data Formatting

Ethernet Video and Latency

RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p)

Rapid Digital Imaging (RDI)

Continuous Stills

Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds)

Media Transfer

Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS.

Media Formats

Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV

Control

Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software

Data Logging

NMEA 0183 & 2000 format @ 10Hz

Clock Sources

NTP Server, Time from Data string

Electrical and Mechanical

Aux Ports

Four ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices

Voltage

16.5 - 32.5 Vdc

Power

6.4W (idle) - 8W (recording) - 13.5W (peak)

Protection

Short circuit | Under-Over voltage | ESD | Over-temperature

Temperature

-20˚C to +30˚C (in water)

Depth Rating

6000m

Materials

Sapphire, Grade 5 Titanium

Weight

1.6kg in water | 3.2kg in air

Dimensions

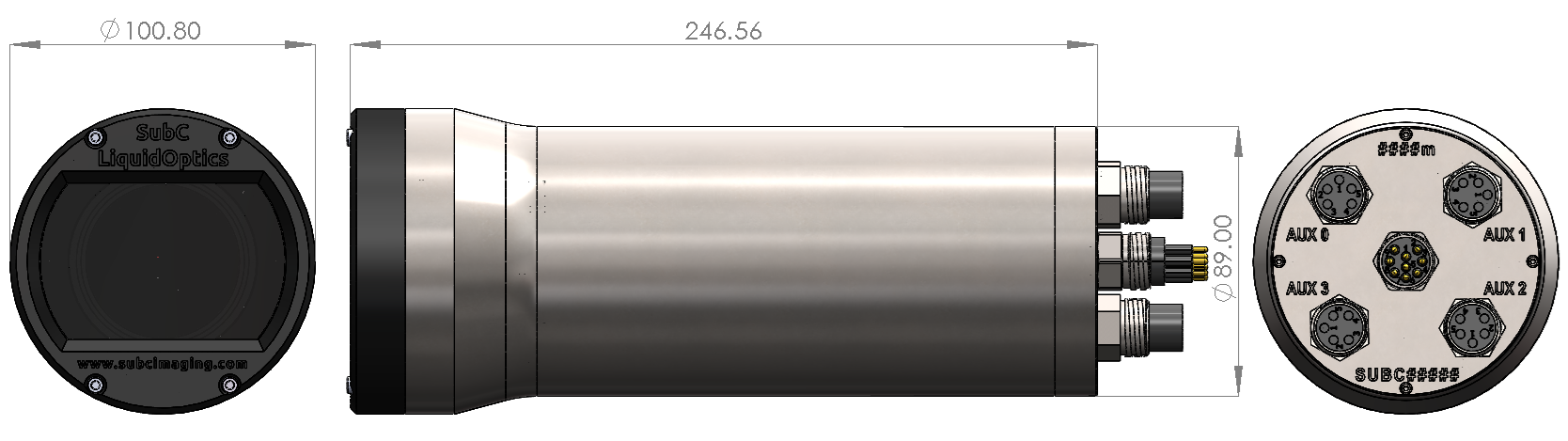

Ø 101mm | 246.56mm x 89mm

Storage

Internal Storage

1 TB


#

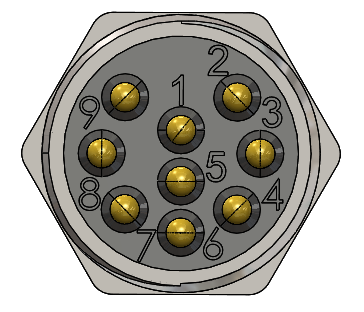

MCBH9M (Ti)

[IP video, control, and data]

MCBH5F (Ti)

[AUX0 Port]

MCBH5F (Ti)

[AUX1 Port]

MCBH5F (Ti)

[AUX2 Port]

MCBH5F (Ti)

[AUX3 Port]

1

GND

GND

GND

GND

GND

2

GND

PWR

PWR

PWR

PWR

3

(Green) DB- [10/100]

AUX0 TTL

AUX0 TTL

AUX1 TTL

AUX1 TTL

4

(White/Green) DB+ [10/100]

AUX0 RS-485 B(+)

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

AUX1 RS-485 B(+)

5

(Orange) DA- [10/100]

AUX0 RS-485 A(-)

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)

AUX1 RS-485 A(-)

6

(White/Orange) DA+ [10/100]

  • SubC bulkheads are wired to Ethernet B standard.

  • In-line cable part number for Ethernet bulkhead: MCIL9F

7

PWR

8

PWR

9

Shield

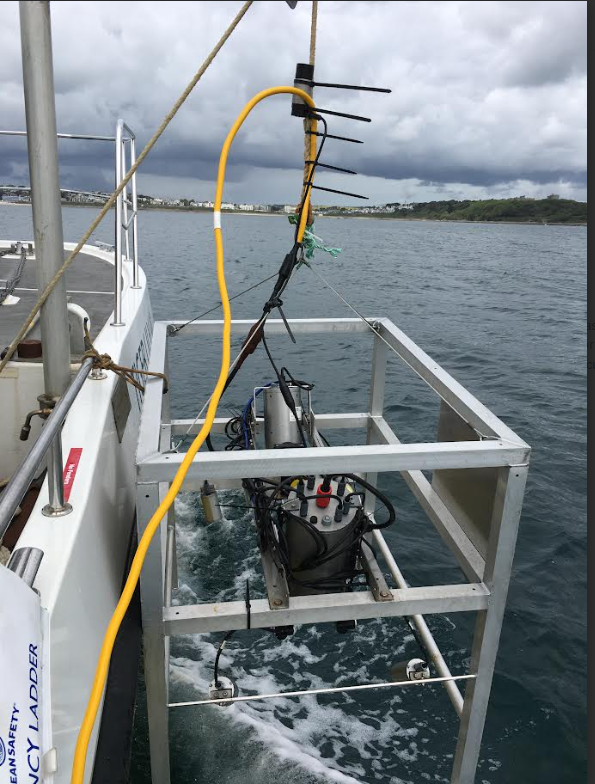

Example Customer Modified STR System
