Script Builder Blocks
SubC Rayfin Script Builder Blocks are block code objects that script programmers can drag to the Script Builder canvas (center) and snap together to create scripts.

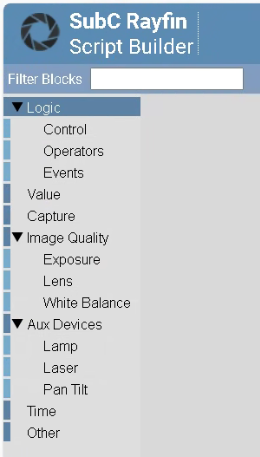

In this section, we will review each Script Builder Block section.
Logic
Logic has 3 sub-menus - Control, Operators and Events

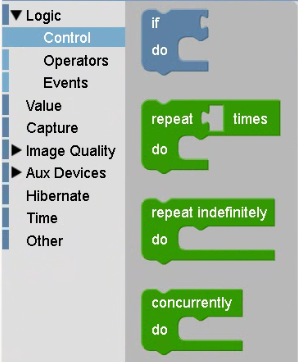

Logic → Control
Logic → Control contains block code objects that perform if, repeat and concurrently do functions.
Example: repeat [place Value → Number block here] times do [place Action block here]

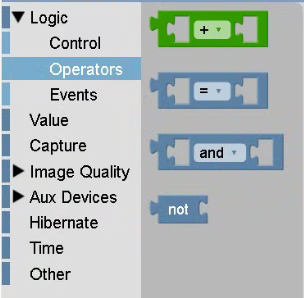

Logic → Operators
Logic → Operators contains Math operations, Comparision (two numbers or two booleans), Logical operations (and / or) and Logical negation (not).
Example: [place Boolean block here] and [place Boolean block here]
Logic → Events
Logic → Events contains Logic, Values, Variables, Events and Methods

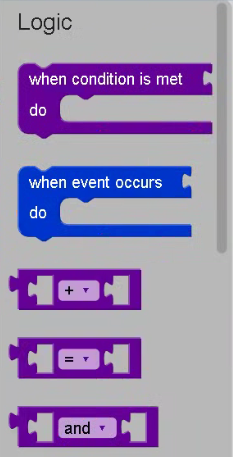

Logic → Events → Logic
Logic → Events → Logic
Example: When event occurs [place Event block here] do [place Action block here]
Logic → Events → Values
Logic → Events → Values
These are Event Driven variables
Example: Numeric and Boolean variables.

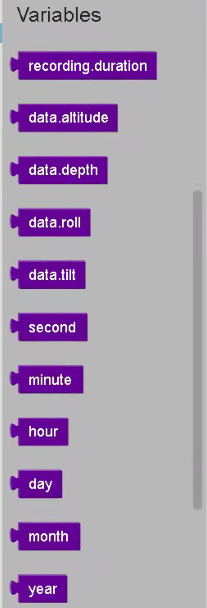

Logic → Events → Variables
Logic → Events → Variables
These are Event Driven variables, all of which are used with When condition blocks.

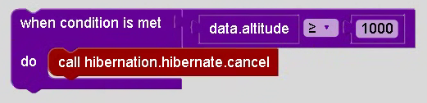

Example: when condition is met [place Logic comparison block [place Event Driven condition variable here] [select comparison symbol] [place Numeric block here]] do [place Action block here]
Disassembled view of the blocks used …

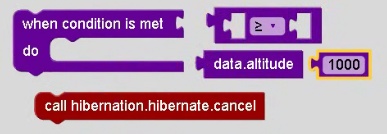

Assembled view of the blocks used …
Logic → Events → Events
Logic → Events → Events
These are Boolean Event variables, all of which are used with When condition blocks.
Example: when event occurs [place Boolean Event block here] do [place Action block here]
Logic → Events → Actions
Logic → Events → Actions
This call when.clear (Clears all registered When conditions) is an Action block
Example: Place call when.clear block to execute before a when event occurs statement.

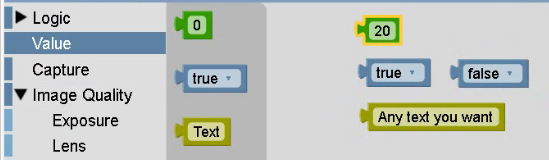

Value
Value - contains Number, Boolean and Text blocks
Capture
Capture → contains function blocks for Recording and Stills

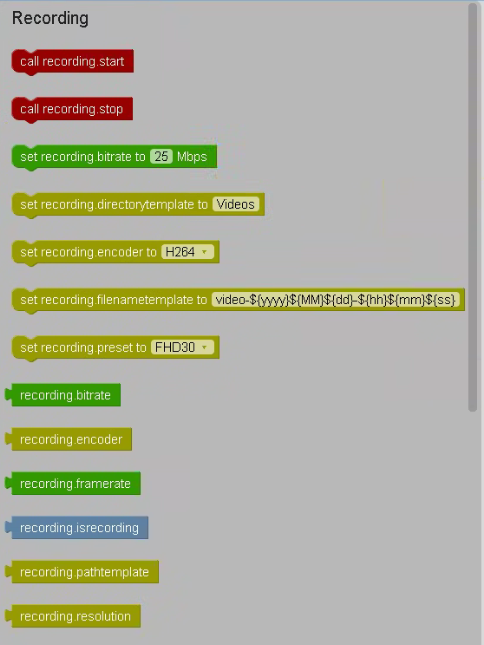

Capture → Recording
Capture → Recording has block codes pertaining to Recording.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

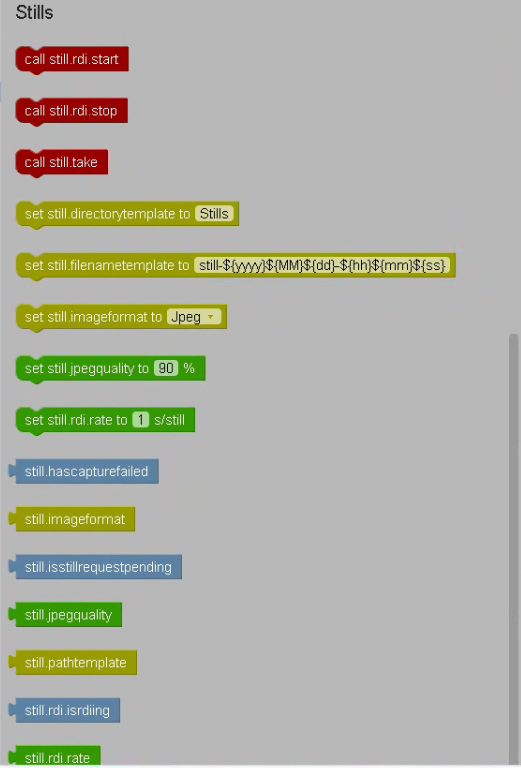

Capture → Stills
Capture → Stills has block codes pertaining to Stills.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.
Image Quality
Image Quality has 3 sub-menus - Exposure, Lens and White Balance

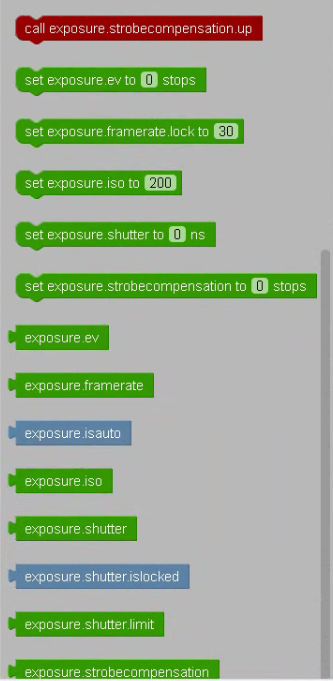

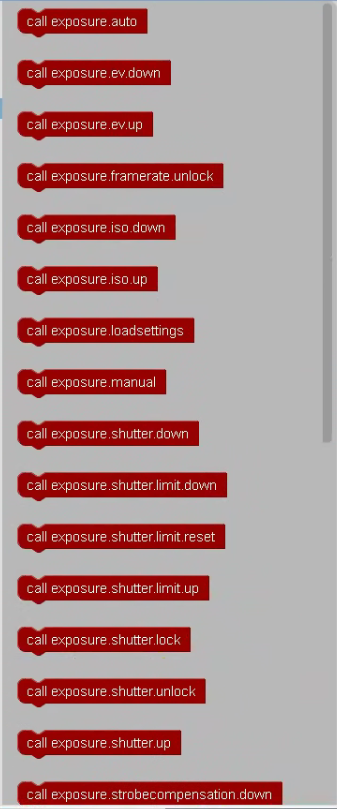

Image Quality → Exposure
Image Quality → Exposure has several call, set, and exposure block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

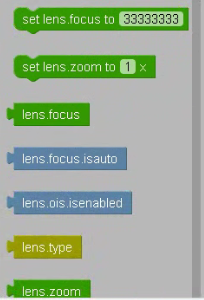

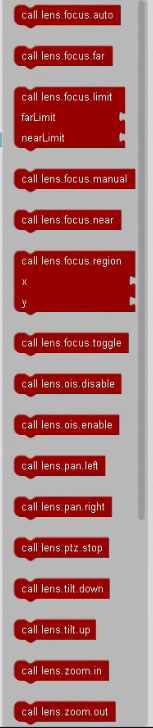

Image Quality → Lens
Image Quality → Lens has several call, lens and set block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

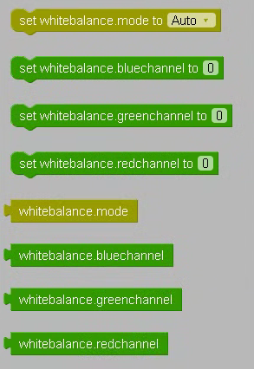

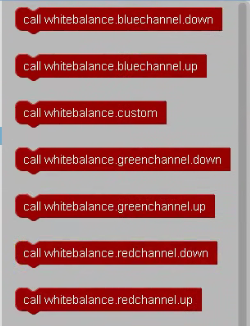

Image Quality → White Balance
Image Quality → White Balance has several call, set and whitebalance block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.
Aux Devices
Aux Devices has an additional 3 sub-menus - Lamp, Laser and Pan Tilt

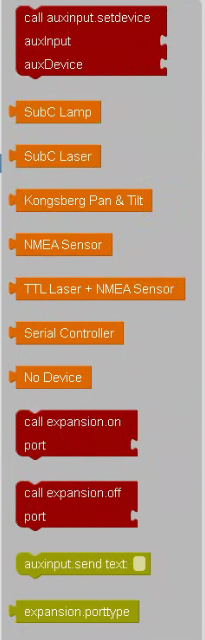

Aux Devices
Aux Devices has several call, whitebalance. get, and set block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

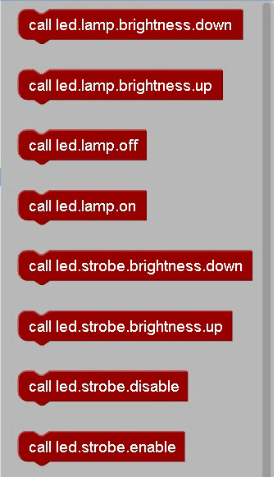

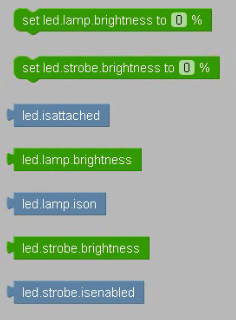

Aux Devices→ Lamp
Aux Devices → Lamp has several call, set and led block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.
Aux Devices → Laser
Aux Devices → Laser has call, set and laser block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

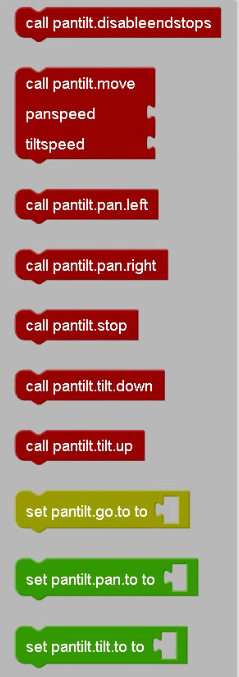

Aux Devices → Pan Tilt
Aux Devices → Pan Tilt has several call and set block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.
Hibernate
Hibernate has call, set and script block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

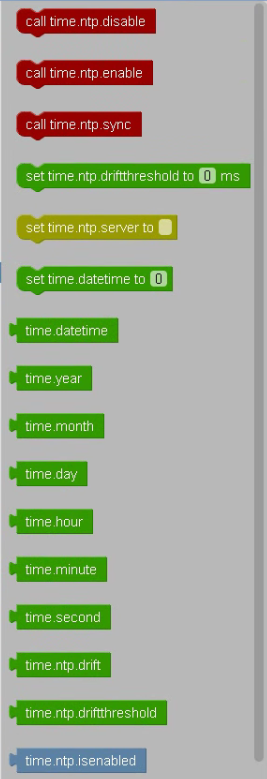

Time
Time has call, set, and time block codes.
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.

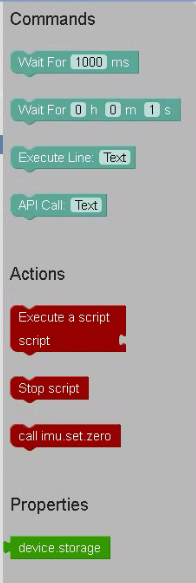

Other
Other has an additional 3 sub-menus - Commands, Actions, and Properties
Use the Color Codes Key to as a reminder of each block type function.
Hold the mouse cursor over each block code to reveal a “tool tip” description.
