Rayfin White Balance


Select Menu → Rayfin White Balance

White Balance setting determine the RGB (Red, Green, Blue) values.

Channel Settings → Rayfin White Balance feature is only available on Channels where a Rayfin is selected as a Channel Input.

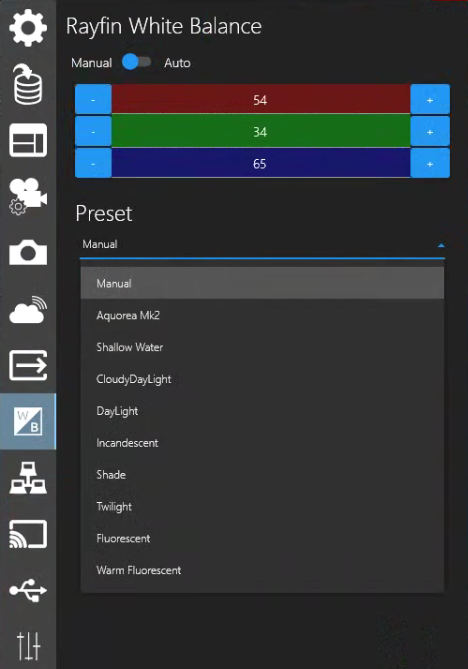

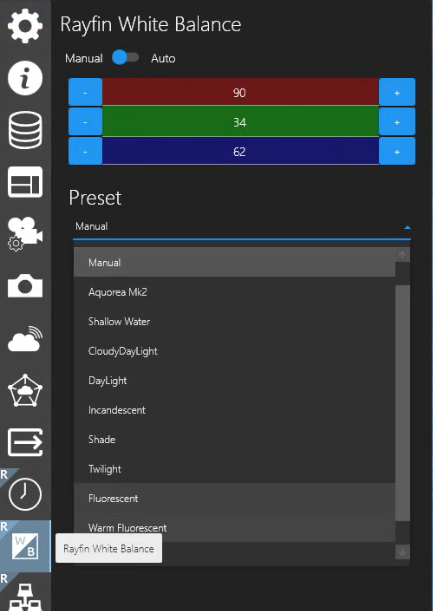

Manual

Select Manual if you wish to lock and manually adjust the white balance values.

Use the “-” and “+” buttons to adjust the RGB to your preference.

Presets - Select your preference from this dropdown field.

Note, when operating in water depths less than 100m, the "Shallow Water" white balance preset may give you a higher quality image.”

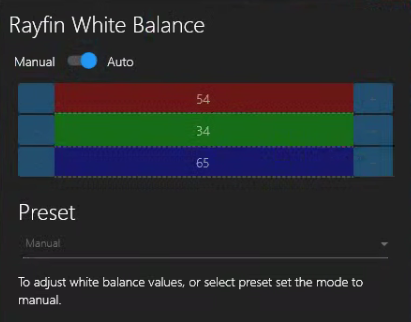

Auto

In Auto mode the RGB values will adjust automatically as the contents of the video change.

Presets are not available in Auto mode.
