Channel Info - RCS

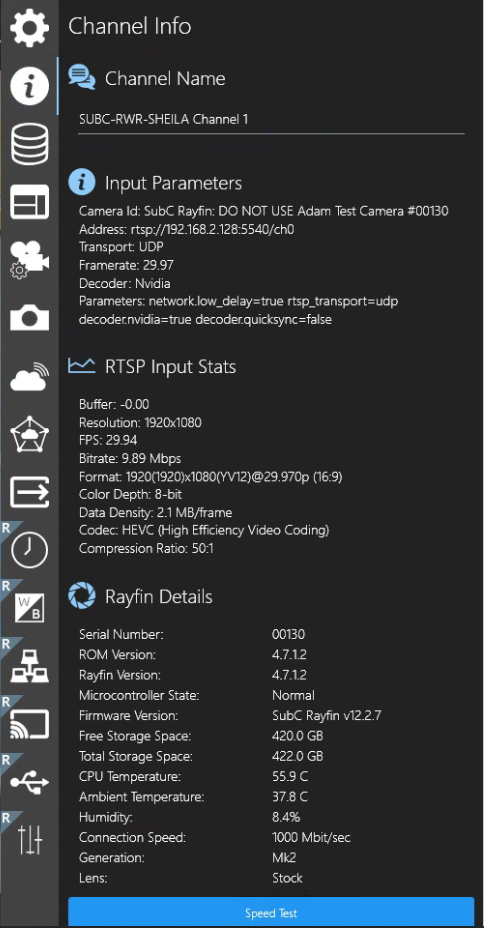

Select Menu → Channel Info



Rayfin Camera Input


Channel Name - The name of the current Channel appears in this field.

Default is SubC Product system’s Hostname-Channel #

You can edit this field to change the Channel name

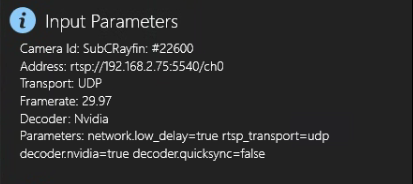

Input Parameters

  • Camera Id: When the Channel is connected to a Rayfin camera, this field displays the current Channel’s Rayfin camera name and serial number

  • Address: Displays the SRT or RTSP address

  • Transport: Displays the selected transport protocol

  • Framerate: Displays the Rayfin video framerate

  • Decoder: Displays the selected decoder

  • Parameters: Displays the advanced parameter settings.

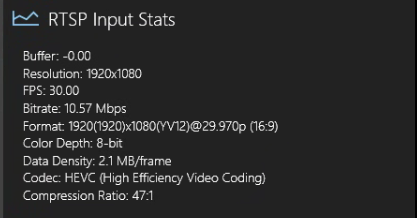

RTSP Input Stats

  • Buffer: Displays video input buffer rates

  • Resolution: Displays the video resolution

  • FPS: Displays video input frames per second

  • Bitrate: Displays the video bitrate

  • Format: Displays details about the video resolution and other elements

  • Color Depth: Displays the Bit Depth, the number of bits per pixel to represent the color of each pixel.

  • Data Density: Display the amount of data transferred across the connection per frame.

  • Codec: Displays the current video codec type

  • Compression Ratio: Displays the ratio at which the video is encoded to consumes less space, enabling transmission.

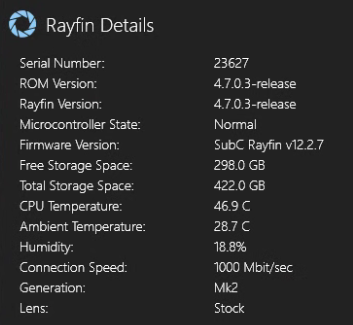

Rayfin Details

  • Serial Number: Rayfin camera’s SubC serial number.

  • ROM Version: Rayfin camera’s ROM version.

  • Rayfin Version: Rayfin camera’s application version.

  • Microcontroller State:

    • Normal - means Rayfin Software is current and in good state

    • Bootloader - will appear briefly during Rayfin software updating.

  • Firmware Version: Rayfin camera’s firmware version.

  • Free Storage Space: Displays the remaining space available in the Rayfin Internal Storage

  • Total Storage Space: Displays the size of the Rayfin Internal Storage

  • CPU Temperature: Rayfin camera’s internal temperature.

  • Ambient Temperature: Rayfin camera’s external temperature.

  • Humidity: Rayfin camera’s relative humidity.

  • Connection Speed: Max potential connection speed between the Rayfin and the DVR+O / SCI expressed in megabits per second.

  • Generation: The Rayfin camera’s hardware version. [Mk1 | Mk2 | Mk3 | etc.]

  • Lens: Displays the Rayfin camera lens type

    • [Stock | Zoom | FCB]

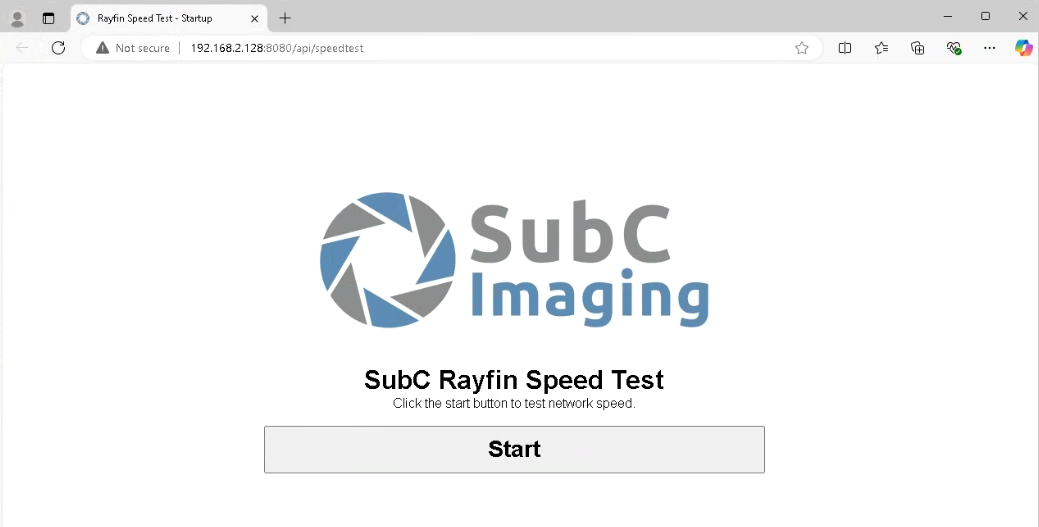

  • Speed Test - Opens a browser to an application to test the Rayfin Camera Download / Upload speed.


    • Click Start

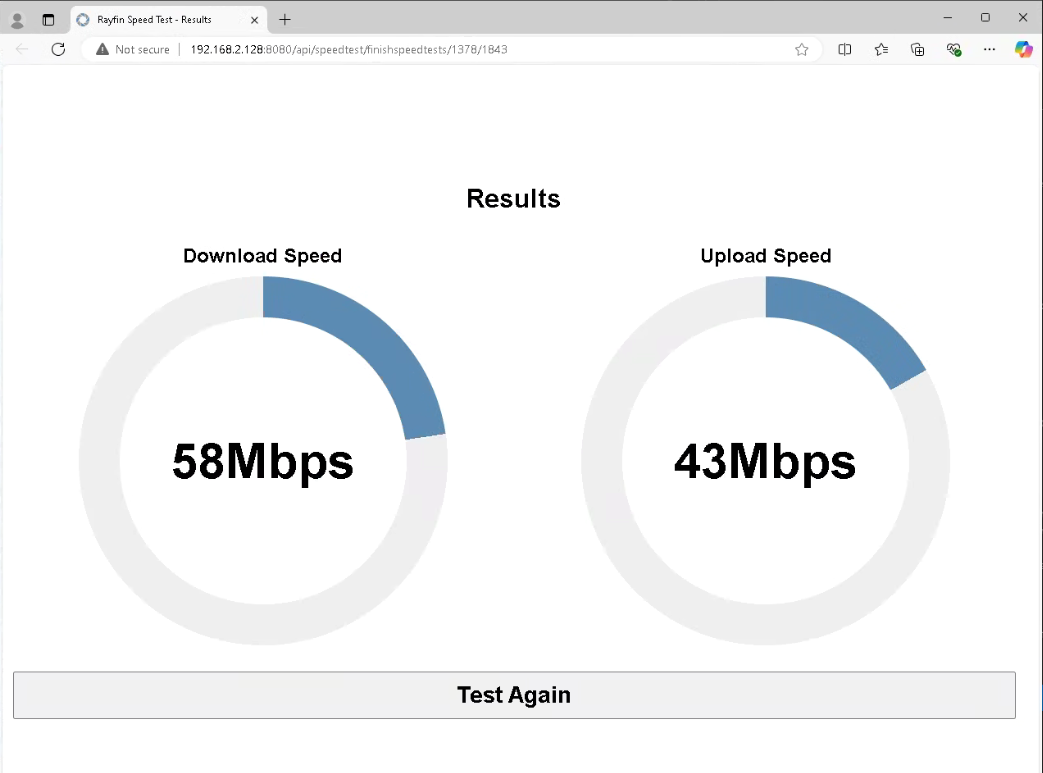

  • Download Speed: The speed at which commands are transmitted from the SubC application Rayfin controls to the Rayfin camera.

  • Upload Speed: The speed at which the video stream from the Rayfin camera is transmitting to the SubC application and the speed at which Still images are transmitted from the Rayfin camera to the SubC application system’s drive (when Storage is set to Topside).
