Rayfin Mk2 Benthic with Hibernate option. 6000m rated LiquidOpticsTM and a DBH13 bulkhead. For timelapse of HD, 4K video, and digital stills over a very long period while conserving battery power.
Hibernate Option, build-to-order.
|
Sensor and Lens |
Lens and Optics |
Water-corrected, scratch-resistant sapphire LiquidOpticsTM |
|
|
Angle of View (in water) |
81° diagonal | 71° horizontal | 57° vertical | less than 3.4% distortion |
||
|
Sensor |
Type 1/2.3" CMOS 12-bit |
||
|
Image Size |
12.3MP - 4056 x 3040 |
||
|
Exposure Range |
Shutter Speed 1/30 to 1/65000 | ISO 50 to 3200 |
||
|
Zoom |
Digital (5x Optical zoom equivalent) |
||
|
Aperture, Focal Length, Range |
f/2.0 | 4.52mm | 15cm to infinity |
||
|
Data Formatting |
Ethernet Video and Latency |
RTSP H.265 and H.264 | 1080p, 720p, UHD 4K | 180 - 225ms (1080p) |
|
|
Rapid Digital Imaging (RDI) |
Continuous Stills |
Configurable, 2Hz (2 per second) to 0.1Hz (1 every 10 seconds) |
|
|
Media Transfer |
Real-time digital stills and data to topside over Ethernet. Stored on HDD, SSD or NAS. |
||
|
Media Formats |
Video - MPEG4, H.264, H.265 | Stills - JPEG | Data - CSV |
||
|
Control |
Over Ethernet with provided SubC software | Rayfin API is available for 3rd party software |
||
|
Data Logging |
NMEA 0183 & 2000 format @ 10Hz |
||
|
Clock Sources |
NTP Server, Time from Data string |
||
|
Electrical and Mechanical |
Aux Ports |
Two ports, capable of powering and controlling LED Strobe/Lamps, Lasers and other devices |
|
|
Voltage |
16.5 - 32.5 Vdc |
||
|
Power |
0.007W (hibernate) - 6.4W (idle) - 8W (recording) - 13.5W (peak) |
||
|
Wake Up (Pin 12) |
Active High | 3 - 32.5 Vdc | 5s delay |
||
|
Protection |
Short circuit | Under-Over voltage | ESD | Over-temperature |
||
|
Temperature |
-20˚C to +30˚C (in water) |
||
|
Depth Rating |
6000m |
||
|
Materials |
Sapphire, Grade 5 Titanium |
||
|
Weight |
1.6kg in water | 3.2kg in air |
||
|

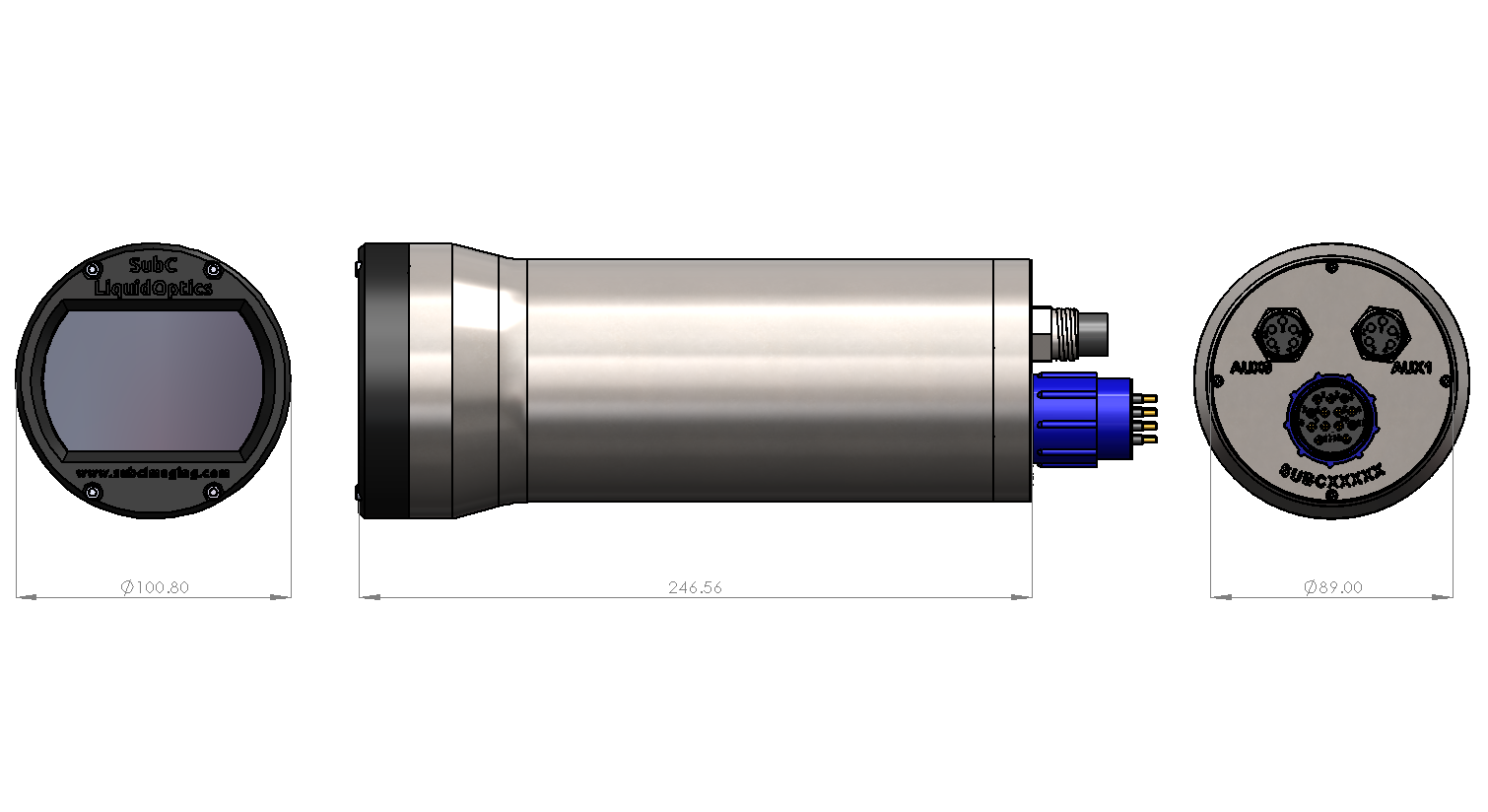

Dimensions |
Ø 101mm | 241.56mm x 89mm |
||
|
Hibernation Period |
Minimum |
5 minutes |
|
|
Maximum |
255 hours |
||
|
Storage |
Internal Storage Options |
2TB |
|
|
# |
DBH13M + DLSA-M (Ti) [IP video, control, and data] |
MCBH5F (Ti) [AUX0 Port] |
MCBH5F (Ti) [AUX1 Port] |
|
1 |
GND |
GND |
GND |
|
2 |
Iso GND (Shield) (NC on system end) |
PWR |
PWR |
|
3 |
PWR |
AUX0 Out |
AUX1 Out |
|
4 |
(Brown) DD- [GigE] |
AUX0 RS-485 B(+) |
AUX1 RS-485 B(+) |
|
5 |
(White/Brown) DD+ [GigE] |
AUX0 RS-485 A(-) |
AUX1 RS-485 A(-) |
|
6 |
(Blue) DC+ [GigE] |
|
|
|
7 |
(White/Blue) DC- [GigE] |
||
|
8 |
(Orange) DA- [10/100] |
||
|
9 |
(White/Orange) DA+ [10/100] |
||
|
10 |
(Green) DB- [10/100] |
||
|
11 |
(White/Green) DB+ [10/100] |
||
|
12 |
(Red) Wake Up |
||
|
13 |
NC |
