Starting An Input
Multiple Channels can be configured independently with the various Inputs and run concurrently.

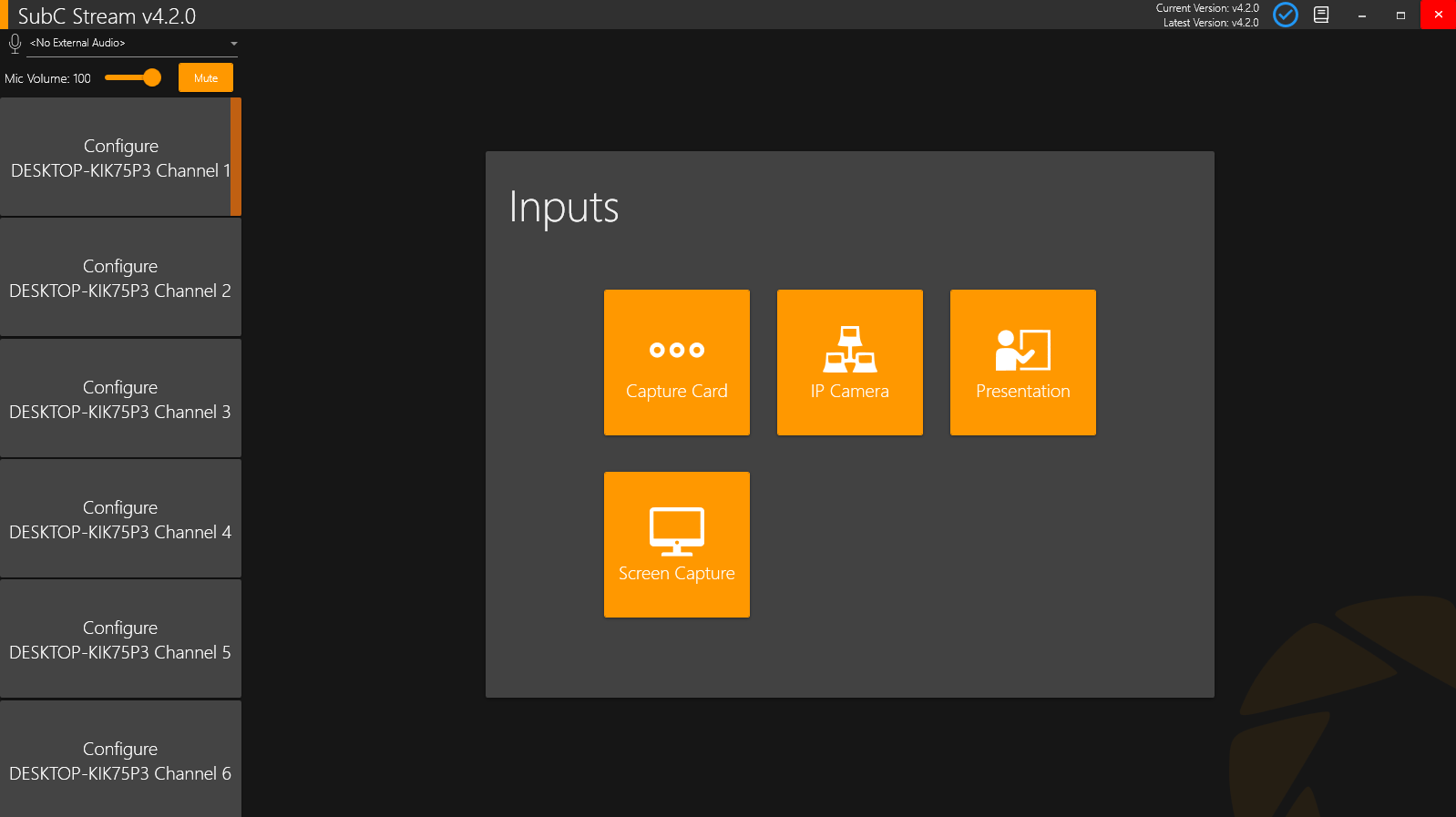

Click on a Channel, choose an Input type and configure.
Below, is an overview of each of these Inputs.

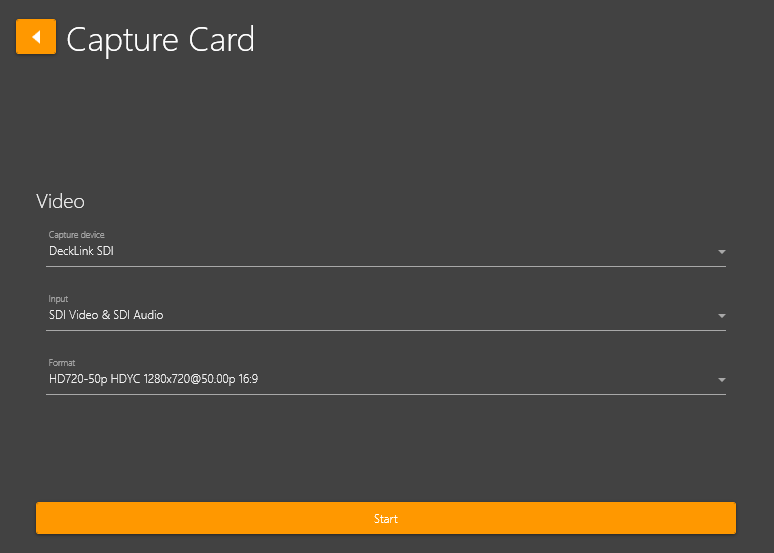

Capture Card
The Capture Card Input allows you to configure a Capture Card (a physical card internal or externally connected to your computer) that is used to capture video and output that video onto the computer.

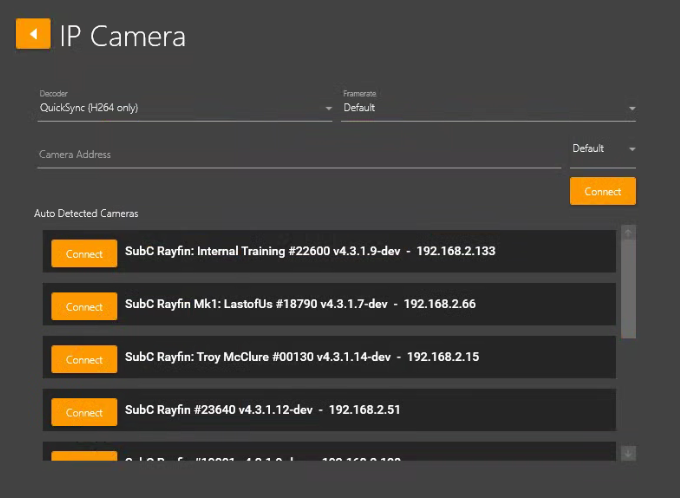

IP Camera
The IP Camera Input allows you to connect to other IP Cameras that you may have connected to your network.
Put the RTSP string of the IP camera in the Camera Address field. Example Syntax: rtsp://yourcamera.domain.com:port/ch0
Presentation
A SubC Streaming Service subscription is required to enable the Presentation Stream and One-Time Stream features.
Presentations for Presentation Stream are created in the SubC Streaming Service web application and assigned to a Channel. These Presentations are then accessible in SubC Presentations viewer web application and can be used as Presentation Input.

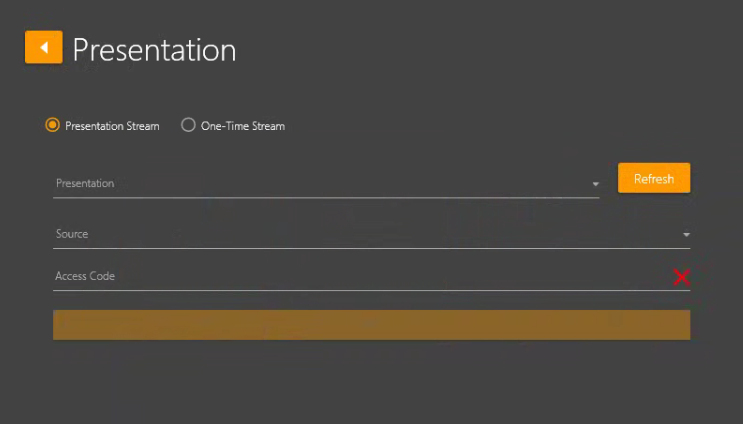

The Presentation Input option allows you to assign an active SubC Presentation or One-Time Stream as Input on a Channel.

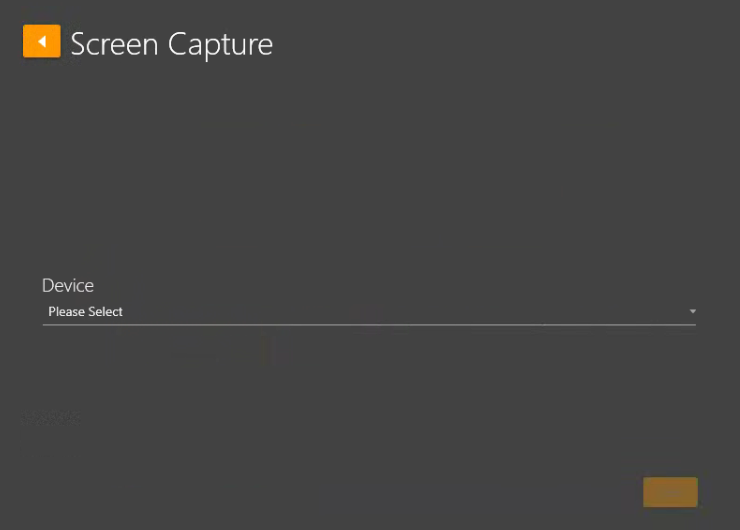

Screen Capture
The Screen Capture Input provides the option to select Screen Capture (the full computer monitor display) or a Window Capture (specific window opened on the computer - window must not be minimized) as input to a Channel.
Once a Stream Channel is configured with Input, the following features are available.
Microphone
Mic selection field detects any microphones you have installed/attached on the system and makes them available to select from this drop-down field.
Mic Volume slider button is active when the microphone is active (not mute)
Mic Volume slider button is inactive when the microphone is muted.

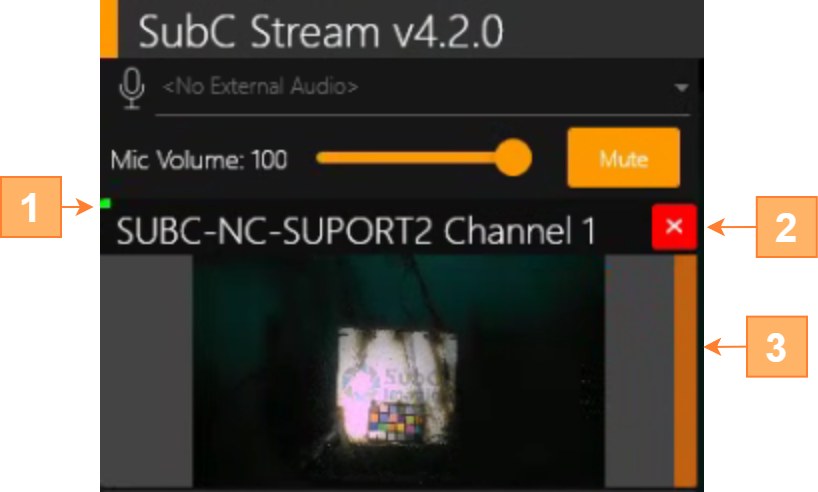

Preview window features
Channel Status Indicator – On the top-left, a small green light illuminates indicating that the video input is active.
Close Input – Click the red “x”, top-right, to close the active input and return to Input selection.
Current Selected Source Bar – When you click on an input Channel, a vertical orange bar will appear indicating it is the current source you have selected.

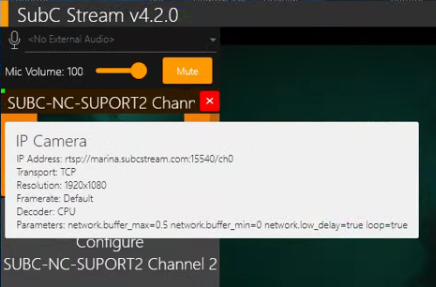

Also, when you hold the cursor over the Channel Preview Window, a window will appear displaying the Channel configuration details.
Real-time Image Enhancement
When a Channel is configured with an Input type, the Real-time Image Enhancement “wand” toggle button will appear in the top, right of the Stream UI
The Real-time Image Enhancement is a feature that will help operators get the job done quickly and efficiently by allowing them to clearly see the videos and stills they're capturing in real time.
The Image Enhancement feature is ideal for water conditions with poor visibility as it helps bring out details in the enhanced video that are normally obscured.
Image Enhancement processes live frames so the framerate is processor dependent.

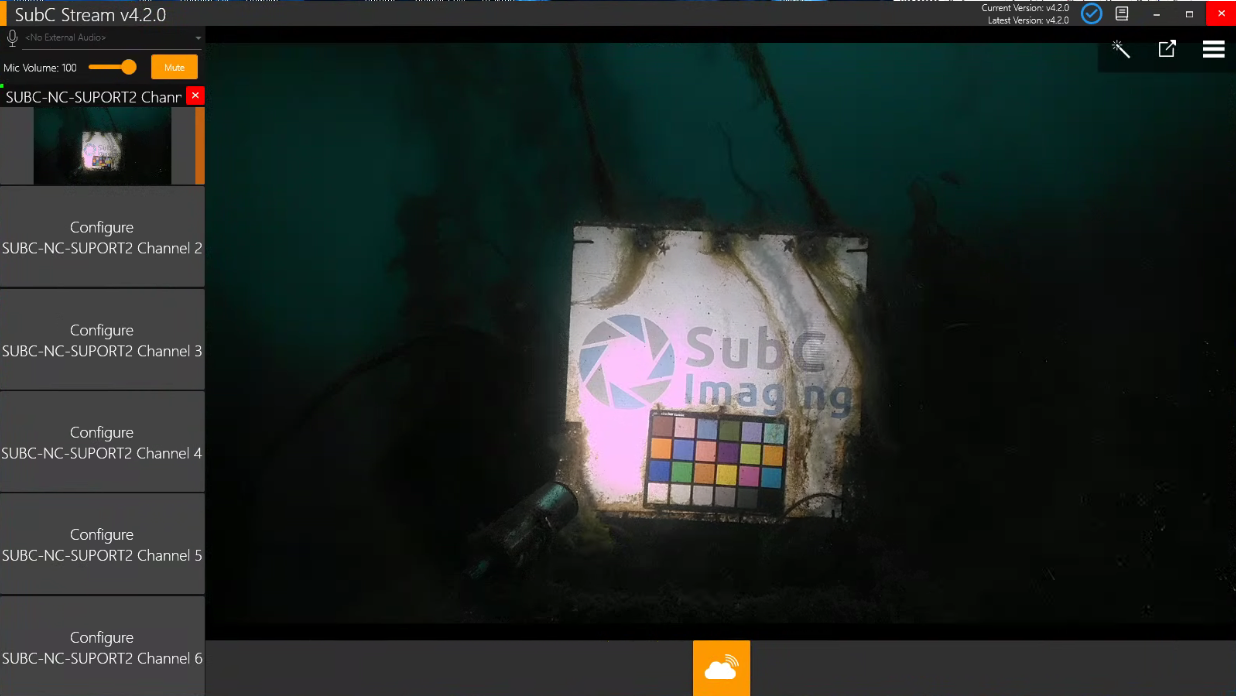

Image enhancement Off
Its 4:00PM, mid-October or a very dark rainy day. Low light conditions underwater.

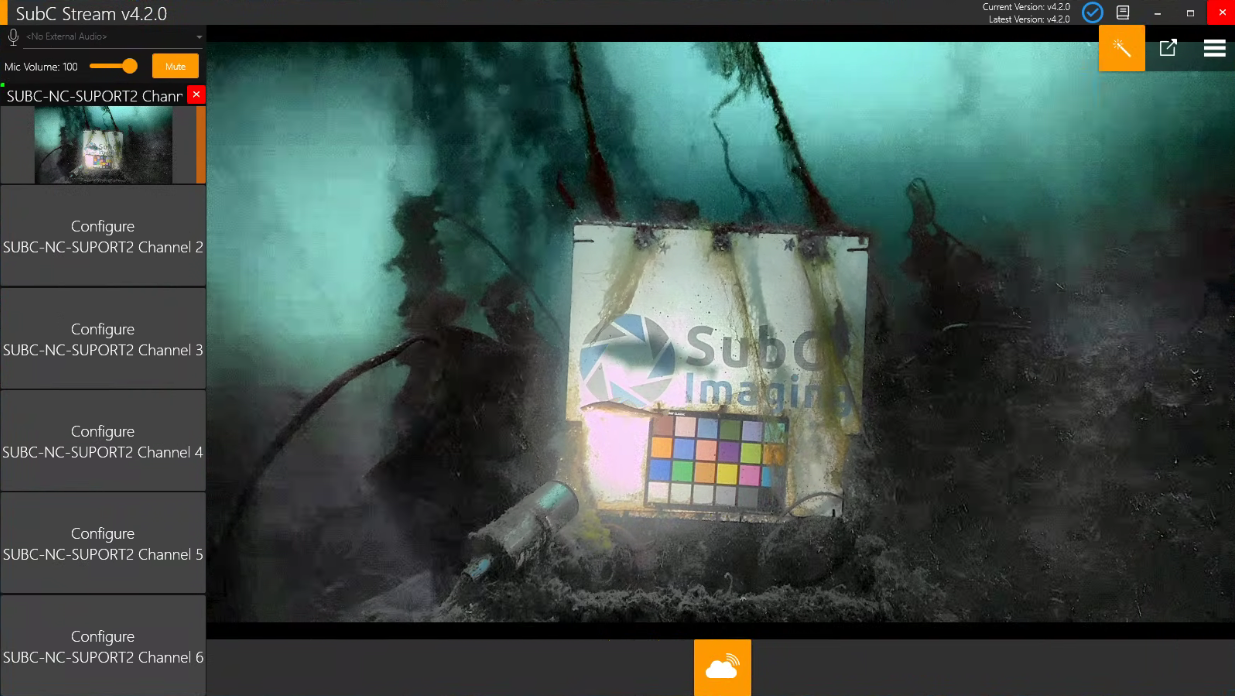

Image enhancement On
Significantly brightens the scene.
