Shape
Include various shapes in your Overlay. Select a Shape via the drop-down menu.

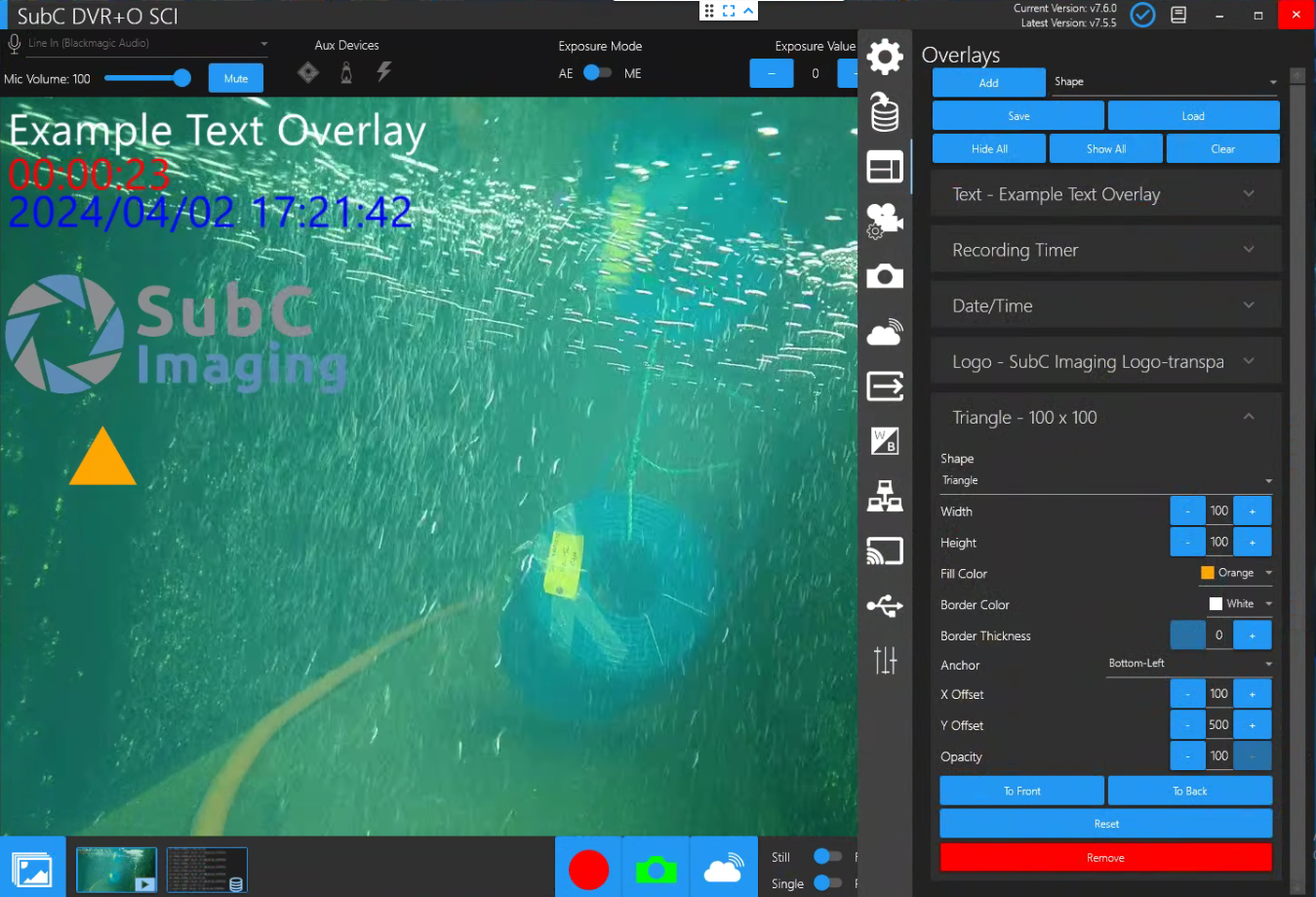

In this example we selected Shape → Triangle
Customize the positioning and features of the Shape display through the Shape Menu options.
Fields
Width – Resize the Shape. Click “-” to shrink and click “+” to stretch the Shape horizontally. You can alternatively adjust by editing the number in the center (Range [1-5000]. 100 will put it back to the default setting)
Height – Resize the Shape. Click “-” to shrink and click “+” to stretch the Shape vertically. You can alternatively adjust by editing the number in the center (Range [1-5000]. 100 will put it back to the default setting)
Fill Color – Change the color of the Shape or make it transparent.
Border Color – Apply a color border along the edge of the Shape.
Boarder Thickness – Increase or decrease the thickness of the Shape’s border. Click the “+” to increase or “-” to decrease the border thickness. Alternatively, you can adjust by editing the number in the center (Range [1-25])
