Home Groups - SSW

When your company subscribes to SubC Streaming Services, Stream Service Groups(s) are created for your company and Members of the Group are created using each User's email address (i.e., name@yourcompany.com). See User Accounts - SubC Streaming Services

Open SubC Streaming Service Web and login with your Streaming Service Account.

  • A numeric code with be sent to the email address you are using to login. Enter that code in the login window as prompted.

For accounts created prior to 2025: If you need to reset you Stream Service Account Password, See Reset a forgotten Microsoft account password

Click Menu → Home in the Streaming Service Web.


Your organization's Group(s) will be displayed on the top.

  1. Select a Group

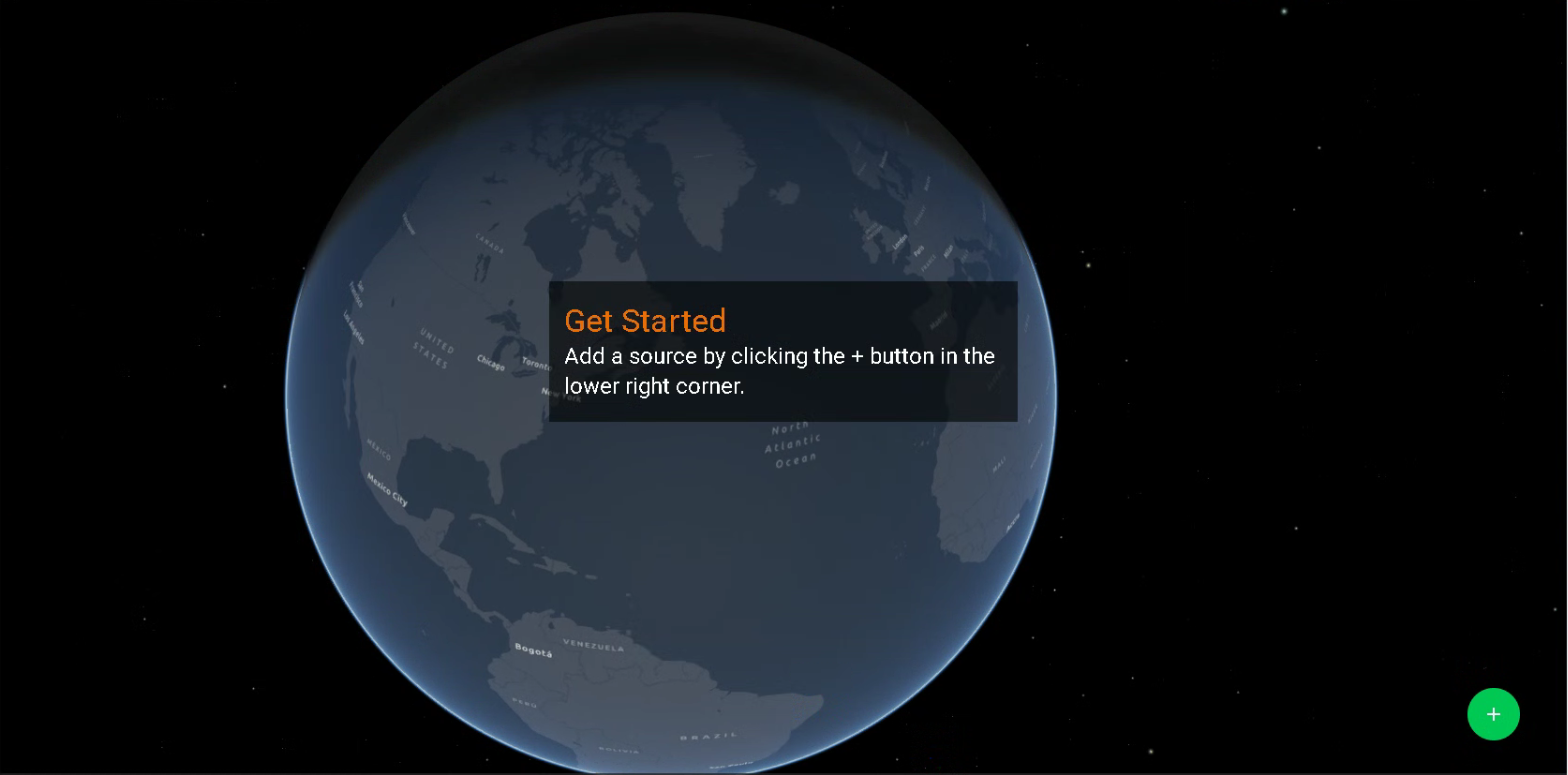

    If Sources have not yet been added to your Group, you will also see the Getting Started message.
    Click the “+” green circle to add a new Source system to the Group. See “Adding a Source to Streaming Service” instructions below.

Adding a Source to Streaming Service

Sources are PCs on your network that have a SubC Stream enabled desktop application installed, such as SubC DVR+O / SCI / RCS, SubC Stream, and SubC Blackbox desktop applications.

In the SubC Streaming Service web application, click the green “+” button to generate an Activation code.

This code is used to add a system running a stream enabled SubC desktop application to the current SubC Streaming Service Group.

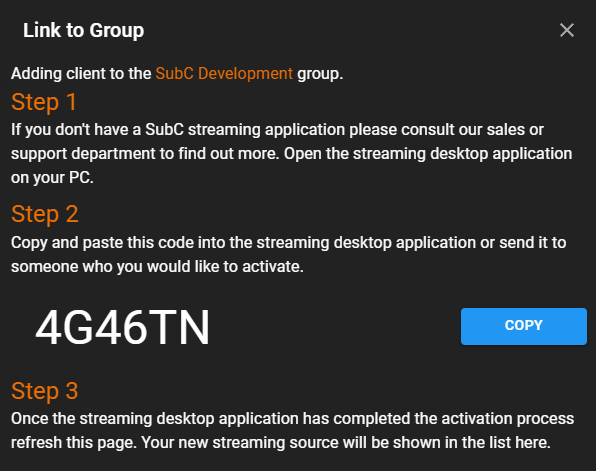

The following “Link to Group” window will appear displaying the current Group (i.e., “SubC Development”)

  1. Copy the Activation Code

  2. Open your Stream enabled desktop application on your PC.

  3. Paste the code in to the Activate prompt window.

  4. Once the Activation code is applied to Stream enabled desktop application, refresh the Streaming Service Web application page, you will then see are able to remotely interact with the PC running the Stream enabled desktop application.

See FAQ: Activate a New PC in SubC Stream.

Remote Control Stream Enabled Desktop Systems

SubC Stream enabled desktop applications currently running on system(s) that are activated in your Group will be visible and configurable in the SubC Streaming Service web application through both the Classic UI and the new GPS MAP UI.

GPS Map Layout & Classic Layout

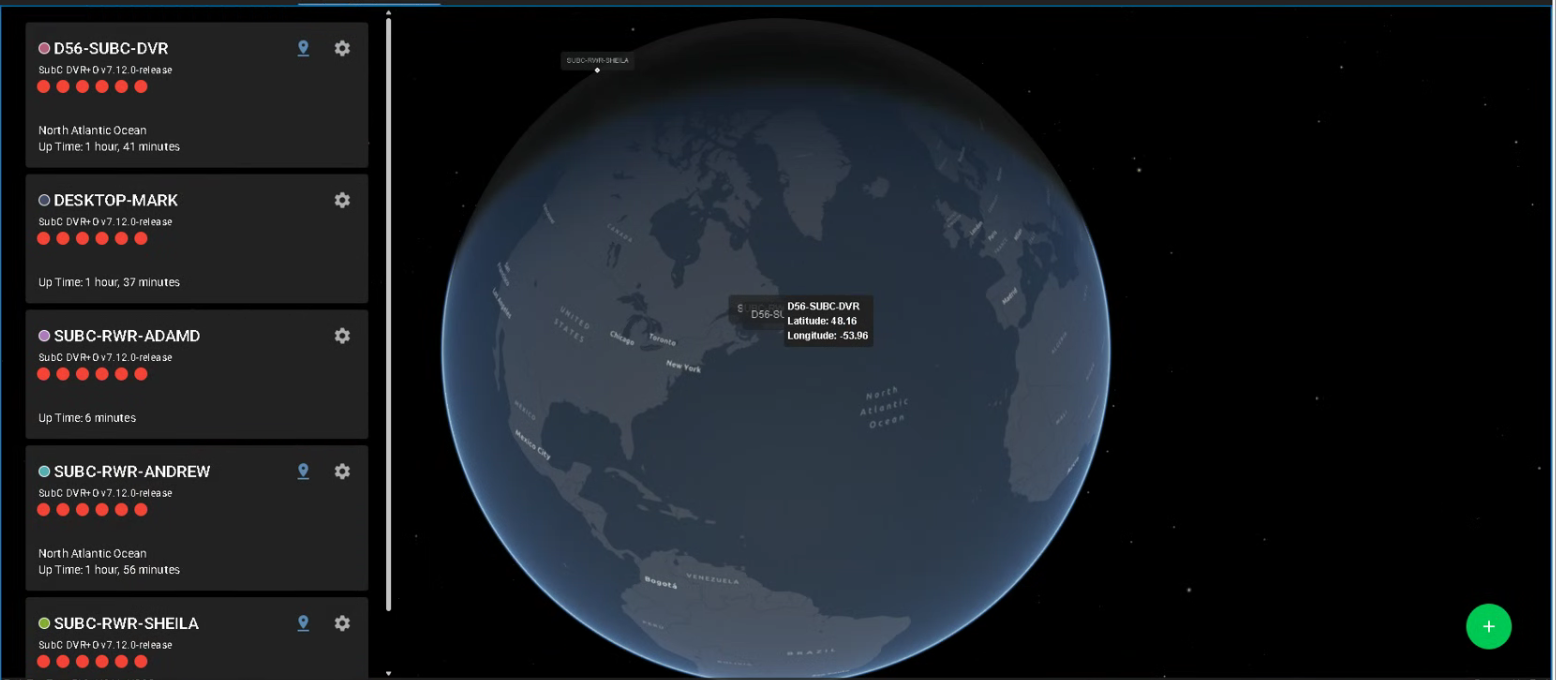

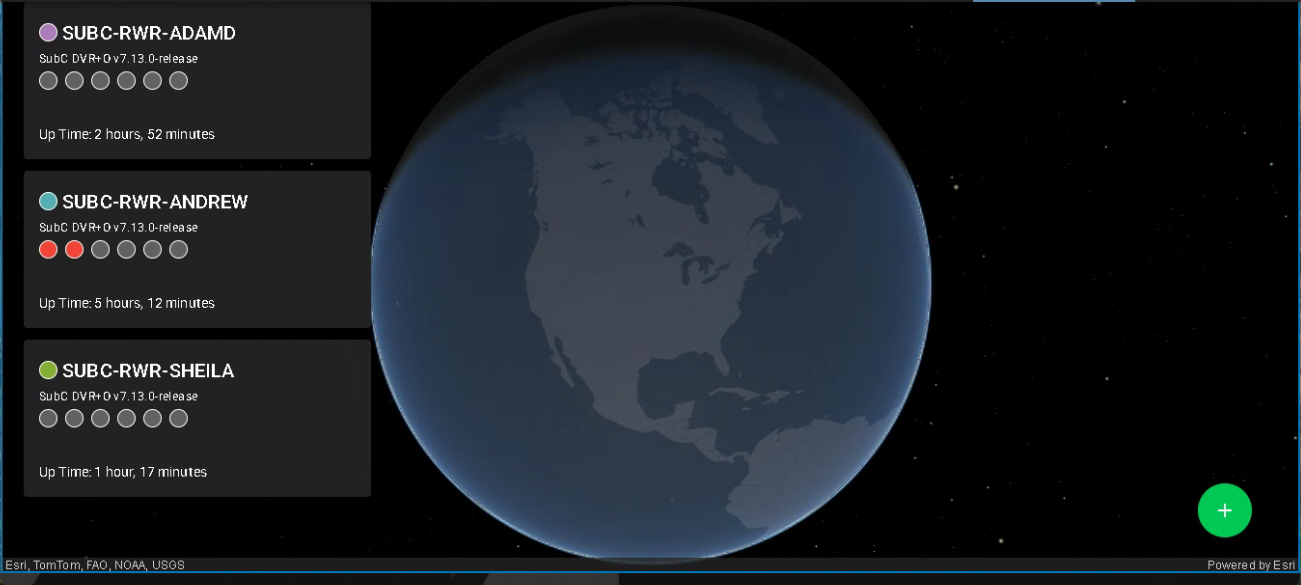

In the GPS Map Layout view of the SubC Streaming Service Web application, you can see where your SubC Desktop Application System is located on the globe.

Position the mouse cursor on the globe, press and hold the right mouse button and slide to rotate the globe to your systems location.

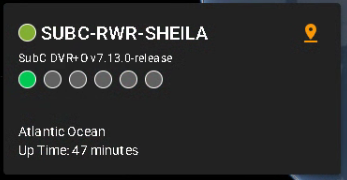

Active SubC Stream enabled desktop application host systems in your Streaming Service Group are listed on card(s) on the left.

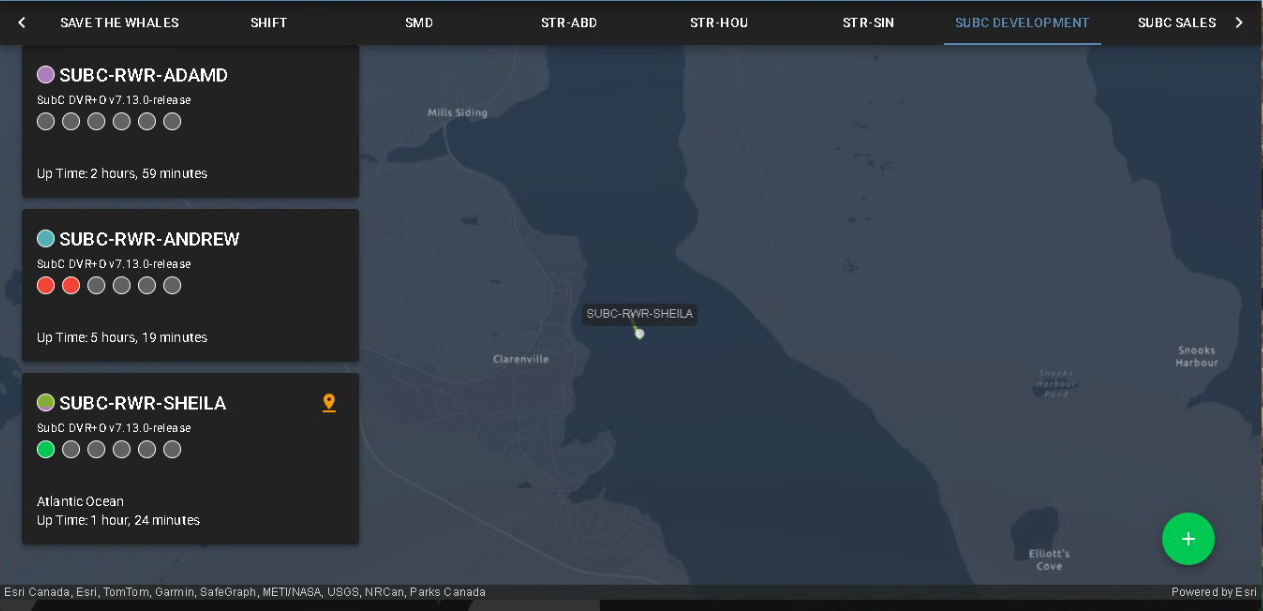

Click the location pin on the system’s card to zoom in on that system’s location

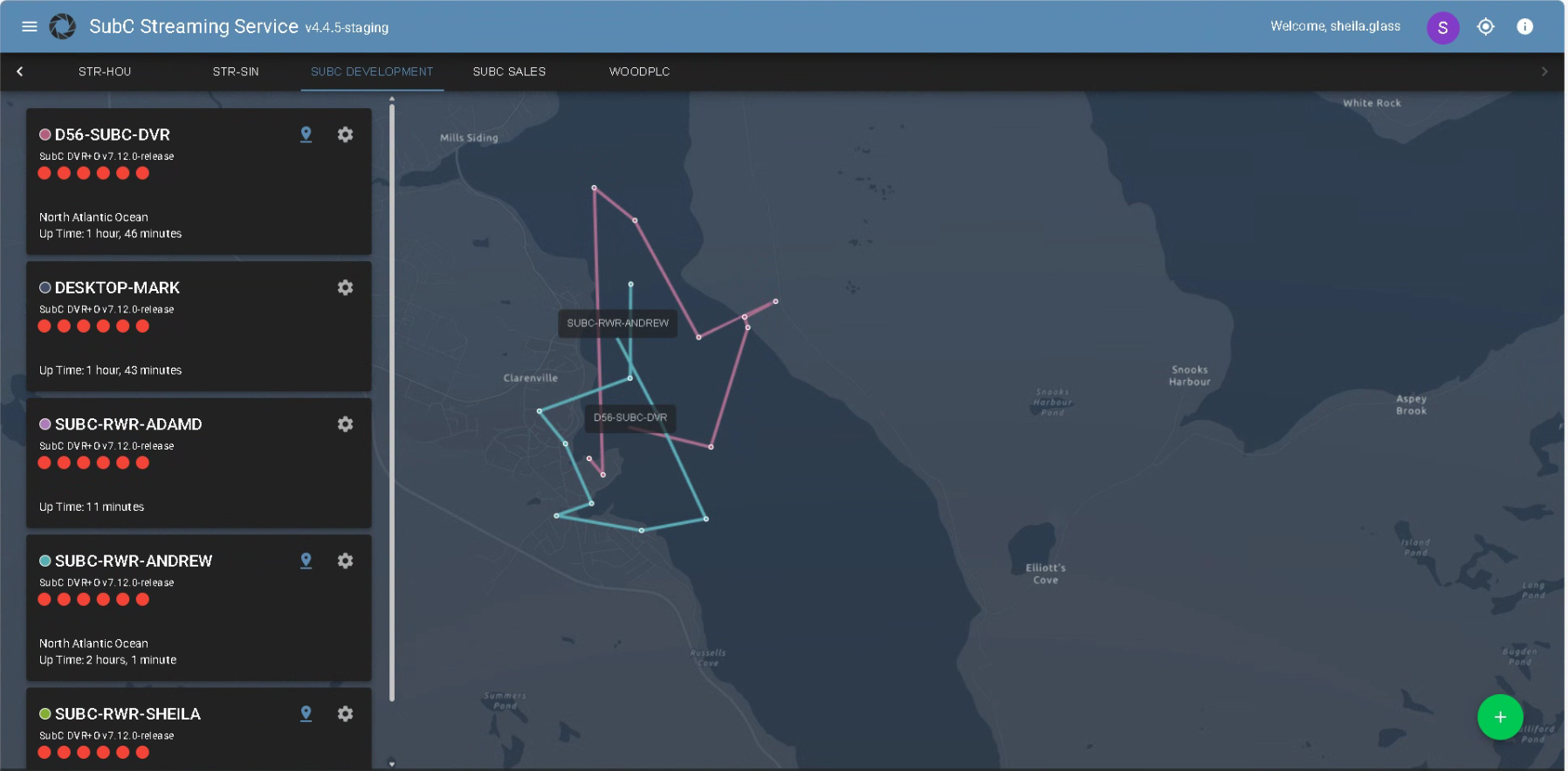

The dots & lines shows movement - where your system is and has been

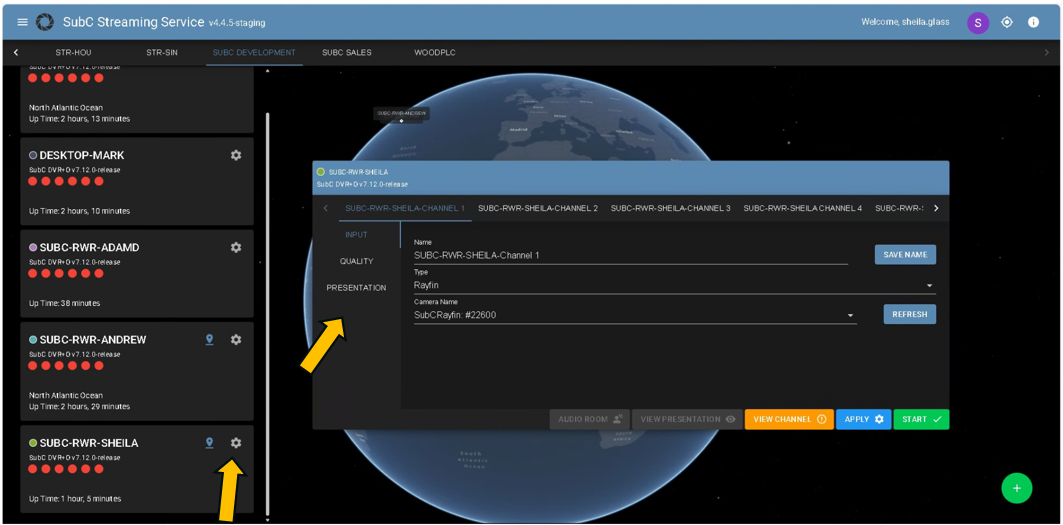

Click on the gear wheel icon on the system’s card to open the Configuration UI for your SubC System Channels


This Configuration UI in the GPS Map Layout works the same as in the Classic Layout. The Configuration UI is described below.


Click the Use Map Layout toggle button to switch back & forth between the GPS Map Layout and the Classic Layout


Configuration UI


Example: In this image we see a system hostname “SUBC-RWR-SHEILA” is a member of “SUBC DEVELOPEMENT” Group.

We can see “SUBC-RWR-SHEILA”, is running the SubC DVR+O desktop application and its software version 7.12 and below, we see it has 6 Input Channels. “SUBC-RWR-SHEILA CHANNEL 1” is selected

Each Channel Menu has INPUT, QUALITY and PRESENTATION

The sections below describe how you can remotely configure SubC Stream enabled desktop application Channels with various Input, Quality and Presentation options through SubC Streaming Service web application.

Configuring a Channel

INPUT Menu

  • Name - Displays the PC’s hostname by default and Channel #
    You can change the name of the Channels as you wish to a name that is meaningful, such as the name of the video input, camera or its location, and click the SAVE NAME button.

  • Type - Choose an Input Type from this dropdown field.

    • Rayfin

    • Capture Card

    • IP Camera

    • RTSP Address

    • Screen Capture

    • Window Capture

    • Presentation Input

    • One Time Stream

Each of these Input Types are described below.

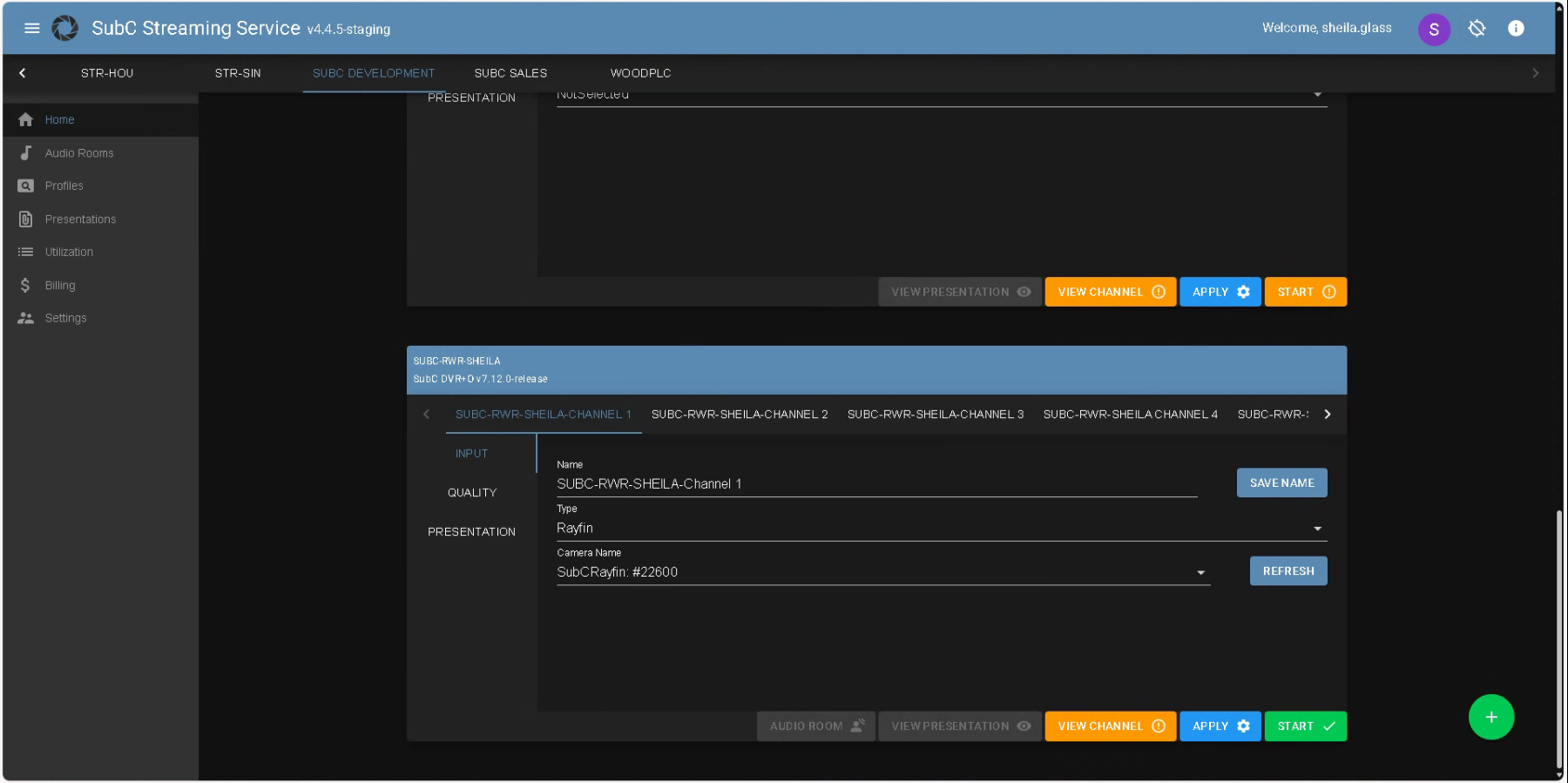

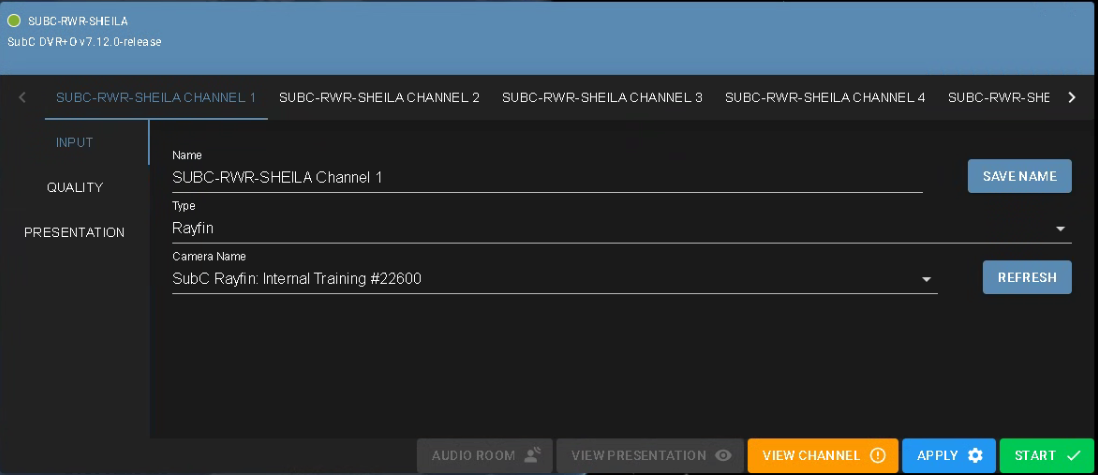

Rayfin

  • Type - Select Rayfin

  • Camera Name- Select from a list of Rayfin cameras detected on the LAN where the SubC Software desktop application host system resides.

    Click the Refresh button if you don’t see the Rayfin camera listed that you are expecting to see. The Rayfin must be powered up and connected on the Network.

DVR+O / SCI

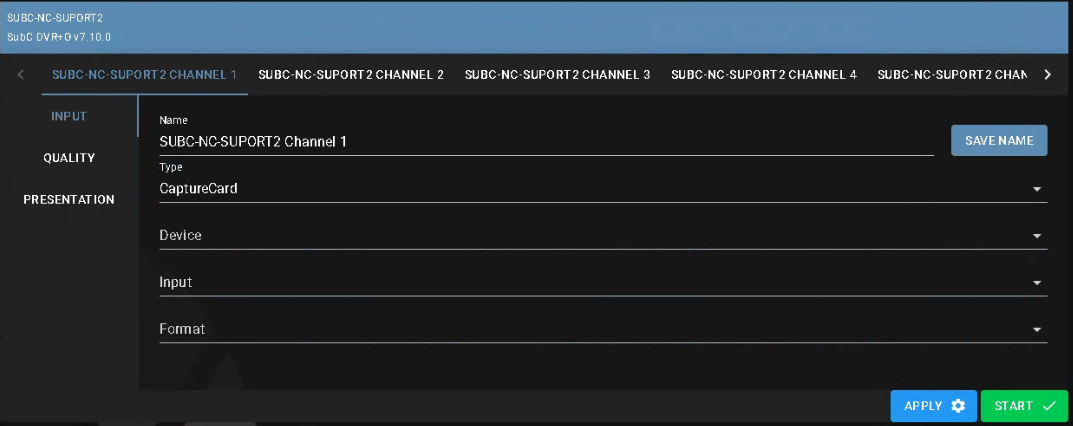

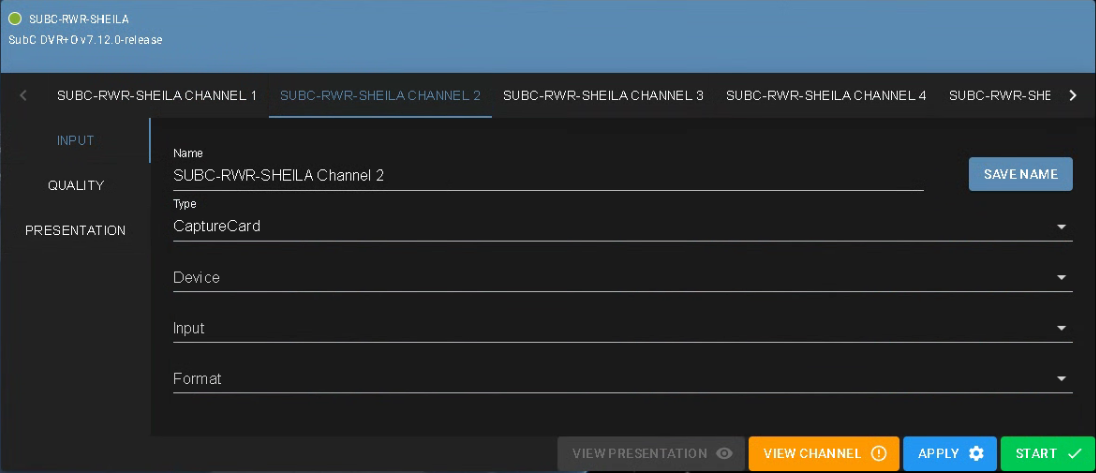

Capture Card

  • Type - Select Capture Card

  • Device - Select the Brand/Model of the Capture Card

  • Input - Select from the digital video / audio interface options list

  • Format - Select the preferred format from the list.
    The formats presented in this list will depend on what your capture card supports

IP Camera Input

  • Type - Select IP Camera

  • IP Camera - Select from a list of IP cameras detected on the LAN where the SubC Software desktop application host system resides.

    • Click the Refresh button if you don’t see an IP Camera listed that you are expecting to see. The IP Camera must be powered up and connected on your Network.

  • Camera Username - Enter the username to login

  • Camera Password - Enter the password.

DVR+O / SCI

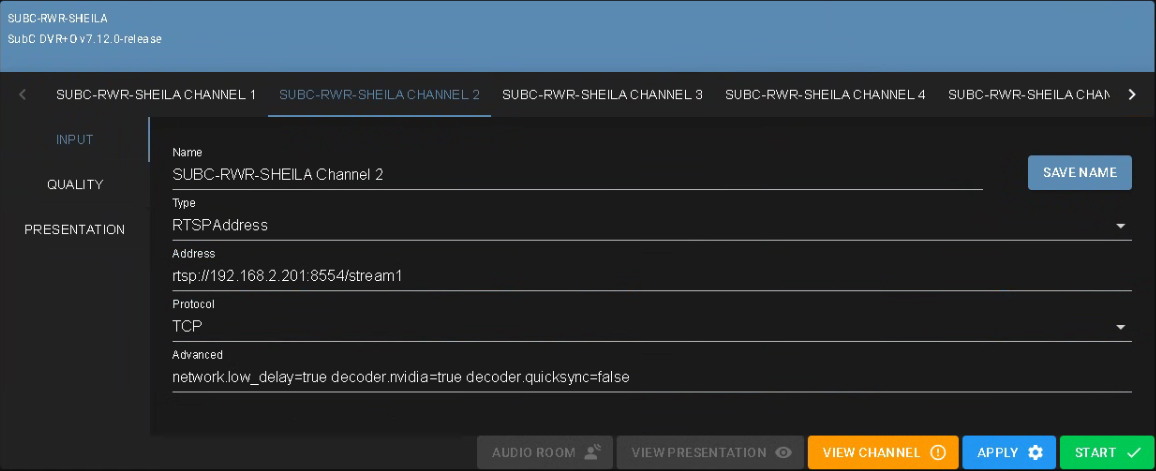

RTSP Address Input

  • Type - Select RTSP Address

  • Address - Enter RTSP video input source address

  • Protocol - Select Default, UDP or TCP

  • Advanced - Remain with the default the advanced parameters values or you can modify these values if necessary

DVR+O / SCI

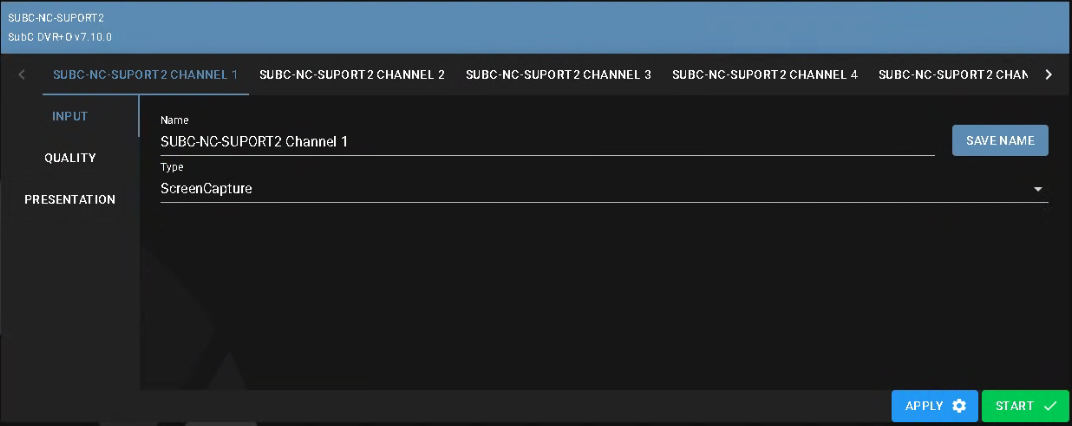

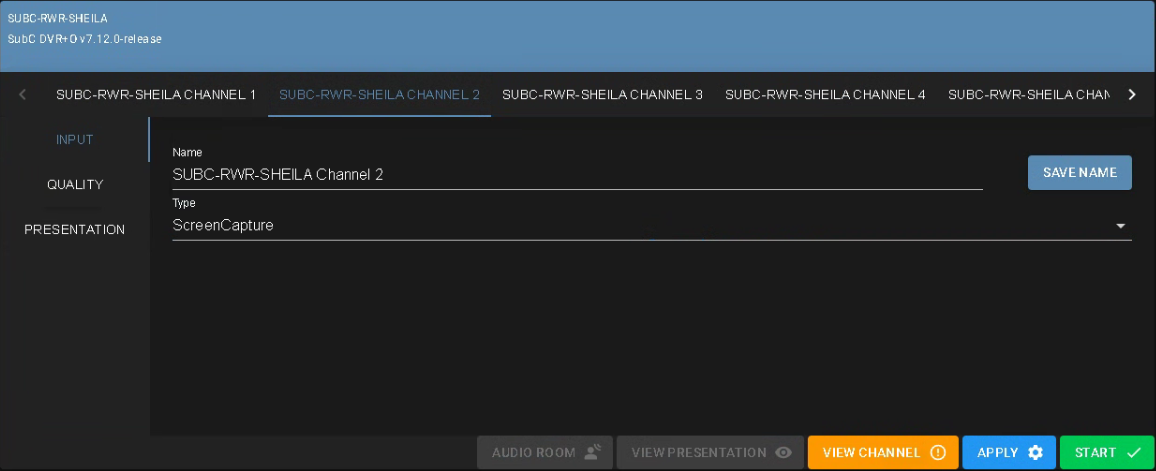

Screen Capture

Type - Select Screen Capture. This will take the SubC Software desktop application host PC’s full monitor view as input

DVR+O / SCI

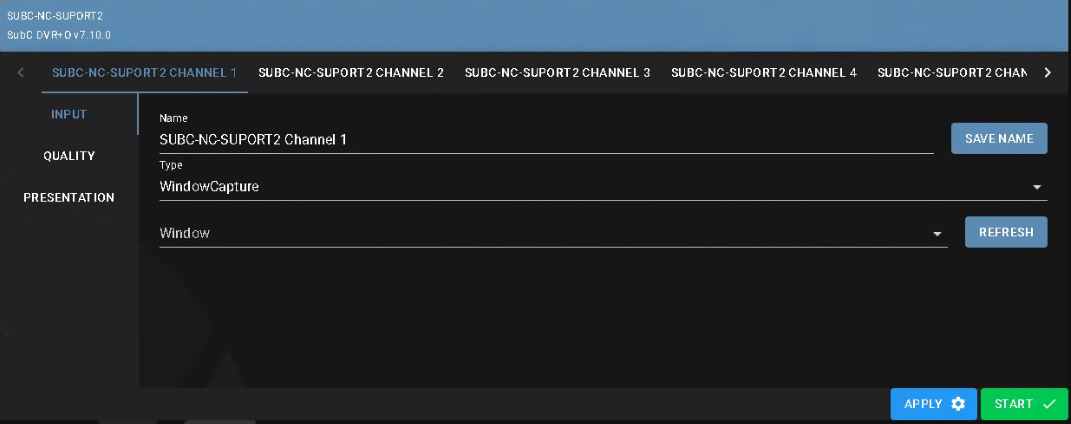

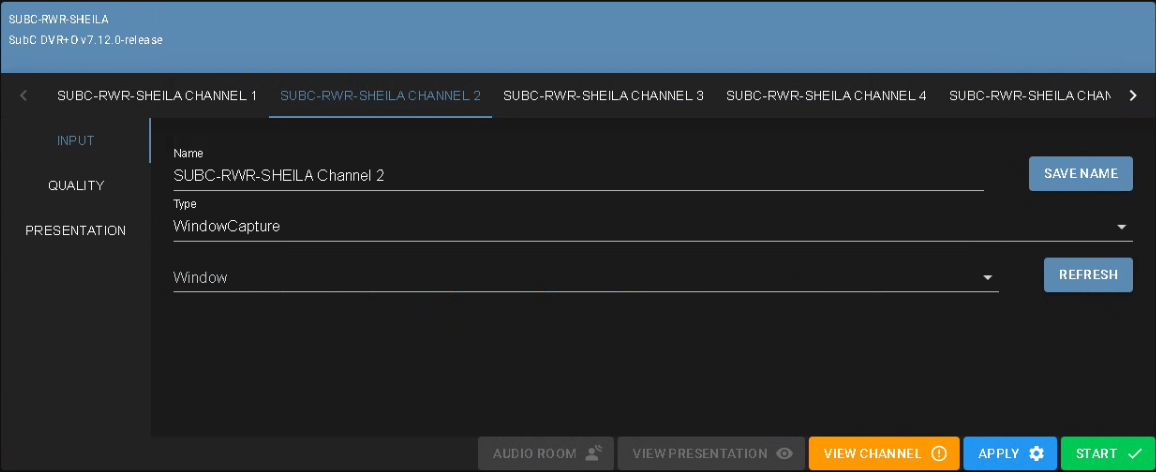

Window Capture

  • Type - Select Window Capture

  • Window - Select from a list of names of active application or browser Windows open on the SubC Software desktop application host PC.

    • Note: The selected Window must not be minimized.

  • Click the Refresh button, if you do not see the name of the window you wish to select in the list, and check the dropdown list again.

DVR+O / SCI

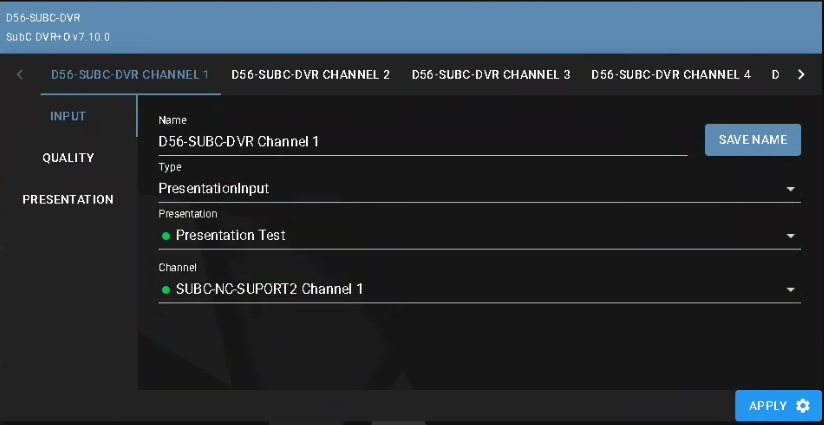

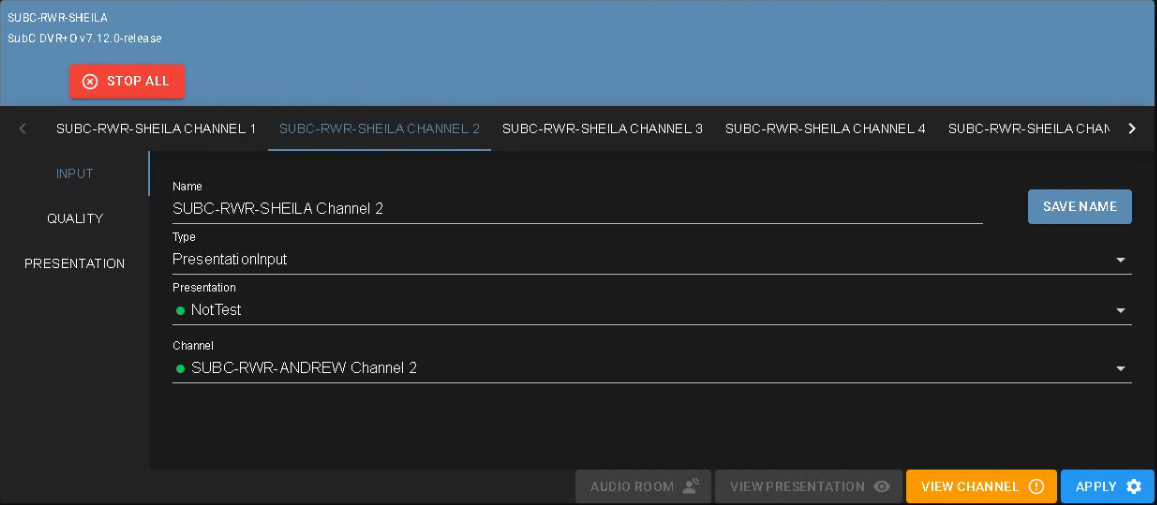

Presentation Input

  • Type - Select Presentation Input

  • Presentation - Select the Name of an active Presentation from the list

    • Green dot indicates that the Presentation is Active - there are Channels currently streaming to the Presentation.

    • Red dot indicates that the Presentation is Inactive - there are no Channels currently streaming to the Presentation.

  • Channel - Select a Channel that is streaming to the Presentation.

    • Green dot indicates that the Presentation Channel is Active - the Channel is currently streaming to the Presentation.

The Presentation source Channel that is selected as Presentation Input must come from another system running a SubC Stream enabled desktop application.

The Streaming Service Web application does not permit taking the streaming video from one Channel as Presentation Input to another Channel on the same Stream Desktop system.

DVR+O / SCI

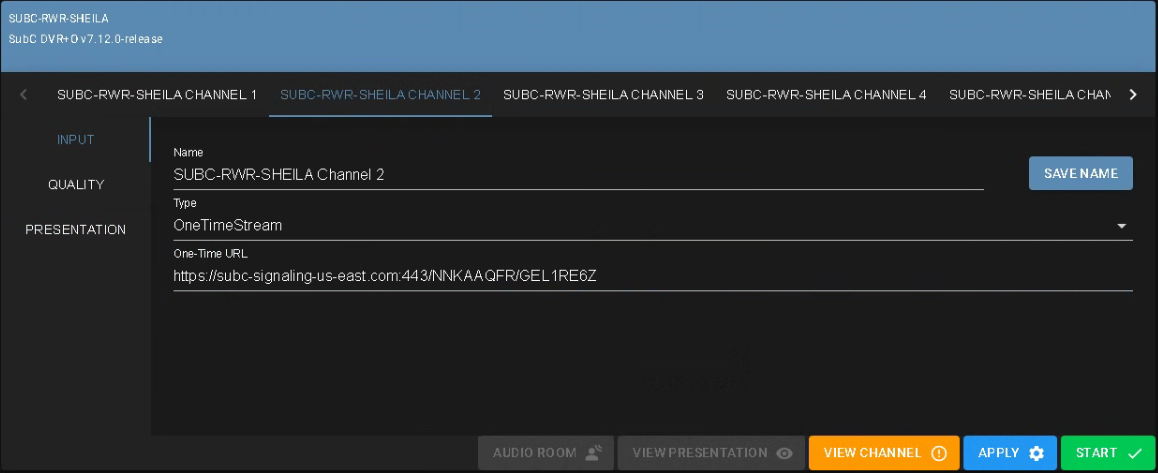

One Time Stream Input

  • Type - Select One Time Stream

  • One Time URL- Paste the One Time Stream URL that you received from the Operator of the Sending SubC Software desktop application host system.

QUALITY Menu

DVR+O / SCI / RCS

Real Time


Smooth


Transmission Type: RealTime

RealTime streaming is useful when you need very low latency video (such as for piloting a craft).

Typically, this type of stream has sub-second latency but minimizing latency means no buffering.

Frames are delivered and displayed as soon as they become available. The lack of buffering may result in the video being jumpy on slower networks.

  • Encoder: vp9 | gpu_h264 | h264

    • vp9 - Default; vp9 is a higher compression codecs, allowing for better quality images at a lower bitrate/bandwidth requirement; Stream at 1bit/sec; requires higher CPU resources

    • gpu_h264 - Is a lower compression codecs; Streams at higher bitrate/bandwidth requirement; Stream at 4bit/sec; requires less CPU resources as the performance is video-card based.

    • h264 - Is similar to gpu_h264 in all aspects, except it utilizes the CPU resources; Select h264 if your system video card does not support gpu_h264 but you wish to use lower compression/stream at a high bitrate/bandwidth.

  • BitRate (Kbps) - Default = 256

    • Selection Range: 16-512.

  • Resolution - Default = Auto

    • Selection Range: 1920x1080, 1280x720, 720x480, 320x240.

  • Framerate (fps) - Default = Auto

    • Selection Range: 5, 15, 20, 29.97, 30.

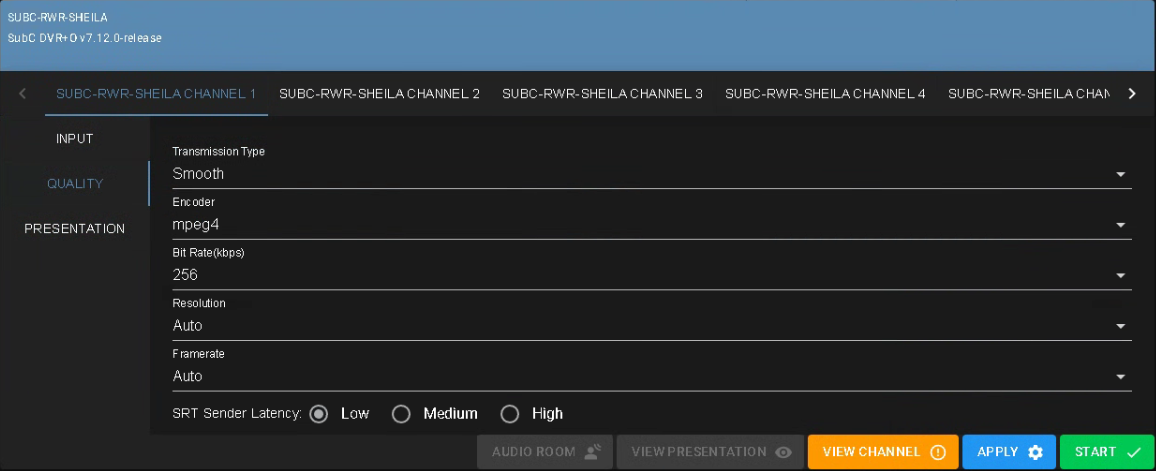

Transmission Type: Smooth

  • SRT Sender Latency:
    Low | Medium | High

These settings allow you to adapt to variations in your Network quality.

You can select Low = 1s, Medium = 3s, High = 5s whichever best suits your current Network conditions.

  • If you have optimal Network conditions, low dropouts, less buffering required, select Low for 1 second of buffering.

  • If you need more buffering, select Medium for 3 seconds or High for 5 seconds.

  • Encoder

    • Default is mpeg4 when Transmission type Smooth has been selected

    • Options vp9, gpu_h264 or h264 are available when Transmission type RealTime has been selected.

  • Bit Rate (kbps) - Options are 512, 256, 128, 64, 32, 16

  • Resolution - Options are Auto, 1920x1080, 1280x720, 720x480, 320x240

  • Framerate - Options are Auto, 30, 29.97, 20, 15, 5

  • SRT Sender Latency: Low | Medium | High selection only appears when Transmission Type Smooth is selected.

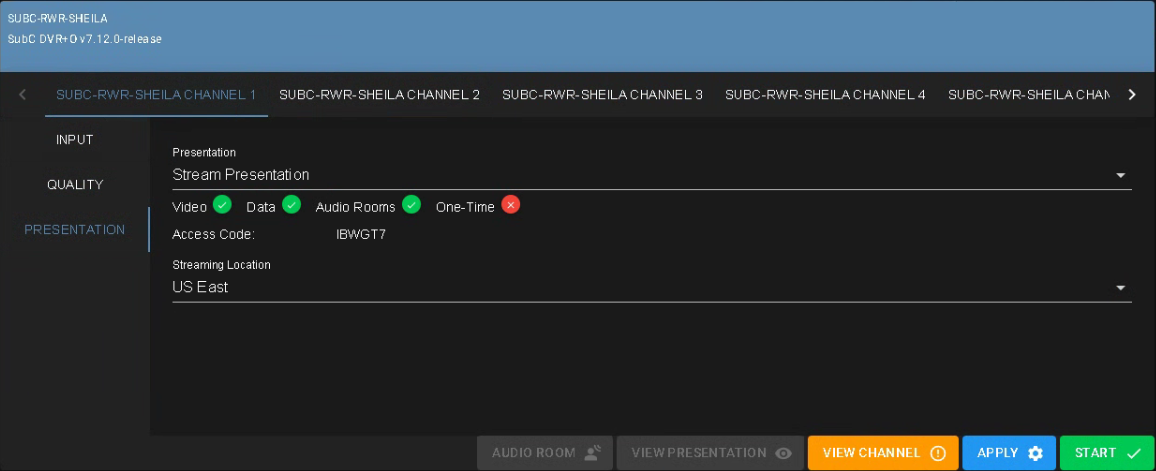

PRESENTATION Menu

DVR+O / SCI / RCS


  • Presentation - Select a Presentation from this list.
    The Presentation(s) that have been created for this Group will appear in the list.

    • Depending on the features selected when the Presentation is created, a green checkmark or red x will appear to the right of each potential feature: Video | Data | Audio Rooms | One-Time

    • See Presentations section for how to create Presentations.

  • Streaming Location - Select a SubC Stream Server from the list.

You can select any of these SubC Stream Servers, however generally it is best to select a Stream Server nearest to your geographical location.

Ready to Stream

When you have completed configuring the Input, Quality and Presentation for a Channel:


  • Click the APPLY button to apply the current configuration to the Channel.

    • This action will communicate the selected settings to the SubC Software desktop application Channel.

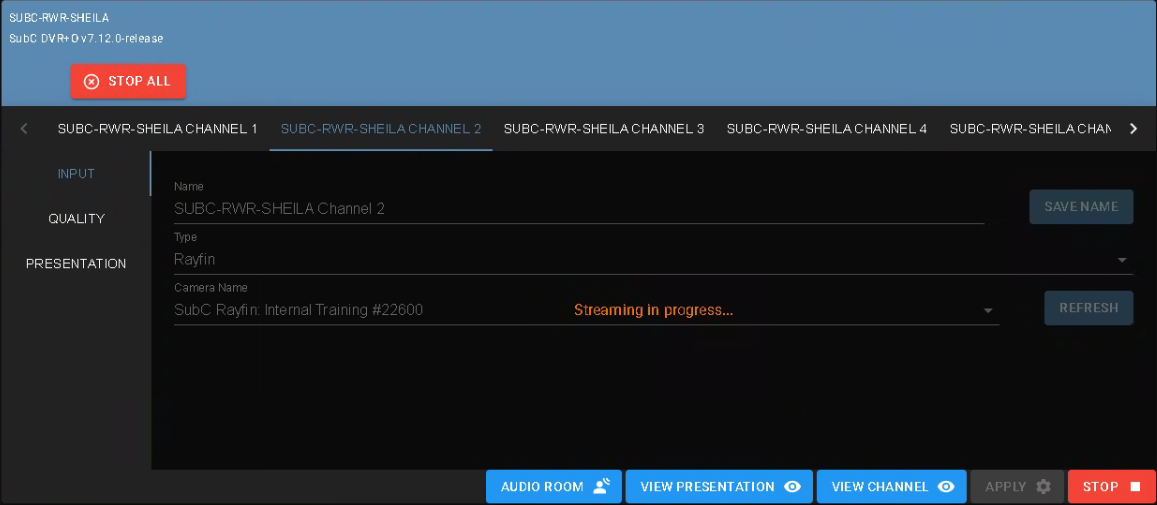

  • Click the START button to begin Streaming

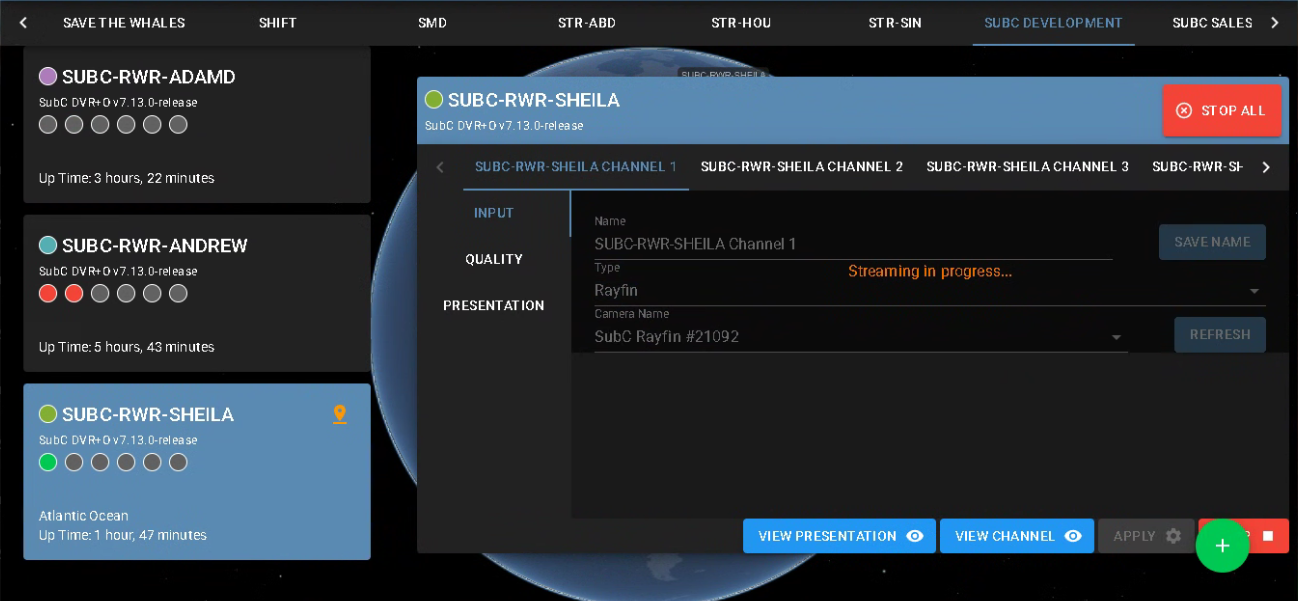

    • “Streaming in progress” message will appear on the Channel.

    • The access & control buttons will become activated
      AUDIO ROOM access button will only appear if it has been included as a feature when the Presentation was created.

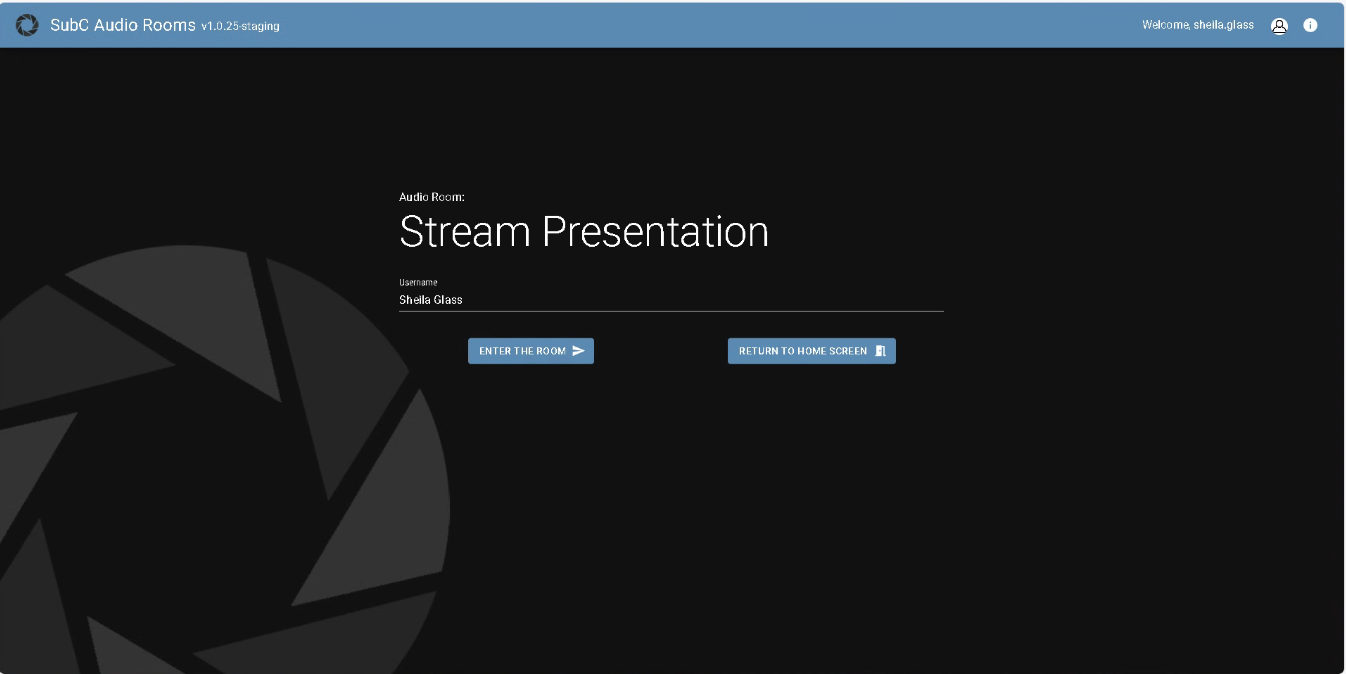

AUDIO ROOM opens the SubC Audio Rooms web application in a new browser tab

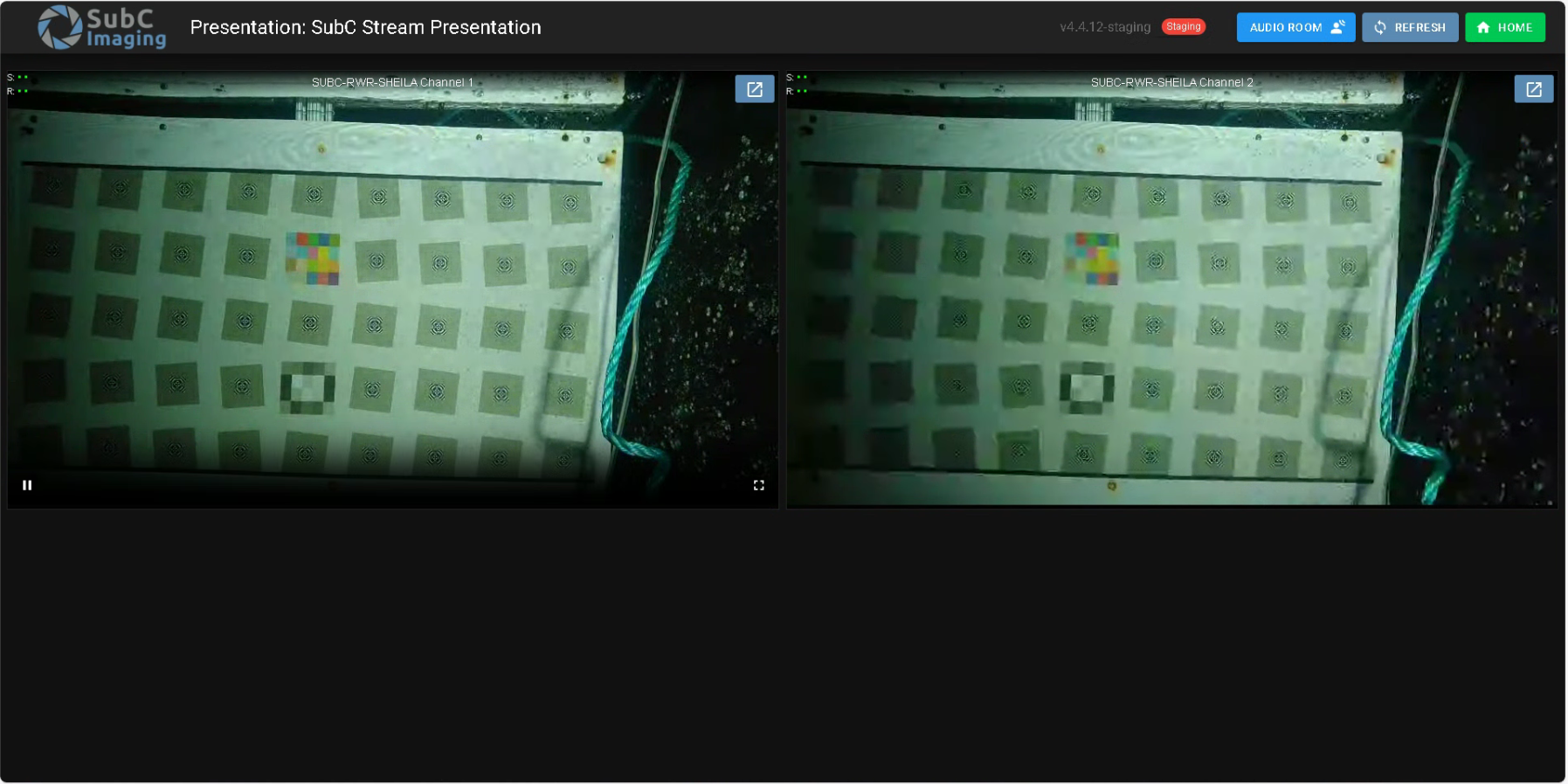

VIEW PRESENTATION opens the SubC Presentation viewer web app in a new browser tab

If you have multiple Channels streaming to the same Presentation, those will appear in the Presentation viewer

A maximum of 6 Channels will display in the Presentation viewer

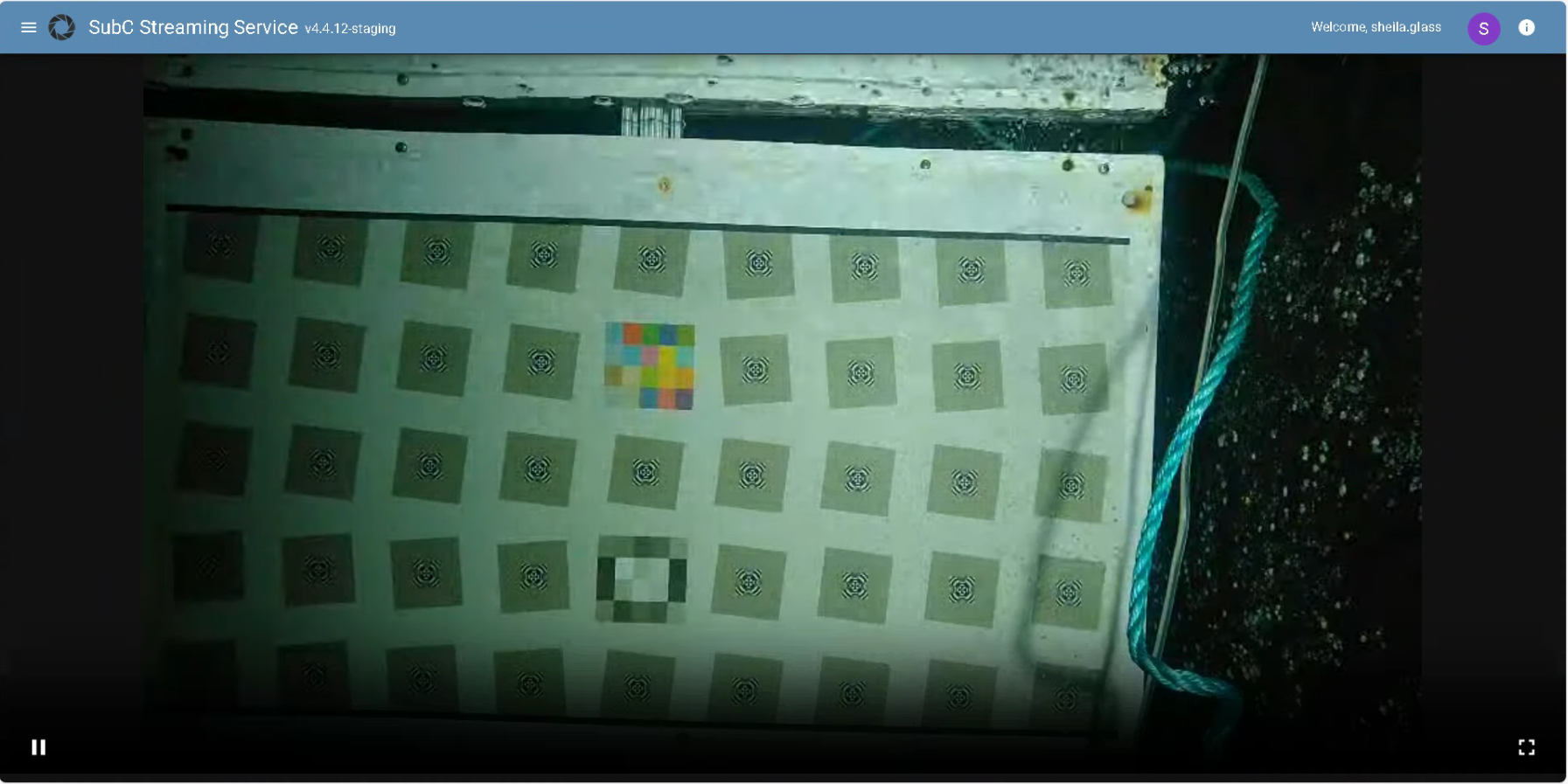

VIEW CHANNEL opens another browser tab from the Streaming Service web application UI displaying the Channel video in a larger format


APPLY button is inactive while the Channel is actively Streaming

STOP button will stop the current Channel Streaming and the APPLY button will become active again

When you have more than one Channel actively streaming, a convenient STOP ALL button appears in the top, right of the Configuration UI, allowing you to stop all Channels streaming with one click.
