Configurations
|

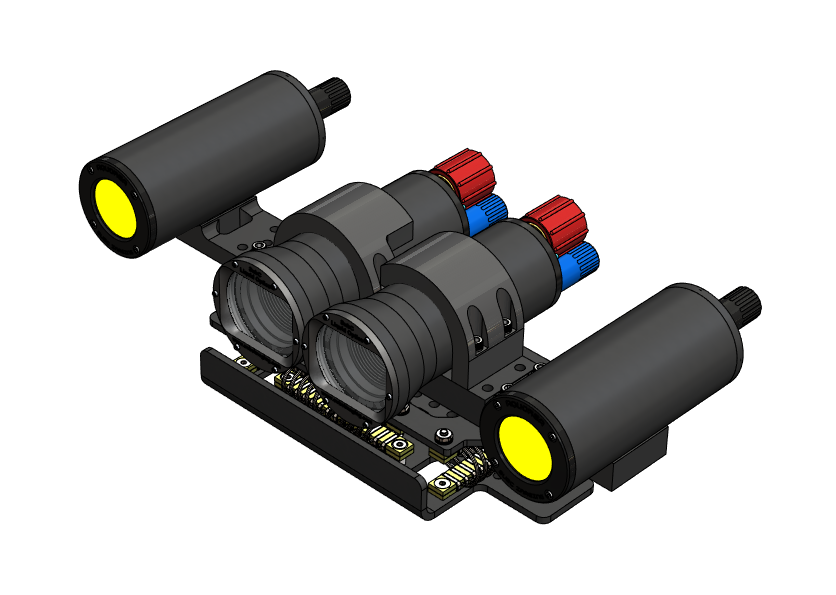

Integrated LED’s:
|

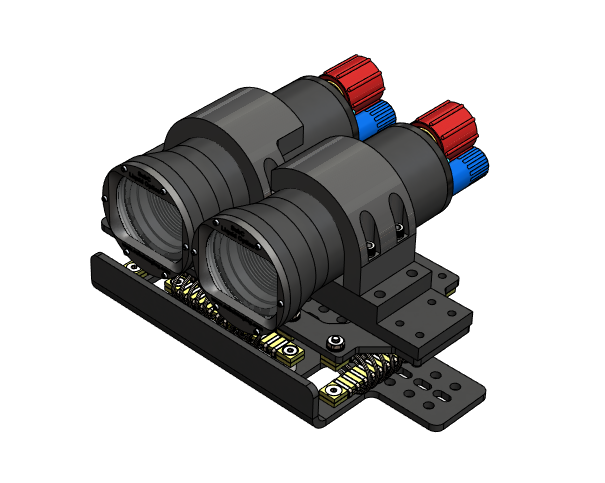

Camera Only:
|

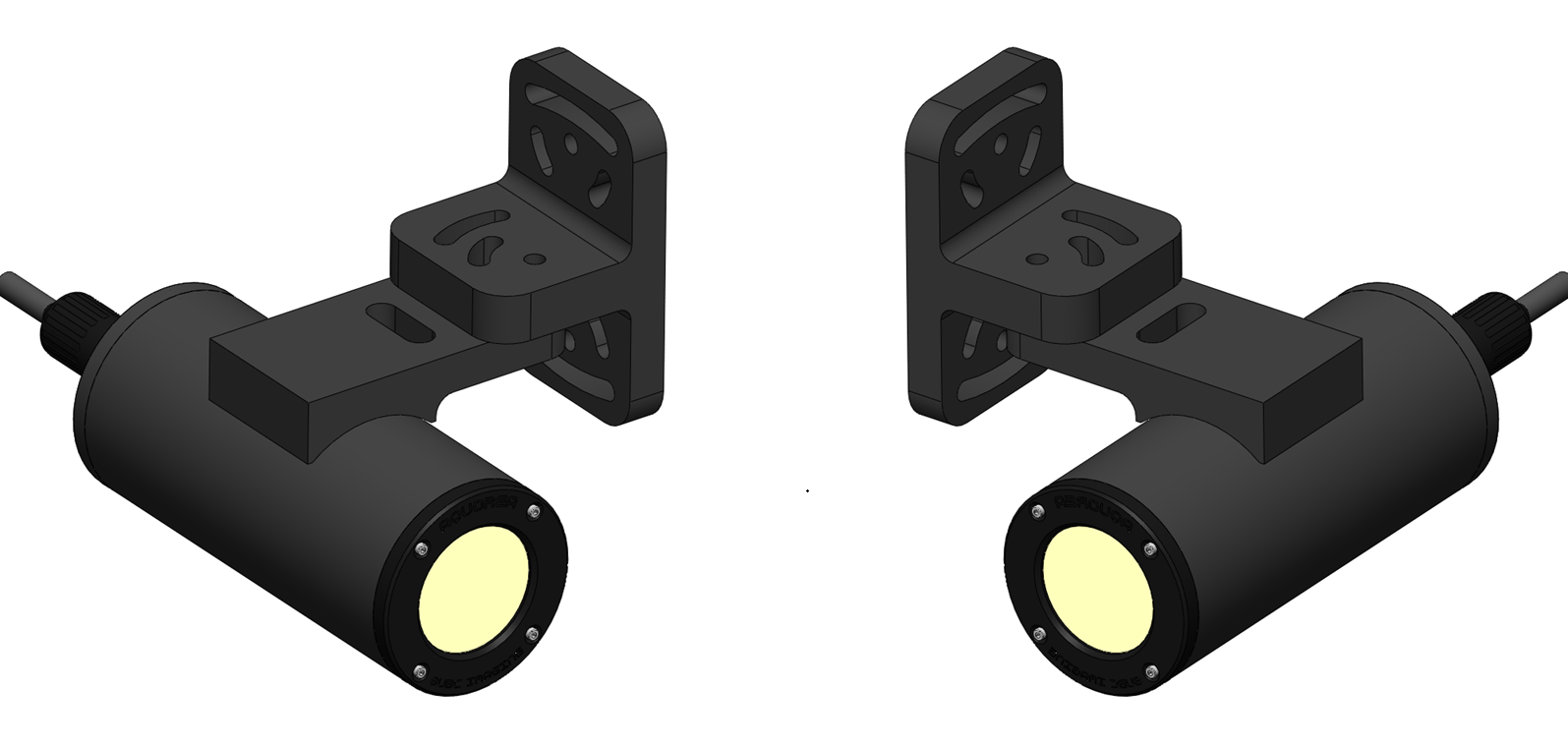

Separate ROV LED Mounts:
|
Stereo System Mounted on ROV:
|
|

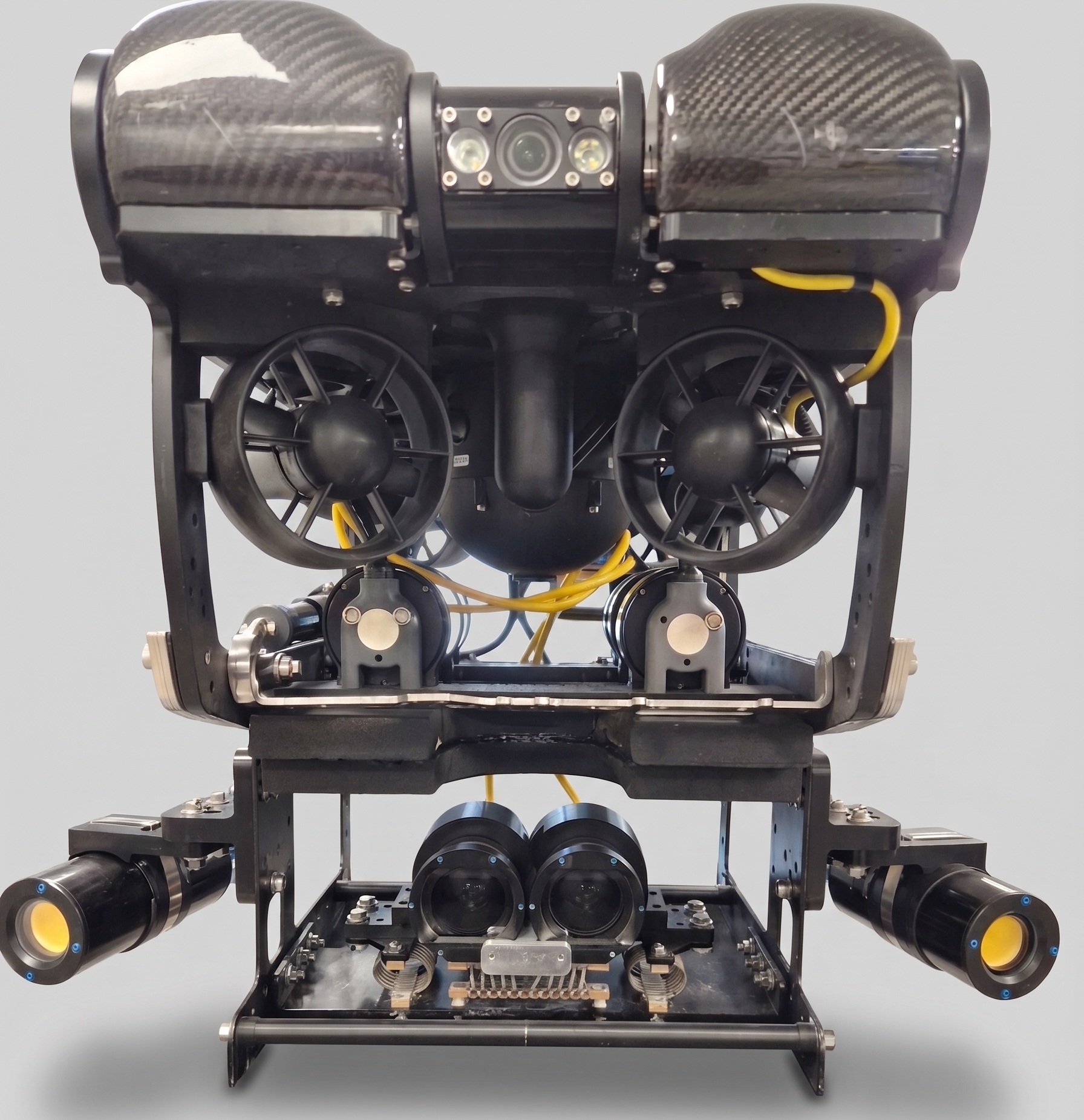

Front View:
|

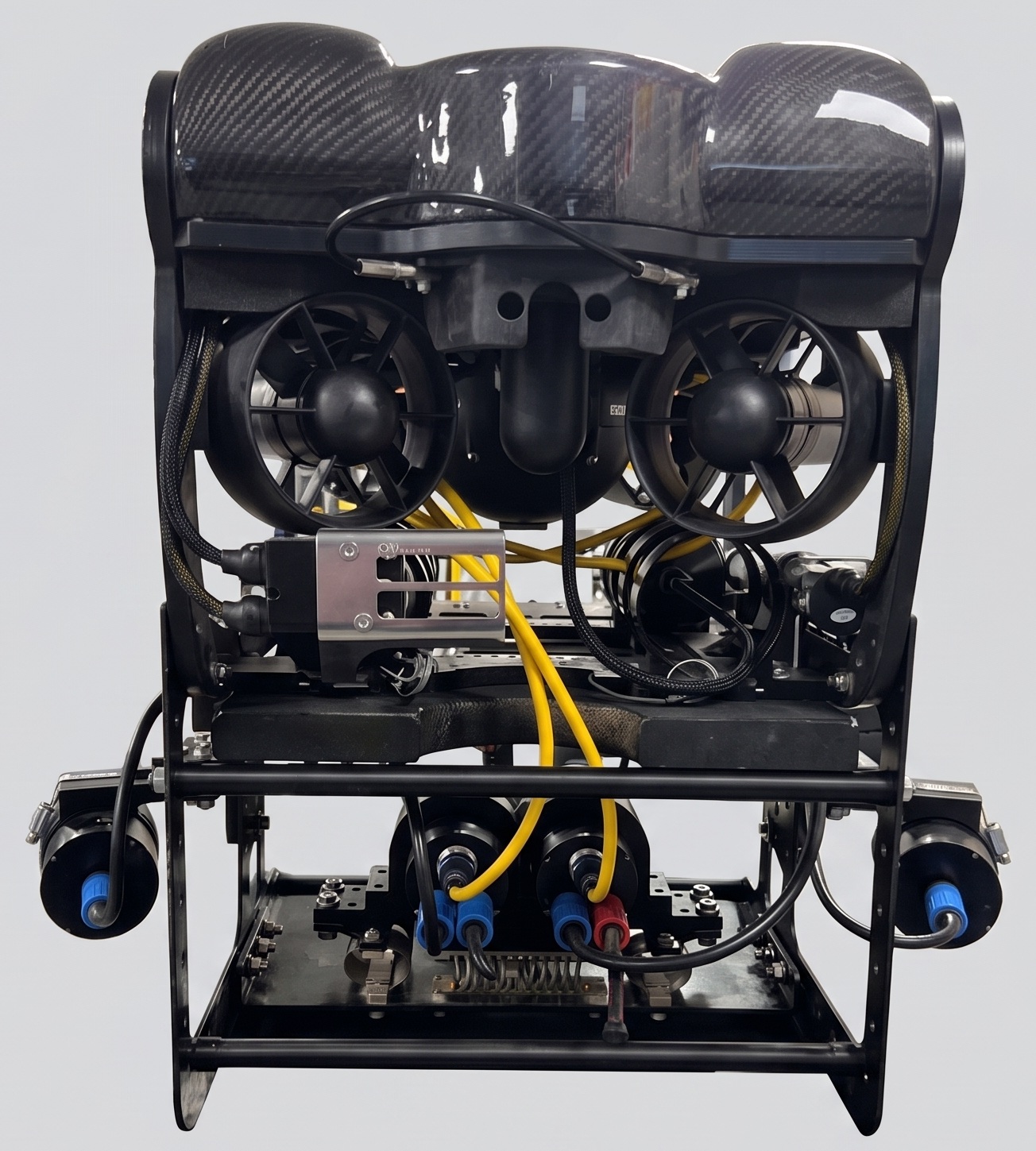

Back View:
|
Stereo System For ROV Arm Mounting:
|
|

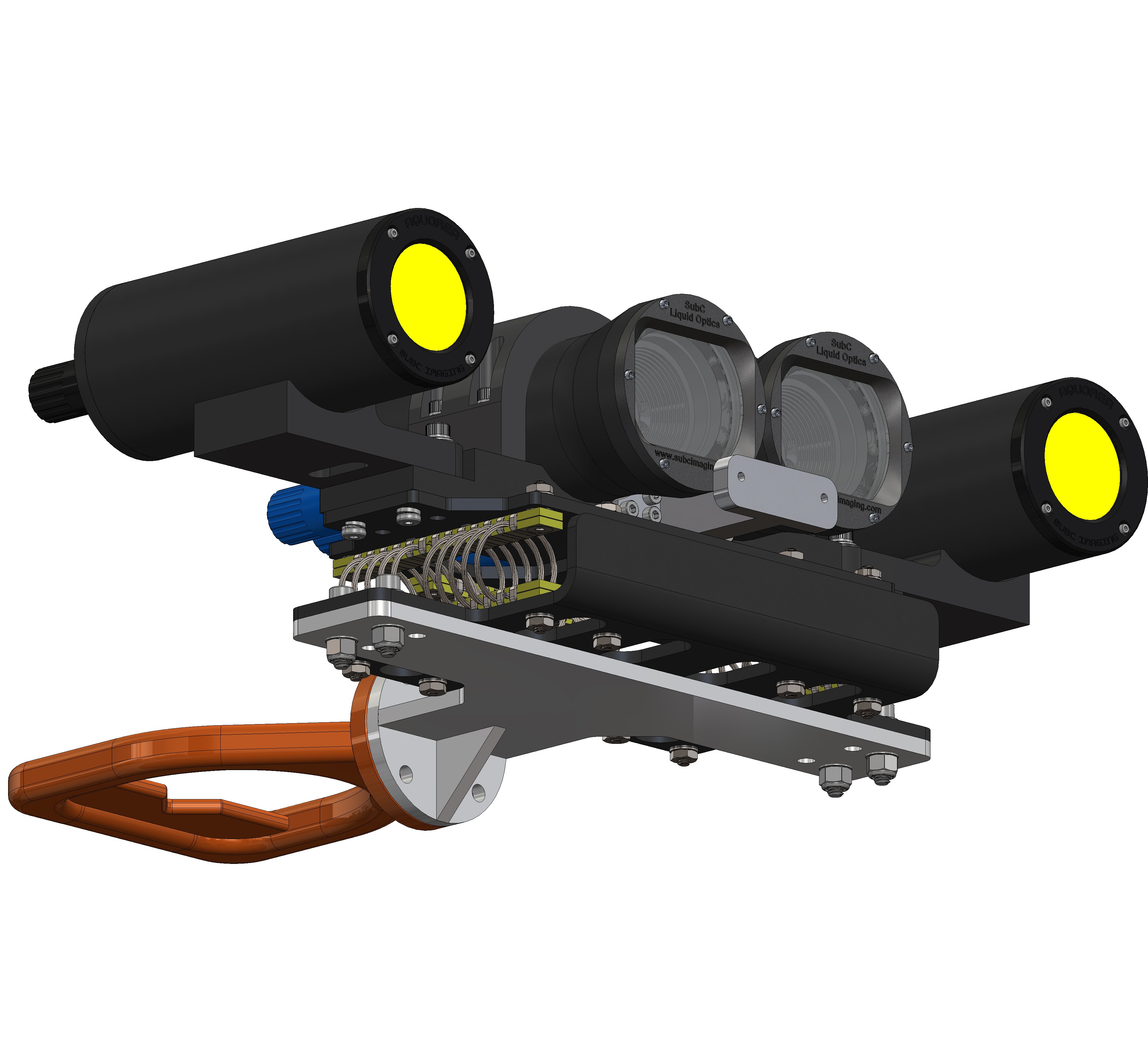

Stereo System With LEDs:
|

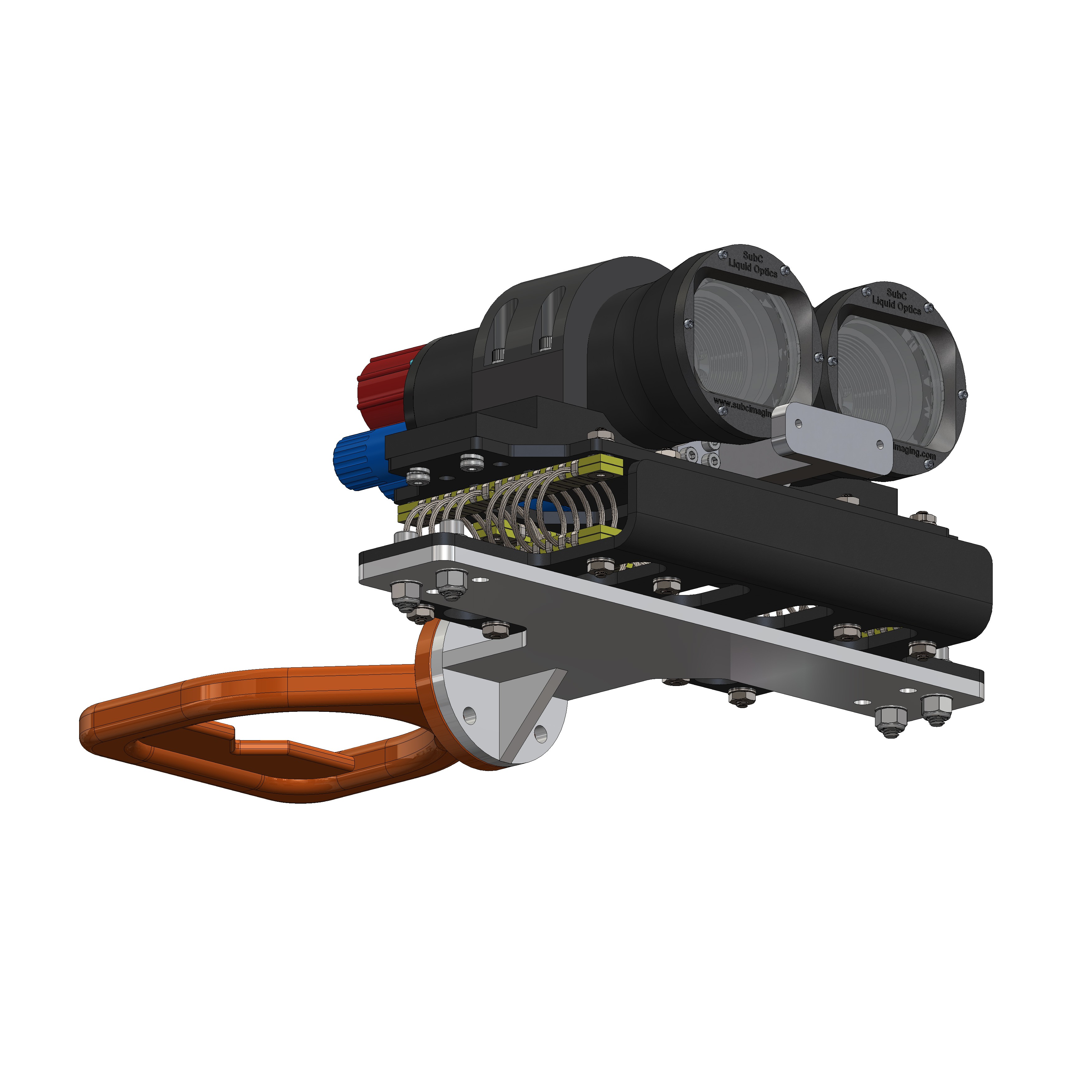

Stereo System Without LEDs:
|
Specifications:
|
||||
|
Equipment |
Camera’s |
Quantity (x2) |
Rayfin-Mk2-Micro-HDE-500-DBH13-LO |
|
|
LED’s |
Quantity (x2) |
Aquorea-Mk3-500m-MCBH5-beam(80) |
||
|
Features |
Parallax |
Fixed at 80mm |
||
|
Camera Installation and Alignment |
Slide in, slide out camera installation |
|||
|
Keyed alignment tool for consistent setup |
||||
|
Clamping using tension bolts |
||||
|
LED Installation and Pivoting |
Easy and simple LED installation and removal using hose clamps |
|||
|
Fixed direct camera mounting, for a single payload installation |
||||
|
Universal mounting adapter, continuously adjustable LED pivoting of -15 Deg to +30 Deg |
||||
|
Vibration Isolation |
Stainless steel wire rope vibration isolators for ROV integration, offered in Base Mounted and ROV Handle Mounted configurations to suit varied platform and mounting requirements |
|||
|
Effectively suppresses structural vibration and lens jitter to deliver stable, accurately focused imaging and video output. Adaptable to a wide range of ROV platforms and mission profiles |
||||
|
Rigidity |
Single piece Anodized Aluminum mounting plate |
|||
|
Big bolt hardware for easy assembly and added stability in the field |
||||
|
Material |
Hard Coat Anodized Aluminum and Acetal Delrin |
|||
|
316 stainless steel fasteners |
||||
|
Panel Mounting |
Mounting |
Universal flat panel mounting and vibration isolator for use on ROV payload skid, or payload bracket |
||
|
Weights |
Stereo System with Vibration Isolation |
|||
|
|
LEDs Integrated |
LEDs Removed |
||
|
In Water |
3.07 Kg |
2.09 Kg |
||
|
In Air |
6.87 Kg |
4.47 Kg |
||
|
Stereo System with Vibration Isolation on ROV Arm |
||||
|
|
LEDs Integrated |
LEDs Removed |
||
|
In Water |
4.81KG |
3.83KG |
||
|
In Air |
8.87Kg |
6.47KG |
||
|
ROV Mounted LED (1 Side) |
||||
|
In Water |
0.60 Kg |
|||
|
In Air |
1.60 Kg |
|||

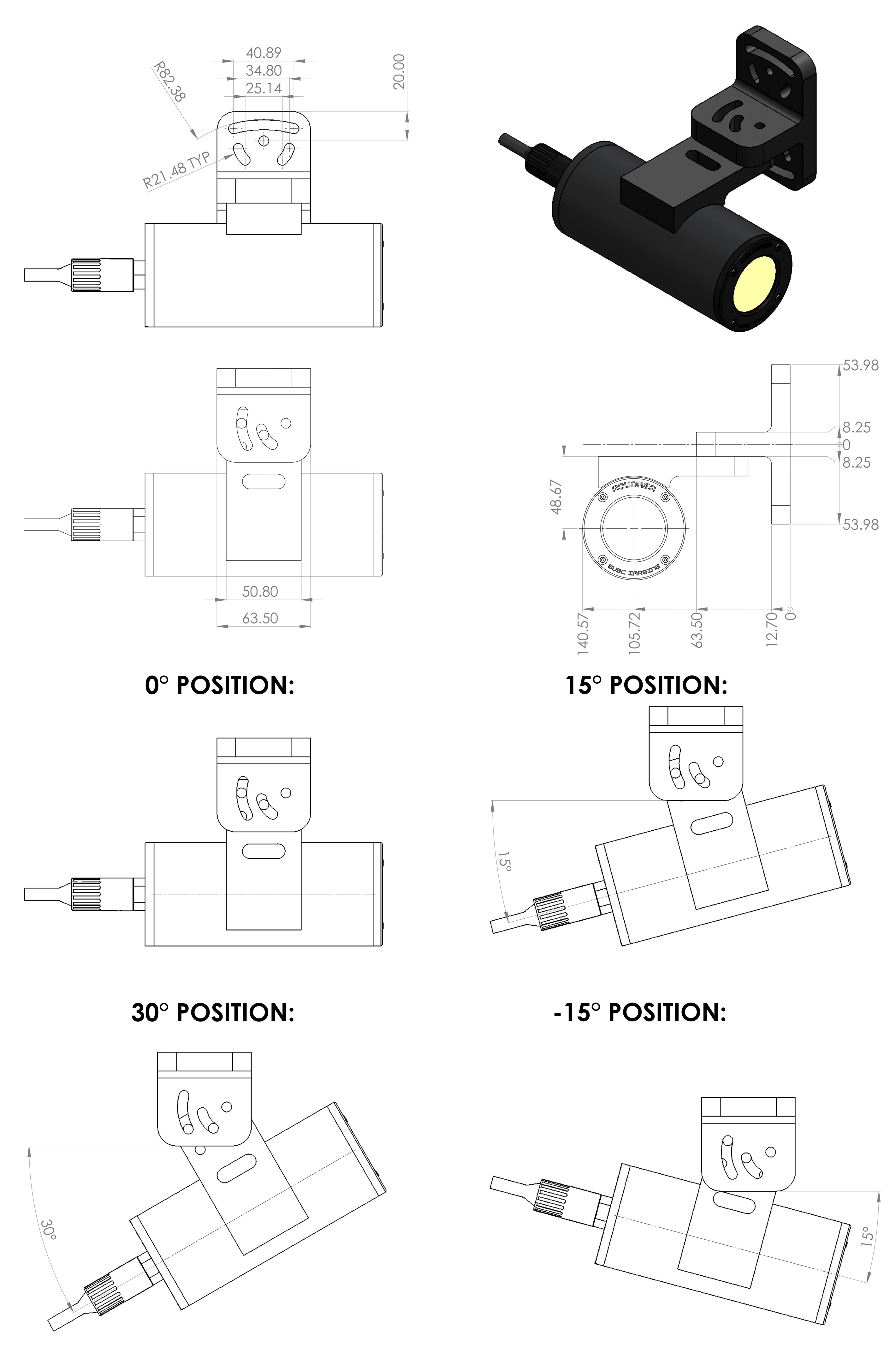

LED Mounting - Independent
|
|
LED Mounting - Coupled
|
|
Independent ROV Mounted LEDs
|
|
Stereo Mounted For ROV
|
|
