Integrity Elements Scope

SubC Preferred Functions

Routes

api/recording

api/anomalies

Functions

[Route(HttpVerbs.Post, "/addsequenceno")]

[Route(HttpVerbs.Get, "/fileextension")]

[Route(HttpVerbs.Get, "/filename")]

[Route(HttpVerbs.Get, "/status")]

[Route(HttpVerbs.Get, "/isrecording")]

[Route(HttpVerbs.Post, "/filename")]

[Route(HttpVerbs.Get, "/start")]

[Route(HttpVerbs.Get, "/stop")]

Route

api/stats

Functions

[Route(HttpVerbs.Get, "/ping")]

Route

api/framegrabs

Functions

[Route(HttpVerbs.Get, "/fileextension")]

[Route(HttpVerbs.Post, "/take")]

Route

api/overlay

Functions

[Route(HttpVerbs.Get, "/clear")]

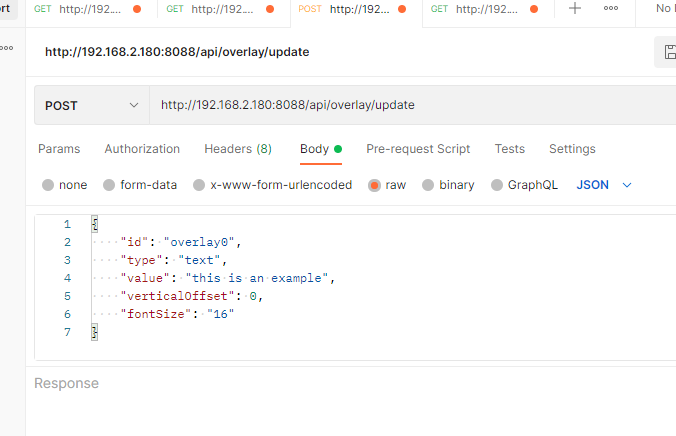

[Route(HttpVerbs.Post, "/update")]

Required functions:

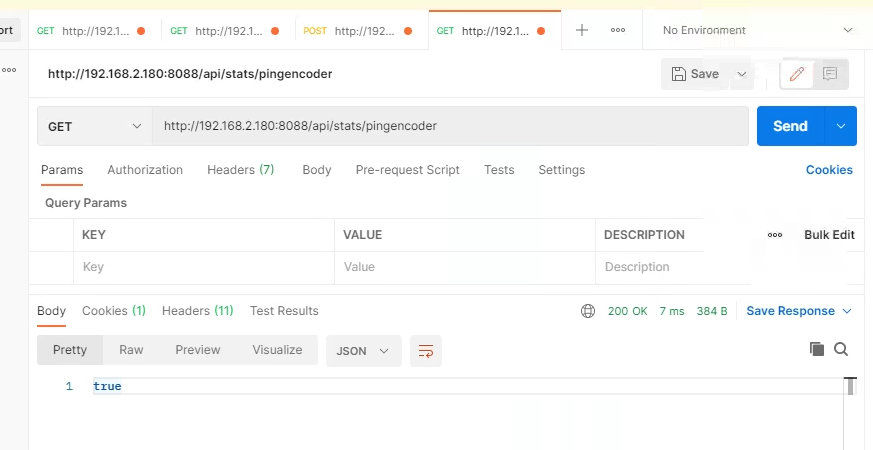

PingEncoder

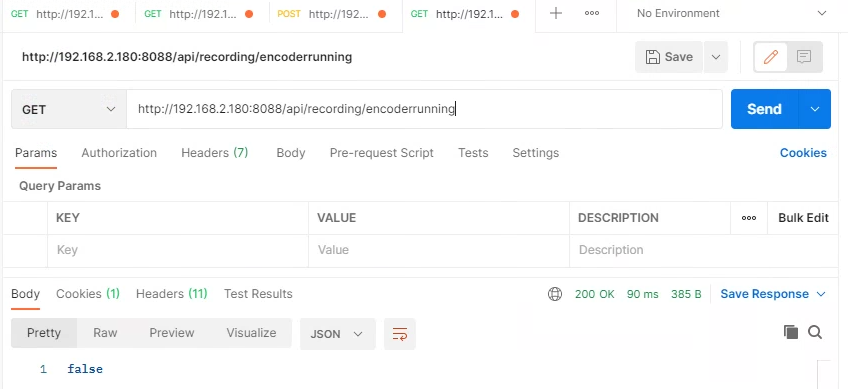

EncoderRunning

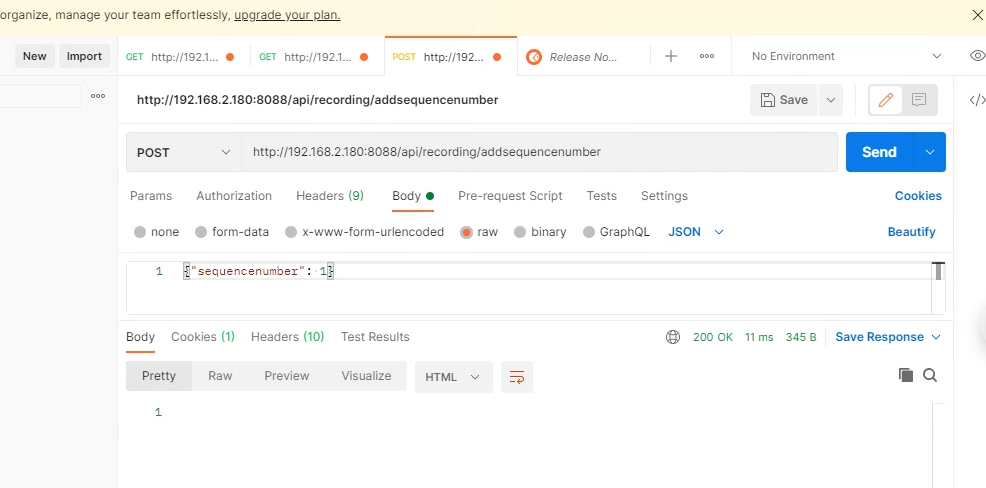

AddSequenceNo

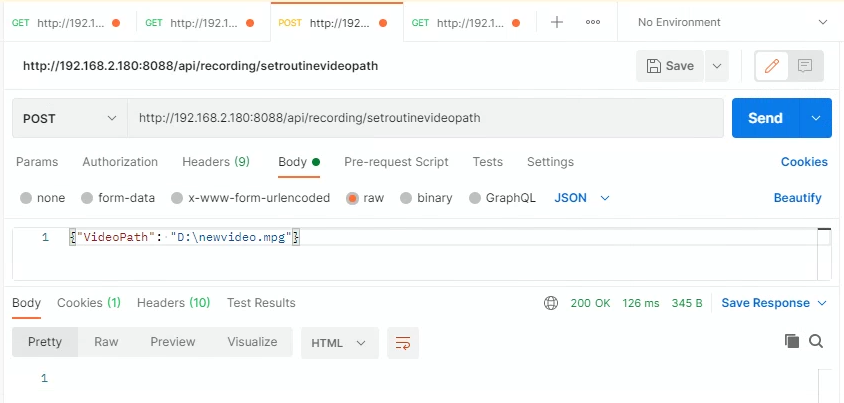

SetRoutineVideoPath

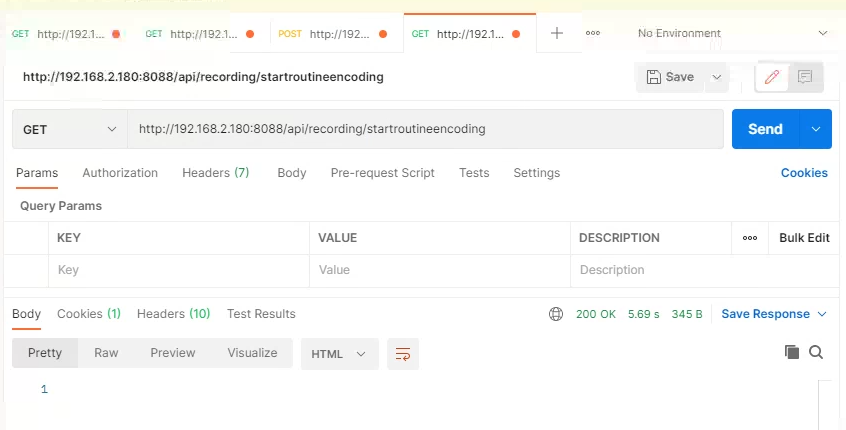

StartRoutineEncoding

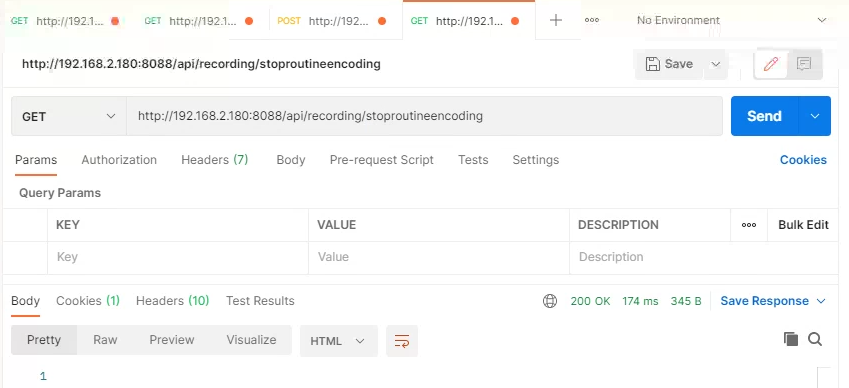

StopRoutineEncoding

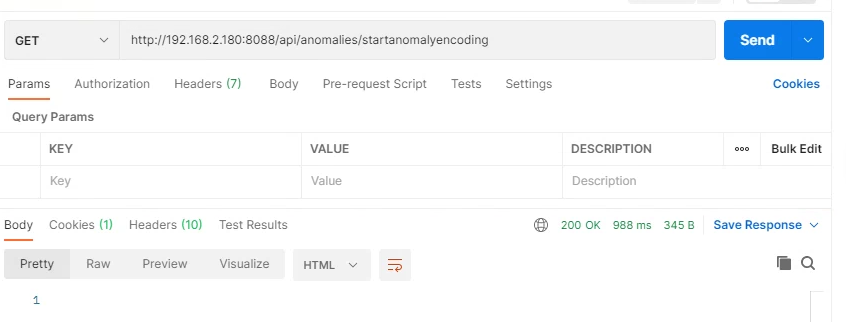

StartAnomalyEncoding

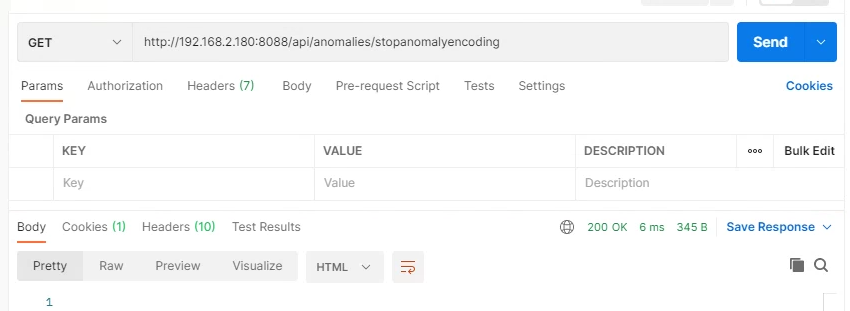

StopAnomalyEncoding

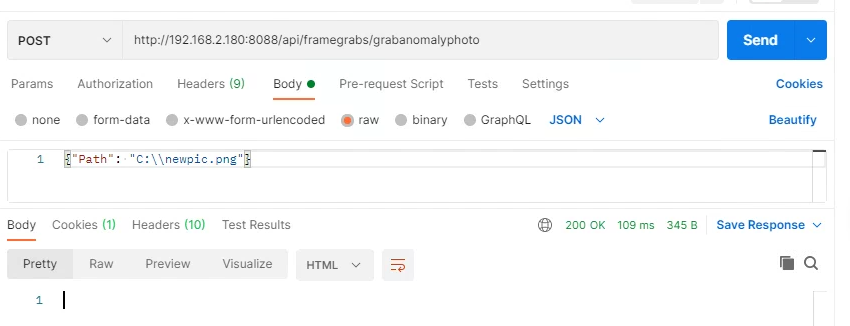

GrabAnomalyPhoto

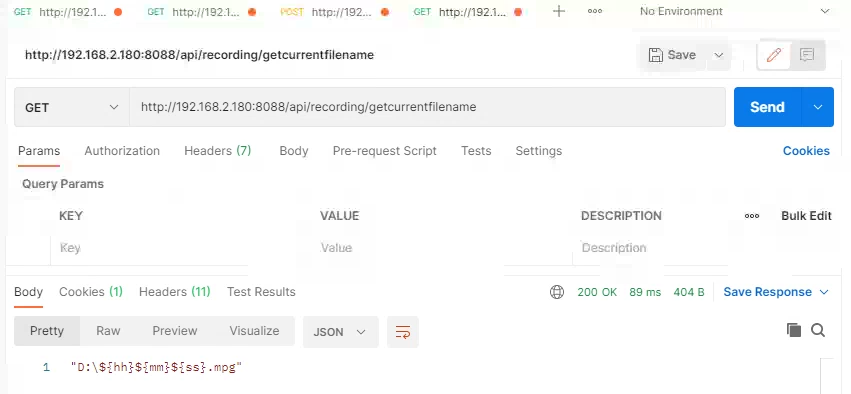

GetCurrentFilename

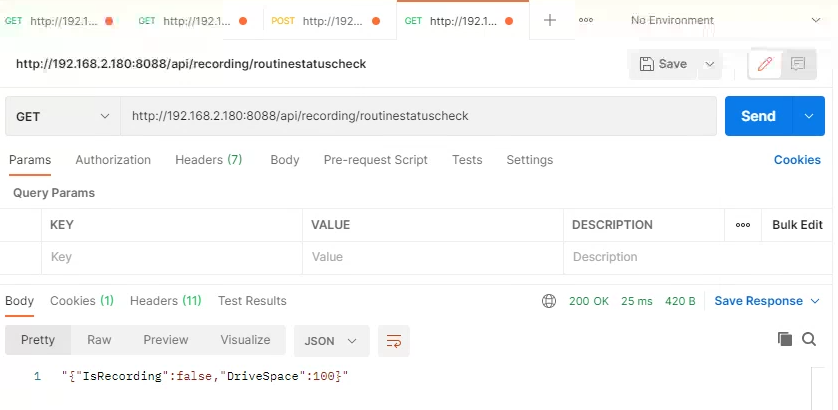

RoutineStatusCheck

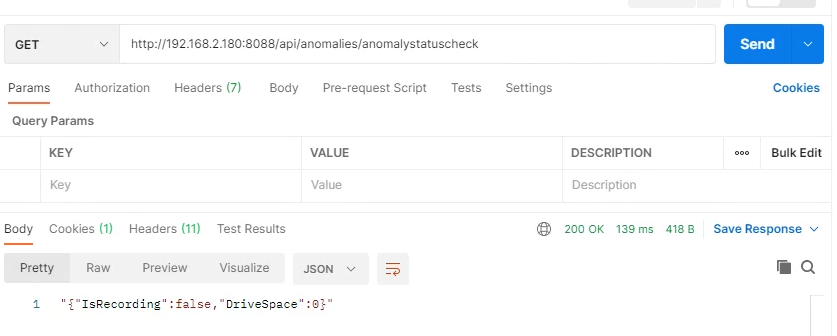

AnomalyStatusCheck

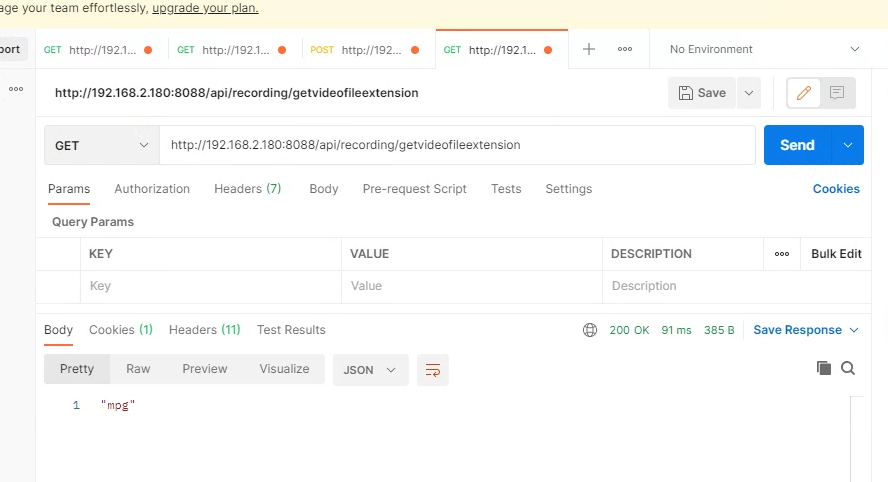

GetRoutineVideoFileExtension

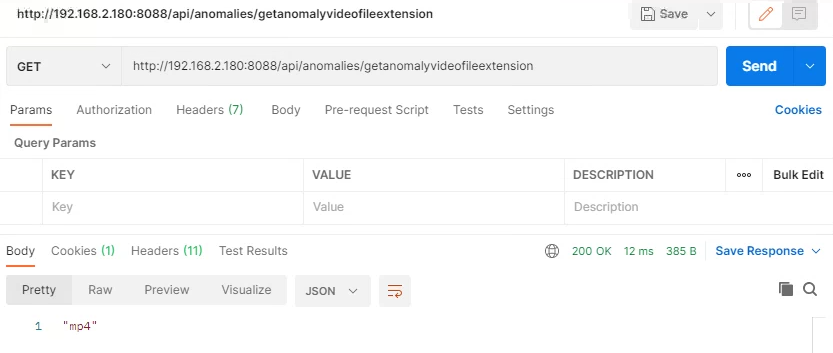

GetAnomalyVideoFileExtension

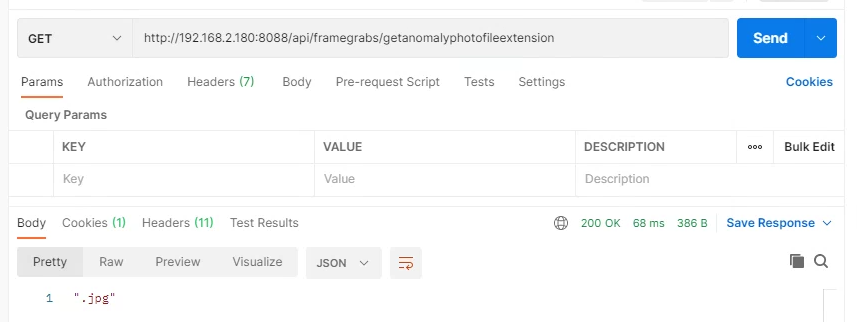

GetAnomalyPhotoFileExtension

SetRemoteOverlay

ClearRemoteOvelay

Responses

For the status checks, what is an example of what you'd expect back, is it the same as Coabis? E.g. state=>{recordingState} store=>{percentageOfDiskSpaceRemaining}

What kind of overlay functionality are you looking for with SetRemoteOverlay. Something like SetRemoteOverlay("{type:text, text:overlayThis}") as JSON?

Will you be making the REST calls in your application, or will you be using a dll that we supply? E.g. httpClient.PostAsJsonAsync... or subc.SetFilename("c:\file.mp4")

1. Similar to Coabis is fine.  We most commonly check the status for recording or idle, so perhaps two endpoints, one with a recording status (recording / idle / some error message) and one with more detail.  But in the event of an error we probably wouldn’t try and read a detailed status, and would just have the user check the DVR directly.  If there is just one detailed endpoint, we can ignore any json we don’t understand.  We would need a separate status endpoint or field for the routine and the anomaly recording.

1. We’ve currently got a JSON object (using typescript annotation) with 8 lines of text as

{
  overlayText1Type: string;
 overlayText1Value: string;
  overlayText2Type:string;
  …
  overlayText8Value:string;

 verticalOffset: number
 fontSize: string
}

but we don’t even use the type information.  We’ve also got verticalOffset if we need to skip any lines to align the display, and fontSize.

For some overlays we will send the 8 lines as a single string with CRLF, so it could be as basic as we send
{
  “type”:”text”
  “text”:”\r\n\r\n\r\n\r\n\r\nThis is an overlay\r\nSplit over several lines\r\nOf text”
}

or alternatively an array
{
  overlay: [{type: string; text: string;}]
}
and these are used as parameters in an overlay configured by the user on the DVR, so we just need to send eg workpack title as text[0], component name as text[1], etc.  This is preferable if your overlay supports it, as the user can use all the features of the overlay without having to send it any detailed configuration object.

1. Yes, we can just make the REST calls directly

Current Implementation

using System;
using System.Runtime.InteropServices;


namespace encoder.SubCControl
{
    class SubCControlApi
    {

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern bool PingEncoder(string ip_address);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern bool EncoderRunning(string ip_address);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string AddSequenceNo(string ip_address, string Add);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string SetRoutineVideoPath(string ip_address, string SaveLocation);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string StartRoutineEncoding(string ip_address, string Filename);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string StopRoutineEncoding(string ip_address);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string StartAnomalyEncoding(string ip_address, string Filename);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string StopAnomalyEncoding(string ip_address);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string GrabAnomalyPhoto(string ip_address, string Filename);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string GetCurrentFilename(string ip_address);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string RoutineStatusCheck(string ip_address);

        [DllImport("SubCDVRCommands.dll", SetLastError = true, CallingConvention = CallingConvention.Cdecl)]
        public static extern string AnomalyStatusCheck(string ip_address);


    }
}
