Channel Info

Channel Info displays content based on the Channel Input Type. Each Input Type’s Channel Info details are described below.

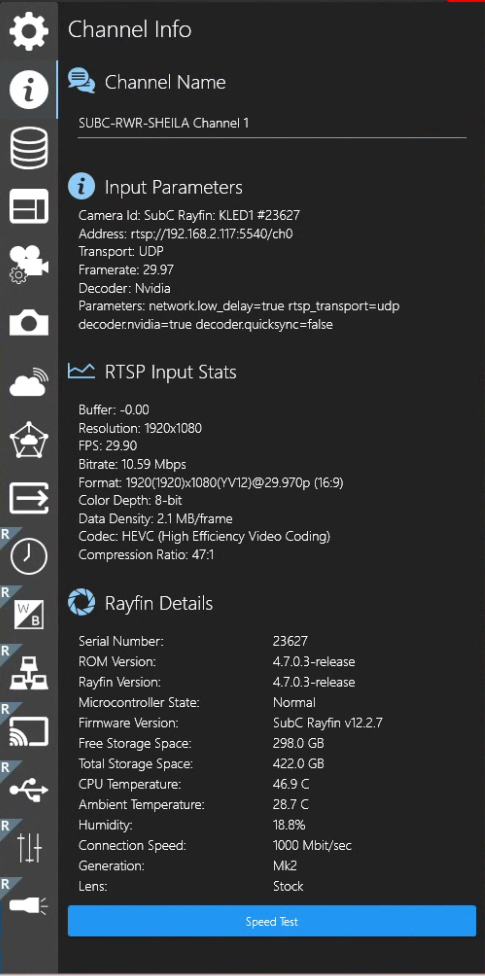

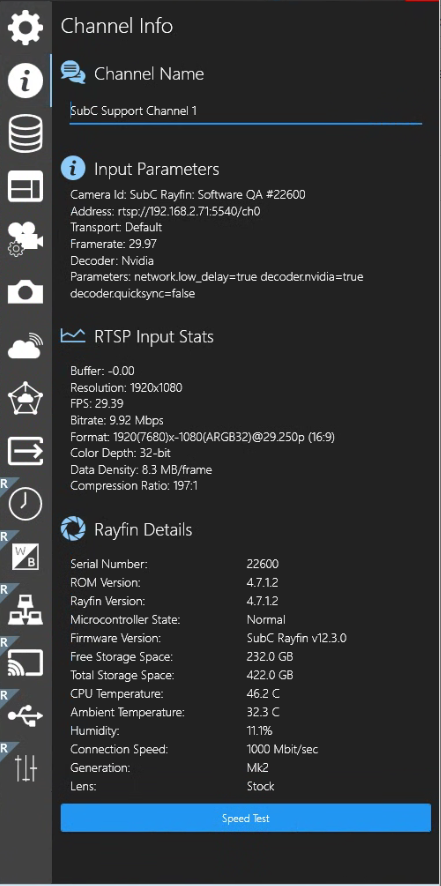

When Input is Rayfin

	Channel Name The name of the current Channel appears in this field. Default is SubC Product system’s Hostname-Channel #, however you can edit this field to change the Channel name

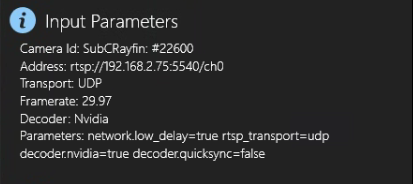

	Input Parameters Camera Id: When the Channel is connected to a Rayfin camera, this field displays the current Channel’s Rayfin camera name and serial number Address: Displays the SRT or RTSP address Transport: Displays the selected transport protocol Framerate: Displays the Rayfin video framerate Decoder: Displays the selected decoder Parameters: Displays the advanced parameter settings.

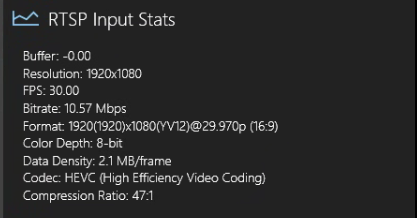

	RTSP Input Stats Buffer: Displays video input buffer rates Resolution: Displays the video resolution FPS: Displays video input frames per second Bitrate: Displays the video bitrate Format: Displays details about the video resolution and other elements Color Depth: Displays the Bit Depth, the number of bits per pixel to represent the color of each pixel. Data Density: Display the amount of data transferred across the connection per frame. Compression Ratio: Displays the ratio at which the video is encoded to consumes less space, enabling transmission.

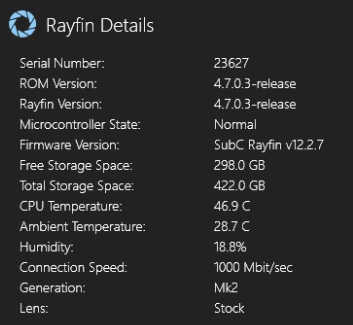

	Rayfin Details Serial Number: Rayfin camera’s SubC serial number. ROM Version: Rayfin camera’s ROM version. Rayfin Version: Rayfin camera’s application version. Microcontroller State: Normal - means Rayfin Software is current and in good state Bootloader - will appear briefly during Rayfin software updating. Firmware Version: Rayfin camera’s firmware version. Free Storage Space: Displays the remaining space available in the Rayfin Internal Storage Total Storage Space: Displays the size of the Rayfin Internal Storage CPU Temperature: Rayfin camera’s internal temperature. Ambient Temperature: Rayfin camera’s external temperature. Humidity: Rayfin camera’s relative humidity. Connection Speed: Max potential connection speed between the Rayfin and the DVR+O / SCI expressed in megabits per second. Generation: The Rayfin camera’s hardware version. [Mk1 \| Mk2 \| Mk3 \| etc.] Lens: Displays the Rayfin camera lens type [Stock \| Zoom \| FCB]

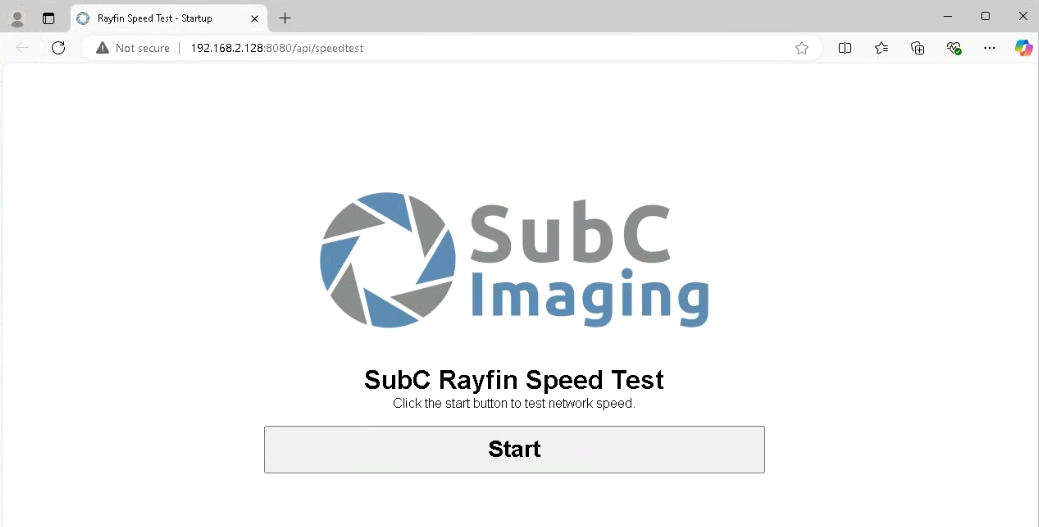

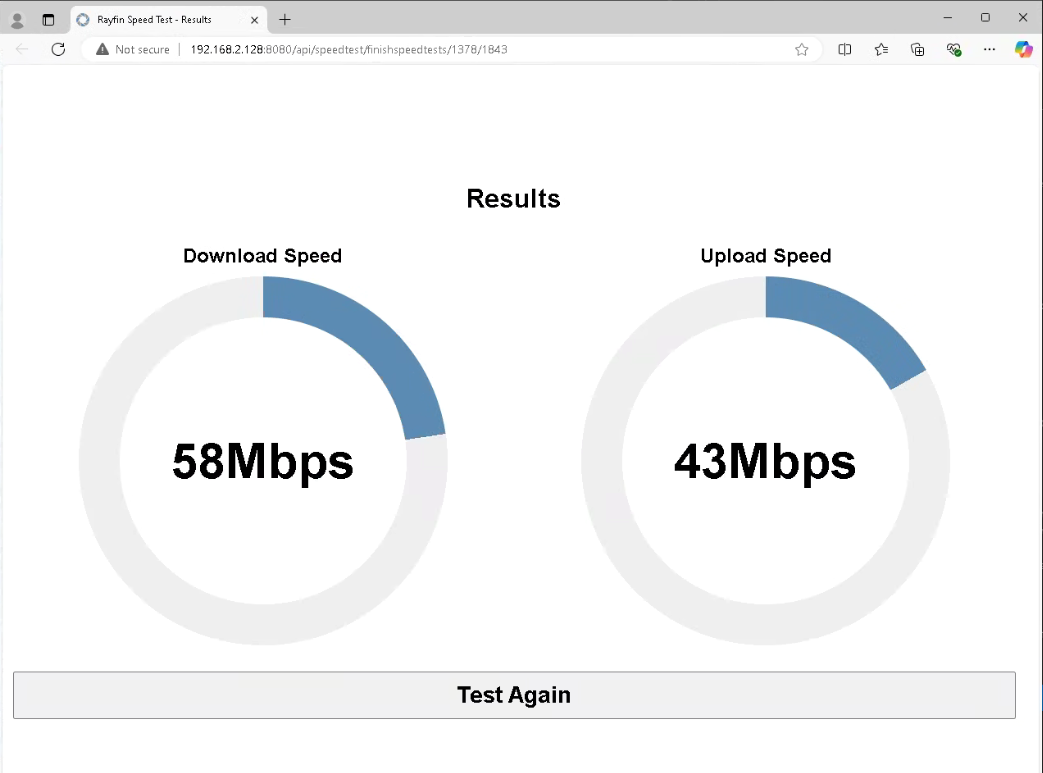

	Speed Test - Opens a browser to an application to test the Rayfin Camera Download / Upload speed. Click Start Download Speed: The speed at which commands are transmitted from the SubC application Rayfin controls to the Rayfin camera. Upload Speed: The speed at which the video stream from the Rayfin camera is transmitting to the SubC application and the speed at which Still images are transmitted from the Rayfin camera to the SubC application system’s drive (when Storage is set to Topside).

When Input is Capture Card

Channel Name

The name of the current Channel appears in this field.
Default is SubC Product system’s Hostname-Channel #, however you can edit this field to change the Channel name

Input Parameters

Device: Displays the brand name of the Capture Card
VideoInput: Displays the selected video input.
VideoFormat: Displays the selected video format.

When Input is IP Camera

Channel Name

The name of the current Channel appears in this field.
Default is SubC Product system’s Hostname-Channel #, however you can edit this field to change the Channel name

Input Parameters

Address: Displays the address of the Input
- This can be an RTSP address to an IP camera or a path to a video recording .mp4 file
Transport: Displays the selected transport protocol.
Framerate: Displays the selected frame rate
Decoder: Displays the selected decoder.
Parameters: Displays the advanced parameter settings.

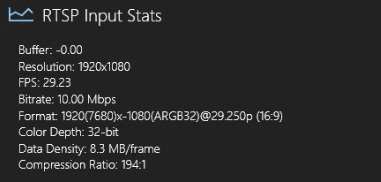

RTSP Input Stats

Buffer: Displays seconds of video preloaded
Resolution: Displays the video resolution
FPS: Displays Frames per second
Bitrate: Displays the amount of data processed or transmitted per second
Format: Displays the video format
Color Depth: Displays the bits per component
Data Density: Displays the amount if data that is being transmitted per frame.
Compression Ratio: Displays how much the video is compressed while retaining visual quality.

When Input is Presentation → Presentation

Channel Name

The name of the current Channel appears in this field.
Default is SubC Product system’s Hostname-Channel #, however you can edit this field to change the Channel name

Input Parameters

Presentation: Displays the name of the selected Presentation
Resolution: Displays the video resolution
Channel: Displays the name of the Presentation’s source Streaming Channel.

When Input is Presentation → One-Time Stream

Channel Name

The name of the current Channel appears in this field.
Default is SubC Product system’s Hostname-Channel #, however you can edit this field to change the Channel name

Input Parameters

One-Time Stream Address: Displays the link address for the One-Time Stream video.

When Channel input is Screen / Window Capture

Channel Name

The name of the current Channel appears in this field.
Default is SubC Product system’s Hostname-Channel #, however you can edit this field to change the Channel name

Input Parameters

Screen Capture
- Type: Displays the Capture type that has been selected.
- Monitor: Displays the identification number of the monitor that is the source of the current Screen Capture input
  (You may have multiple monitors connected to the system).
Window Capture
- Type: Displays the Capture type that has been selected.
- Window: Displays the name of the Window
- By Window Name: True
