SubC offers DVR hardware systems designed to work with SubC DVR+ software.
Multiple video configurations are available to match your application. All common frame rates and resolutions are supported. Custom combinations of input and output channels are available.

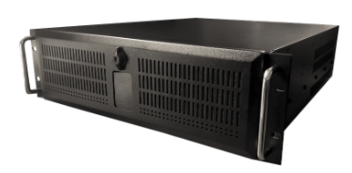

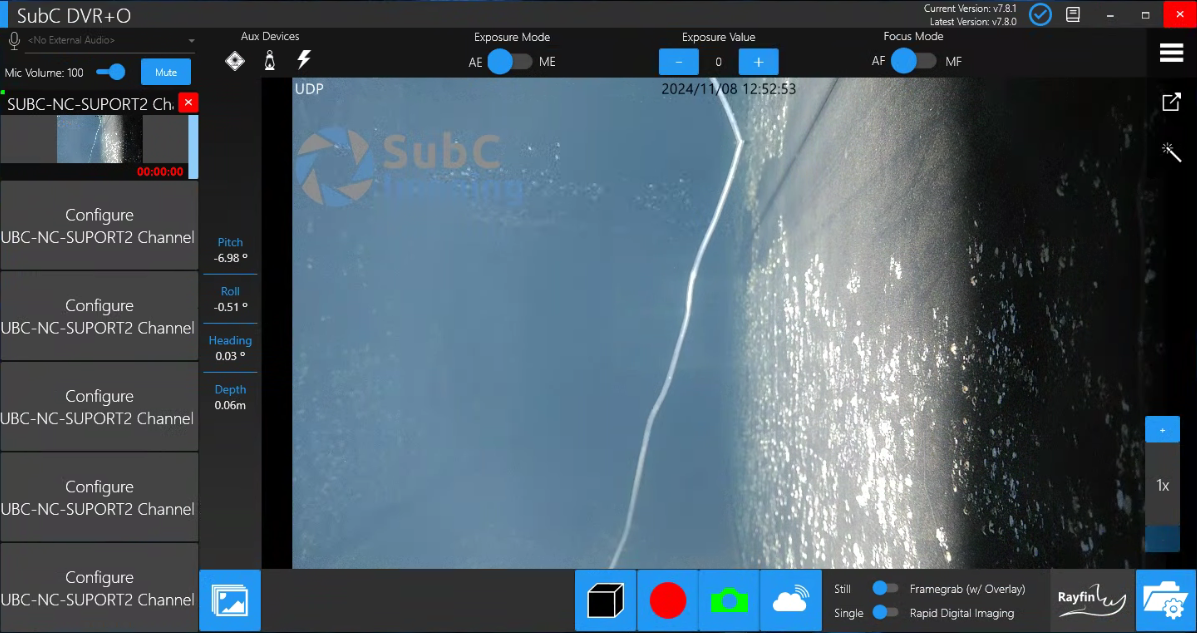

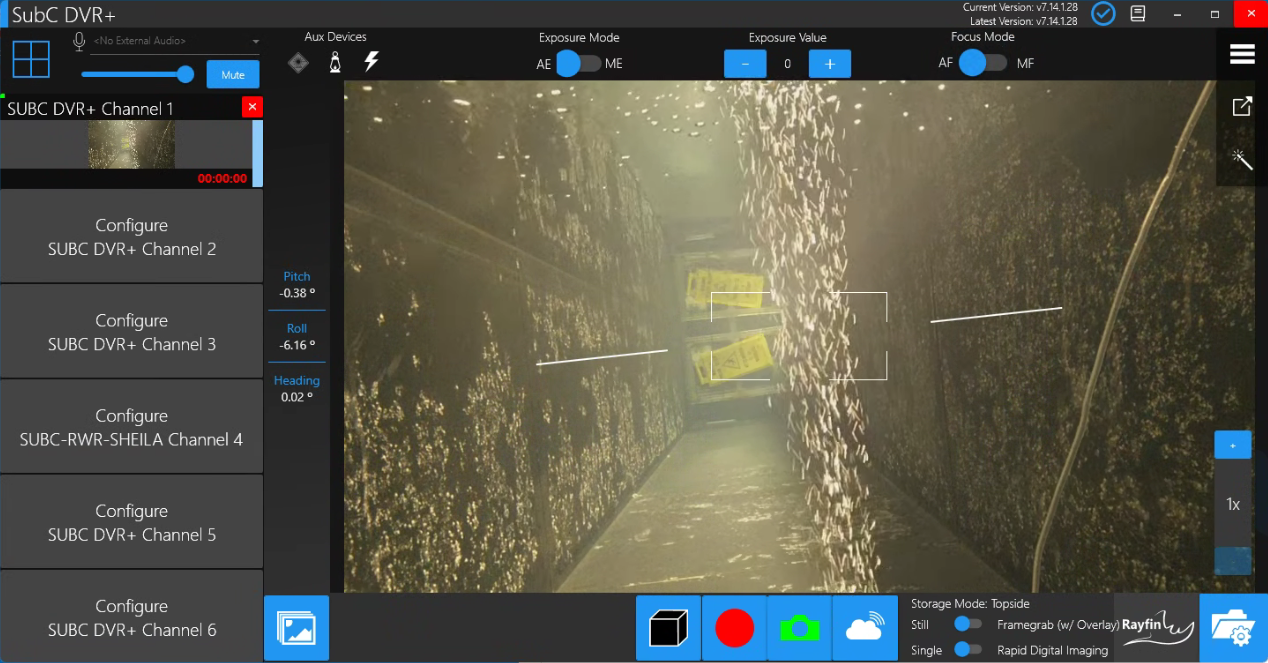

SubC DVR Hardware System & DVR+ Software
|
Form Factor |
19” 3U Rack Mount |
|
CPU |
Intel Core i9, 3.6 GHz |
|
RAM |
16GB DDR4 |
|
Video Card |
Nvidia Geforce GTX1650 - HDMI, DVI, DisplayPort |
|
Capture Card |
Built-to-Order Options Osprey 460e - 4x SD In Decklink Quad 2 - 4x HD-SDI In, 4x HD-SDI Out Decklink 4K SDI - 1x In, 1x Out |
|
HDD Space |
2TB SSD, *Need more space? Let’s talk. |
|
OS |
Windows 10, Windows 11 |
|
Inputs |
2x Serial 6x Rear USB 3.5mm mic |
|
Outputs |
3.5mm audio speaker 3.5mm audio line out |
|
LAN |
2x Ethernet |
|
Optical Drive |
LG DVD RW |
