1. Installing Aquorea LEDs:
1. LED Mounting:
Torque Requirements:
|
Stainless Steel Fasteners Torque |
|
|---|---|
|
Fastener |
Max Torque |
|
1/4”-20 Stainless Steel Fasteners |
8 N.m / 5 lbf.ft |
A. LED Mounting on Stereo System:
|
Fastener & Hardware List |
|
|
Item |
Description |
|
1 |
1/4”-20, 1” Long Stainless Steel screw |
|
2 |
316 Stainless Steel Washer |
|
3 |
PVC Washer |
|
4 |
Screw mounting holes |
Instructions:

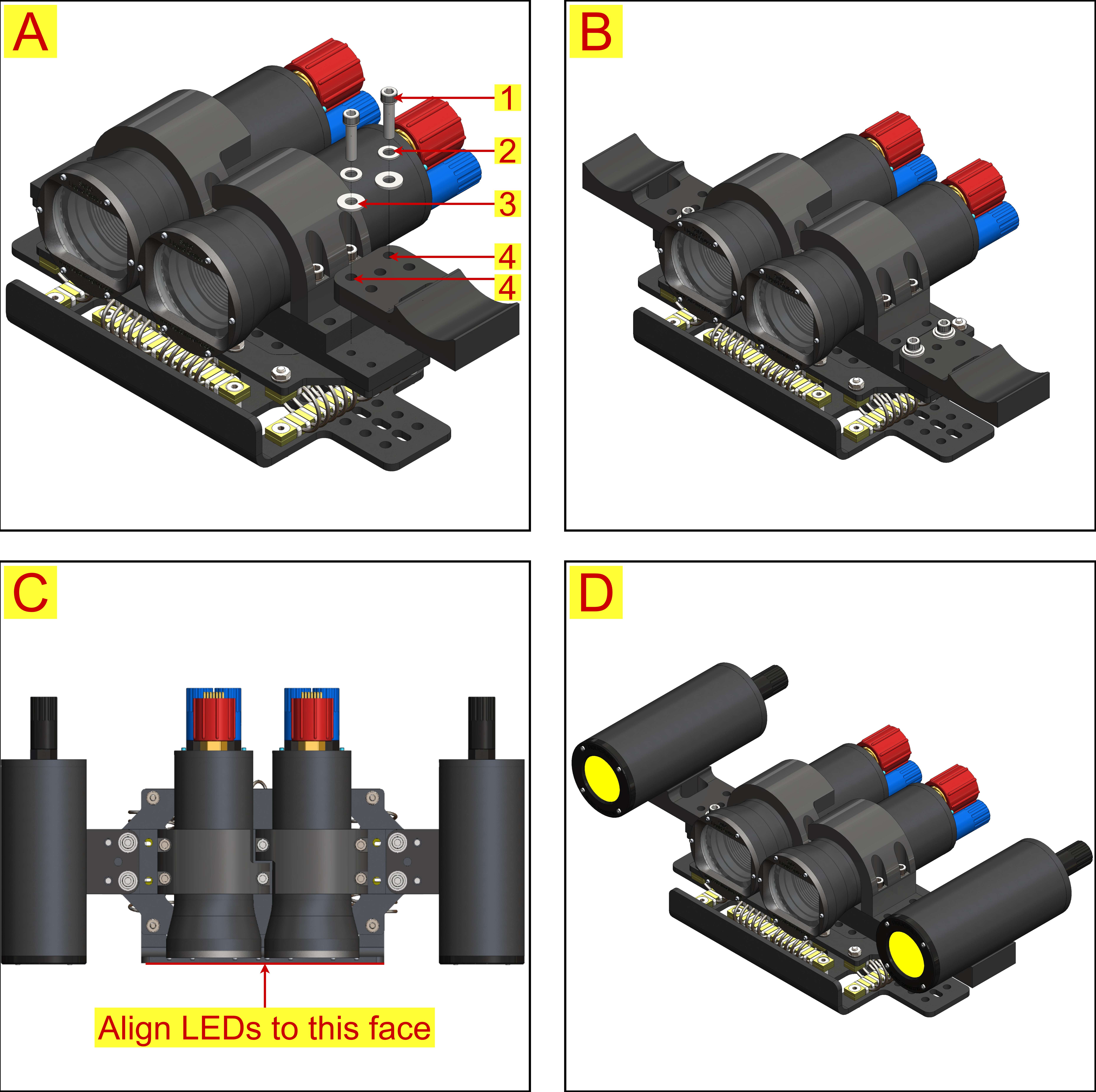

a. Place PVC washer (3) and stainless steel washer (2) on the holes shown on (4). b. Insert a 1/4”-20, 1”L socket-head screw (1). c. Align LED mounting holder holes with (4). d. Tighten screws with a 3/16” hex key. e. Repeat for both holes on each holder and side. f. Assembly should match Image B. g. Place and align Aquorea LEDs as in Image C. h. Secure LEDs with included hose clamps and non-scratching pads. |
2. Cable Connections:

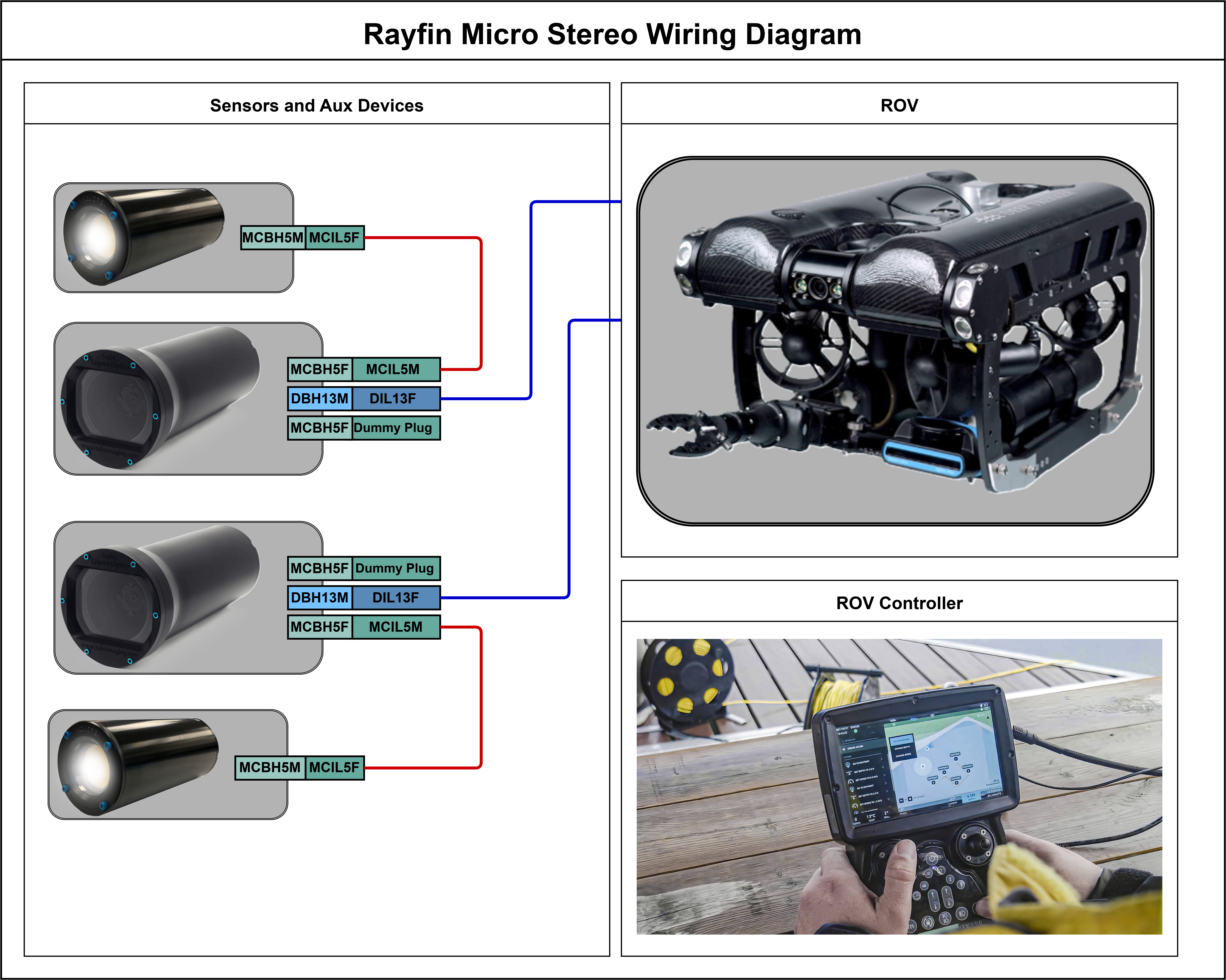

A. Rayfin Stereo System with Aquorea Wiring Diagram:

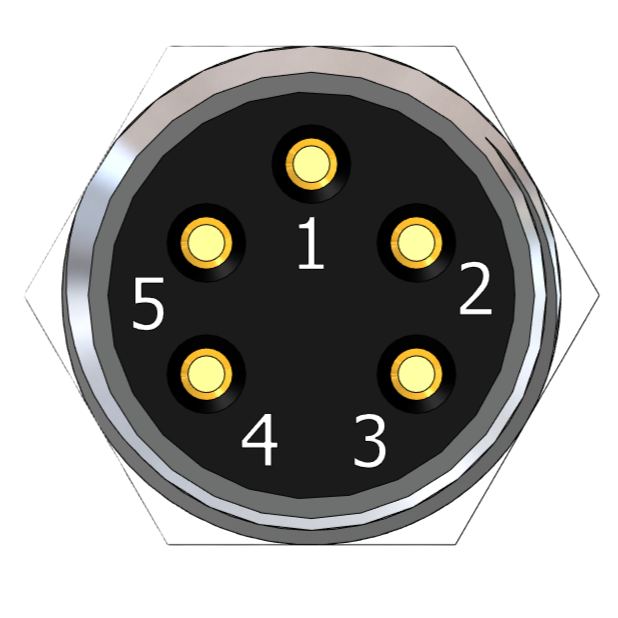

B. Connector Pinouts:
|
Pin # |
MCBH5M (Aluminum) |
|---|---|
|
1 |
GND |
|
2 |
PWR |
|
3 |
Strobe Enable |
|
4 |
RS-485 B(+) |
|
5 |
RS-485 A(-) |
