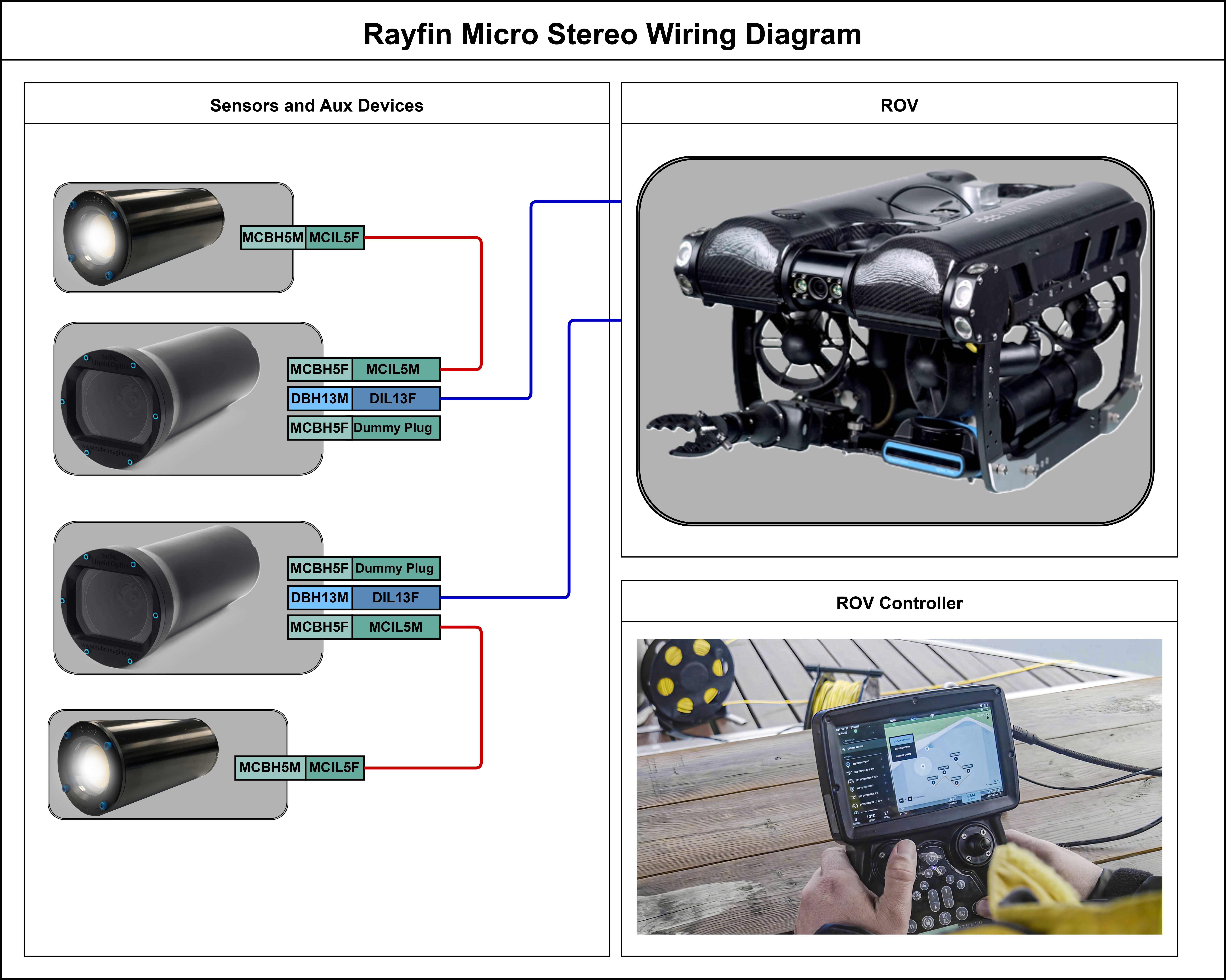

Wiring Diagrams

#

DBH13M (Alu) + DLSA-M

[IP video, control and data]

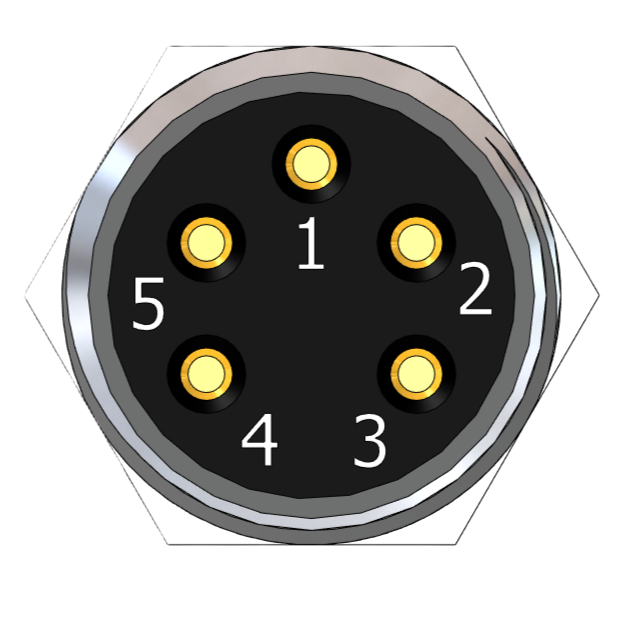

MCBH5F (Alu)

[AUX0 Port]

MCBH5F (Alu)

[AUX1 Port]

1

GND

GND

GND

2

Iso GND (Shield)

(NC on system end)

PWR

PWR

3

PWR

AUX0 Out

AUX1 Out

4

(Brown) DD- [GigE]

AUX0 RS-485 B(+)

AUX1 RS-485 B(+)

5

(White/Brown) DD+ [GigE]

AUX0 RS-485 A(-)

AUX1 RS-485 A(-)

6

(Blue) DC+ [GigE]

• SubC bulkheads are wired to Ethernet B standard.

• The 13-pin bulkhead is limited to 4A per pin.

• In-line cable part number for Ethernet bulkhead: DIL13F + DLSA-F

7

(White/Blue) DC- [GigE]

8

(Orange) DA- [10/100]

9

(White/Orange) DA+ [10/100]

10

(Green) DB- [10/100]

11

(White/Green) DB+ [10/100]

12

NC

13

NC
