License Options & Software Installation
We have two licensing methods available for SubC Applications.
Option 1 - License Dongle - Portable

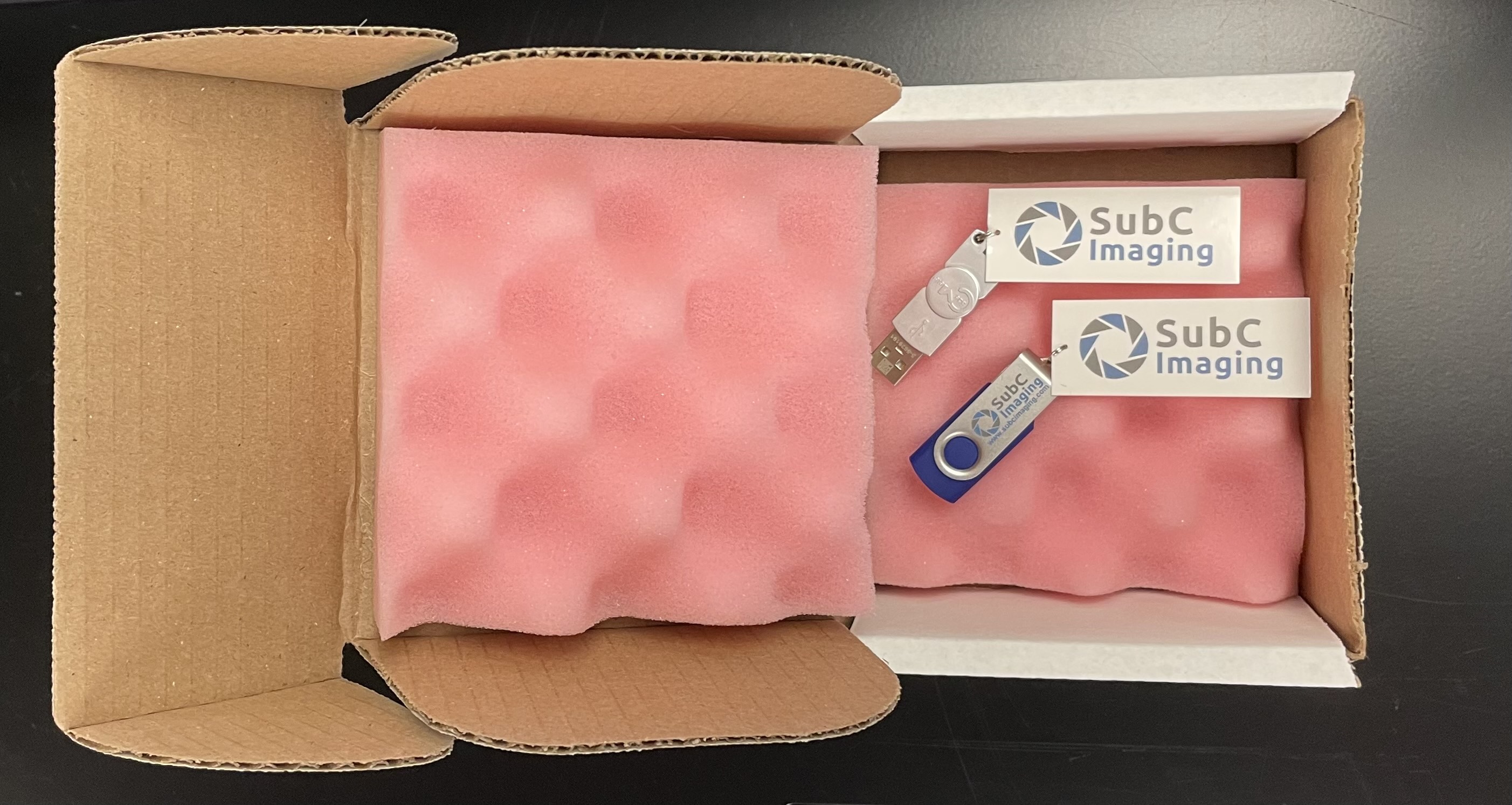

If you wish to have the flexibility to relocate the SubC Software applications to various systems, we will provide you with the Software installation file on a USB thumb drive and the Software CodeMeter License on a dongle.
Plug the flash drive that contains the SubC Software installation file into a USB port on the system you wish to install.
Open a Windows File Explorer and navigate to the flash drive.
You can copy the SubC Software Installation file to a folder on your system and run the installation from that location if you so choose.
Run the SubC Software installer and follow the prompts through the installation process.

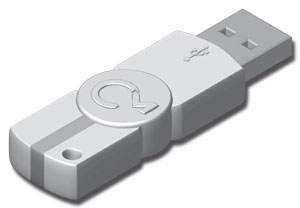

Plug the CodeMeter License dongle into the system before launching the SubC Software application.
The SubC Software applications will not run unless the CodeMeter License dongle is plugged into the system. If you wish to run SubC Software application on multiple systems simultaneously, you will require a CodeMeter License Dongle for each system.
Option 2 - Virtual License - Dedicated
If you wish to use SubC Software application on a dedicated system, we will provide you with a link to download the SubC Software installation bundle and we will provide you with a virtual CodeMeter License Update file to upload onto the SubC application host system.
Your SubC Account Manager will contact SubC Support Team support@subimaging.com to make a request to generate your SubC Software virtual License Request file & License Update file.
To become familiar with this process, see SubC License Request & Update.
Software Download
Download the latest version of SubC DVR+O SCI Autonomous: https://getrayfinsciautonomous.subcservices.com

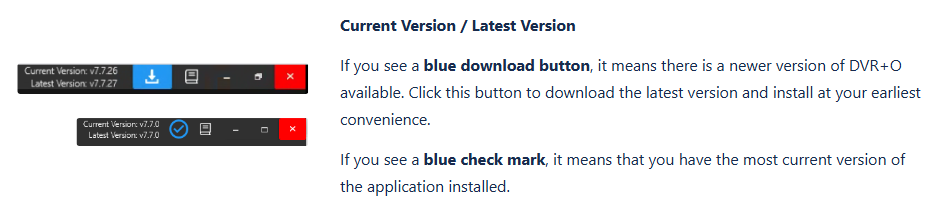

We’ve also included an indicator at the top, right of the SubC application UI to let you know when there is a newer software version of the SubC application available.
Software Installation
If you are using a SubC License on a physical USB Dongle, plug the License Dongle into the computer USB port. The License Dongle must be plugged into the SubC host computer for the SubC Software application to launch.
SubC DVR+O / SCI and Inspector
Note: At least 1.53 GB of free disk space is required
If you select a Drive where the SubC application has previously been installed, you’ll be prompted to confirm.
Open your Windows File Explorer → Downloads folder and click “SubC[application].exe” to run the SubC Software installer and follow the prompts through the installation process.

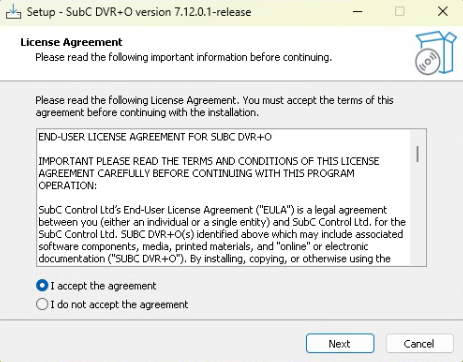

License Agreement: Select “I accept the agreement…” and click Next.

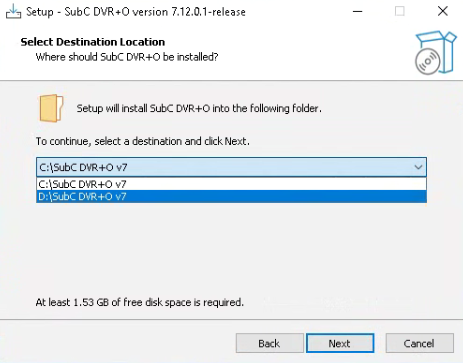

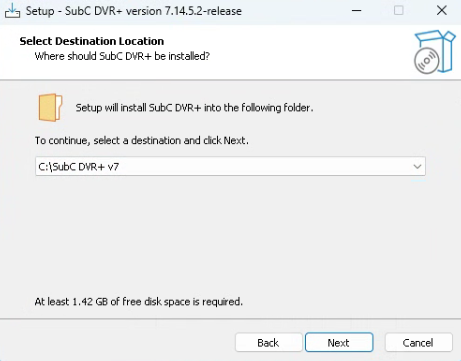

Select Destination Location: Where should SubC application be installed? Default location is: C:\SubC [application name] but you can select a drive other than the default C: drive. Click Next

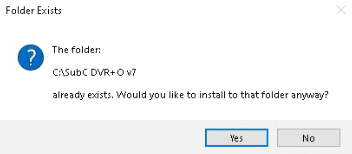

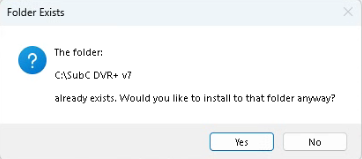

Folder Exists: If you have previously installed the SubC application, you will be prompted to confirm if you want to install in the existing folder.

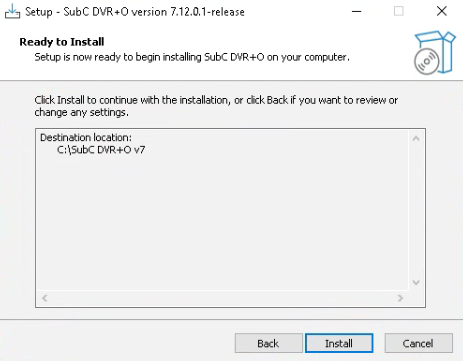

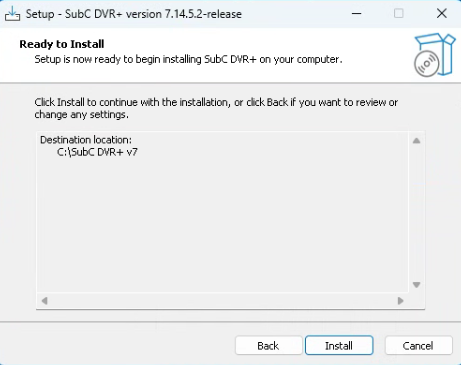

Ready to Install: Click Install to continue with the installation.

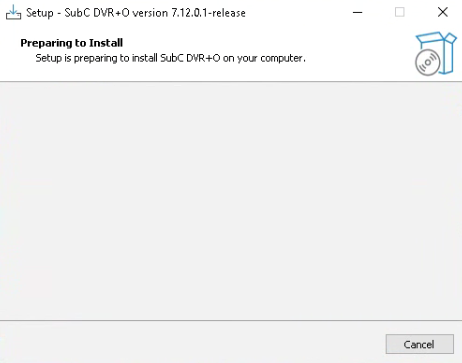

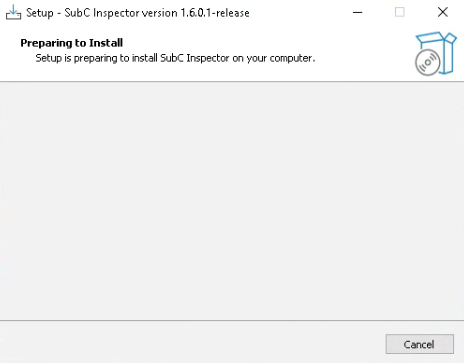

Preparing to Install: Preparing to Install window appears.

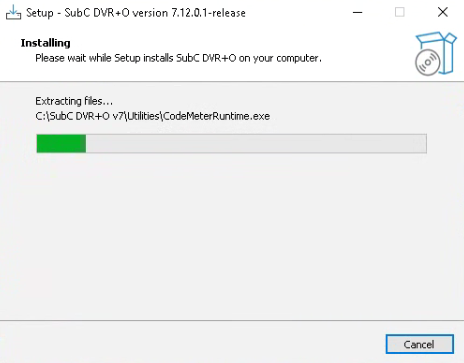

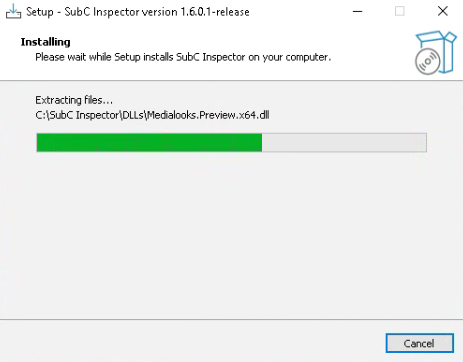

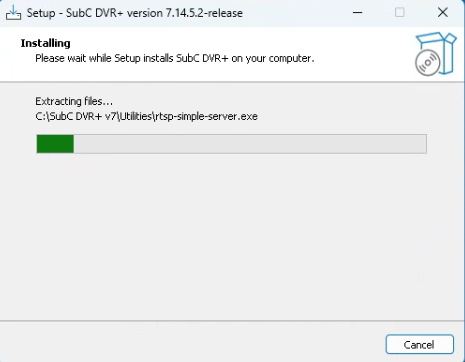

Installing: Please wait while Setup installs SubC application on your computer.

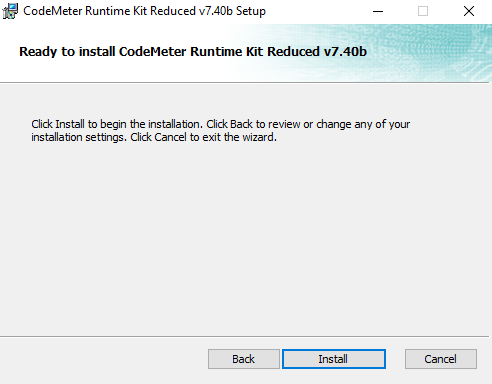

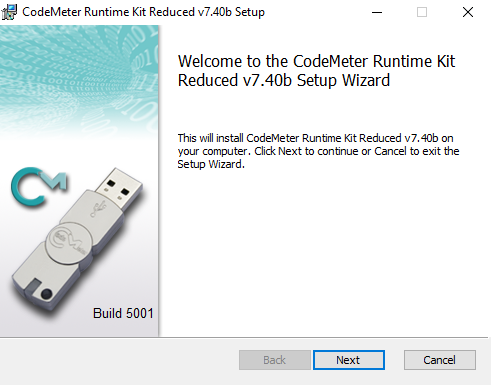

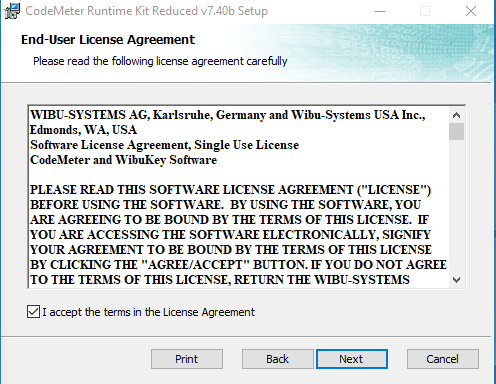

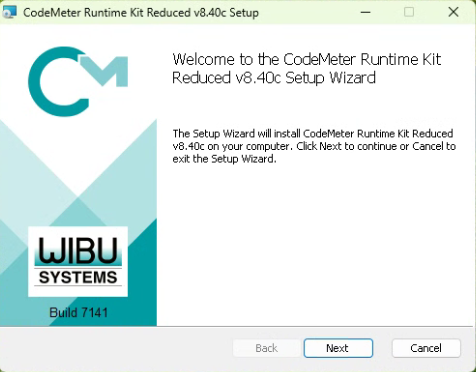

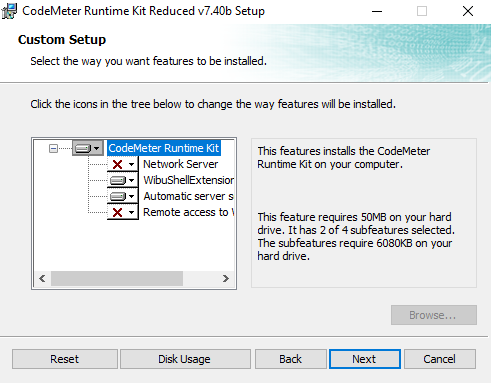

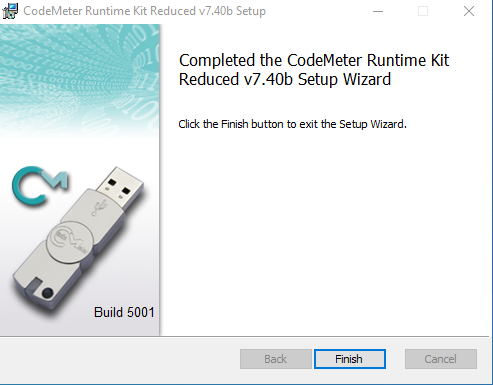

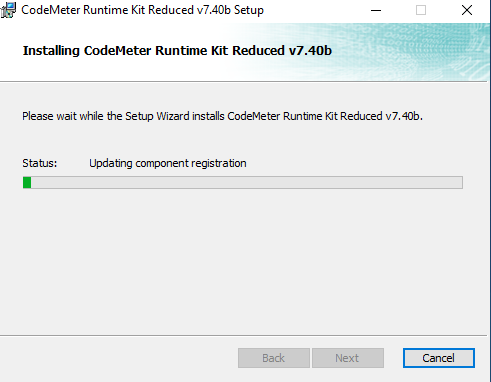

CodeMeter Runtime Kit: The first time and occasionally on subsequent SubC application updates, you may be prompted to run the WIBI CodeMeter Runtime Kit Setup. This pertains to the SubC application License. Click Next and complete this installation as well.

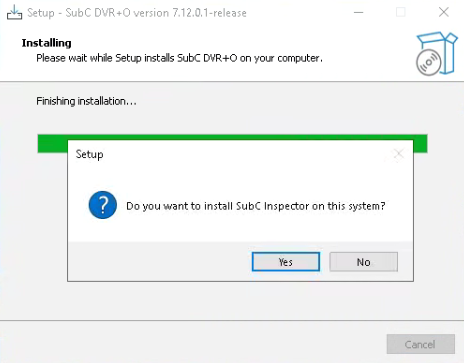

 | You will also be prompted to install SubC Inspector. If you are upgrading DVR+O / SCI to a newer version, it's a good idea to also reinstall Inspector the be sure you have the latest companion version of Inspector as well. If you want to install SubC Inspector on the same system as DVR+O, click Yes If you want to install SubC Inspector on another system (other than the system on which DVR+O / SCI is installed).See SubC Inspector User Manual → Software Setup |
|---|---|

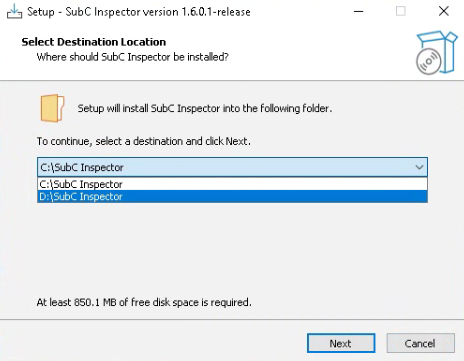

 | Select Destination Location: Where should SubC Inspector be installed? Default location is: C:\Subc Inspector but you can select a drive other than the default C: drive. The application folder name “Subc Inspector” remains the same. |

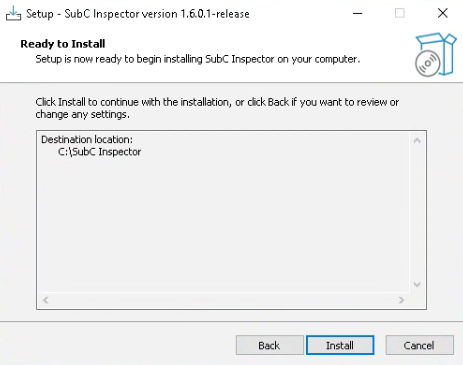

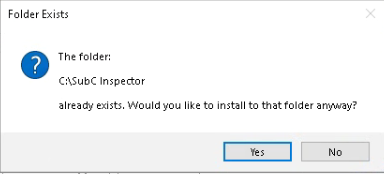

 | Ready to Install: Click Install. Folder Exists: If SubC Inspector has been installed previously on this Drive, you will see this message: “The folder: C:\SubC Inspector already exists. Would you like to install to that folder anyway?” Click Yes  |

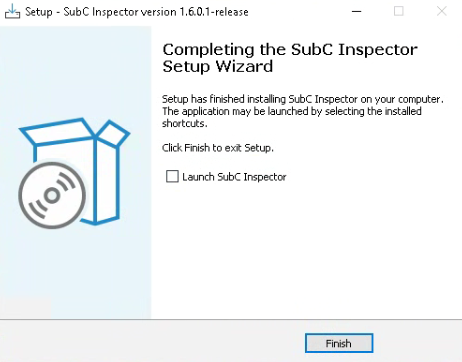

 | You can unselect to skip Launch SubC Inspector for now. Click Finish. |

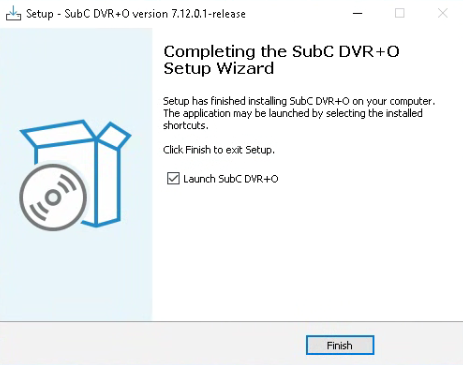

  | Select Launch to open SubC DVR+O /SCI and Click Finish The first time installing SubC DVR+O / SCI on your system a License will need to be in place before the application can open. If you have a physical USB Dongle License, plug it into the computer before launch / opening the SubC application. If you chose to use a Virtual License, unselect Launch and click Finish. Next, see SubC License Request & Update and contact SubC Support to Request & Import the Virtual License. Once the Virtual License is imported, you can then launch SubC application from the shortcut icon on the Windows Desktop. Desktop Icons: The SubC application shortcut access icons will appear on the Windows Desktop.
|
