What's New in DVR+O v7.9.0


“R” flag to identify Rayfin Menu Items.

We’ve added “R” flag on DVR+O / SCI UI Menu items that pertain specifically to connected Rayfin cameras.

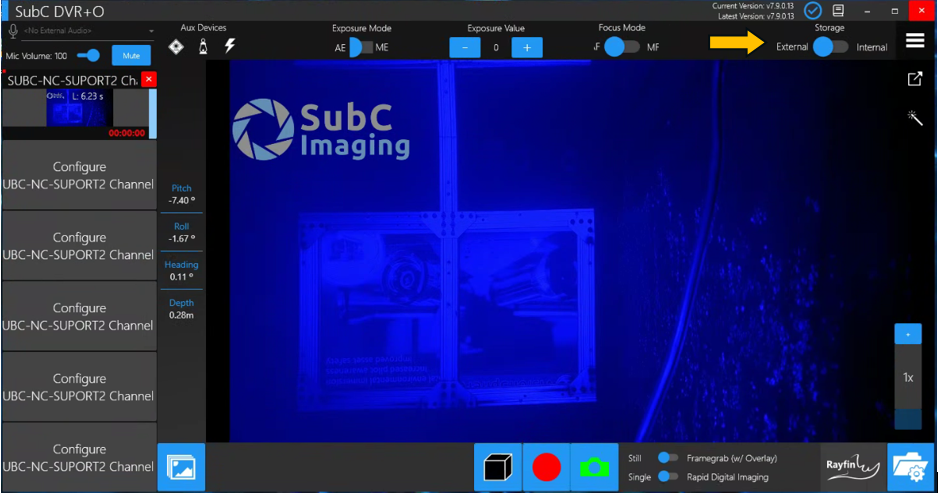

Storage - External / Internal

You can now choose between storing your Stills/RDI and Recordings on a DVR+O / SCI PC drive or directly on the Rayfin camera.

Set Storage to External to save Stills/RDI and Recording files in a folder on the DVR+O / SCI PC or NAS connected drive.

Set Storage to Internal to save Stills/RDI and Recording files in a folder on the Rayfin Camera.

See Operation → Folder / Filename Settings for details.

http://RayfinIP:8080/api/files/wlist/DCIM

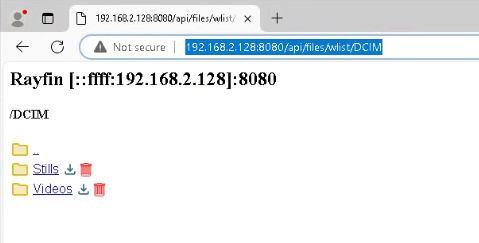

Access Rayfin Camera Internal Storage

Open a browser, and enter the IP Address of the Rayfin camera, plus port 8080 and path /api/files/wlist/DCIM to access saved images and recordings.

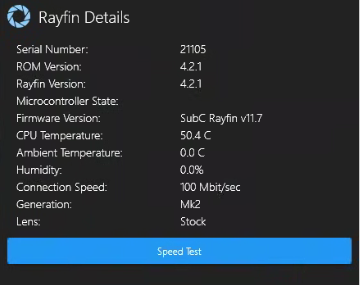

Speed Test

Menu → Channel Info → Rayfin Details

Opens a browser to an application to test the Rayfin Camera Download / Upload speed.

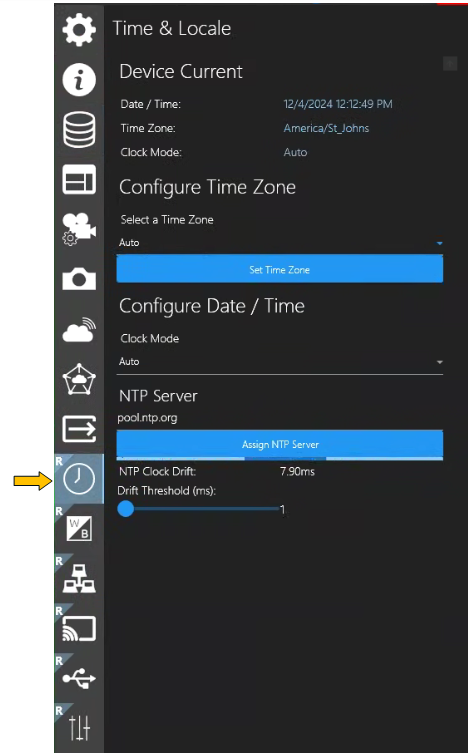

Time & Locale

Menu → Time & Locale

For Rayfin Camera Only

We’ve added a new Time & Local feature to Configure Time Zone and Configure Date / Time on the Rayfin Camera.

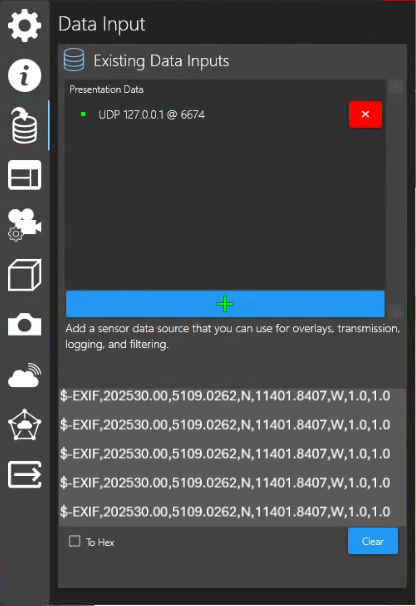

Create an EXIF Data String

Menu → Data Input → Create an EXIF Data String

You can now also create an Input data string that will automatically apply EXIF data to your images by combining multiple data sources into a single string.

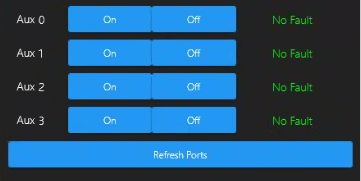

Expansion Board Output

Menu → Rayfin AUX Devices

We’ve added 4 Additional Aux Ports to connect more devices to the Rayfin.

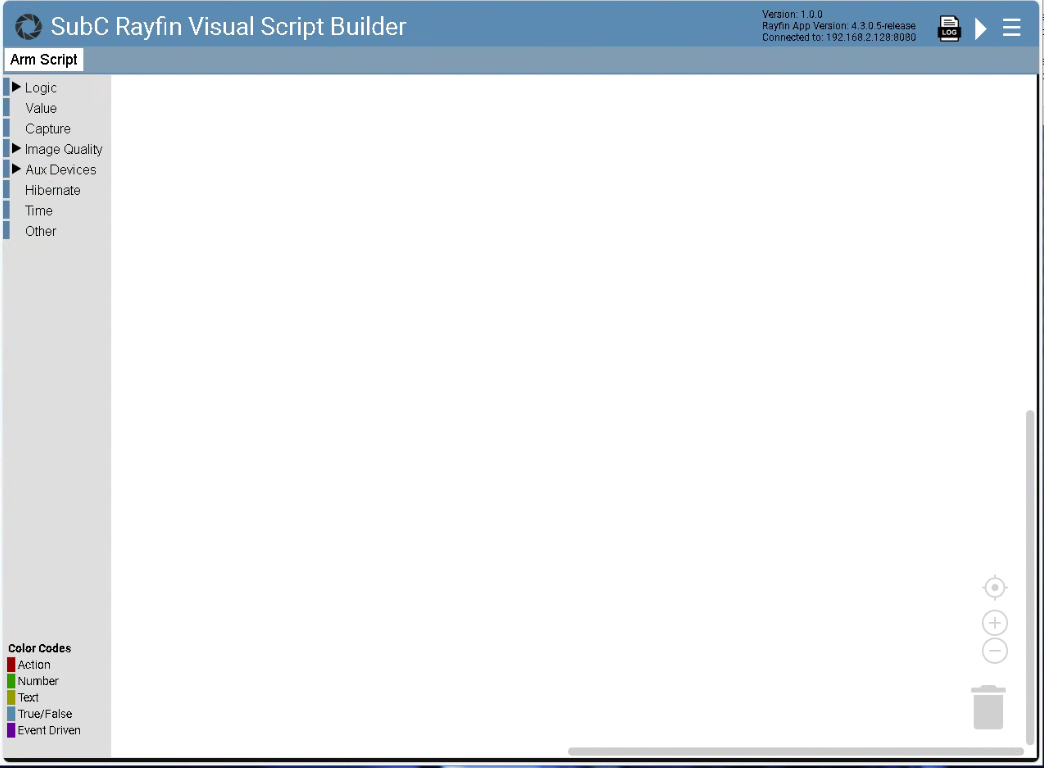

SubC Rayfin Visual Script Builder

Menu → Other Rayfin Settings

We created a new Rayfin Visual Script Builder that uses a visual block object style method of assembling Rayfin API scripts.

See SubC Rayfin Visual Script Builder Manual
