Hybrid strobe and lamp | Plug-and-play with subsea cameras
Special order configuration. Extended lead time for 11Km rated components.
The Aquorea White LED (11Km depth rating) is a high-efficiency subsea lighting solution for deep ocean trenches. This versatile device functions as both a lamp and a strobe. When taking a photo, the LED’s activation time is tightly synchronized with the camera sensor exposure time to ensure the video stream is uninterrupted while collecting photos. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.
|
Light Specifications |
Lamp Output |
Up to 15000 Lumens |
|
Color |
5000K |
|
|
Beam Angle |
80˚ (circular) |
|
|
Strobe Output |
32000+ Lumens |
|
|
Reaction Speed |
Approx. 190 Microseconds |
|
|
Electrical |
Efficiency |
180 Lumen/Watt @ 15˚C water |
|
Protection |
Short Circuit, UV-OV-RV, ESD, OT |
|
|
Thermal Protection |
Auto Dim/Shutoff |
|
|
Control |
Serial RS-485 |
|
|
Strobe |
TTL 5V (active high) |
|
|
Power |
18 - 32 Vdc / 48 - 120 Watts |
|
|
Mechanical |
Min./Max. Temperature |
-10˚C - +20˚C in water |
|
Materials |
Glass, ABS |
|
|
Weight |
10.21Kg (in air) | 2.90Kg (in water) |
|
|
Depth Rating |
11000m |
|
|

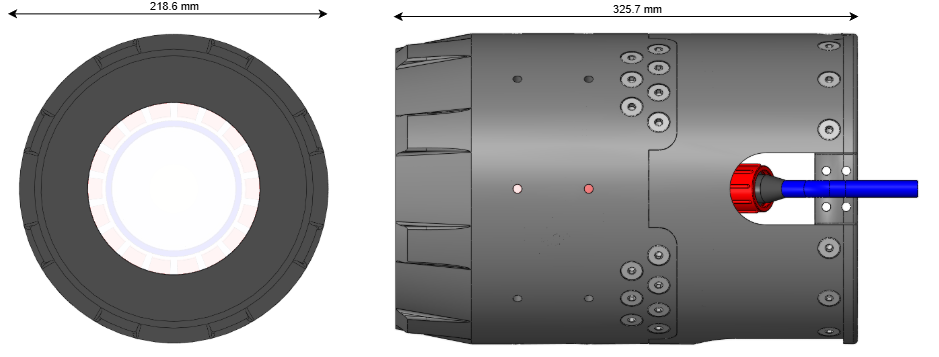

Dimensions |
Ø 218.6mm | 325.7mm |
WARNING: Not designed for manned submersibles. Remotely operated or robotic vehicles only.
STEP Files and Drawings
|
Pin# |
BH5M (Ti) + DLSA-F |
|
1 |
GND |
|
2 |
PWR |
|
3 |
Strobe enable |
|
4 |
RS-485 B(+) |
|
5 |
RS-485 A(-) |
