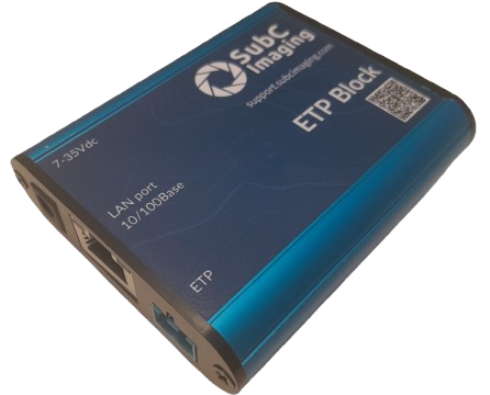

The ETP Block provides seamless connectivity to the SubC Rayfin Uplink camera, offering live HD video streaming, remote control, and media downloading capabilities over a twisted pair cable. With a maximum transmission distance of 800 meters over coax cable, the ETP Block is designed for robust performance and reliability in underwater applications.
-
Live HD Video Streaming: This device connects to a SubC Rayfin Uplink camera for real-time video, digital stills, data, and communications over a twisted pair.
-
Remote Control and Media Download: Control camera functions and download media remotely through Rayfin SCI.
-
Extended Cable Length: Supports transmission over a twisted pair/Coaxial cable up to 800 meters.
-
Built-In Protection: Includes ESD, over-voltage, and short circuit protection for enhanced durability.
|
Specification |
Value |
|---|---|
|
Maximum Transfer Speed |
Up to 72 Mbit/s (dependent on cable type and length) |
|
Transmission Distance |
800 meters |
|
Input Voltage |
7 - 35 VDC |
|
Power Consumption |
< 3 Watts |
|
Material |
Anodized Aluminum |
|
Weight |
135 grams |
|
Ambient operating temp |
-20°C to 30°C |
|
Protection |
ESD, Over-voltage, Short Circuit |
|
# |

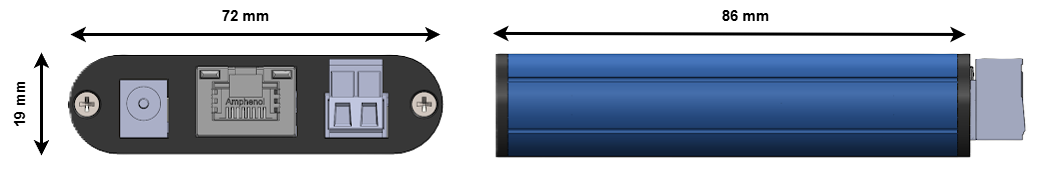

RJ45 100 Base Ethernet |

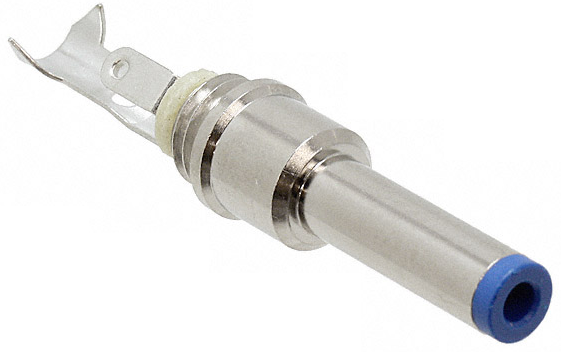

Power Jack 2.00mm ID, 5.50mm OD |
ETP Socket Ethernet over Twisted Pair |
|
1 |
(White/Orange) Rx+ [10/100] |
GND |
ETP1 |
|
2 |
(Orange) Rx- [10/100] |
PWR |
ETP2 |
|
3 |
(White/Green) Tx+ [10/100] |
Plug: S1017 |
Plug: TBP01P1-508-02BE |
|
4 |
NC |
||
|
5 |
NC |
||
|
6 |
(Green) TX- [10/100] |
||
|
7 |
NC |
||
|
8 |
NC |
RJ45 lights
-
Yellow: Network Activity (ACT) – Flashes when there is data transmission over the network.
-
Green: Signal Transmission – Flashes when a connection is established
