Screen Capture

Screen Capture feature allows you to select your computer screen content (Screen Capture) or a specific window (Window Capture) that is open on the computer as Input to a Channel.

1. Back arrow – Returns to the Input selection screen.

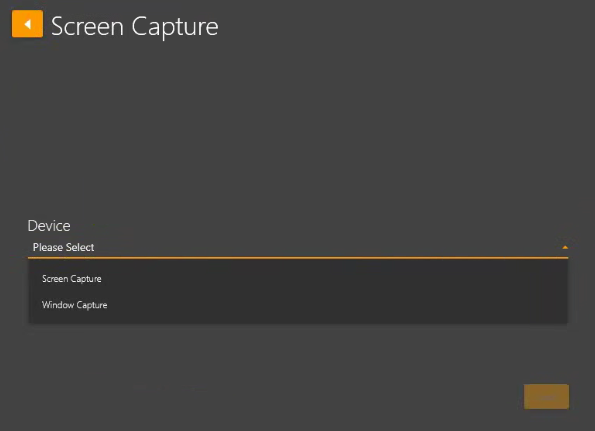

2. Device - Select Screen Capture or Window Capture.

Screen Capture – Captures the full computer monitor display. Click Start

Window Capture – Captures a specific window on your computer monitor display. (For example, you could select a window that has a still image, a local running video .mp4 video file, or an internet streaming video on a platform such as YouTube)

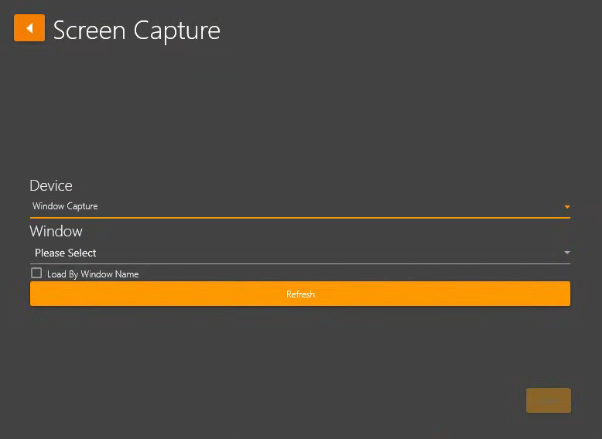

1. Device – Select Window Capture.

2. Window - Click the “Please Select” field to see all available open windows on your computer screen.

3. Load By Window Name – Click this checkbox field to show window names instead of process ID.

4. Refresh – Refreshes all open windows on your screen to ensure they appear in the “Please Select” drop-down list.

5. Start button – Click to assign the selected window as Input to the Channel.

When using the Window Capture option, keep the window open, do not minimized the window or else the Channel screen will stop displaying the window video/image.
