Aquorea-White-LED-1xMINK - (SUBC52-LKH-AQUOREA)
Hybrid strobe and lamp | Plug-and-play with subsea cameras
Special order configuration. Non stock bulkheads.
The Aquorea White LED is a high-efficiency subsea lighting solution for deep ocean trenches. This versatile device functions as both a lamp and a strobe. When taking a photo, the LED’s activation time is tightly synchronized with the camera sensor exposure time to ensure the video stream is uninterrupted while collecting photos. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.
Light Specifications | Lamp Output | Up to 15000 Lumens |
Colour | 5000K | |
Beam Angle | 80˚ (circular) | |
Strobe Output | 32000+ Lumens | |
Reaction Speed | Approx. 190 Microseconds | |
Electrical | Efficiency | 180 Lumen/Watt @ 15˚C water |
Protection | Short Circuit, UV-OV-RV, ESD, OT | |
Thermal Protection | Auto Dim/Shutoff | |
Control | Serial RS-485 | |
Strobe | TTL 5V (active high) | |
Power | 18 - 32 Vdc / 48 - 120 Watts | |
Mechanical | Min./Max. Temperature | -10˚C - +20˚C in water |
Materials | Titanium, Sapphire | |
Weight | Estimated: 1.05Kg (in water) | 1.70Kg (in air) | |
Depth Rating | 6000m | |

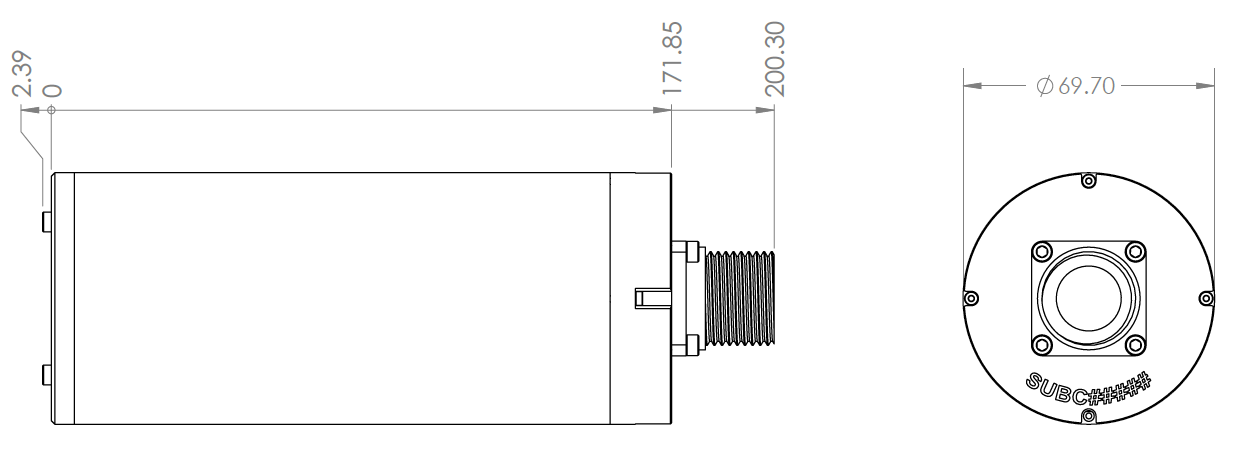

Dimensions | Ø 69.7 | 200.3mm |
WARNING: Not designed for manned submersibles. Remotely operated or robotic vehicles only.
Pin# | MINK-5-FCR-L (Ti) |
1 | GND |
2 | PWR |
3 | Strobe enable |
4 | RS-485 B(+) |
5 | RS-485 A(-) |
