Hybrid strobe and lamp | Plug-and-play with subsea cameras
Special order configuration. Design modifications may be needed per each AUV type.
Designed as an AUV payload, this is a high-efficiency, TTL synchronized subsea LED that operates as both a lamp and a strobe. The Aquorea can simultaneously operate as a lamp and strobe. When taking a photo, the LED’s activation time is tightly synchronized with the camera sensor exposure time to ensure the video stream is uninterrupted while collecting photos. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.
|
Light Specifications |
Lamp Output |
Up to 15000 Lumens |
|
Colour |
5000K |
|
|
Beam Angle |
80˚ (circular) |
|
|
Strobe Output |
32000+ Lumens |
|
|
Reaction Speed |
Approx. 190 Microseconds |
|
|
Electrical |
Efficiency |
180 Lumen/Watt @ 15˚C water |
|
Protection |
Short Circuit, UV-OV-RV, ESD, OT |
|
|
Thermal Protection |
Auto Dim/Shutoff |
|
|
Control |
Serial RS-485 |
|
|
Strobe |
TTL 5V (active high) |
|
|
Power |
18 - 32 Vdc / 48 - 120 Watts |
|
|

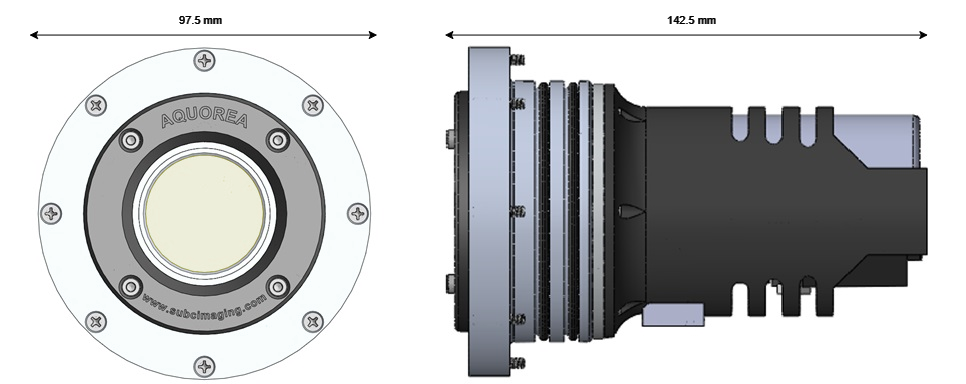

Mechanical |
Min./Max. Temperature |
-10˚C - +20˚C in water |
|
Materials |
Anodized 6061-T6 Aluminium, Delrin, Sapphire |
|
|
Weight |
907 g (including harnesses) |
|
|
Depth Rating |
300m |
|
# |

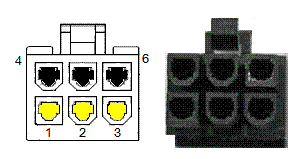

ATX 6-Pin |
Part No. 794954-6 |
Power Bare wire |
|
1 |
GND |
|
GND |
|
2 |
PWR |
PWR |
|
|
3 |
Strobe enable |
|
|
|
4 |
RS-485 B(+) |
||
|
5 |
RS-485 A(-) |
||
|
6 |
NC 1 |
-
Not connected
