SUBC59-MCBH5MDP: Dual Skate Mk2 Parallel Line Lasers Datasheet

Dual Dimmable Skate Mk2 Parallel Line Laser Mount | 3D Modelling | Metrology

The Skate Laser is a precision subsea laser designed for subsea applications that require a high quality image reference such as 3D modelling, machine vision, pipeline inspections, or marine species measurements.

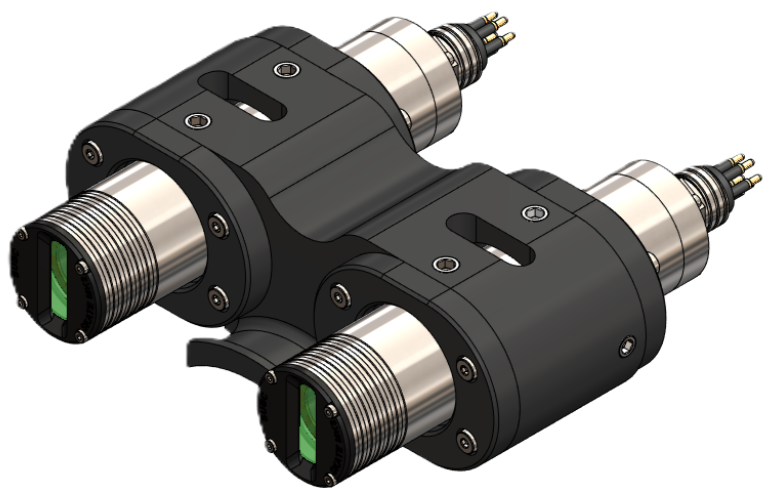

Two SubC Skate Line lasers are precision mounted and aligned to provide parallel lines for scaling measurements. Our new Dual Skate Laser Mount allow for highly precise measurements and analysis of subsea structures and/or species.

The lasers are qualified for shipping within the USA, Canada and internationally.

Specifications		Skate Line Laser
Individual Laser Module Specification SUBC59-MCBH5MLN	Uniformity	+ / -20%_{(related to average power, within 80% of the line)}
	Pattern Type	53.6° - Line
	Focus (Depth of Field)	0.1m - 5m _{(SubC can adjust the focus at factory}
	Laser Power For Classification	10mW Peak (Individual Laser Specification)
	Wavelength	520nm ±10nm (Green)
	Class	3R (avoid direct eye exposure)
Electrical	Input Voltage	12-30 Vdc (OV cutoff > 30 Vdc)
	Power Consumption	3W / Laser (6W Total)
	Serial Control	RS485 @9600
	Diode Temp. Protection	Auto dimming after 47.5˚C diode temperature and cutoff at 49.5˚C
Mechanical	Material (Lasers)	Sapphire, Grade 5 Titanium

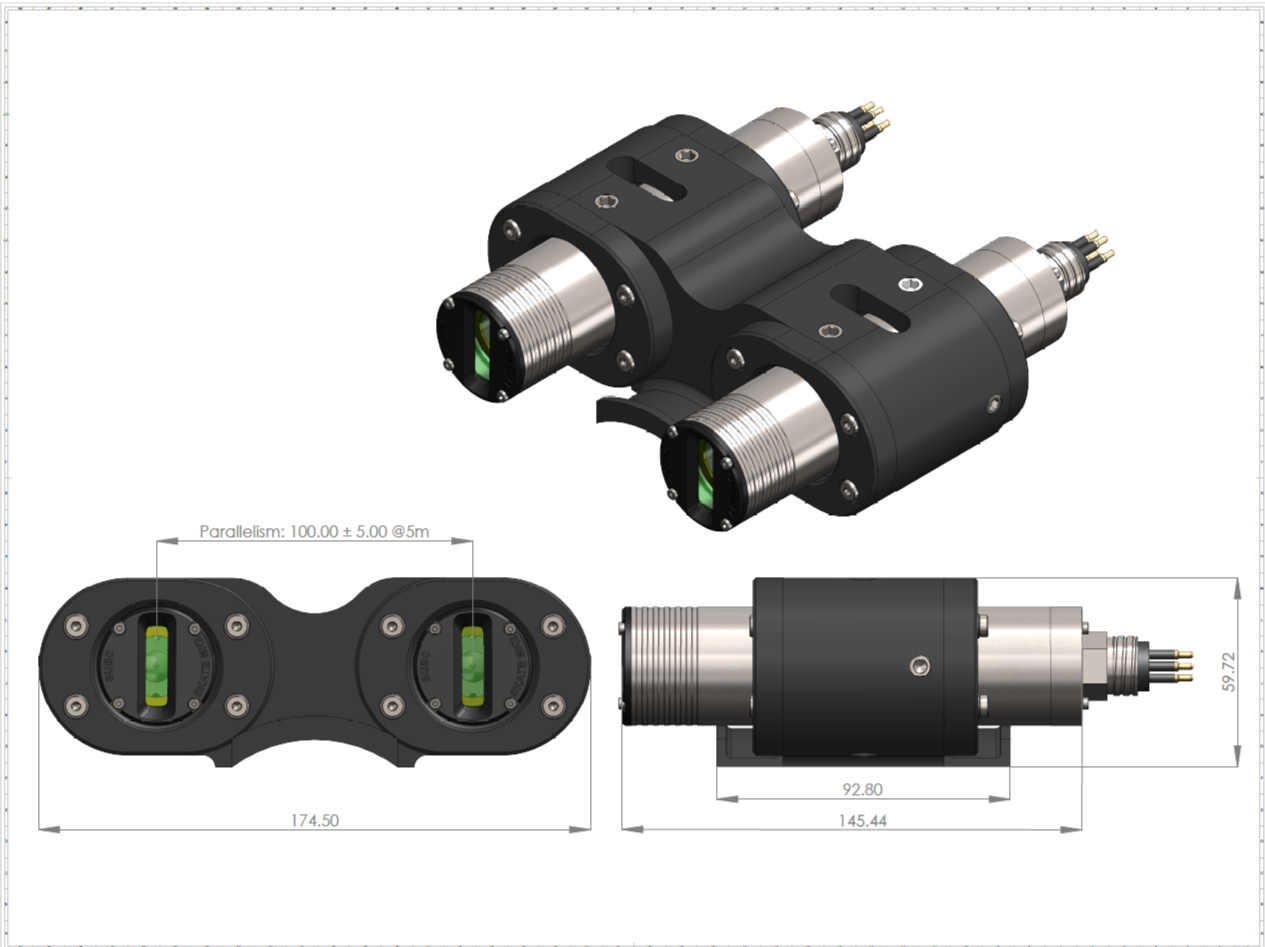

	Parallelism	100mm ± 5mm @ 5m
	Material (Dual Holder)	Acetron GP Acetal
	Depth Rating	6000m
	Length Without Connectors	145.5mm
	Width	174.5mm
	Height	59.7mm
	Weight (In Air)	1.76Kg
	Weight (In Water)	0.95Kg
	Operating Temperature	-20°C to +30°C
	Storage Temperature	-20°C to +50°C
TTL	TTL Control	Can work both inverted and non-inverted TTL depending on the setting. The default is inverted TTL. If no TTL is present, the laser defaults ON.
	TTL Max. Frequency	Up to 100 KHz
	TTL Low	0 - 1.5 VDC
	TTL High	5 - 50 VDC

Laser mount comes pre-aligned with pre-torqued fasteners, do not adjust

Do not apply excessive force to the individual lasers

Mount using hose clams in the provided zone only

STEP FILES: SUBC59-MCBH5MDP: Dual Skate Mk2 Parallel Line Lasers

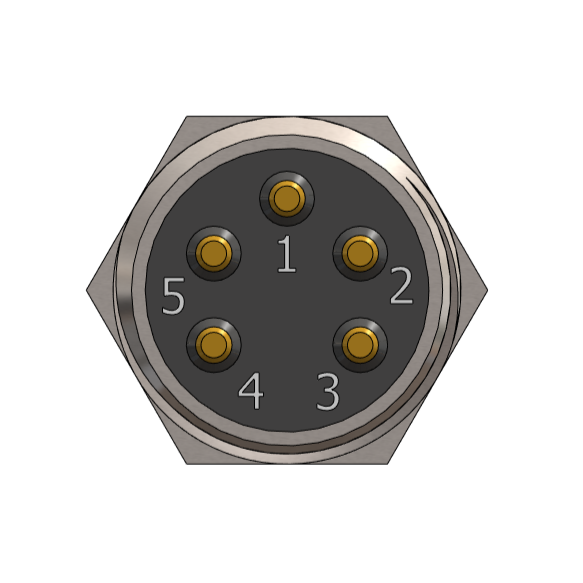

PIN #	MCBH5M (Titanium)
1	GND
2	12 - 30 Vdc
3	TTL Modulation
4	RS-485 B(-)
5	RS-485 A(+)
