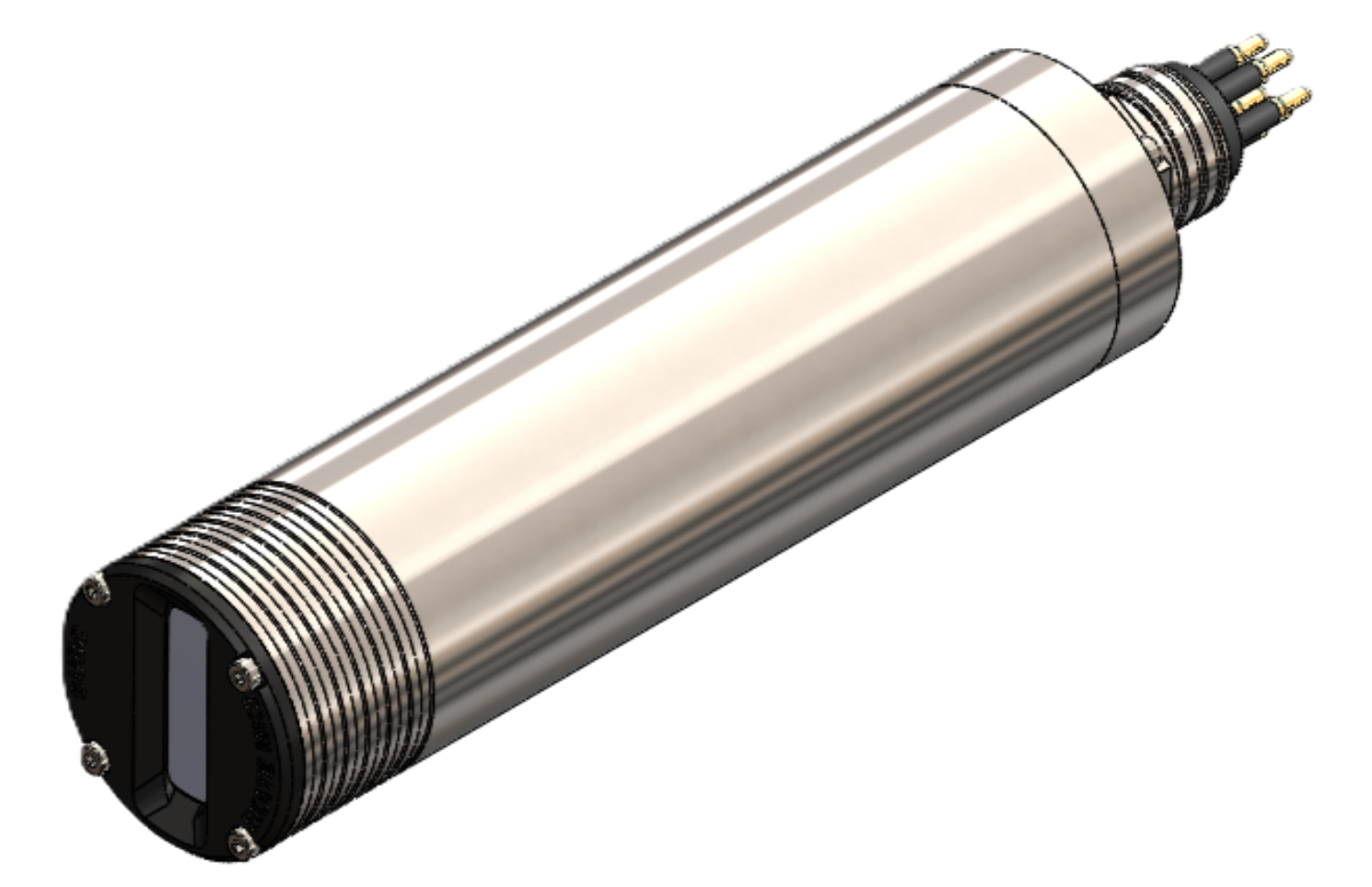

SUBC59-MCBH5MLN: Skate Mk2 Line Laser Datasheet

Skate Mk2 Line Laser | 3D Modelling | Metrology

The Skate Laser is a precision subsea laser designed for subsea applications that require a high quality image reference such as 3D modelling, machine vision, pipeline inspections, or marine species measurements.

It is available in various patterns and beam angles, including solid line beam or dotted grid pattern. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.

This laser is qualified for shipping within the USA, Canada and internationally.

Specifications		Skate Line Laser
Laser	Uniformity	+ / -20%_{(related to average power, within 80% of the line)}
	Pattern Type	53.6° - Line
	Focus (Depth of Field)	0.1m - 5m _{(SubC can adjust the focus at factory)}
	Laser Power For Classification	10mW Peak
	Wavelength	520nm ±10nm (Green)
	Class	3R (avoid direct eye exposure)
Electrical	Input Voltage	12-30 Vdc (OV cutoff > 30 Vdc)
	Power Consumption	3W
	Serial Control	RS485 @9600
	Diode Temp. Protection	Auto dimming after 47.5˚C diode temperature and cutoff at 49.5˚C
Mechanical	Material	Sapphire, Grade 5 Titanium
	Depth Rating	6000m

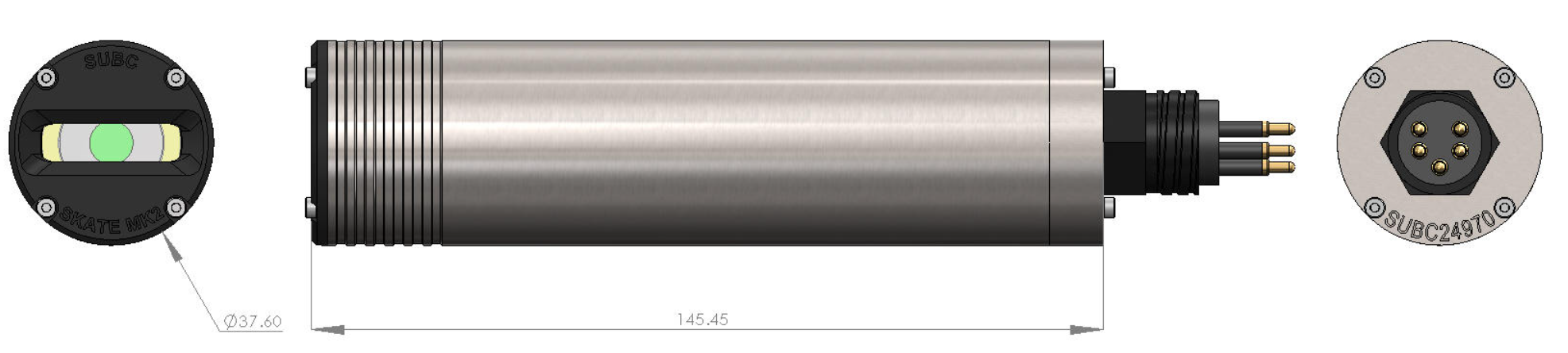

	Diameter	Ø37.6mm
	Length Without Connector	145.5mm
	Weight (In Air)	0.59Kg
	Weight (In Water)	0.40Kg
	Operating Temperature	-20°C to +30°C
	Storage Temperature	-20°C to +50°C
TTL	TTL Control	Can work both inverted and non-inverted TTL depending on the setting. The default is inverted TTL. If no TTL is present, the laser defaults ON.
	TTL Max. Frequency	Up to 100 KHz
	TTL Low	0 - 1.5 VDC
	TTL High	5 - 50 VDC

STEP FILES: SUBC59-MCBH5MLN: Skate Mk2 line Laser

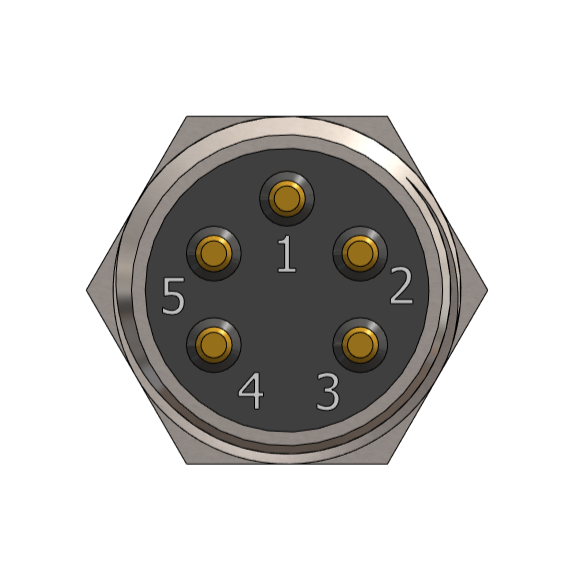

PIN #	MCBH5M (Titanium)
1	GND
2	12 - 30 Vdc
3	TTL Modulation
4	RS-485 B(-)
5	RS-485 A(+)
