SUBC59-MCBH5MGR: Skate Mk2 Grid Laser Datasheet
Skate Mk2 Grid Laser | 3D Modelling | Metrology

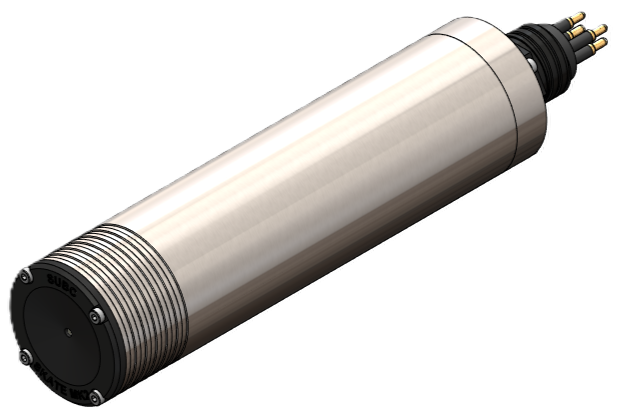

The Skate Laser is a precision subsea laser designed for subsea applications that require a high quality image reference such as 3D modelling, machine vision, pipeline inspections, or marine species measurements.
It is available in various patterns and beam angles, including solid line beam or dotted grid pattern. SubC LEDs and lasers are plug-and-play when coupled with the Rayfin camera.
This laser is qualified for shipping within the USA, Canada and internationally.
Specifications | Skate Line Laser | |
|---|---|---|
Laser | Uniformity | Dot spacing 24mm @ 1m distance |
Pattern Type | 17.1˚ - 10 x 10 dot grid | |
Focus (Depth of Field) | 0.1m - 5m (SubC can adjust the focus at factory) | |
Laser Power For Classification | 4.5mW Peak | |
Wavelength | 520nm ±10nm (Green) | |
Class | 3R (avoid direct eye exposure) | |
Electrical | Input Voltage | 12-30 Vdc (OV cutoff > 30 Vdc) |
Power Consumption | 3W | |
Serial Control | RS485 @9600 | |
Diode Temp. Protection | Auto dimming after 47.5˚C diode temperature and cutoff at 49.5˚C | |
Mechanical | Material | Sapphire, Grade 5 Titanium |
Depth Rating | 6000m | |

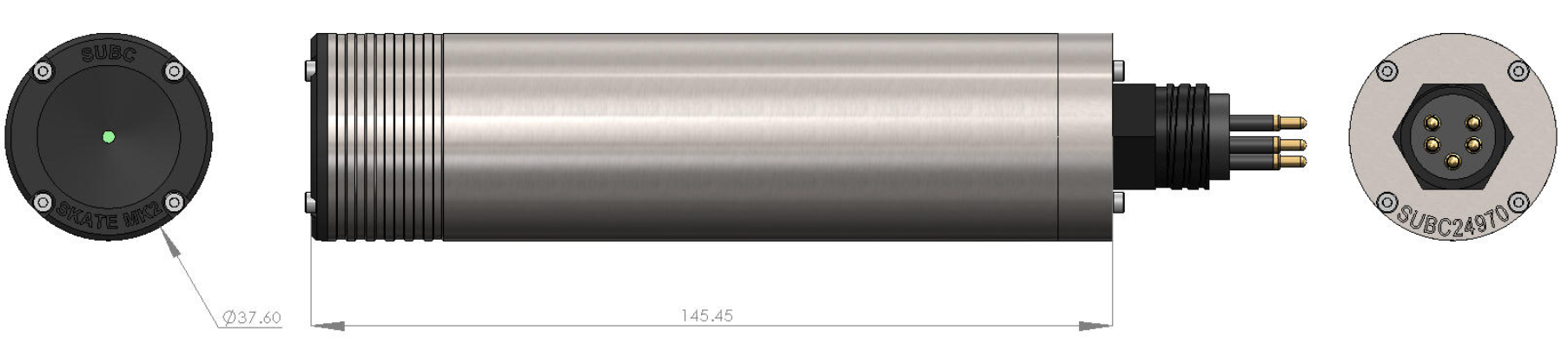

Diameter | Ø37.6mm | |
Length Without Connector | 145.5mm | |
Weight (In Air) | 0.59Kg | |
Weight (In Water) | 0.40Kg | |
Operating Temperature | -20°C to +30°C | |
Storage Temperature | -20°C to +50°C | |
TTL | TTL Control | Can work both inverted and non-inverted TTL depending on the setting. |
TTL Max. Frequency | Up to 100 KHz | |
TTL Low | 0 - 1.5 VDC | |
TTL High | 5 - 50 VDC | |

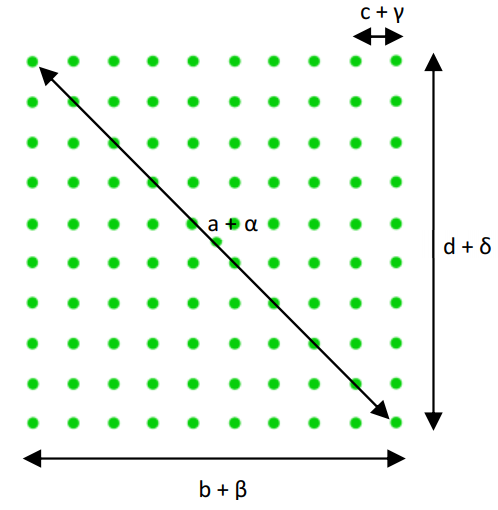

Pattern Angles (In Water): | |
Pattern Size in Water (1000mm) | Pattern Angles (Degrees) |
a = 300mm | α = 17.1° |
b = 212mm | β = 12.1° |
c = 24mm | γ = 1.3° |
d = 212mm | δ = 12.1° |
STEP FILES: SUBC59-MCBH5MGR: Skate Mk2 Grid Laser

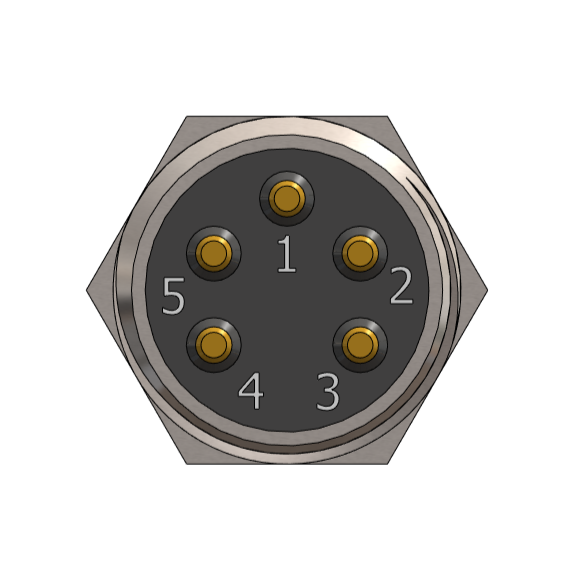

PIN # | MCBH5M (Titanium) | |
|---|---|---|
1 | GND |  |
2 | 12 - 30 Vdc | |
3 | TTL Modulation | |
4 | RS-485 B(-) | |
5 | RS-485 A(+) | |
