Configurations
|

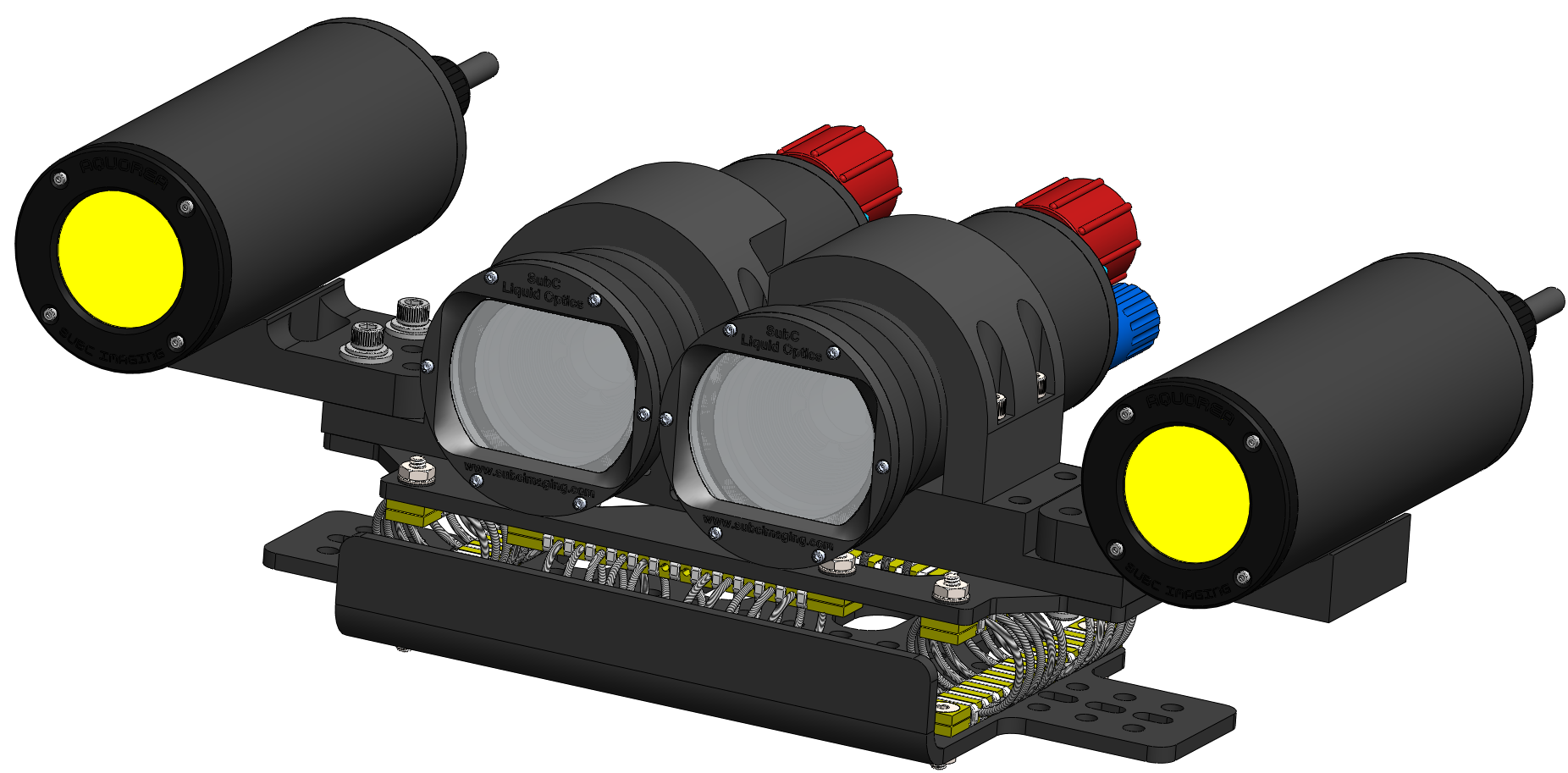

Integrated LED’s:
|

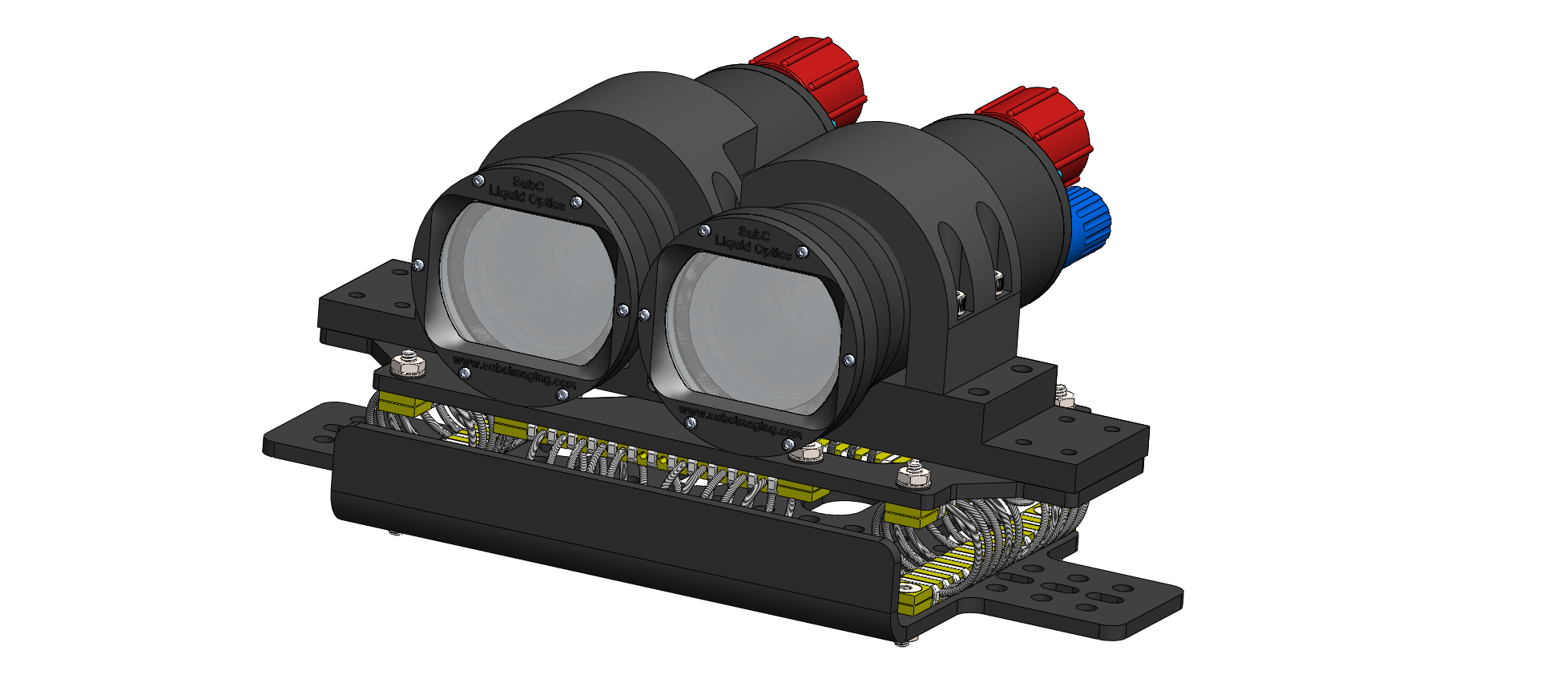

Camera Only:
|
Separate ROV LED Mounts:
|
Specifications:
|
|||
|
Equipment |
Camera’s |
Quantity (x2) |
Rayfin-Mk2-Micro-HDE-500-DBH13-LO |
|
LED’s |
Quantity (x2) |
Aquorea-Mk3-500m-MCBH5-beam(80) |
|
|
Features |
Parallax |
Fixed to 80mm |
|
|
Camera Installation and Alignment |
Slide in, slide out camera installation |
||
|
Keyed alignment tool for consistent setup |
|||
|
Clamping using tension bolts |
|||
|
LED Installation and Pivoting |
Easy and simple LED installation and removal using hose clamps |
||
|
Fixed direct camera mounting, for a single payload installation |
|||
|

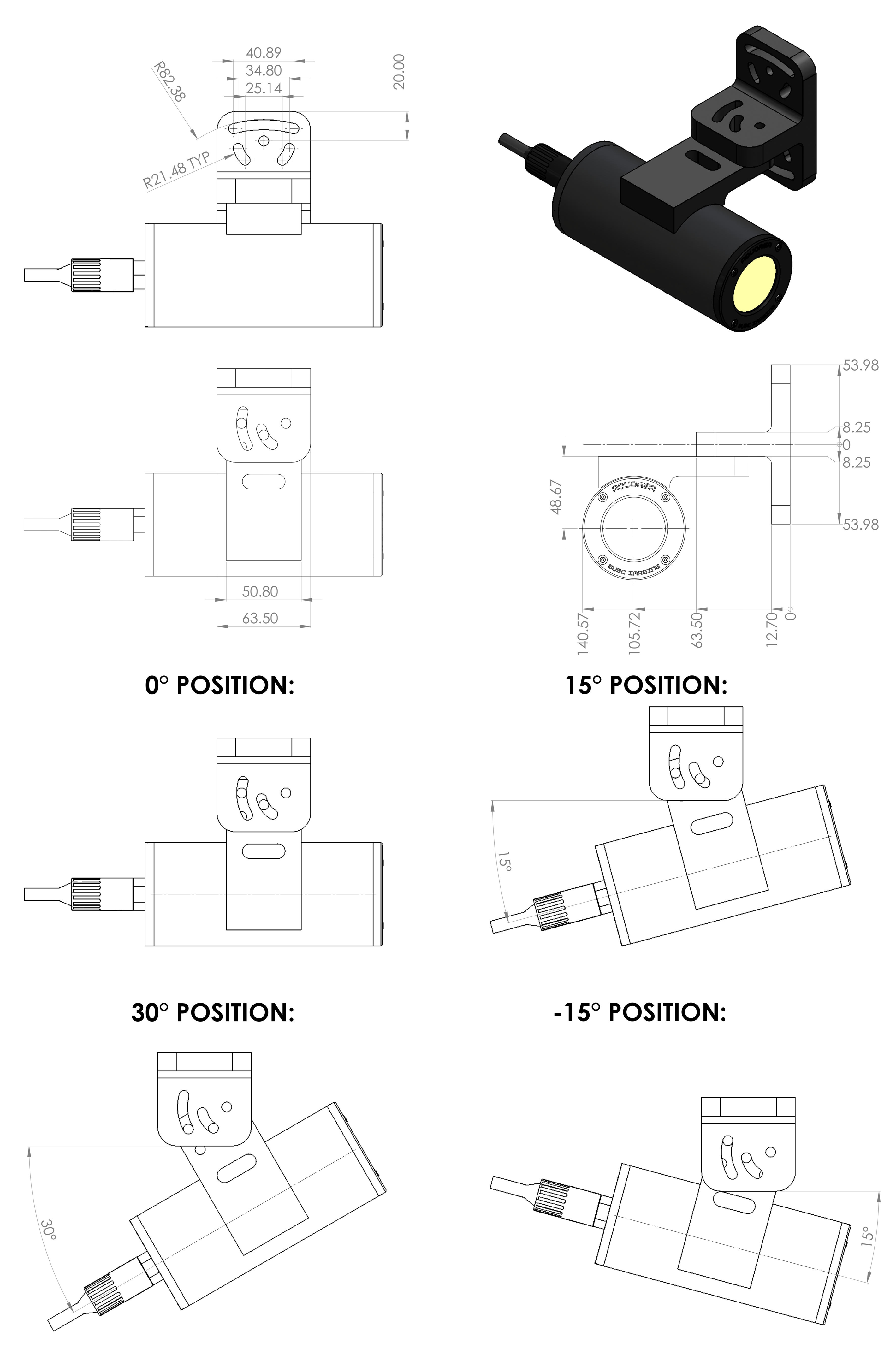

Universal mounting adapter, continuously adjustable LED pivoting of -15 Deg to +30 Deg |
|||
|
Vibration Isolation |
Stainless steel wire rope vibration isolators for ROV integration, offered in Suspended, Base Mounted and ROV Arm Positioning configurations to suit varied platform and mounting requirements |
||
|
Effectively suppresses structural vibration and lens jitter to deliver stable, accurately focused imaging and video output. Adaptable to a wide range of ROV platforms and mission profiles |
|||
|
Rigidity |
Single piece Anodized Aluminum mounting plate |
||
|
Big bolt hardware for easy assembly and added stability in the field |
|||
|
Material |
Hard Coat Anodized Aluminum and Acetal Delrin |
||
|
316 stainless steel fasteners |
|||
|
Panel Mounting |
Mounting |
Universal flat panel mounting and vibration isolator for use on ROV payload skid, or payload bracket |
|
|
Weights |
Stereo with vibration isolation (No LED’s) |
In Water |
2.09 Kg (Mount + Cameras + Vibration Isolator) |
|
In Air |
4.47 Kg (Mount + Cameras + Vibration Isolator) |
||
|
Stereo with vibration isolation (With LED’s) |
In Water |
3.07 Kg (Mount + Cameras + LEDs + Vibration Isolator) |
|
|
In Air |
6.87 Kg (Mount + Cameras + LEDs + Vibration Isolator) |
||
|
ROV Mounted LED (1 Side) |
In Water |
0.60 Kg (Mount + LED) |
|
|
In Air |
1.60 Kg (Mount + LED) |
||
LED Mounting - Independent
|
|
LED Mounting - Coupled
|
|

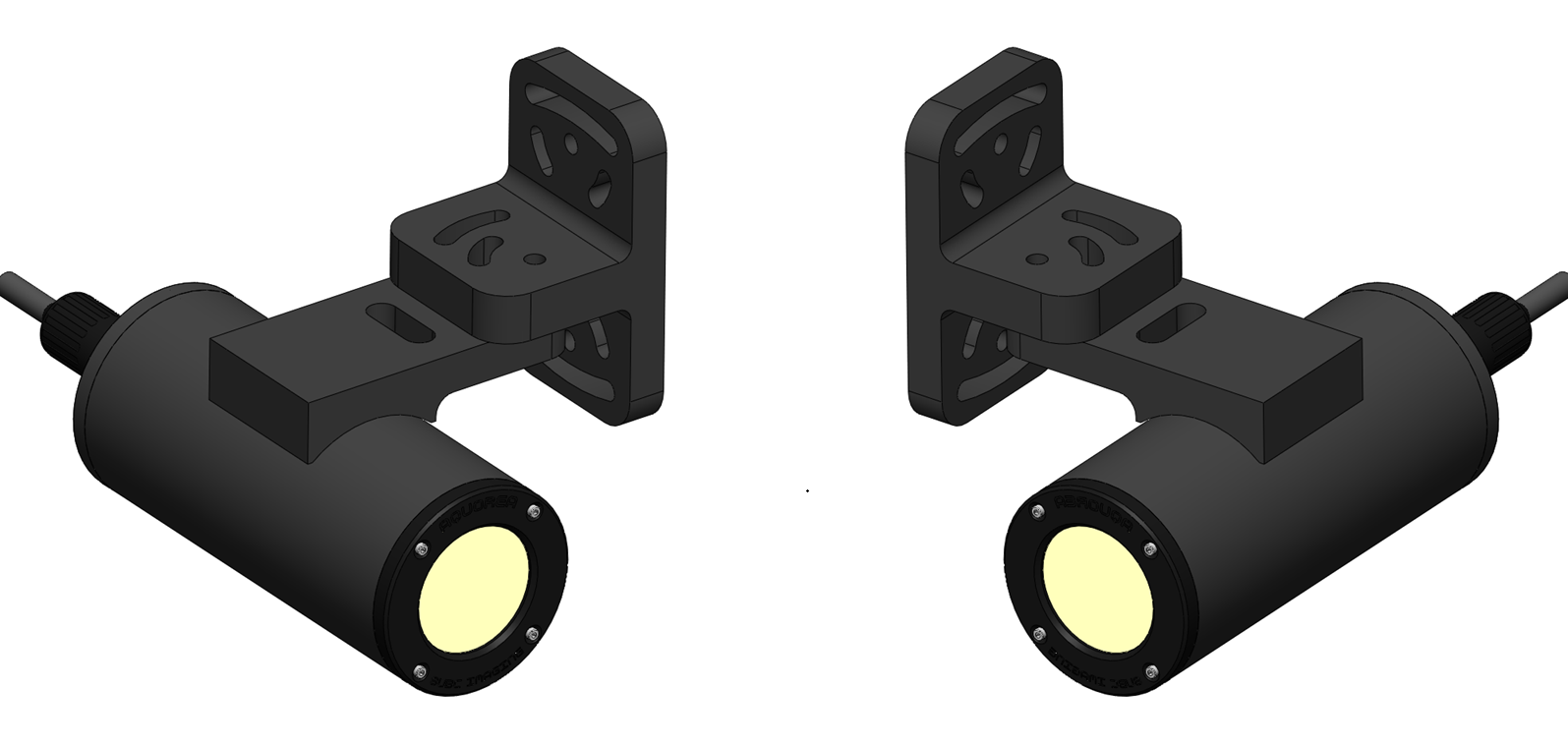

Independent ROV Mounted LEDs:
|
|
